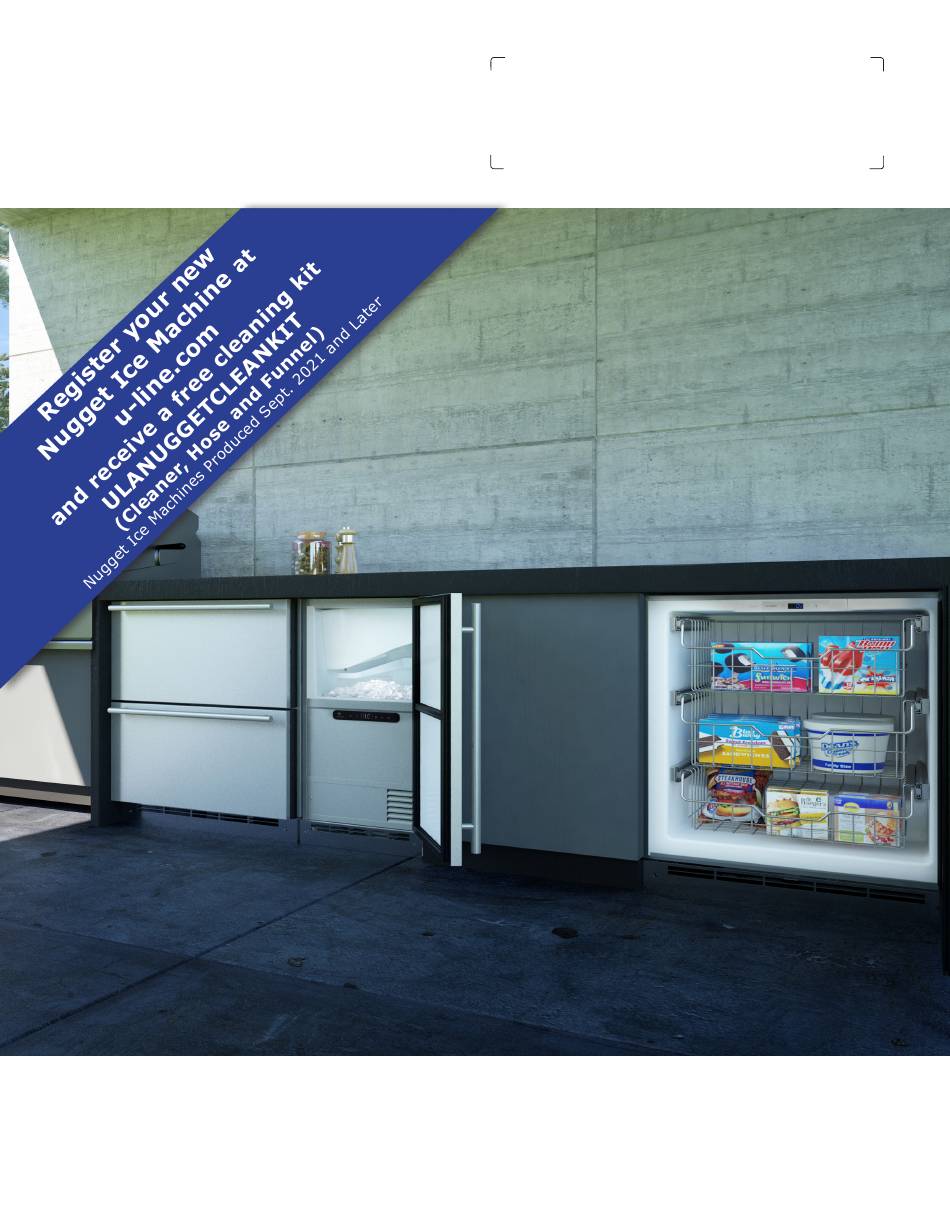

- Page 1 QUICK START GUIDE Outdoor Collection 30634 Rev_I 30634 Rev_A...
- Page 2 U-Line Customer Care must be contacted immediately at +1.414.354.0300. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.
-
Page 3: Table Of Contents
For more details, see the complete User Guide & Service Manual on u-line.com. 1 year + 1 with registration This product is eligible for an additional one-year warranty at no charge when you register your product on u-line.com. See complete warranty for details. -
Page 4: Safety And Warning
QUICK START GUIDE Safety and Warning DANGER NOTICE Your product may contain R600a (Isobutane) Please read all instructions before installing, which is a flammable hydrocarbon. To confirm, operating, or servicing the appliance. check serial tag inside of unit. It is safe for regular use. -
Page 5: Environmental Requirements
QUICK START GUIDE Environmental Requirements NOTICE Electrical installation must observe all state and This model is intended for indoor/interior applications only local codes. This unit requires connection to a and is not to be used in installations that are open/ grounded (three-prong), polarized receptacle exposed to natural elements. -
Page 6: Water Hookup
The gasket The water valve uses a standard 1/4” (6.35 mm) provides an adequate seal – other materials compression fitting. U-Line recommends using accessory could cause blockage of the valve. water hook up kit – part # ULAWATERHOOKUP. The kit includes a 10’... - Page 7 QUICK START GUIDE Break away filler feature in bushing with flat screwdriver. Remove with flat screwdriver Thread water line through back panel hole (with bushing). Locate water valve inlet and connect to valve. Turn on water supply and check for leaks. Reinstall back panel.
- Page 8 Plastic may crack compression fitting. or rupture with age and cause damage to your U-Line recommends using accessory water hookup kit - home. Part # 80-54674-00. The kit includes a 10’ (3 m) braided flexible water supply line and a brass hose fitting.
- Page 9 QUICK START GUIDE USER GUIDE u-line.com 3. Locate water 8. Install retaining clip. valve in the front of the unit and thread water supply line through. NOTICE Route the water supply line through the unit so it does not come into contact with any internal components other than the solenoid valve.
- Page 10 Water Treatment Options ◦ TDS level of 200 ppm or higher and/or a hardness of 12-19 gpg can be treated by U-Line’s in-line Leave meter immersed for 30 seconds. water filter accessories available at u-line.com or your Remove meter and check the readout for the TDS...
- Page 11 QUICK START GUIDE USER GUIDE Based upon the TDS measurement, see the below table Use caution when handling back panel. The edges could be sharp. to determine the correct filter required to protect the ice machine. HOOKUP WATER Water Quality 1-3 Users 4+ Users Turn off water supply and disconnect electrical supply...
-
Page 12: Drain
DRAIN CONNECTION CAUTION With Trap and Vent Proper Drain If your U-Line unit did not come with a factory installed drain pump you must use a gravity A gravity drain may be used if: style drain connection. For assistance in Drain line has at least a 1"... -
Page 13: Door Swing
(Optional Hook-Up) spigot assembly, or does not otherwise meet the requirements for a gravity drain, you may have ordered a pre-installed U-Line P60 drain pump. Waste If you need to install a P60 drain pump into your unit, see Valve DRAIN PUMP section in the User Manual. -
Page 14: Door Adjustments
QUICK START GUIDE USER GUIDE u-line.com Door Adjustments TO REVERSE THE DOOR 15” REFRIGERATORS HINGE COVER Hinge cover included with the literature bag is optional. To install hinge cover: Press hinge cover squarely over hinge. Hinge Cover Remove grille: Remove the grille (see GRILLE INSTALLATION section of this guide). - Page 15 USER GUIDE QUICK START GUIDE u-line.com Remove door by tilting forward and lifting door off Install top hinge and door: bottom hinge. Retain shoulder washers; they will be reused. Use a Philips screwdriver to remove hinge pin and reinstall on the opposite surface of the hinge.
- Page 16 QUICK START GUIDE USER GUIDE u-line.com Door Adjustments REVERSING THE DOOR Location of the unit may make it desirable to mount the 24” MODELS door on the opposite side of the cabinet. HINGE COVER The hinge hardware will be removed and reinstalled on the Hinge cover included with the literature bag is optional.
- Page 17 QUICK START GUIDE USER GUIDE u-line.com Remove door by tilting forward and lifting door off Install top hinge and door: bottom hinge. Retain shoulder washers; they will be reused. Top Hinge Insert arrow clips into holes Right Side Top Hinge...
- Page 18 QUICK START GUIDE Door Adjustments TO REVERSE THE DOOR CRESCENT ICE AND CLEAR ICE MACHINES HINGE COVER Hinge cover included with the literature bag is optional. To install hinge cover: Press hinge cover squarely over hinge. Hinge Cover Remove arrow clips: With a puddy knife or other flat tool, gently pry each arrow clip from hinge mounting holes.
- Page 19 QUICK START GUIDE Install gasket into channel, Remove door by tilting forward and lifting door off beginning at one corner and bottom hinge. Retain shoulder washers; they will be pressing in firmly. reused. Press down on middle Insert arrow clips into holes horizontal portion of gasket until it adheres to the door surface.
- Page 20 QUICK START GUIDE Door Adjustments TO REVERSE THE DOOR NUGGET ICE MACHINES HINGE COVER Hinge cover included with the literature bag is optional. To install hinge cover: Press hinge cover squarely over hinge. Hinge Cover Remove arrow clips: With a puddy knife or other flat tool, gently pry each arrow clip from hinge mounting holes.
- Page 21 QUICK START GUIDE Remove door by tilting forward and lifting door off Take out 2 screws and bottom hinge. Retain shoulder washers; they will be remove plunger bracket reused. from gasket channel. Insert arrow clips into holes Plunger Bracket Remove bottom hinge: Gasket Channel Remove bottom hinge from cabinet using a 1/4”...
-
Page 22: General Installation
QUICK START GUIDE General Installation Install top hinge and door: LEVELING INFORMATION Top Hinge Use a level to Right Side confirm the unit is level. Level should be placed along top edge and side edge Top Hinge Left Side as shown. Pivot Screw Remove pivot screw from hinge, flip hinge over, and... -
Page 23: Control Operation
QUICK START GUIDE QUICK START GUIDE u-line.com Control Operation REFRIGERATORS CONTROL FUNCTION GUIDE CONTROL FUNCTION GUIDE FUNCTION COMMAND NOTES FUNCTION COMMAND NOTES ON/OFF Press and release Unit will turn On or OFF ON/OFF Press and hold for 5 seconds Unit will turn ON or OFF... - Page 24 QUICK START GUIDE QUICK START GUIDE u-line.com Control Operation CLEAR ICE MACHINES CONTROL FUNCTION GUIDE CONTROL FUNCTION GUIDE FUNCTION COMMAND NOTES FUNCTION COMMAND NOTES ON/OFF Press and release Unit will immediately turn On or OFF ON/OFF Press and release Unit will immediately turn ON or OFF Adjust ice thickness See “Ice”...
- Page 25 QUICK START GUIDE Control Operation CONVERTIBLE FREEZER CONTROL FUNCTION GUIDE FUNCTION COMMAND NOTES ON/OFF Press and release Unit will immediately turn On or OFF Press and release to leave interior After 12 hours, factory default is restored; light will Leave interior light on light on for 12 hours;...
- Page 26 QUICK START GUIDE Control Operation NUGGET ICE MACHINES CONTROL FUNCTION GUIDE FUNCTION COMMAND NOTES ON/OFF Press and release Unit will immediately turn On or OFF Adjust ice density See “Ice” section The o F / o C symbol will flash briefly after 5 seconds. Press and hold for 5 seconds and Enable Sabbath Mode...
-
Page 27: First Use
CRESCENT ICE MAKERS Initial startup requires no adjustments. • 30ºF to 0ºF - 1 hour U-Line recommends discarding the ice produced during the • 0ºF to 38ºF - 4 hours first two to three hours of operation to avoid possible dirt or scale that may dislodge from the water line. -
Page 28: Ice
QUICK START GUIDE QUICK START GUIDE u-line.com During periods of limited use or high ambient temperatures, it is common for cubes to fuse together. CRESCENT ICE MAKERS Gently shake the bucket to break apart cubes. If not using the ice maker regularly, empty the ice bucket periodically to ensure fresh cubes. - Page 29 QUICK START GUIDE QUICK START GUIDE u-line.com CLEAR ICE MACHINES CAUTION ICE CUBE THICKNESS ADJUSTMENT Too large of an adjustment to the screw can Ice thickness adjustment should only be made cause the water to overflow the ice maker and one increment at a time.
- Page 30 This ensures a constant supply of fresh ice is always available. The factory default ice setting is 0, which produces a firm and compact ice nugget. U-Line’s exclusive U-Choose™ ice adjustability feature allows you five levels of Factory Default Setting - 0 adjustment from 0 to -5.
-
Page 31: Cleaning
Do not use stainless steel cleaners or polishes on any glass surfaces. CLEAR ICE MACHINE CLEANING CYCLE Your U-Line clear ice machine has an automatic clean Clean any glass surfaces with a non-chlorine glass alert function. Cleaning cycles should be run as notified. - Page 32 Water trough before use. 6. Clean the Interior Bin as follows: U-Line Ice Machine Cleaner is used to remove lime scale and other mineral deposits. Refer to the following steps to initiate the self-cleaning cycle. • Dilute one packet of CLR cleaner into two quarts of water.
- Page 33 . You may initiate a lime scale or calcium. U-Line offers a cost effective refresh Cleaning cleaning cycle at any time by pressing and holding kit which replaces man interior components and will return the clean button for 10 seconds.
- Page 34 ( ) will be reset for another approximate six Dispenser ** available for purchase at u-line.com or your local dealer Tube Insert the end of the cleaning tube into the ice month cycle. Failure to clean may reduce the quality and quantity of ice produced.
- Page 35 USER GUIDE QUICK START GUIDE u-line.com When appears in the display, 3 soft tones will sound, indicating the cleaning phase is complete a. Remove and discard water filter if applicable by rotating 1⁄4 turn counterclockwise. b. Use the remaining cleaning solution to wipe the manifold and surrounding area.
-
Page 36: Warranty
For products installed and used for normal residential use, material cosmetic defects are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line.
