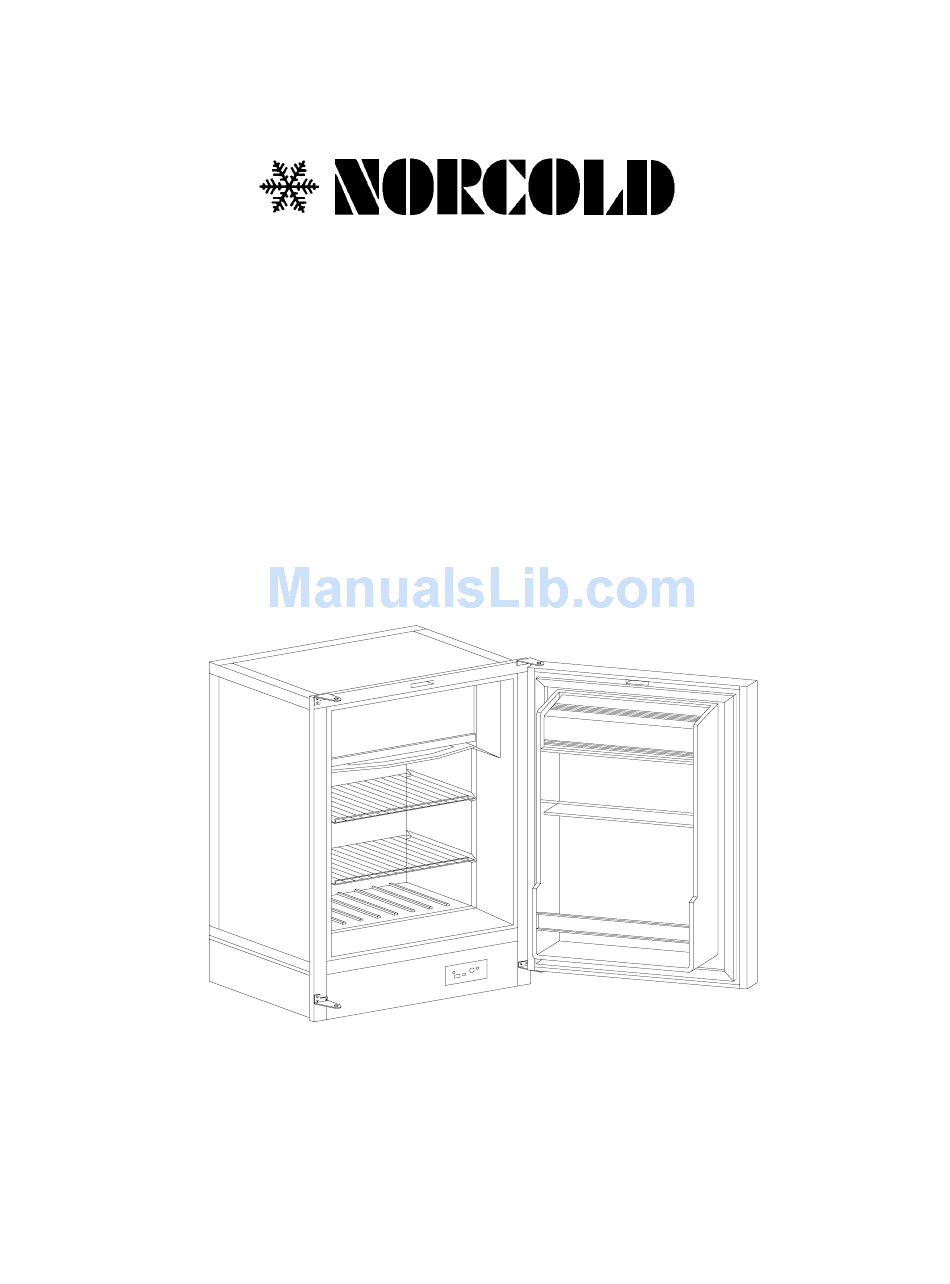

OWNER'S MANUAL
MODEL
DE-704D
Part No.: 616342D

Advertisement

Table of Contents
loading

Related Manuals for Norcold DE-704D

Summary of Contents for Norcold DE-704D

  • Page 1 OWNER’S MANUAL MODEL DE-704D Part No.: 616342D...
  • Page 2 When operating on 12 volts DC, a battery source must be used. Operating the refrigerator on a convertor or battery charger alone (without a battery in the circuit) is not recommended since these devices do not normally supply a filtered DC source. Unsatisfactory operation will result.

  • Page 3: Installation

    In preparing the DE-704D for installation, the following areas should be considered: 1. Adequate ventilation. 2. Sizing of supply wire and fuse protection. 3. Direct wiring from battery to avoid electrical interference with other equipment. 4. Provisions to prevent battery run-down.

  • Page 4: Operation

    QUENCY WITHIN THE TOLERANCES STATED IN THE FRONT Special Requirements For Marine Installations: The DE-704D is internally wired so that the AC and DC circuits are isolated from each other. If the positive (+12 volts) DC input is grounded in any way (cuts in the wire insulation, improperly insulated connections, etc.), a voltage potential...

  • Page 5: Maintenance Of Your Refrigerator

    To Turn Off The Refrigerator If you will not be using the refrigerator for a day or two, turn the thermostat knob to "1". For a longer period, set the On-Off switch to "OFF" and disconnect power by removing the AC plug from it’s socket.
  • Page 6 12 volt DC at 185 or 205 ampere-hour capac- ity. The DC supply to the refrigerator is connected to the negative post of one battery and to the positive post of the other battery. The power converter or solid state battery charger shown in Fig- ure 3 is an essential item for battery-operated systems.
  • Page 7 Wiring Diagram DE-704D Drawing No: C-16296C...

  • Page 8: Service Information

    Norcold and advice will be promptly given concerning the manner in which warranty service may be ob- tained. Inability to physically bring the refrigerator to a Norcold Service Center will not void the warranty, but any additional costs thereby incurred are solely for the account of the original consumer-purchaser.
