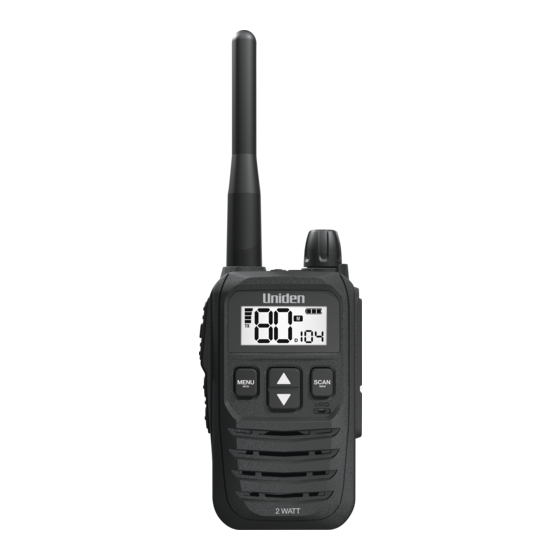

- Page 1 UH825 Series Handheld UHF-CB Transceiver For more exciting new products please visit our website: Australia: www.uniden.com.au...
- Page 2 Warning IMPORTANT INFORMATION Uniden does not represent the UH825 radio to be NOTE waterproof. Do not expose the UH825 to rain or moisture. LITHIUM ION BATTERY PACK WARNING • This equipment contains a Lithium Ion Battery Pack. • The Lithium Ion Battery Pack contained in this equipment may explode if disposed of in a fire.
-
Page 3: Table Of Contents
BCL (Busy Channel Lockout) Call Tone (Selecting a Call Tone) Roger Beep/Key Beep Backlight (Timer) Smart Key Key Lock Factory Reset CTCSS & DCS Codes and Frequencies 27-29 UHF-CB Channel Guidelines, Channels & Frequencies 29-31 Warranty 32-33 UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 4: Features
• Rechargeable Lithium-lon Battery • Low Battery Alert • Battery strength Indicator • Auto Battery Save ¹ Refer to page 27 - page 29 for channel information Requires optional USB-C cable for direct battery/radio charging. UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 5: Included In Your Package
If any of these items are missing from the box, contact your place of purchase, immediately. NOTE Optional Accessories • Speaker Mic • Earpiece Mic Visit the UH825 page on the website for more information on the availability & range of optional accessories; www.uniden.com.au UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 6: Controls And Indicators
VOX Voice Activation On 12 Microphone SCAN CH Memory 13 Speaker Accy Earphone/Speaker MIC Jack Master Scan Accy Speaker MIC Jack Busy Channel Lockout Type-C Charging Port Scan for All Channels Drop-in Charger Pin Key Lock Battery Indicator UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 7: Getting Started
1. Pinch and hold the belt clip latch and then slide the belt clip up and out of the catch. (Belt clip can be removed from the battery cover even when installed in the radio.) UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 8: Attaching The Battery Pack
Exposing the chemicals contained within the battery pack to temperatures above +60 °C (+140°F) may cause the battery CAUTION to rupture, fail or reduce performance. In case of exposure to cell contents, wash the affected area thoroughly, and seek medical attention. Additional battery cautions should be applied as described on page 2. UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 9: Charging The Radio | Dual Drop-In Charger (Uh825 Only)
• Do not transmit when the UH825 is in the drop-in charger! Charging the Radio | Single Radio Charging A single UH825 Radio can be charged directly with the USB-C cable connected to a standard 5V USB charging port. UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 10: Battery Level Display & Automatic Battery Save
(RX mode without a signal). Accessory Jack Cover Make sure the SPKR/MIC jack cover is firmly pushed in to minimise dust and moisture entering the radio. Connecting the Earpiece Mic or Optional Speaker Mic Release the accessory jack cover to plug in the accesory. UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 11: Operation
To turn the unit OFF, rotate the [ON/OFF VOL] knob counter-clockwise. The display will disappear. Volume Rotate the [ON/OFF VOL] knob clockwise or counter-clockwise to adjust speaker volume to a desired listening level. UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 12: Selecting A Channel
For your reference a list of the available channels, corresponding frequencies and guidelines for their use and selection is printed on page 27. For Australia, Channels 05 NOTE and 35 are reserved for Emergency Calls. UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 13: How To Transmit And Receive | High/Low Transmit Power
Speak in a clear, normal conversational voice. 3. When you have finished speaking, release the [PTT] and wait for a response. The indicator light LED turns off and the “TX” sign disappears from the LCD. The indicator light lights up red/green, and the “RX” sign appears on the LCD when a transmission is being received by your radio. UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 14: Squelch
[SQ] counter-clockwise until you hear noise. Then turn the [SQ] clockwise just until the noise stopped. Now only the desired signal can get through. UNIDEN UH825 Handheld UHF-CB Transceiver If an incoming signal is very weak there is a... -
Page 15: Call Function
Valleys, metallic structures, etc., tend to act as a screen between radios. Standard Operation without the aid of a Repeater Station Operation with the aid of a Repeater UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 16: To Operate Uh825 In Duplex Mode
4. Select channel 41- 48 in duplex mode, display as N1 - N8 5. Save the setting by pressing and holding [SCAN/MEM]. Icon appears on the channel when Duplex setting is enabled for a duplex capable channel. Search online for available UHF-CB repeaters in your area. NOTE UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 17: Scanning
(CTCSS or DCS tone). If GS Scanning is initiated when there are no channels programmed in GS scan memory, an error tone will be heard and scanning will not start. NOTE UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 18: Selecting Os Or Gs Scan Mode
SCAN icon flashes during scanning. Press [PTT] to return the original set channel. Scan Direction SCAN will begin scanning for active channels in a sequential order. You can change the scan direction (increasing or decreasing channel number) by pressing [ ] or [ UNIDEN UH825 Handheld UHF-CB Transceiver... - Page 19 If SCAN is deactivated while in-between active channels, the UH825 will reinstate the last active channel. NOTE If SCAN is deactivated when no active channel has been found, the UH825 will reinstate the starting channel. UNIDEN UH825 Handheld UHF-CB Transceiver...
-
Page 20: Master Scan
RX only channels (CH22, CH23, CH61, CH62 and CH63) will not be included in MASTER SCAN mode even though stored into GS memory. Also channels for which the duplex NOTE setting are ON will be skipped in MASTER SCAN mode. UNIDEN UH825 Handheld UHF-CB Transceiver... - Page 21 6. Press and hold MEM to save the setting and press PTT to exit the menu. If a button is not pressed within 10 sec, the UHF CB radio will automatically exit the menu mode. NOTE UNIDEN UH825 Handheld UHF-CB Transceiver...
-
Page 22: Menu Functions
38 CTCSS codes. Follow the steps for changing CTCSS code but select a DCS code as desired. To use CTCSS or DCS: 1. Press [MENU/MON] 3 times to select CTCSS/DCS. UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 23: Priority Watch/Priority Channel
] or [ ] to select a desired VOX level. 4. Save the setting by pressing and holding [SCAN/MEM]. VOX icon appears at the bottom left of the LCD when a VOX setting is enabled. UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 24: Bcl (Busy Channel Lockout)
1. Press [MENU/MON] 12 times to select CALL. 2. Then, press [ ] or [ ] to select a desired Call Tone pattern. As you change selections the tone pattern will sound. 3. Save the setting by pressing and holding [SCAN/MEM]. UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 25: Roger Beep/Key Beep
NRC funciton PRI function CALL function Short press [--] to active NRC, then select NRC Level from [MENU]. Short press [--] to active PRI, PRI channel display, press again to off. Short press [--] to send CALL, 30s waiting time between each [CAL]. UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 26: Backlight (Timer)
Reset all functions by press the SMART KEY[--] and [PTT] at the same time and then power on the radio. Default reset displays CH01 and the priority chancel is CH05. UNIDEN UH825 Handheld UHF-CB Transceiver... -
Page 27: Ctcss & Dcs Codes And Frequencies
71.9 173.8 74.4 179.9 77.0 186.2 79.7 192.8 82.5 203.5 85.4 210.7 88.5 218.1 91.5 225.7 94.8 233.6 97.4 241.8 100.0 250.3 103.5 107.2 110.9 114.8 118.8 123.0 127.3 131.8 136.5 141.3 146.2 151.4 156.7 UNIDEN UH825 Handheld UHF-CB Transceiver... - Page 28 DCS Codes and Frequencies DCS Code DCS Code DCS Code Code No. Code No. Code No. (Octal) (Octal) (Octal) UNIDEN UH825 Handheld UHF-CB Transceiver...
-
Page 29: Uhf-Cb Channel Guidelines, Channels & Frequencies
The above situations are not a fault of the radio but a symptom of mixed wideband and narrowband radios in current use. It is expected that as older wideband radios are phased out this issue will be eliminated. UNIDEN UH825 Handheld UHF-CB Transceiver... - Page 30 477.300 (CH36) 477.050 476.575 477.325 (CH37) 477.075 476.600 477.350 (CH38) 477.100 476.625 477.125 476.650 477.150 476.675 477.175 476.700 477.200 476.725 477.225 476.750 477.250 476.775 477.275 476.800 477.300 476.825 477.325 476.850 477.350 476.875 477.375 476.900 477.400 UNIDEN UH825 Handheld UHF-CB Transceiver...
- Page 31 477.0625 476.5875 477.3375 (CH 77) 477.0875 476.6125 477.3625 (CH 78) 477.1125 476.6375 477.1375 476.6625 477.1625 476.6875 477.1875 476.7125 477.2125 476.7375 477.2375 476.7625 477.2625 476.7875 477.2875 476.8125 477.3125 476.8375 477.3375 476.8625 477.3625 476.8875 477.3875 476.9125 477.4125 UNIDEN UH825 Handheld UHF-CB Transceiver...
-
Page 32: Warranty
(“Uniden”). Terms of Warranty: Uniden Aust warrants to the original retail purchaser only that the UH825 Series, or UH825-2TP Series (“the Product”), will be free from defects in materials and craftsmanship for the duration of the warranty period, subject to the limitations and exclusions set out below. - Page 33 Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden. Please refer to the Uniden website for address details. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim.
- Page 34 THANK YOU FOR BUYING A UNIDEN PRODUCT. © 2023 Uniden Australia Pty Limited. Printed in PRC.
