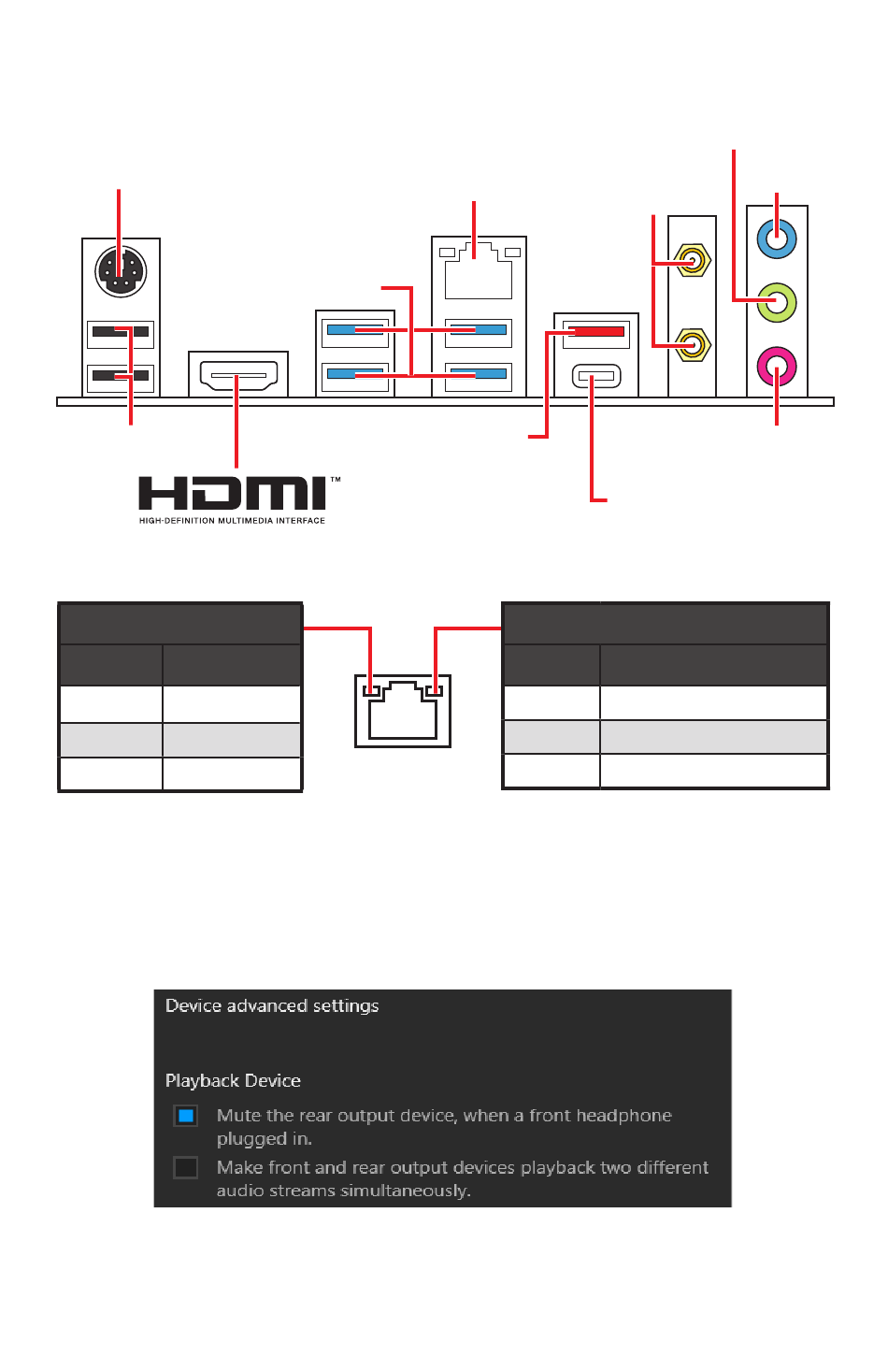

Rear I/O Panel

PS/2 Combo port
USB 2.0 Type-A
LAN Port LED Status Table
Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
Audio 7.1-channel Configuration
To configure 7.1-channel audio, you have to connect front audio I/O module to JAUD1
connector and follow the below steps.
1. Click on the Realtek HD Audio Manager > Advanced Settings to open the dialog
below.
2. Select Mute the rear output device, when a front headphone plugged in.
3. Plug your speakers to audio jacks on rear and front I/O panel. When you plug into
a device at an audio jack, a dialogue window will pop up asking you which device
is current connected.
10
Rear I/O Panel
2.5 Gbps LAN
USB 3.2 Gen 1
5Gbps Type-A
USB 3.2 Gen 2
10Gbps Type-A
Wi-Fi Antenna
connectors
USB 3.2 Gen 2
10Gbps Type-C
Speed LED
Status Description
Off 10 Mbps connection
Green 100/ 1000 Mbps connection
Orange 2.5 Gbps connection
Line-out
Line-in
Mic-in
