Owner's
Manual

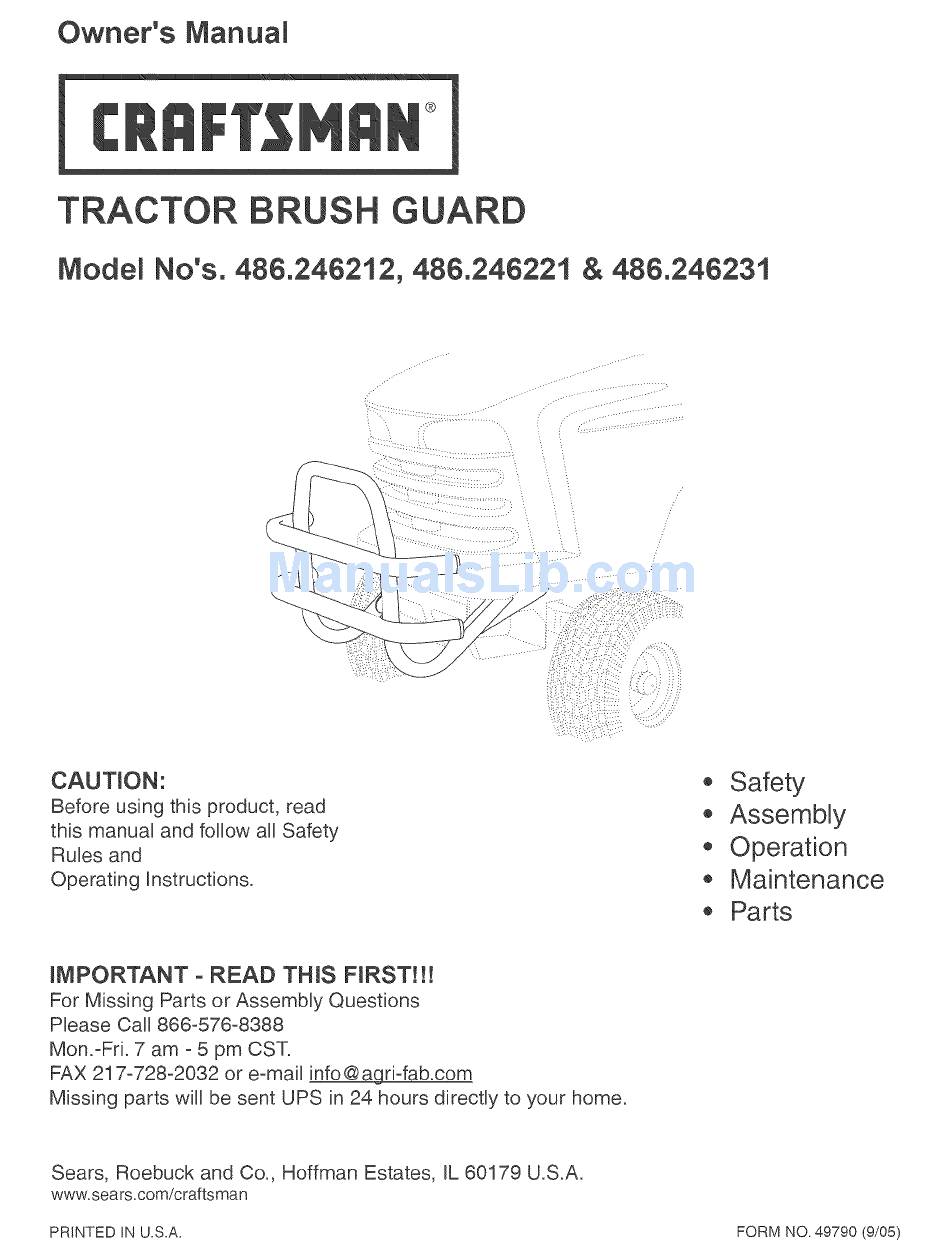

TRACTOR
BRUSH
GUARD
Model No's. 486.246212, 486.246221 & 486.246231
_ii . .........
i_ _'_:(
'_
• ..... • .............
CAUTION:
Before using this product,
read
this manuaU and follow aH Safety
RuUes and
Operating
Instructions.
• Safety
• AssembLy
,, Operation
• Maintenance
• Parts
IMPORTANT
- READ THtS FIRST!!!
For Missing
Parts or AssembUy Questions
PUease Call 866-576-8388
Mon.-Fri. 7 am - 5 pm CST.
FAX 217-728-2032
or e-mail info@aq_ri-fab.com
Missing parts will be sent UPS in 24 hours directly to your home.
Sears, Roebuck
and Co., Hoffman Estates,
IL 60179 U.S.A.
www, sears,com/craftsman
PRINTED
IN U.S.A.
FORM
NO. 49790
(9/05)
