Quick Start Guide

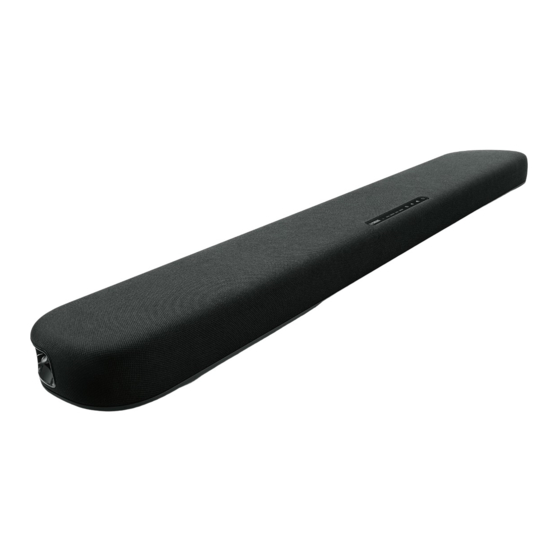

Sound Bar
Thank you for purchasing this Yamaha product.
• To use this product properly and safely, read this Quick Start
Guide and the supplied booklet "Safety Brochure" before using
the unit.
• After reading this document and the Safety Brochure, be sure to
keep them in a safe place where they can be referenced at any
time.
About this Quick Start Guide
This document provides step-by-step instructions for installation and
playback. Refer to the User Guide on the Yamaha website for more
information.
Visit the following website to see the latest User Guide.
https://manual.yamaha.com/av/20/atsb200/
EN
1
En

Advertisement

Table of Contents
loading

Related Manuals for Yamaha ATS-B200

Summary of Contents for Yamaha ATS-B200

  • Page 1 Quick Start Guide About this Quick Start Guide This document provides step-by-step instructions for installation and playback. Refer to the User Guide on the Yamaha website for more information. Visit the following website to see the latest User Guide. Sound Bar...

  • Page 2: Supplied Accessories

    Supplied accessories Make sure you have received all of the following accessories: Use when mounting the sound bar on a wall. Sound bar (ATS-B200) Spacers (×2, on 1 sheet) Mounting template Remote control Power cord  NOTE • Quick Start Guide (this booklet) An HDMI cable is not included with this sound bar.

  • Page 3: Preparing The Remote Control

    Preparing the remote control Installing the sound bar Remove the battery insulating strip before attempting to use the Installed on a TV stand remote control. Controls Battery insulating strip Wall-mounted  NOTE A Lithium battery (CR2025) has already been inserted into the remote control.
  • Page 4 Connecting a TV Depending on the type of TV, connect the TV to the sound bar as follows: Is your TV equipped with an HDMI jack labeled as “ARC?” Connect the TV using an ARC-compatible HDMI cable (sold Connect the TV using an HDMI cable (sold separately) and digital separately).
  • Page 5  Connecting the TV using only the digital NOTE • When the sound bar is connected to a TV via HDMI cable, confirm optical audio cable (supplied) that the TV’s settings are properly configured as follows: – The TV's HDMI Control function is enabled. –...

  • Page 6: Connecting To Power

    Connecting to power Playing TV sound through the sound bar After all connections are complete, connect the sound bar to power as follows: Power cord (supplied) To an AC wall outlet VOLUME (+/−) Sound bar (rear) Turn on the TV. When the TV is connected to the sound bar using an HDMI cable and the HDMI Control function of the TV is enabled, the sound bar will also turn on.
  • Page 7 Adjusting the sound to your preference d Enjoying enhanced bass sound STEREO 2-channel stereo playback. (Bass Extension) b Playing audio in surround sound Bass sound is enhanced and becomes more powerful when the Bass Extension with varying heights (3D feature is enabled. surround) Press BASS EXT to enable or disable When the 3D surround feature is enabled,...

  • Page 8: Listening To Audio From A Bluetooth® Device

    Select your product displayed within the list.  NOTE “Yamaha ATS-B200” or “YamahaAV” is displayed within the list. • To control the sound bar using the app, configure the settings on your mobile device as follows: Play audio content on the Bluetooth device.
