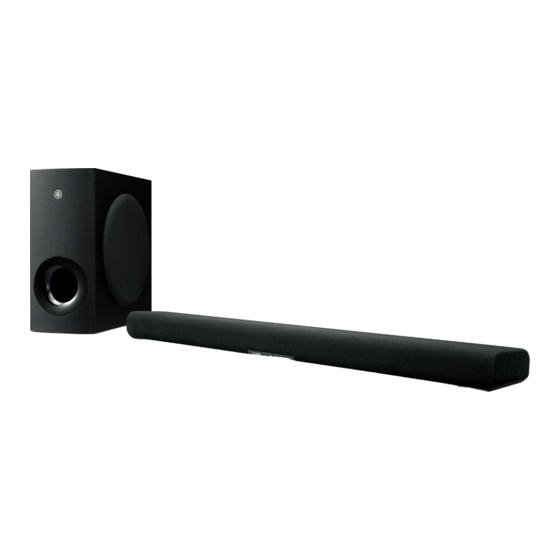

Yamaha SR-B40A Installation Manual
Hide thumbs
Also See for SR-B40A:
- User manual (88 pages) ,
- Quick manual (84 pages) ,
- Quick manual (28 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Yamaha SR-B40A
Summary of Contents for Yamaha SR-B40A
- Page 1 Wall Mounting Installation Guide Sound Bar...
- Page 2 CONTENTS CONTENTS About this Wall Mounting Installation Guide.......... 3 Precautions.................... 4 Items to use for wall mounting installation........... 5 Mounting the sound bar on a wall.............. 6...
-
Page 3: About This Wall Mounting Installation Guide
TV or Bluetooth device. General precautions for handling this product are described in the Safety Guide. See this document before installing the sound bar. For details on the functions, see the User Guide of your product. SR-B40A https://manual.yamaha.com/av/23/srb40a/ SR-B30A https://manual.yamaha.com/av/23/srb30a/... -
Page 4: Precautions
When hanging the sound bar on the screws, be sure that the connected cables do not put stress on the jacks. Failure to observe this may cause damage to the jacks. Check that the sound bar is securely fixed in place immediately after the installation. Yamaha will bear no responsibility for any accidents caused by improper installations. -
Page 5: Items To Use For Wall Mounting Installation
Items to use for wall mounting installation Items to use for wall mounting installation Make sure that all of the following items are present before installing the sound bar. Items included with this product Spacers (×2) Mounting template Screws (commercially available) In addition to the included items, the following screws (commercially available) are required. -
Page 6: Mounting The Sound Bar On A Wall
Mounting the sound bar on a wall Mounting the sound bar on a wall Before mounting the sound bar on a wall, be sure to read the following precautions. “Precautions” (p.4) After installing the spacers and screws on the wall, hang the sound bar on those screws. Attach the mounting template (included) on a wall temporarily. - Page 7 Mounting the sound bar on a wall Remove the mounting template from the wall. Install the screws and the spacers (included) at the points marked on the wall. Install the screws on the wall, then hang the screw-hanging holes of the spacers on those screws.
- Page 8 Mounting the sound bar on a wall Hang the sound bar on the screws. Sound bar screw- hanging holes Indicators Remote control sensor The installation is completed.
- Page 9 Stylesheet Name: 01_YMH_PDF_Manual_A5_AV_En-Multi Layout Folder: YMH_PDF_Manual_A5_AV Stylesheet Version: 2022.12.12 Yamaha Global Site https://www.yamaha.com/ Yamaha Downloads https://download.yamaha.com/ © 2023 Yamaha Corporation Published 06/2023 NV-A0 AV23-0044...
