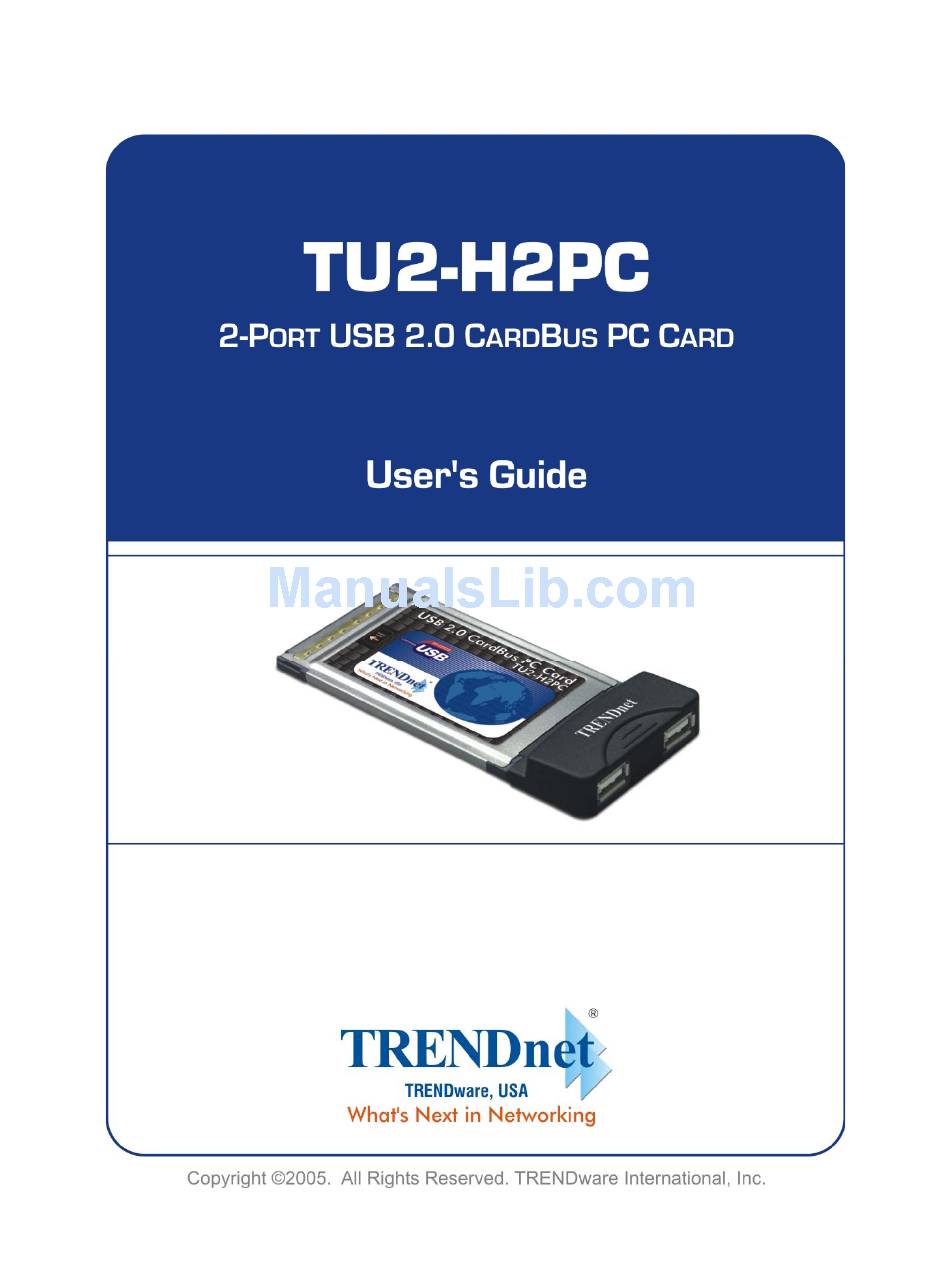

TRENDnet TU2-H2PC User Manual

2-port usb 2.0 cardbus pc card
Hide thumbs Also See for TU2-H2PC:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TU2-H2PC

Summary of Contents for TRENDnet TU2-H2PC

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction … … … … … … … … … … … … … . . . … … … … … … … … … … … Package Contents …………………………………………………………………2 Safety Instructions Specification ……………………….…………………………………………..………3 System Requirements Hardware Installation Driver Installation …………………………………………………………………...4...

  • Page 3: Introduction

    Introduction Thank you for purchasing our USB 2.0 2-Port CardBus PC Card. This handy device is certified to USB 2.0 standards and is backward compatible with USB 1.1 devices, i.e. your existing USB 1.1 devices can function as usual. It also allows you to connect multiple peripherals devices to your PC at the same time.

  • Page 4: Specification

    Specification Compliant with Universal Serial Bus Specification Revision 2.0 ● Compliant with Universal Serial Bus Specification Version 2.0 (Data rate ● 1.5/12/480 Mbps) transfer speeds of up to 480 Mbps Compliant with Open Host Controller Interface Specification for USB 1.0a ●...

  • Page 5: Hardware Installation

    Hardware Installation Please find the CardBus port of your system, and insert the USB 2.0 2-Port CardBus Card into the port. The USB 2.0 2 Ports CardBus Card supports hot-swappable, there is no need to turn off your system before the installation. Driver Installation Windows 98SE, ME 1.
  • Page 6 2. Please select Search for the best driver for your device. (Recommended), and click Next.
  • Page 7 3. Do not select any option, and click Next. 4. Select The updated driver (Recommended), and click Next...
  • Page 8 5. When the system displays Windows driver file search for the device: NEC USB Open Host Controller, please click Next. 6. Please insert Win98 SE CD-ROM into the CD-ROM Drive when the system requests as below, and click OK.
  • Page 9 7. Please browse the location of the driver in the Win98SE CD-ROM and click 8. Please click Finish.
  • Page 10 9. Click Yes when the system requests you to restart your computer. 10. After the system restarted, please insert the attached CD-ROM into the CD-ROM drive and double-click the Setup.exe file in the F:\Driver\Windows folder (F means the CD-ROM drive). 11.

  • Page 11: Windows 2000, Xp, 2003

    Windows 2000, XP, 2003 1. Make sure the CardBus is inserted into the CardBus slot and turn on power then insert the attached driver CD-ROM into CD-ROM drive 2. The system will detect the new device, and there will be a pop-up window, please click Cancel button as needed.

  • Page 12: Mac Os X

    Mac OS X 1. Click USB2EHCI-v1072.img.bin in the CD-ROM drive, and it will generate USB2EHCI_v1064.img 2. Click USB2EHCI_v1072.img, it will generate USB2EHCI-v1072 on Desktop 3. Click USB2EHCI-v1072 on Desktop, there will be a pop-up window. 4. Click USB2EHCI_v1072.
  • Page 13 5. Please click the to make changes. 6. Enter the name and password, and click OK. 7. Click Continue...
  • Page 14 8. Please select a appropriate destination to install driver, and click Continue 9. Click Install. 10. Click Continue Installation 12. Click Restart. After restarting the system, the device is ready to be used.

  • Page 15: Installation Verification

    Installation Verification Windows 98 SE...

  • Page 16: Windows Me

    Windows ME Windows 2000...

  • Page 17: Windows Xp/2003 Server

    Windows XP/2003 Server...

  • Page 18: Certificate

    Certificate This equipment has been tested and found to comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 19: Limited Warranty

    TU2-H2PC – 2 Years Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDware shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
  • Page 20 SHALL BE, AT TRENDWARE’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
