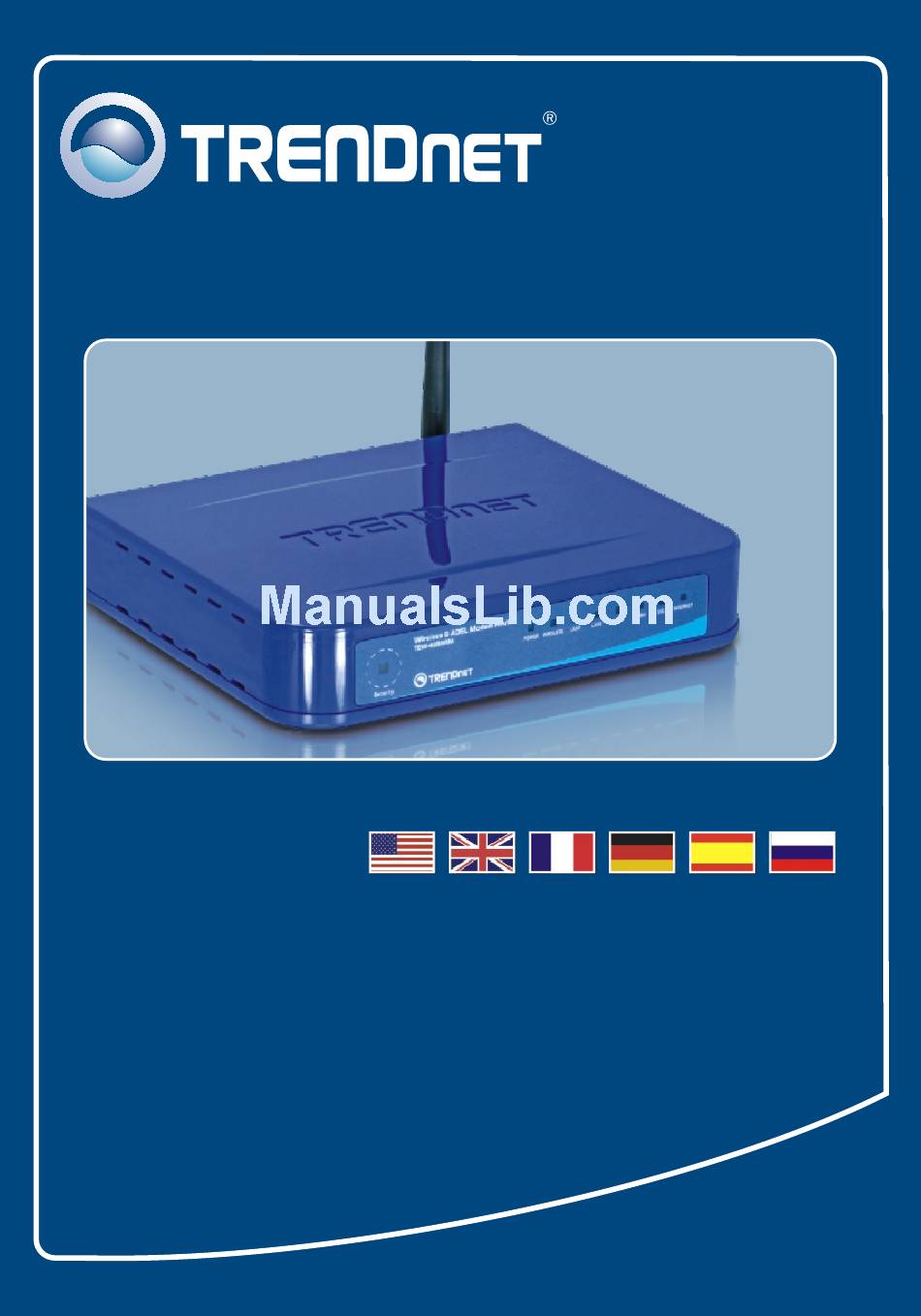

- Page 1 Quick Installation Guide TEW-435BRM...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ... 1. Before You Start 2. Hardware Installation ... Configure The Modem 4. Setting up Encryption Troubleshooting ..5 Version 01.08.2008... -
Page 3: English
Workstation with 10/100Mbps Fast Ethernet PCI Adapter (TE100-PCIWN) Notebook with 54Mbps Wireless G PC Card 54Mbps 10/100Mbps TEW-435BRM User's Guide CD-ROM Quick Installation Guide 1 x 2dBi Detachable Antenna 1 x RJ-45 Ethernet Cable 1 x RJ-11 Telephone Cable Mounting Stand... -
Page 4: Hardware Installation
2. Hardware Installation 1. Connect one end of the RJ-45 cable to one of the TEW-435BRM's LAN ports. Connect the other end of cable to the computer's Ethernet port. Then connect the 2dBi detachable antenna. 2. Connect one end of the RJ-11 cable to the TEW-435BRM's ADSL port. -
Page 5: Configure The Modem
3. Configure the Modem Note: It is recommended that you configure the Modem from a wired computer. 1. Open your web browser, type http://192.168.0.1 in the Address bar, and press Enter. 2. Click Setup Wizard. 3. Select VC 1 (Router – Primary Internet Connection) and then click Next. - Page 6 Note: If the Setup Wizard could not automatically detect your Internet connection, select Manual Selection and input the information using the information provided by your ISP. 5. Configure the settings based on information provided by your ISP. Then click Next. 6.
-
Page 7: Setting Up Encryption
Save and then click Close. Your installation is now complete. For detailed information regarding the TEW-435BRM's configuration and advanced settings, please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com. To ensure the highest level of customer service and support, please take a moment to... -
Page 8: Troubleshooting
I typed http://192.168.0.1 in my Internet Browser's Address Bar, but an error message says “The page cannot be displayed.” How can I get into the TEW-435BRM's web configuration page? First, check your hardware settings again by following the instructions in Section 2. - Page 9 Make sure the wireless network adapter is configured with the proper SSID. The default SSID of the Access Point is TRENDnet. If you still encounter problems or have any questions regarding the TEW-435BRM, please contact TRENDnet's Technical Support Department.
- Page 10 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
-
Page 11: Customer Support
English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2008. All Rights Reserved. TRENDnet.
