Summary of Contents for Ariens Sno-Thro ST724

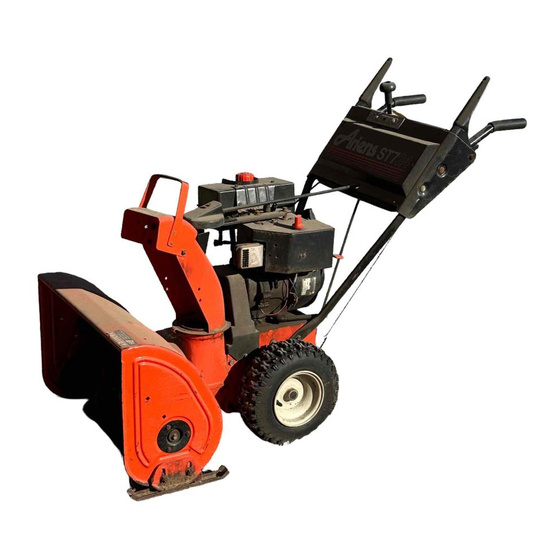

- Page 1 Sno-Thro Owner/Operator Manual Model 932034 - ST724 ENGLISH FRANÇAIS ESPAÑOL 03238400 Orig. 6/99 Printed in USA...
-
Page 2: Table Of Contents
© Copyright 1999 Ariens Company All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Ariens Company. Orig. 6/99... -
Page 3: Section 1: Introduction
03238500 Parts Manual 21526500 Spark Plug 07210700 Impeller Belt 07210700 Traction (Transmission) Belt 53200500 Shear Bolts Mail Requests to: Ariens Company 655 West Ryan Street P.O. Box 157 Brillion, WI, USA 54110-0157 Ariens 932 Sno-Thro Orig. 6/99 ® ®... -
Page 4: Section 2: Safety
OTATIONS NOTE: General reference information for proper operation and maintenance practices. IMPORTANT: Specific procedures or information required to prevent damage to unit or attachment. Orig. 6/99 Ariens 932 Sno-Thro ® ®... -
Page 5: Safety Decals And Locations
OL3292 DANGER! Rotating parts! Stop engine Figure 2 OS1013 and remove key before clearing. OL0900 HOT SURFACES! DO NOT touch parts which are hot from operation. ALWAYS allow parts to cool. OL4340 Ariens 932 Sno-Thro Orig. 6/99 ® ®... -
Page 6: Safe Operation Practices And Rules
Keep all movement on slopes slow and gradual. DO NOT service as required. make sudden changes in speed or direction. Use a slow speed to avoid stops or shifts on slopes. Avoid starting or stopping on a slope. Orig. 6/99 Ariens 932 Series Sno-Thro ® ®... - Page 7 Protect eyes, face and head from objects that may be thrown from unit. Wear appropriate hearing protection. Avoid Sharp Edges Sharp edges can cut. Movement of parts can cut off fingers or a hand. Ariens 932 Series Sno-Thro Orig. 6/99 ® ®...
- Page 8 Use only attachments or accessories designed for your ALWAYS maintain unit in safe operating condition. unit. Damaged or worn out muffler can cause fire or explosion. Check attachment components frequently. If worn or damaged, replace with manufacturer’s recommended parts. Orig. 6/99 Ariens 932 Series Sno-Thro ® ®...
-
Page 9: Section 3: Assembly
Place the Z bend end into the traction drive clutch lever and the cable eyelet end on the small hook end of the traction drive link (Figure 5). Then hook the link to the traction drive clutch arm. Adjust per Maintenance Section. Ariens 932 Sno-Thro Orig. 6/99 ® ®... - Page 10 Figure 5 DS0100 6. Connect Speed Selector Connect speed selector rod to the swivel (adjust per Maintenance Section). 7. Check Tire Pressure Check tire pressure and adjust to 20 PSI (137.8 kNm for operation. Orig. 6/99 Ariens 932 Sno-Thro ® ®...
-
Page 11: Ection Peration
If belt squeals when the Attachment Clutch Lever is engaged, the Impeller is frozen. Immediately release the IMPORTANT: Gradually open choke, Attachment Clutch Lever and move the unit to a heated OS1300 after engine starts. area to thaw. Ariens 932 Series Sno-Thro Orig. 6/99 ® ®... - Page 12 17. Oil Fill and Dipstick 8. Recoil Starter Handle 18. Spark Plug and Wire 9. Chute Crank 19. Belt Guard Cover 10. Discharge Chute Deflector 20. Fuel Shut Off Valve Figure 6 OS0500 OS1382 Orig. 6/99 Ariens 932 Series Sno-Thro ® ®...
- Page 13 (2)"Fast" position, adjust as directed in Adjustment Section, or repair before operation. OS1190 IMPORTANT: Forward speed can be changed without de-clutching. DO NOT change motion from forward to reverse with clutch engaged. Ariens 932 Series Sno-Thro Orig. 6/99 ® ®...
-
Page 14: Pre-Start
If the Impeller does not stop quickly when the Attachment Clutch Lever is released or there is no noticeable increase in the Lever force before contacting the Handlebar, adjust as directed in the Adjustments Section, or repair before operation. Orig. 6/99 Ariens 932 Series Sno-Thro ® ®... -
Page 15: Starting And Shut Off
10. Set throttle to "Part Throttle" or Slow" position for adaptation to ambient temperature or transport. Once achieved, set throttle to "Fast" position for normal operation. Ariens 932 Series Sno-Thro Orig. 6/99 ® ®... -
Page 16: Ection Eneral Aintenance
5: G ECTION ENERAL AINTENANCE Ariens Dealers will provide any service or adjustments To add fuel to Fuel Tank: which may be required to keep your unit operating at 1. ALWAYS place unit in open or well ventilated area. peak efficiency. Should engine service be required, 2. -
Page 17: Drive Belts
3. Attachment Drive Belt 4. Traction Drive Belt For Attachment Drive Belt Replacement: 5. Traction Belt Idler 6. Engine Pulleys 1. Shut off engine and allow to cool completely. 7. Sheaves Figure 8 OS0461 Ariens 932 Series Sno-Thro Orig. 6/99 ® ®... -
Page 18: Shear Bolts
HEAR OLTS 9. Remove attachment drive belt from sheave (hold IMPORTANT: Use only Ariens Shear Bolts for brake away from belt). replacement. Use of any other type of shear bolt may 10. Place new belt onto sheave and while holding brake result in severe damage to unit. -
Page 19: Auger Gearcase
1. Remove filler plug. Lubricant must be at least up to 6. Clutch Fork 13. Pinion Gear bottom of lube filler hole with unit resting on a level- 7. Drive Pulley 14. Traction Clutch Assembly surface. Figure 11 OS1350 Ariens 932 Series Sno-Thro Orig. 6/99 ® ®... -
Page 20: Lubrication Locations
3. Ariens Special L-2 Gear Lube Figure 12 OS1360 2. Add lubricant, if required, allow oil to drain to level of plug and replace plug (Figure 12). 3. Use only Ariens special gear lube L-2 (Part Number 00008000). UBRICATION OCATIONS WARNING HOT SURFACES can result in death or serious injury. -
Page 21: Adjustments
2. Spring 8. Mounting Nut 3. Pinion Bracket 9. Chute Ring 4. Pinion 10. Lower ring 5. Chute Strap 11. Retainer Clip 6. Flat Gear Figure 14 DS0111 Ariens 932 Series Sno-Thro Orig. 6/99 ® ®... - Page 22 2 turns to provide cable slack 1. Attachment Clutch 4. Sleeve Jam Nut for brake wear. Tighten bottom nut. Lever 5. Adjustment Sleeve 2. Handle Grips 3. Traction Drive Clutch Figure 17 OS0451 Orig. 6/99 Ariens 932 Series Sno-Thro ® ®...
-
Page 23: Transport
Engine Manufacturer's instructions. Speed Selector To adjust: 1. Loosen the bottom nut on the threaded end of the speed selector rod (Figure 18). 2. Position Speed Selector in (6) “Fast” speed notch. Ariens 932 Series Sno-Thro Orig. 6/99 ® ®... -
Page 24: Service Manual, Maintenance Schedule
Accessories: 71099700 ... Slicer Bar Replace Engine Oil 72200600 ... 120 Volt Starter Kit Clean Cooling Fins OS0751 Be sure to always use genuine Ariens parts to keep your Sno-Thro running like new. ROUBLE HOOTING Problem Probable Cause Engine will not crank Check if Key Switch is in run position. -
Page 25: Specifications
Pneumatic Tires - in (cm) 10.7 (27.1) Size & Weight Height - in (cm) 40 (101.8) Length - in (cm) 60 (152) Width - in (cm) 26.25 (67) Weight - lbs (Kg) 153 (69.4) Ariens 932 Series Sno-Thro Orig. 6/99 ® ®... -
Page 26: Warranty
(except for labor). Ariens Company may from time to time change the design of its products. Nothing contained in this warranty shall be construed as obligating Ariens Company to incorporate such design changes into previously manufactured products, nor shall such changes be construed as an admission that previous designs were defective. - Page 27 Ariens 932 Series Sno-Thro Orig. 6/99 ® ®...
- Page 28 Ariens Company 655 West Ryan Street P.O. Box 157 Brillion, WI 54110-0157 920-756-2141 Fax 920-756-2407 www.ariens.com...
