TRENDnet TPE-S44 Quick Installation Manual

8-port 10/100mbps fast ethernet poe switch
Hide thumbs Also See for TPE-S44:

Advertisement

Quick Links

Quick Installation Guide
TPE-S44

Advertisement

loading

Related Manuals for TRENDnet TPE-S44

Summary of Contents for TRENDnet TPE-S44

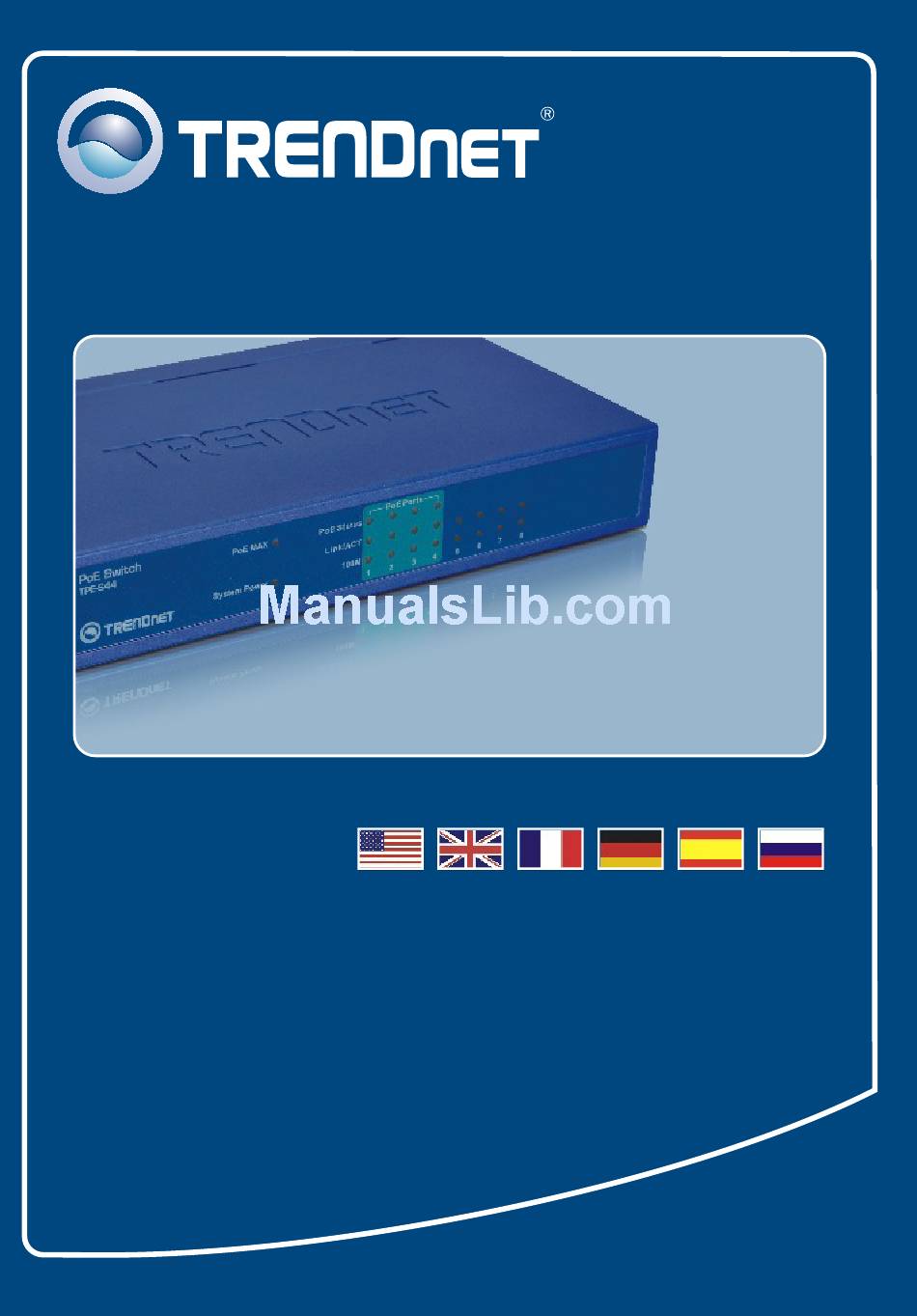

  • Page 1 Quick Installation Guide TPE-S44...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents English ... 1. Before You Start 2. Identifying External Components 3. Hardware Installation ... Technical Specifications Troubleshooting ... Version 01.19.2007...

  • Page 3: English

    Switch Do not place heavy objects on the Switch IEEE 802.3af Powered Device TPE-102S (Optional) Note: The TPE-S44 only supports Powered Devices that follow the IEEE 802.3af Mode A (pin 1, 2, 3, 6) standard Package Contents TPE-S44...
  • Page 4 Application Advanced Wireless Pan & Tilt Power over Ethernet Internet Camera Server (PoE) Splitter (TV-IP400W) 8-Port 10/100Mbps Fast Ethernet PoE Switch (TPE-S44) 108Mbps 802.11g Power over Ethernet Wireless Access Point (PoE) Splitter (TEW-450APB) (TPE-102S) 10/100Mbps 10/100Mbps + PoE (TPE-102S) English 108Mbps 802.11g...

  • Page 5: Identifying External Components

    This section identifies all the major external components of the Switch. Both the front and rear panels are shown with descriptions of each feature. Note: When you power on the Switch, all LEDs will turn ON for about 1 second and then turn OFF. Only the Power LED will stay lit.

  • Page 6: Front Panel

    Front Panel System Power When the LED is lit, the Switch is receiving power. 100Mbps (Ports 1~8) When the LED is lit, the port is connected to an active Fast Ethernet device. When the LED is not lit, the port is either...

  • Page 7: Rear Panel

    PoE Ports (1~4) The PoE port will be automatically activated when a compatible device is detected. The Switch will supply power through the Ethernet port to the connected Powered Device. Ethernet Ports (5~8) When the LED is lit green, the Switch is receiving power.

  • Page 8: Hardware Installation

    Note: The maximum amount of power available is 15.4 Watts per port and 30 Watts total. If a power overload has occurred, the Switch will prioritize the distribution of power by port (from lowest to highest). That is, port 1 will receive the highest priority and port 4 will receive the lowest priority.
  • Page 9 Using a non-PoE device with the TPE-S44 and the TPE-102S 1. Select the proper voltage (5V or 12V). 2. Connect an Ethernet cable from a PoE port (1~4) on the TPE-S44 switch to the POE IN port on the TPE-102S.

  • Page 10: Technical Specifications

    Technical Specifications Standards Protocol Data Transfer Rates Topology Network Cables Number of Ports PoE Power on RJ-45 General IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet ANSI/IEEE 802.3 NWay Auto-negotiation IEEE 802.3x Full-Duplex Flow Control IEEE 802.3af Power over Ethernet CSMA/CD Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)
  • Page 11 Physical and Environmental DC inputs Power Consumption Temperature Humidity Dimensions Weight Certification Transmission Method Packet Filtering/ Forwarding Rate MAC Address Learning RAM Buffer Filtering Address Table 48V DC, 0.8A 6.3 watts. (max. for ports 5~8) 30 watts (max for PoE ports) 36.3 watts (total) Operating: 0 ~ 40 C, Storage: -10 ~ 70 C °...

  • Page 12: Troubleshooting

    Fifth, a power overload may have an occurred. Connect your 802.3af Powered Device into port 1 and/or disconnect all other 802.3af Powered Device. If you still encounter problems or have any questions regarding the TPE-S44 please contact TRENDnet's Technical Support Department.
  • Page 13 Return Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre- authorized by TRENDnet with RMA number marked on the outside of the package, and...
  • Page 14 ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS. TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S...
  • Page 15 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
  • Page 16 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2007. All Rights Reserved. TRENDnet.
