8-Port 10/100Mbps PoE Switch
TPE-S44
Ÿ Quick Installation Guide (1)
Ÿ Technical Specifications (4)
Ÿ Troubleshooting (5)
1. 1 1

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TPE-S44

Summary of Contents for TRENDnet TPE-S44

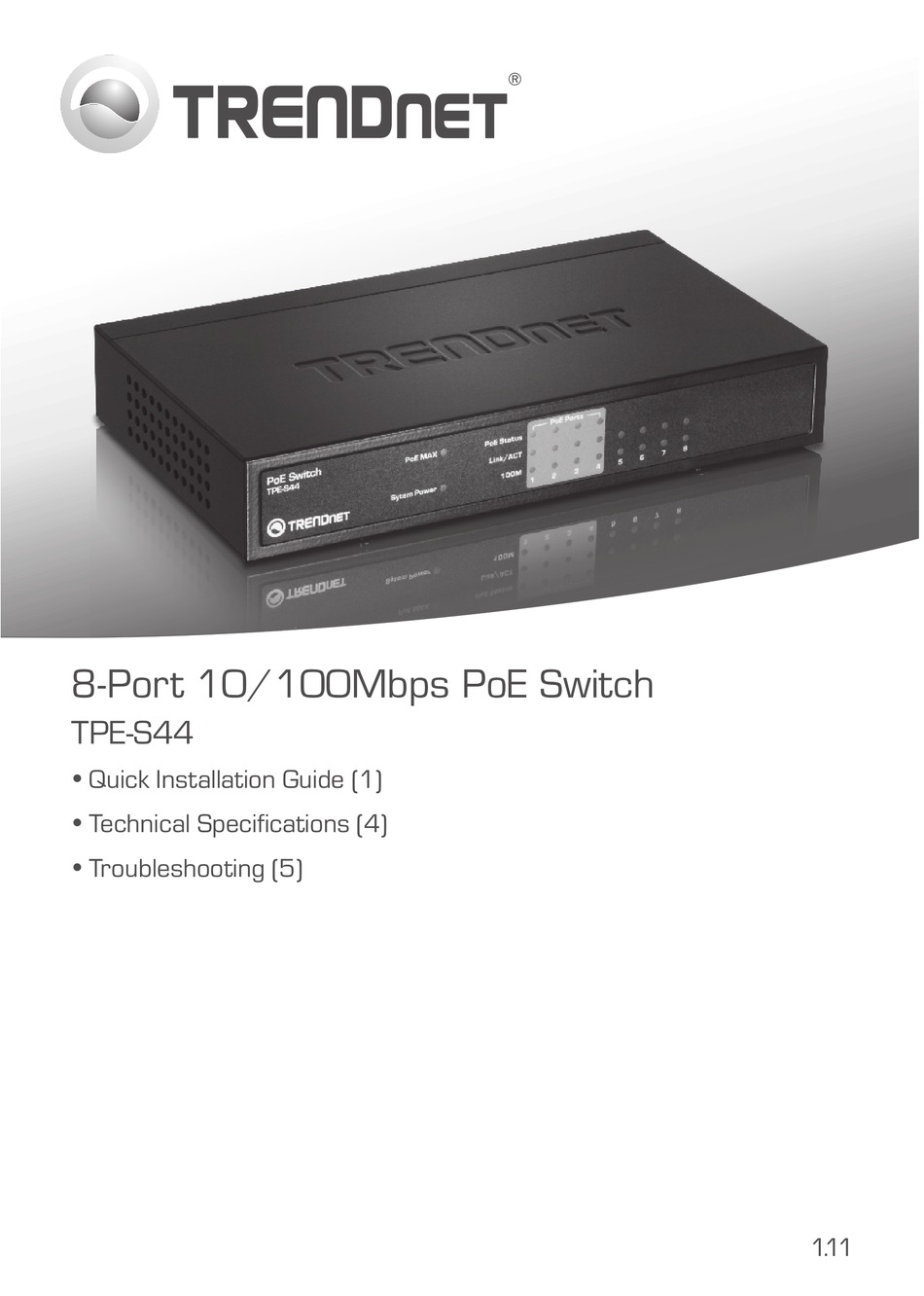

  • Page 1 8-Port 10/100Mbps PoE Switch TPE-S44 Ÿ Quick Installation Guide (1) Ÿ Technical Specifications (4) Ÿ Troubleshooting (5) 1. 1 1...

  • Page 2: Package Contents

    Make sure that there is proper heat dissipation and adequate ventilation around the Switch Ÿ Do not place heavy objects on the Switch Ÿ IEEE 802.3af Poe Device Ÿ TPE-112GS (Optional) Note: The TPE-S44 only supports Powered Devices that follow the IEEE 802.3af standard...
  • Page 3 2. LEDs Color Sequence Definition Device is on. System Green Solid Power Device is off. PoE Max Green Solid If the Switch detects there is 7.5W of power or less available, this LED will light up. This indicates a power overload. If the Switch detects there is more than 7.5W of power available, the LED will not light up.

  • Page 4: Hardware Installation

    1. Plug the power cord into the Power 3. Connect a RJ-45 cable from a PoE Adapter. Connect the Power port (1~4) on the TPE-S44 to the Adapter to the TPE-S44 and then LAN port of the PoE device to a power outlet.

  • Page 5: Technical Specifications

    Technical Specifications Hardware Ÿ IEEE 802.3 10Base-T Standards Ÿ IEEE 802.3u 100Base-TX Ÿ IEEE 802.3af Power over Ethernet Network Media Ÿ 10Mbps: Cat 3,4,5 Unshielded Cable Ÿ 100Mbps Cat 5,5e,6 Unshielded Cable Protocol/Topology CSMA/CD, Star Ports Ÿ 4 x 10/100Mbps Auto-MDIX POE Ports (1~4) Ÿ...

  • Page 6: Troubleshooting

    Troubleshooting 1. After connecting the Switch to a power outlet, the LEDs do not turn on. 1. Check the connection of the external power adapter to the TPE-S44 and the power outlet 2. Check that the power outlet is receiving power.

  • Page 8: Limited Warranty

    If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer. The repair/replacement unit's warranty continues from the original date of purchase.
  • Page 9 General Public License ("LGPL"). Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers.
  • Page 10 TRENDnet 20675 Manhattan Place Torrance, CA 90501. USA Copyright ©2011. All Rights Reserved. TRENDnet.
