T&D RTR-574 Introductory Manual

RTR-574 / RTR-574-S
Introductory Manual
Thank you for purchasing our product.
Carefully read this instruction manual before using this Unit.
RTR-574 Package Contents
Illuminance Illuminance Temperature AA USB Mini-B
UV Recorder UV Sensor - Humidity Alkaline Cable (US-15C)
WL (ISA-3151) Sensor Battery
RTR-574 (THA-3151) LR6
RTR-574-S Package Contents
Illuminance Illuminance Temperature AA USB Mini-B
UV Recorder UV Sensor - Humidity Alkaline Cable (US-15C)
WL (ISA-3151) Sensor Battery
RTR-574 (SHA-3151) LR6
tandd.com
© Copyright T&D Corporation. All rights reserved. 2021.11 16504670047 (9th Edition)
This is printed using recycled paper.

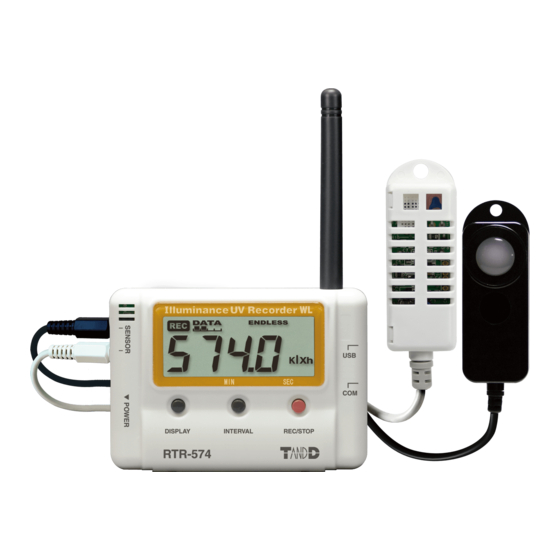

Illuminance UV Recorder WL RTR-574 is a Data Logger, with built-in wireless communication capability, designed to measure and record
Illuminance, UV Intensity, Temperature and Humidity at a set interval.
Recorded data can be downloaded from an RTR-574 Data Logger (Remote Unit) via wireless communication with a Base Unit; that data can then be viewed
in a graph and/or saved to PC for analysis or sharing over a network.
As a Remote Unit, RTR-574 requires a Base Unit to carry out wireless communication.
(Compatible Base Units: RTR500BC, RTR500BW, RTR500BM, RTR-500, RTR-500NW, RTR-500AW, RTR-500DC, RTR-500MBS-A)
Before using an RTR-574, it is first necessary to install the USB Device Driver from the software that comes with the Base Unit.
From hereafter in this manual, Illuminance UV Recorder WL RTR-574 will be referred to as the "Unit".
Appearance Diagram and Part Names
60
18
55
78
[Unit : mm]
Antenna
Sensor Jack
Power Button
Operation Buttons (DISPLAY, INTERVAL, REC/STOP)
USB Connector (Mini-B)
Serial Connector
Battery Cover
Notices about this Manual
In order to properly use this product, please carefully read this manual
before using.
- All rights of this Manual belong to T&D Corporation. It is prohibited
to use, duplicate and / or arrange a part or whole of this Manual
without the permission of T&D Corporation.
- „TANDD", „T&D" and the logo of T&D Corporation are all registered
property of T&D Corporation.
- Specifications, design and other contents outlined in this manual
are subject to change without notice.
- We are not responsible for any malfunction or trouble caused by
the use of our product or by any problem caused by the use of
measurement results of our unit. Please be fully aware of this before
using our product.
Introductory
- On screen messages in this manual may vary slightly from the
Manual
actual messages.
(including
Warranty) - Please notify the shop where you purchased this product or T&D
Corporation of any mistakes, errors or unclear explanations in this
manual.
- T&D Corporation accepts no responsibility for any damage or loss of
income caused by the use of our product.
- This product has been designed for private or industrial use only.
It is not for use in situations where strict safety precautions are
necessary such as in connection with medical equipment, whether
directly or indirectly.
- This Manual cannot be reissued, so please keep it in a safe place.
- Please carefully read this Manual and Warranty.
Introductory
Manual
(including
Warranty)
Reading the LCD Display
REC Mark The recording status is shown here.
ON: Recording in progress.
BLINKING: Waiting for programmed start.
OFF: Recording has been stopped.
DATA The number of recorded readings is shown in a scale here.
After every 2,000 readings the scale is marked from left to right.
Logging capacity is 8,000 readings.
COM Mark The communication status is shown here.
ON: The Unit is connected to a PC with the USB cable.
BLINKING: The Unit is in Wireless/USB/Serial communication.
Recording Mode
ENDLESS: Upon reaching logging capacity of 8,000 readings, the oldest
data is overwritten and recording continues.
ONETIME: Upon reaching logging capacity of 8,000 readings, recording will
automatically stop.
Battery Life When it is time for the battery to be replaced, this mark will
Warning Mark appear.
Not ON: Ample battery power.
ON: Time to change the battery.
Current Readings Normally, the current readings are shown here. Depending on
/Messages Area the Unit's status, operational messages may also be displayed.
Unit of Humidity: % , Temperature: ˚C / ˚F, Illuminance: lx, klx
Measurement Cumulative Illuminance: lxh, klxh, Mlxh
2
UV Intensity : mW/cm ,
Cumulative Amount of UV Light: mW/cm
Safety Precautions and Instructions
To prevent any loss or damage to our customers, other people and/or property, and
to ensure the proper use of our products we ask that before using our product you
carefully read, understand and follow the safety rules and precautions for our
products as outlined below.
Explanation of Warning Symbols
DANGER
These entries are actions that absolutely under
no circumstance should be taken. The taking
of such an action may cause serious personal
physical damage or death.
CAUTION
These entries are actions that if taken may lead
to physical injury or damage to persons or
things.
Do not take apart, repair or modify the Unit.
Touching them may result in malfunction or unexpected accidents.
If water or a foreign object enters into the Unit, immediately turn OFF the
power, remove batteries, and stop using.
Continued use may cause fire or electrocution.
Do not use this Unit in wet or humid places, such as a bathroom.
It may cause a fire or other trouble including malfunction.
If water or a foreign object enters the case, immediately cease using it.
Store the Unit and accessories out of the reach of children.
Touching them may result in unexpected accidents.
If any smoke or strange smells are emitted from the Unit, immediately turn
OFF the power, remove batteries, and stop using.
Continued use may cause fire or electrocution.
Do not drop the Unit, or expose the Unit to a strong impact.
If that happens to the Unit, immediately turn OFF the power, remove batteries, and
stop using. Continued use may cause fire or electrocution.
When installing and using this product, make sure to follow all warnings and
directions from your computer manufacturer.
This Unit is not waterproof.
If the Unit gets dirty, wipe it with a clean cloth.
Harmful gases or chemicals may cause corrosion and/or other danger to the
Unit. Also, by coming in contact with hazardous substances, harm may occur
to the people handling the Unit. Therefore, do not use or store the Unit in
any environment that is exposed to chemicals and harmful gases.
Battery life varies depending upon the type of battery, the battery
performance, the measuring environment, and the frequency of
communication.
Battery terminals may provide insufficient contact due to age or vibration.
This may lead to data loss.
Use the Unit in an environment within the operational range.
Condensation may occur when a Unit is moved from one environment to
another where there is a great difference in temperature.
To prevent damage to the Unit from static electricity, remove static electricity
from your body by touching metal around you (door knob, window frame)
before touching the Unit.
Static electricity may cause not only damage to the Unit, but may cause breaks in
or a loss of data.
If the Unit is not to be used for a long period of time, for safety reasons
please remove the battery.
If left in the Unit, it may leak and lead to malfunctioning.Please use a new battery
when you use the Unit again.
Do not store or leave the Unit in any place exposed to high temperature and
high humidity.
If the Unit is not to be used for a long period of time, store it in a place with a
normal temperature and without condensation with other items included.
Do not disconnect the communication cable during USB communication.
This may harmfully effect the Unit or your PC.
We shall not guarantee the operation of our device if you have connected it
to your computer using a USB hub or a USB extension cable.
Please do not insert your fingers or any foreign objects into the sensor or
USB connection jacks.
Do not use or store the Unit in any of the following places. Doing so may
cause electrocution, fire and/or other adverse effects to the device and/or
your computer.
-Areas exposed to direct sunlight
This will cause the inside of the Unit to become overheated and may cause fire,
deformation, and/or
other damage including malfunction.
-Areas prone to strong magnetic fields
This may cause damage including malfunction.
- Areas exposed to water leakage
This may cause electrocution or other damage including malfunction.
- Areas exposed to excessive vibration
This may cause injury, malfunction, damage or loss of proper electrical contact.
- Areas near fire or exposed to excessive heat
This may cause damage including malfunction and deformation.
-Areas prone to dust and dirt
This may cause damage including malfunction.
2 h, W/cm 2 h
* Please carefully observe the following safety measures when using our product.
Cautions about using the Illuminance UV Sensors
Do not connect the ISA-3151 sensor to any data logger other than those
specified by T&D Corporation.
Explanation of Picture Symbols
Use the Unit in an environment within the operational range.
Denotes an important
When measuring UV light or other light which may cause damage or injury to
warning or caution.
your eyes or skin make sure to use protection such as safety glasses or some
type of light-proof shield.
Denotes a forbidden
action. Do not expose the sensor to a strong impact.
Cracks or scratches in the Illuminance sensor and / or in the UV sensor will adversely
affect the measurement accuracy. Also, a broken sensor may result in injury.
Denotes an action that
must be taken. This sensor is not waterproof. By all means do not allow it to get wet.
Do not expose to condensation, dampness, corrosive gases or organic
solvents. Also, do not use in areas near fire or exposed to excessive heat.
DANGER
When the Illuminance UV sensor is not being used, please store at room
temperature to prevent condensation.
If the sensor surface gets dirty, wipe it with a soft cloth.
If the sensor surface accumulates impurities (dirt), it will cause a decrease in the
sensor's accuracy and sensitivity.
If you wish to extend the length of the sensor cable, please purchase and use
our optional sensor extension cable (TR-1C30 / TR-5C10).
Do not cut or process the sensor cables.
Using the "Adjustment Function" in the software for the Base Unit, it is
possible to make desired adjustment settings to a sensor; these settings are
saved directly into the sensor itself.Therefore, when a sensor is replaced, it is
necessary to re-make any desired adjustment settings to be saved into the
newly connected sensor.
Cautions about using the Temperature-Humidity Sensors
Do not connect the THA-3001/3151 sensor to any data logger other than
those specified by T&D Corporation.
Use the Unit in an environment within the operational range.
When using the THA-3001/3151 sensor in an environment where the
humidity is less than 30%RH, the measurements may sometimes fluctuate.
CAUTION
This is not abnormal.
If extremely severe temperature changes occur, the humidity measurements
may appear abnormal.
Once the sensor's temperature becomes stable, the measurements will return to
normal.
This sensor is not waterproof.
Only use in an environment where there is no condensation or possibility of
becoming wet. Do not use in water or near areas where high-pressure water is
flowing.
Do not expose to condensation, dampness, corrosive gases, or organic
solvents.
When the sensor is not to be used for a long period of time, please store it at
normal temperature and humidity.
During use, the surface of the temperature - humidity sensor will accumulate
impurities (dirt) causing a ecrease in the sensor's accuracy and sensitivity. If the
sensor is being used in an environment where smoke and dust are in abundance,
periodic calibration may be required.
Do not use this sensor on a human body.
If you wish to extend the length of the sensor cable, please purchase and use
our optional sensor extension cable (TR-1C30 / TR-6C10).
Do not cut or process the sensor cables.
Using the "Adjustment Function" in the software for the Base Unit, it is
possible to make desired adjustment settings to a sensor; these settings are
saved directly into the sensor itself.Therefore, when a sensor is replaced, it is
necessary to re-make any desired adjustment settings to be saved into the
newly connected sensor.
CE Statement
The RTR-500 Series products are in compliance with the Radio Equipment
Directive 2014/53/EU.
The following standards have been applied:
<Safety and Health> EN 60950-1
<EMC>
<Radio Spectrum>
The full text of the EU declaration of conformity is available at the following
internet address:
https://tandd.com/manual/pdf/doc-rtr500-series.pdf
Wireless products cannot be used in countries other than where those
products have been approved for use, according to that country's wireless
regulations.
T&D Corporation shall in no manner whatsoever take responsibility for the
usage of these products, nor be liable in any manner for legal consequences
stemming from the usage of these wireless products in unapproved areas.
Wireless Regulations
EN 50663
EN 301 489-1
EN 301 489-3
EN 300 220-2 (receiver category 2)
Important Notice
