Unpacking

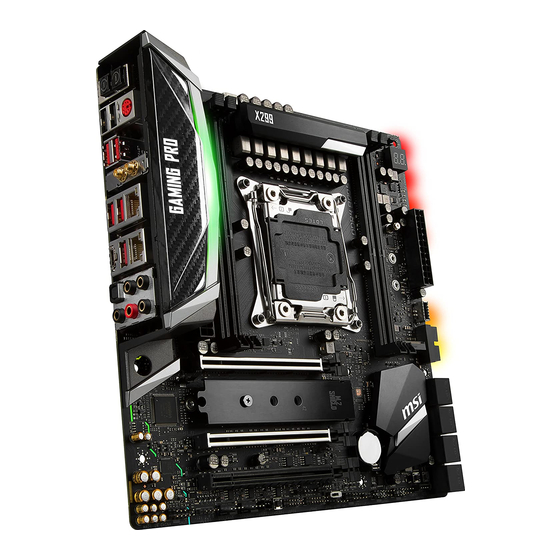

Thank you for buying the MSI
X299M GAMING PRO CARBON AC
motherboard. Check
®
to make sure your motherboard box contains the following items. If something is
missing, contact your dealer as soon as possible.
Drivers & Utilities
Motherboard User
Disc
Motherboard
Guide
I/O Shield
SLI Bridge
Connector
SATA Cable x4
3D X-MOUNTING
Screw Pillars
1 to 2 RGB LED Extension
Y Cable 80cm x1
Antenna x2
Changeable
Case Badge
Cover x2*
SATA Cable Labels
1
Unpacking

Advertisement

Table of Contents

Troubleshooting

loading

Related Manuals for MSI X299M GAMING PRO CARBON AC

Summary of Contents for MSI X299M GAMING PRO CARBON AC

  • Page 1: Unpacking

    Unpacking Thank you for buying the MSI X299M GAMING PRO CARBON AC motherboard. Check ® to make sure your motherboard box contains the following items. If something is missing, contact your dealer as soon as possible. Drivers & Utilities Motherboard User...

  • Page 2: Safety Information

    Safety Information y The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly. y Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start.

  • Page 3: Quick Start

    Quick Start Preparing Tools and Components Intel LGA 2066 CPU ® CPU Fan Thermal Paste DDR4 Memory Power Supply Unit Chassis SATA Hard Disk Drive Graphics Card SATA DVD Drive A Package of Screws Phillips Screwdriver Quick Start...

  • Page 4: Installing A Processor

    Installing a Processor https://youtu.be/ecdkLMmkya4 Quick Start...

  • Page 5: Installing Ddr4 Memory

    Installing DDR4 memory http://youtu.be/T03aDrJPyQs Quick Start...

  • Page 6: Connecting The Front Panel Header

    Connecting the Front Panel Header http://youtu.be/DPELIdVNZUI HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch Reset Switch Power Switch JFP1 Reserved No Pin JFP1 HDD LED - HDD LED HDD LED + POWER LED - POWER LED POWER LED + Quick Start...

  • Page 7: Installing The Motherboard

    Installing the Motherboard BAT1 Quick Start...

  • Page 8: Installing Sata Drives

    Installing SATA Drives http://youtu.be/RZsMpqxythc Quick Start...

  • Page 9: Installing A Graphics Card

    Installing a Graphics Card http://youtu.be/mG0GZpr9w_A Quick Start...

  • Page 10: Connecting Peripheral Devices

    Connecting Peripheral Devices Quick Start...

  • Page 11: Connecting The Power Connectors

    Connecting the Power Connectors http://youtu.be/gkDYyR_83I4 ATX_PWR1 CPU_PWR1 PCIE_PWR1 Quick Start...

  • Page 12: Power On

    Power On Quick Start...

  • Page 13: Table Of Contents

    Contents Unpacking ......................1 Safety Information ....................2 Quick Start ......................3 Preparing Tools and Components ................3 Installing a Processor ..................... 4 Installing DDR4 memory ..................5 Connecting the Front Panel Header ............... 6 Installing the Motherboard ..................7 Installing SATA Drives.....................
  • Page 14 JAUD1: Front Audio Connector ................41 JCI1: Chassis Intrusion Connector ............... 41 BIOS_SW1: Multi-BIOS Switch ................42 JBAT1: Clear CMOS (Reset BIOS) Jumper ............43 POWER1, RESET1: Power Button, Reset Button ..........43 JLED1: RGB LED connector ................. 44 LED light effect demonstration components ............44 Onboard LEDs ......................
  • Page 15 COMMAND CENTER ..................... 81 GAMING APP ......................85 X-BOOST ....................... 90 MYSTICLIGHT ......................92 MSI SMART TOOL ....................94 RAMDISK....................... 96 GAMING LAN MANAGER ..................97 DRAGON EYE ......................99 Nahimic 2 ......................100 XSplit Gamecaster V2 ..................104 SteelSeries Engine 3 ..................108 Intel Extreme Tuning Utility ................

  • Page 16: Specifications

    Specifications y Supports Intel Core™ X-Series Processor for LGA2066 ® Socket* * X299M GAMING PRO CARBON AC does not support Intel Core™ i7-7740X and ® i5-7640X processors. Chipset Intel X299 Chipset ® y 4x DDR4 memory slots, support up to 64GB...
  • Page 17 Continued from previous page y ASMedia ASM3142 Chipset ® ƒ 1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel ƒ 2x USB 3.1 Gen2 (Super Speed USB 10Gbps) Type-C ports (1 port on the back panel, 1 port available through the internal USB connector) y Intel X299 Chipset...
  • Page 18 Continued from previous page y 1x 24-pin ATX main power connector y 1x 8-pin ATX 12V power connector y 1x 6-pin ATX 12V power connector y 8x SATA 6Gb/s connectors y 2x M.2 slots (Key M) y 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) y 1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • Page 19 Continued from previous page y 1x Clear CMOS button y 1x BIOS FLASHBACK+ button y 1x PS/2 keyboard/ mouse combo port y 2x USB 2.0 Type-A ports y 4x USB 3.1 Gen1 Type-A ports Back Panel y 2x Wi-Fi antenna connectors Connectors y 2x LAN (RJ45) ports y 1x USB 3.1 Gen2 Type-A port...
  • Page 20 Continued from previous page y Drivers y APP MANAGER y SUPER CHARGER y COMMAND CENTER y LIVE UPDATE 6 y MSI SMART TOOL y DRAGON EYE y GAMING APP y X-BOOST y MYSTIC LIGHT y RAMDISK y GAMING LAN Manager...
  • Page 21 Muitl GPU - CrossFire Technology y DDR4 Boost y USB with type A+C y Lightning USB with ASM3142 y Front Lightning USB 3.1 Gen2 type C MSI Special Features y Military Class 6 y 7000+ Quality Test y VR Boost...

  • Page 22: Block Diagram

    Block Diagram 4 Channel DDR4 Memory Processor Intel I219-V PCI Express Bus Intel I211-AT Wi-Fi / DMI 3.0 Bluetooth 2x M.2 Switch 8x SATA 6Gb/s X299 PCH PCIE Bus 6x USB 3.1 Gen1 ASMEDIA ASM3142 3x USB 3.1 Gen2 6x USB 2.0 LPC Bus NV6795 Realtek...

  • Page 23: Rear I/O Panel

    Rear I/O Panel Wi-Fi Antenna connectors Audio Ports PS/2 Clear CMOS button USB 3.1 Gen2 Optical USB 3.1 Gen1 BIOS FLASHBACK+ Type-C S/PDIF-Out Type-A button USB 3.1 Gen2 USB 3.1 Gen1 USB 2.0 Type-A Type-A USB 2.0/ BIOS FLASHBACK+ y Clear CMOS button - Power off your computer. Press and hold the Clear CMOS button for about 5-10 seconds to reset BIOS to default values.

  • Page 24: Realtek Hd Audio Manager

    Realtek HD Audio Manager After installing the Realtek HD Audio driver, the Realtek HD Audio Manager icon will appear in the system tray. Double click on the icon to launch. Device Selection Advanced Settings Jack Status Application Enhancement Connector Main Volume Strings Profiles y Device Selection - allows you to select a audio output source to change the related...
  • Page 25 Audio jacks to headphone and microphone diagram Audio jacks to stereo speakers diagram AUDIO INPUT Audio jacks to 7.1-channel speakers diagram AUDIO INPUT Rear Front Side Center/ Subwoofer Rear I/O Panel...

  • Page 26: Installing Antennas

    Installing Antennas 1. Screw the antennas tight to the Wi-Fi antenna connectors as shown. 2. Place the antennas as high as possible. Rear I/O Panel...

  • Page 27: Overview Of Components

    Overview of Components SYS_FAN1 PUMP_FAN1 DIMMB1 CPU Socket CPU_PWR1 CPU_FAN1 DIMMA1 DIMMC1 DIMMD1 ATX_PWR1 JUSB4 M2_2 JUSB3 PCIE_PWR1 JBAT1 PCI_E1 RESET1 SATA▼1▲2 M2_1 SATA▼3▲4 PCI_E2 SATA▼5▲6 BAT1 PCI_E3 SATA▼7▲8 JSEL1 VRAID1 JUSB1 JAUD1 JUSB2 JLED1 POWER1 SYSFAN3 JCI1 SYSFAN2 JFP1 JPWRLED1 JFP2 JTPM1...
  • Page 28 Component Contents Port Name Port Type Page BIOS_SW1 Multi-BIOS Switch CPU_FAN1, PUMP_FAN1, SYS_ Fan Connectors FAN1~3 CPU_PWR1, ATX_PWR1, PCIE_PWR1 Power Connectors CPU Socket LGA2066 DIMMA1/B1/C1/D1 DIMM Slots JAUD1 Front Audio Connector JBAT1 Clear CMOS (Reset BIOS) Jumper JCI1 Chassis Intrusion Connector JFP1, JFP2 Front Panel Connectors JLED1...

  • Page 29: Cpu Socket

    Always unplug the power cord from the power outlet before installing or removing the CPU. Please retain the CPU protective cap after installing the processor. MSI will deal with Return Merchandise Authorization (RMA) requests if only the motherboard comes with the protective cap on the CPU socket.

  • Page 30: Dimm Slots

    DIMM Slots DIMMB1 DIMMC1 DIMMA1 DIMMD1 Memory module installation recommendation (4-Channels architecture CPU ) BAT1 DIMMA1 DIMMA1 DIMMD1 DIMMD1 DIMMB1 DIMMB1 DIMMC1 DIMMC1 DIMMA1 DIMMA1 DIMMD1 DIMMD1 DIMMB1 DIMMB1 DIMMC1 DIMMC1 Overview of Components...
  • Page 31 Important To ensure system stability for Dual/ Triple/ Quad channel mode, memory modules must be of the same type, number and density. And for every channel, the odd number DIMM slot must to be installed first. Due to chipset resource usage, the available capacity of memory will be a little less than the amount of installed.

  • Page 32: Pci_E1~3: Pcie Expansion Slots

    PCI_E1~3: PCIe Expansion Slots PCI_E1: PCIe 3.0 x16 PCI_E2: PCIe 3.0 x16/ x8 BAT1 PCI_E3: PCIe 3.0 x8/ x4 PCIe slots bandwidth table for 44-lane CPU Graphics Card Single* 2-Way* 2-Way PCI_E1 @ 3.0 x16 @ 3.0 x16 @ 3.0 x16 PCI_E2 3.0 x16 @ 3.0 x16...
  • Page 33 If you install a large and heavy graphics card, you need to use a tool such as MSI Gaming Series Graphics Card Bolster to support its weight and to prevent deformation of the slot. When adding or removing expansion cards, always turn off the power supply and unplug the power supply power cable from the power outlet.

  • Page 34: M2_1~2: M.2 Slots (Key M)

    M2_1~2: M.2 Slots (Key M) Important Intel RST only supports PCIe M.2 SSD with UEFI ROM. ® Intel Optane™ Memory Ready for all M.2 slots. ® Video Demonstration M2_2 Watch the video to learn how to Install M.2 M2_1 module. http://youtu.be/JCTFABytrYA Installing M.2 module 1.

  • Page 35: Sata1~8: Sata 6Gb/S Connectors

    SATA1~8: SATA 6Gb/s Connectors These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device. SATA2 SATA1 SATA4 SATA3 SATA6 SATA5 SATA8 SATA7 Important Please do not fold the SATA cable at a 90-degree angle. Data loss may result during transmission otherwise.

  • Page 36: Vraid1: Virtual Raid On Cpu Connector

    M.2 slots with examples of various combination possibilities 2xM.2 PCIe+ 8xSATA 1xM.2 SATA+ 1xM.2 PCIe+ 7xSATA M.2 PCIe M.2 SATA 1xM.2 PCIe+ 1xM.2 SATA+ 7xSATA 2xM.2 SATA+ 6xSATA M.2 PCIe M.2 SATA VRAID1: Virtual RAID on CPU Connector This connector allows you to connect a VROC (Virtual RAID on CPU) Key module. You need to enable the VROC function with Intel RSTe (Intel Rapid Storage Technology...

  • Page 37: Cpu_Pwr1, Atx_Pwr1, Pcie_Pwr1: Power Connectors

    CPU_PWR1, ATX_PWR1, PCIE_PWR1: Power Connectors These connectors allow you to connect an ATX power supply. CPU_PWR1 Ground +12V Ground +12V Ground +12V Ground +12V +3.3V +3.3V +3.3V -12V Ground Ground PS-ON# Ground Ground Ground ATX_PWR1 Ground Ground PWR OK 5VSB +12V +12V +3.3V...

  • Page 38: Jfp1, Jfp2: Front Panel Connectors

    JFP1, JFP2: Front Panel Connectors These connectors connect to the switches and LEDs on the front panel. JFP1 HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch Reset Switch Power Switch Reserved No Pin Speaker - Buzzer + JFP2...

  • Page 39: Jusb4: Usb 3.1 Gen2 Type-C Connector

    JUSB4: USB 3.1 Gen2 Type-C Connector This connector allows you to connect USB 3.1 Gen2 Type-C connector on the front panel. The connector possesses a foolproof design. When you connect the cable, be sure to connect it with the corresponding orientation. JUSB4 USB Type-C Cable USB Type-C port...

  • Page 40: Cpu_Fan1, Pump_Fan1, Sys_Fan1~3: Fan Connectors

    CPU_FAN1, PUMP_FAN1, SYS_FAN1~3: Fan Connectors Fan connectors can be classified as PWM (Pulse Width Modulation) Mode or DC Mode. PWM Mode fan connectors provide constant 12V output and adjust fan speed with speed control signal. DC Mode fan connectors control fan speed by changing voltage. When you plug a 3-pin (Non-PWM) fan to a fan connector in PWM mode, the fan speed will always maintain at 100%, which might create a lot of noise.

  • Page 41: Jaud1: Front Audio Connector

    JAUD1: Front Audio Connector This connector allows you to connect audio jacks on the front panel. MIC L Ground MIC R Head Phone R MIC Detection SENSE_SEND No Pin Head Phone L Head Phone Detection JCI1: Chassis Intrusion Connector This connector allows you to connect the chassis intrusion switch cable. Normal Trigger the chassis intrusion event...

  • Page 42: Bios_Sw1: Multi-Bios Switch

    When BIOS updating fails or causes the computer non-bootable, you can recover the failed BIOS by the steps below. Before recovering, please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file to the root of the USB flash drive.

  • Page 43: Jbat1: Clear Cmos (Reset Bios) Jumper

    JBAT1: Clear CMOS (Reset BIOS) Jumper There is CMOS memory onboard that is external powered from a battery located on the motherboard to save system configuration data. If you want to clear the system configuration, set the jumper to clear the CMOS memory. Keep Data Clear CMOS/ Reset BIOS...

  • Page 44: Jled1: Rgb Led Connector

    Always turn off the power supply and unplug the power cord from the power outlet before installing or removing the RGB LED strip. Please use MSI’ s software to control the extended LED strip. LED light effect demonstration components These components are used by retailers to demonstrate onboard LED light effects.

  • Page 45: Onboard Leds

    Onboard LEDs EZ Debug LEDs These LEDs indicate the status of key components during booting process. When an error is occurred, the corresponding LED stays lit until the problem is solved. CPU - indicates CPU is not detected, fail or non- supported.

  • Page 46: Fan Leds

    Fan LEDs These LEDs indicate the fan control mode. PUMP_FAN1 LED CPU_FAN1 LED LED Color Fan control mode PWM mode Green DC mode PCIe x16 slot LEDs These LED indicate the PCIe x16 slots status. LED Color PCIe slot speed status PCI_E1 LED White x8, x4, x1...

  • Page 47: Updating Led Firmware

    Updating the LED firmware can help improve lighting effect. To update LED firmware: 1. Install and launch MSI LIVE UPDATE 6. 2. Select BIOS Update. 3. Click on Scan button. If the LED firmware needs to be updated, the version of the firmware will appear in the list.

  • Page 48: Debug Code Led

    Debug Code LED The Debug Code LED displays progress and error codes during and after POST. Refer to the Debug Code LED table for details. Hexadecimal Character Table Hexadecimal Debug Code 0 1 2 3 4 5 6 7 8 9 A B C D E F LED display Boot Phases Security (SEC) –...
  • Page 49 Memory initialization. Programming DXE Core is started memory timing information NVRAM initialization Memory initialization. Configuring Installation of the PCH Runtime Services memory CPU DXE initialization is started Memory initialization (other) CPU DXE initialization (CPU module 64 - 67 Memory Installed specific) CPU post-memory initialization is started PCI host bridge initialization...

  • Page 50: Acpi States Codes

    Setup Verifying Password S3 Resume Failed Start of Setup S3 Resume PPI not Found Setup Input Wait S3 Resume Boot Script Error Ready To Boot event S3 OS Wake Error Legacy Boot event EC - EF Reserved for future AMI error codes Exit Boot Services event Recovery Progress Codes Runtime Set Virtual Address MAP Begin...

  • Page 51: Bios Setup

    Press Delete key, when the Press DEL key to enter Setup Menu, F11 to enter Boot Menu message appears on the screen during the boot process. y Use MSI FAST BOOT application. Click on GO2BIOS button and choose OK. The system will reboot and enter BIOS setup directly.

  • Page 52: Resetting Bios

    Updating BIOS Updating BIOS with M-FLASH Before updating: Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive. Updating BIOS: 1. Press Del key to enter the BIOS Setup during POST.
  • Page 53 Before updating: Please download the latest BIOS file that matches your motherboard model from MSI ® website and rename the BIOS file to MSI.ROM. And then, save the MSI.ROM file to the root of USB flash drive. Important Only the FAT32 format USB flash drive supports updating BIOS by BIOS FLASHBACK+.

  • Page 54: Ez Mode

    EZ Mode At EZ mode, it provides the basic system information and allows you to configure the basic setting. To configure the advanced BIOS settings, please enter the Advanced Mode by pressing the Setup Mode switch or F7 function key. XMP switch Setup Mode switch Screenshot...
  • Page 55 y Information display - click on the CPU, Memory, Storage, Fan Info and Help buttons on left side to display related information. y Function buttons - enable or disable the LAN Option ROM, M.2/Optane Genie, Hardcore mode, AHCI, RAID, CPU Fan Fail Warning Control and BIOS Log Review by clicking on their respective button.

  • Page 56: Advanced Mode

    Advanced Mode Press Setup Mode switch or F7 function key can switch between EZ Mode and Advanced Mode in BIOS setup. XMP switch Setup Mode switch Screenshot Search Language System information GAME BOOST switch Boot device priority bar BIOS menu BIOS menu selection selection...

  • Page 57: Settings

    SETTINGS System Status f System Date Sets the system date. Use tab key to switch between date elements. The format is <day> <month> <date> <year>. <day> Day of the week, from Sun to Sat, determined by BIOS. Read-only. <month> The month from Jan. through Dec. <date>...
  • Page 58 fPEGX - Max Link Speed [Auto] Sets PCI Express protocol of PCIe x16 slots for matching different installed devices. [Auto] This item will be configured automatically by BIOS. [Gen1] Enables PCIe Gen1 support only. [Gen2] Enables PCIe Gen2 support only. [Gen3] Enables PCIe Gen3 support only.
  • Page 59 fIpv6 PXE Support [Enabled] When Enabled, the system UEFI network stack will support Ipv6 protocol. This item will appear when Network Stack is enabled. [Enabled] Enables the Ipv6 PXE boot support. [Disabled] Disables the Ipv6 PXE boot support. fSATA Mode [AHCI Mode] Sets the operation mode of the onboard SATA controller.
  • Page 60 Disables this function. fMSI Fast Boot [Disabled] MSI Fast Boot is the fastest way to boot the system. It will disable more devices to speed up system boot time which is faster than the boot time of Fast Boot. [Enabled] Enables the MSI Fast Boot function to speed up booting time.
  • Page 61 [Enabled] Enables the Fast Boot configuration to accelerate system boot time. [Disabled] Disables the Fast Boot configuration. fSecure Boot Sets the Windows secure boot to prevent the unauthorized accessing. Press Enter to enter the sub-menu. This sub-menu will appear when Windows 10 WHQL Support is enabled.

  • Page 62: Boot

    fResume By Onboard Intel LAN [Disabled] Enables or disables the system wake up by Onboard Intel LAN. [Enabled] Enables the system to be awakened from the power saving modes when activity or input signal of Intel LAN device is detected. [Disabled] Disables this function.

  • Page 63: Security

    f GO2BIOS [Disabled] Allows system to enter BIOS setup directly by pressing the Power button for 4 sec pon bootup. [Enabled] The system boots straight to the BIOS setup by long pressing the power button about 4 seconds when the system is off. [Disabled] Disables this function.

  • Page 64: Save & Exit

    f Password Clear [Enabled] Enables or disables the clear CMOS behavior to clear a set password. [Enabled] The password will be erased after clear CMOS. [Disabled] The password will always be kept. Important When selecting the Administrator / User Password items, a password box will appear on the screen.
  • Page 65 Important Overclocking your PC manually is only recommended for advanced users. Overclocking is not guaranteed, and if done improperly, it could void your warranty or severely damage your hardware. If you are unfamiliar with overclocking, we advise you to use GAME BOOST function for easy overclocking.
  • Page 66 f Adjusted CPU Frequency Shows the adjusted CPU frequency. Read-only. f CPU Core # Favored Index Target Speed This item will be activate when CPU Ratio Apply Mode set to “Per Core” . It shows the favored index of target speed for each CPU core. Read only. f Core 0~X XX of XX [Auto]* Allows you to set the CPU ratios for different number of active cores.
  • Page 67 f CPU Base Clock (MHz) Sets the CPU Base clock. You may overclock the CPU by adjusting this value. Please note that overclocking behavior and stability is not guaranteed. This item appears when a CPU that support this function is installed. f CPU Base Clock Apply Mode [Auto]* Sets the applying mode for adjusted CPU base clock.
  • Page 68 f DigitALL Power Press Enter to enter the sub-menu. Controls the digital powers related to CPU PWM. fVR 12VIN OCP Expander [Auto] Expands the limitation of VR Over Current Protection with 12V input voltage. The higher expanding value indicates less protection. Therefore, please adjust the current carefully if needed, or it may damage the CPU/ VR MOS.
  • Page 69 fCPU SA Switching Frequency [Auto] Sets the PWM working speed to stabilize CPU SA voltage and minimize ripple range. Increasing the PWM working speed will cause higher temperature of MOSFET. So please make sure a cooling solution is well-prepared for MOSFET before you increase the value.
  • Page 70 f CPU Core/ Ring Voltage Mode [Auto]* Sets the CPU Core/ Ring voltage mode. [Auto] This setting will be configured automatically by BIOS. [Adaptive Mode] Sets the adaptive voltage automatically for optimizing the system performance. [Override Mode] Allows you to set the voltage manually. [Offset Mode] Allows you to set the offset voltage and select the voltage offset mode.
  • Page 71 f CPU Features Press Enter to enter the sub-menu. fHyper-Threading [Enabled] Intel Hyper-Threading technology treats the multi cores inside the processor as multi logical processors that can execute instructions simultaneously. In this way, the system performance is highly improved. This item appears when the installed CPU supports this technology.
  • Page 72 fIntel Adaptive Thermal Monitor [Enabled] Enables or disables the Intel adaptive thermal monitor function to protect the CPU from overheating. [Enabled] Throttles down the CPU core clock speed when the CPU is over the adaptive temperature. [Disabled] Disables this function. fIntel C-State [Auto] Enables or disables the Intel C-state.
  • Page 73 fLong Duration Power Limit (W) [Auto] Sets the long duration TDP power limit for CPU in Turbo Boost mode. fLong Duration Maintained (s) [Auto] Sets the maintaining time for Long duration power Limit(W). fShort Duration Power Limit (W) [Auto] Sets the short duration TDP power limit for CPU in Turbo Boost mode. fCPU Current Limit (A) [Auto] Sets maximum current limit of CPU package in Turbo Boost mode.

  • Page 74: M-Flash

    M-FLASH provides the way to update BIOS with a USB flash drive. Please down-load the latest BIOS file that matches your motherboard model from MSI website, save the BIOS file into your USB flash drive. And then follow the steps below to update BIOS.

  • Page 75: Oc Profile

    OC PROFILE f Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 management. Press <Enter> to enter the sub- menu. fSet Name for Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Name the current overclocking profile. fSave Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Save the current overclocking profile.

  • Page 76: Hardware Monitor

    HARDWARE MONITOR Temperature Speed Fan Manage Setting Buttons Information display f Temperature The assignment fan will be controlled according to the selected temperature source. And you can set the duty cycle for each fan. f Speed Shows all fans' speeds. f Fan Manage ƒ...

  • Page 77: Software Description

    7. Follow the instructions on the screen to install Windows ® Installing Drivers 1. Start up your computer in Windows ® 2. Insert MSI Driver Disc into your optical drive. ® 3. The installer will automatically appear and it will find and list all necessary drivers.

  • Page 78: App Manager

    Motherboard Information - shows the model name of motherboard. y Total Install/ Update - click on this tab to update/ install all the applications. Important Please note that, once you uninstall the APP MANAGER, all the MSI applications and software will be uninstalled simultaneously. Software Description...

  • Page 79: Live Update 6

    LIVE UPDATE 6 LIVE UPDATE 6 is an application for the MSI system to scan and download the latest ® drivers, BIOS and utilities. With LIVE UPDATE 6, you don’ t need to search the drivers on websites, and don’ t need to know the models of motherboard and graphics cards.
  • Page 80 1. Select the Live Update tab. 2. Choose Automatic scan, system will automatically scan all the items and search for the latest update files. Or you can choose Manual scan and select the items you wish to scan. 3. Click the Scan button at the bottom. It may take several moments to complete the process.

  • Page 81: Command Center

    COMMAND CENTER COMMAND CENTER is an user-friendly software and exclusively developed by MSI, helping users to adjust system settings and monitor status under OS. With the help of COMMAND CENTER, making it possible to achieve easier and efficient monitoring process and adjustments than that under BIOS. In addition, the COMMAND CENTER can be a server for mobile remote control application.
  • Page 82 CPU Fan CPU Fan control panel provides Smart mode and Manual Mode. You can switch the control mode by clicking the Smart Mode and Manual Mode buttons on the top of the CPU Fan control panel. y Manual Mode - allows you to manually control the CPU fan speed by percentage.
  • Page 83 GAME BOOST GAME BOOST provides a specified CPU frequency for overclocking the CPU. Option Buttons - Advanced When click the Advanced button, The Voltage, Fan and DRAM icons will appear. y Voltage - allows you to adjust advanced voltage values of CPU and chipset. y Fan - allows you to control the system fans speed.
  • Page 84 7. Find the IP address on the SoftAP Management Setting area, and enter the IP address on your MSI COMMAND CENTER APP to link your system. ® 8. Press Refresh on the MSI COMMAND CENTER APP to verify that monitoring and ® OC functions are working properly.

  • Page 85: Gaming App

    3. Connect your android device and motherboard to the same local area network. 4. Run MSI GAMING APP APP on your android device. ® 5. Press the Remote Control Setting icon on the MSI GAMING APP APP to find the ® paired device Name you set in the Remote Control Setting panel.
  • Page 86 OSD Setting Panel Use the OSD setting panel to specify information within on-screen display (OSD). y Apply Button - applies above settings to OSD. Eye Rest Eye Rest allows you to optimize the display on your monitor. y EyeRest - reduces blue-light of your LED backlit screen, in order to protect your eyes.
  • Page 87 VR Ready It will optimize the performance of your system to ensure everything is VR Ready. VR ON/ OFF Applications y VR ON/ OFF -enables or disables VR settings. y Applications - appears when you turn on the VR support. It allows you to close some applications to optimize the system for better VR experience.
  • Page 88 ƒ Login Keys - provides hotkey login function. ƒ MSI Smart Keys - allows you to define hotkeys for MSI Smart Keys. y Hotkey Manager - allows you to create, edit and delete hotkeys. y Current Hotkeys - shows all existing hotkeys.
  • Page 89 Mouse Master Mouse Master provides mouse macro function. You can also use it to change DPI of your mouse. DPI Setting Delay Time Default Button Macro Hot Key DPI Hot Key Mouse Action Action List Test Area Edit Buttons Clear Button Load Button Save Button y Delay Time - allows you to apply a delay time in mouse macro.

  • Page 90: X-Boost

    X-BOOST The MSI X-BOOST allows you to select the system performance mode to meet your current system environment or support faster storage access speed for your external storage or memory cards. Easy In Easy page, you can select one system performance mode to meet the current system environment.
  • Page 91 OPTANE BOOST - supports faster access speed of Intel Optane memory (require a reboot). Important Please note that you can only select one mode at a time from Easy or Advance page as MSI X-BOOST function. The improved transfer rate/ access speed will vary with the USB/ storage device. Software Description...

  • Page 92: Mysticlight

    MYSTICLIGHT MYSTICLIGHT is an application allows you to control LED lights of MSI products. Main Screen The Main screen is used to configure what devices need to be synchronized and LED light effect options. Sync Devices ON/ OFF All LED...
  • Page 93 Motherboard Screen The motherboard screen is used to configure the LED light effect of the motherboard. Sync All Return Button Motherboard ON/ OFF All LED Name Profile Live Preview LED Area Light Effect Apply Button Options Save Button Note: The motherboard picture and name may vary according to different models. y Return Button - returns to the main screen.

  • Page 94: Msi Smart Tool

    MSI SMART TOOL MSI SMART TOOL is a convenient tool that can help you to create your Windows installation USB flash drive with USB 3.0 drivers, and it can also create a software RAID. Main menu After installing and activating MSI SMART TOOL, it will display a main menu for you to choose Win7 Smart Tool or Software RAID.
  • Page 95 SOFTWARE RAID This utility allows you to create a software RAID in Windows system. To create a software RAID: 1. Use checkboxs to select the disks you want included in your RAID. 2. Choose Speed Up or Backup for RAID type. y Speed Up = RAID0 y Backup = RAID1 3.

  • Page 96: Ramdisk

    RAMDISK RAMDISK creates a virtual RAM drive using the available memory in your computer, the performance of the RAMDISK is faster than an SSD and hard drive. RAMDISK allows you to store any temporary information on it. Furthermore, using the RAMDISK will extend your SSD’...

  • Page 97: Gaming Lan Manager

    GAMING LAN MANAGER GAMING LAN MANAGER is an utility for traffic shaping for the Windows 10. It can keep your internet fast during heavy upload/ download and improve your ping for online games. If your motherboard has a Wi-Fi module, GAMING LAN MANAGER provides virtual access point function for traffic shaping for your mobile devices.
  • Page 98 Speed Testing The speed testing is used to optimize bandwidth usage. To test the Upload and Down- load speed, please follow the steps below: 1. Click the Network Test block in GAMING LAN MANAGER. 2. Click Test Network Speed button. The test takes several minutes to test your network speed.

  • Page 99: Dragon Eye

    DRAGON EYE DRAGON EYE allows you to watch game guides, tutorials, live match or tournament stream while gaming. In game, you can use hotkeys to control/adjust the settings of DRAGON EYE. Size Settings Position Settings On / Off Switch Help Transparency Settings Video List Hotkeys Information...

  • Page 100: Nahimic 2

    HD Audio Recorder2 and Sound Tracker. Installation and Update Nahimic 2 is included in the audio driver. If you need to install it or update it, please use the Driver Disc with your motherboard or download the driver from MSI’ s official website. Audio Tab From this tab, you can access all of Nahimic 2’...
  • Page 101 ƒ Treble Enhancer - Increases the energy in high frequencies up to +12 dB. ƒ Smart Loudness - maintains a constant volume for all elements of the audio experience to making them all sound softer, balanced or louder. ƒ Voice Clarity - boosts the speech in movies, video games and incoming communication from +0 through +12 dB (0 to 100%).
  • Page 102 y Display & Volume - displays the type of audio recording device currently being used as input, as well as its current volume. ƒ Mute - mutes the current device. ƒ Device properties - allows you to boost the volume and modify the left/ right balance of microphone.
  • Page 103 y Control Page - by clicking the arrow button, you can access the control page. ƒ Audio Launchpad ON/OFF - switches the Audio Launchpad on or off. ƒ HD Audio Recorder 2 - The HD Audio Recorder 2 is, by default, automatically launched when a XSplit Gamecaster 2 recording session is detected.

  • Page 104: Xsplit Gamecaster V2

    Login button. Important When starting XSplit Gamecaster V2 on select MSI gaming laptops, all-in ones or on ® machines that contain select MSI motherboards or graphics cards, you will receive ®...
  • Page 105 Learning stream and record Refer to the Start page of XSplit Gamecaster V2 to learn how to stream and record your gameplay. Tool Tip When you click the question mark next to a feature name on the panel, a tooltip will show, describing the particular function of that item.
  • Page 106 5. Share Button - If you authorize your Facebook, Twitter, and/or Google+ accounts, you can quickly share your stream URL and status update within the overlay. 6. Annotations - This feature of XSplit Gamecaster V2 allows you to draw directly onto your game play.
  • Page 107 y Camera Settings - In this region, you can select your desired camera. What is shown in the list depends on the cameras you have connected to your PC (Control Panel > Device Manager > Imaging Devices). y BRB Graphics (Be-Right-Back Graphics) - BRB Graphics are activated when you alt-tab or minimize your game.

  • Page 108: Steelseries Engine 3

    SteelSeries Engine 3 SteelSeries Engine 3 is a unified platform built to support all of SteelSeries products. It can deploy your saved device settings automatically when switching between your favorite games or applications. After installation the SteelSeries Engine background processes will start and the interface will open automatically.
  • Page 109 Configuring Your Devices You can custom configurations for SteelSeries devices in their Configuration Windows. The top left displays the name of the configuration you are viewing, the body features widgets for customizing various functions of the device, and at the bottom are Save/ Revert buttons, a Live Preview toggle, and a button to open/close the collapsible Configuration List Panel.

  • Page 110: Intel ® Extreme Tuning Utility

    Intel Extreme Tuning Utility ® Intel Extreme Tuning Utility (Intel XTU) is a simple overclocking software for you to ® tune, test and monitor your system. Tuning Controls Views Settings Help System Navigation Table System System Monitors Graphs y Views Settings Help ƒ...

  • Page 111: Cpu-Z

    CPU-Z CPU-Z is an utility that gathers information on some of the main devices of your system. y CPU Tab - shows processor name, code name, package, specification, instructions sets, core speed and cache levels. y Caches Tab - shows extended information related to the cache capabilities. y Mainboard Tab - shows motherboard manufacturer, model name, chipset, BIOS version and graphic interface.

  • Page 112: Tridef Vr

    TriDef VR With TriDef VR you can play your favorite PC games on a huge 3D screen inside your virtual reality headset. It is compatible with the Oculus Rift and HTC Vive. After installation, please ensure that your VR headset is set up and working correctly, then double-click TriDef VR Games on the Desktop, or from: Start >...
  • Page 113 Games Tab The first tab you’ ll see on the main window is the Games tab. As mentioned, apps or games launched from the desktop will appear in 2D on the virtual screen. However, if you launch a supported game from the Games tab, it will be displayed on the virtual screen in stereoscopic 3D! The first time you launch TriDef VR, the application will scan your PC and automatically add supported games to the list.
  • Page 114 Settings Popup Look at the Settings item for 1 second to display the Settings popup. This popup window appears in front of the virtual screen. Use your mouse to adjust the slider values. y Screen Settings - adjust the virtual screen’ s size, distance and curvature. y Game Settings - adjust 3D settings for that game.

  • Page 115: Tridef Smartcam

    TriDef SmartCam Use TriDef SmartCam to replace or SmartBlur your background in video chat applications or to remove your background in XSplit. Just select TriDef SmartCam wherever you see a list of cameras or choose your webcam application. The following description uses XSplit Gamecaster for an example. TriDef SmartCam for XSplit Gamecaster After installation TriDef SmartCam is integrated into XSplit Gamecaster version 2.5 and newer.

  • Page 116: Raid Configuration

    RAID Configuration Below are the different types of a RAID. RAID 0 breaks the data into blocks which are written to separate hard drives. Spreading the hard drive I/O load across independent channels greatly improves I/O performance. RAID 1 provides data redundancy by mirroring data between the hard drives and provides enhanced read performance.
  • Page 117 Creating s RAID Volume 1. Select option Create RAID Volume and press Enter key. The following screen appears. CREATE VOLUME MENU Name : Volume0 RAID Level : RAID1(Mirror) Disks : Select Disks Strip Size : N / A Capacity : XXX.X GB Sync : N / A...
  • Page 118 Removing a RAID Volume Here you can delete the RAID volume, but please be noted that all data on RAID drives will be lost. Important If your system currently boots to RAID and you delete the RAID volume in the IRST Option ROM, your system will become unbootable.

  • Page 119: Degraded Raid Array

    Important You will lose all data on the RAID drives and any internal RAID structures when you perform this operation. Possible reasons to Reset Disks to Non-RAID could include issues such as incompatible RAID configurations or a failed volume or failed disk. Recovery Volume Options Select option Recovery Volume Options from the main menu screen and press Enter to change recovery volume mode.
  • Page 120 2. Reconnect the hard drive. 3. Reboot to Windows ; the rebuild will occur automatically. ® Failed Hard Drive Member 1. Power off. 2. Replace the failed hard drive with a new one that is of equal or greater capacity. 3.

  • Page 121: M.2 Pcie Ssd Raid

    RAID 0 volume. During windows setup, the RAID driver may be required and you can find the RAID driver in MSI Driver Disc. You can use MSI SMART TOOL to build the Windows 7/ 8.1/ 10 installation drive that ®...
  • Page 122 12. Select Create RAID Volume and press Enter key..\Intel(R) Rapid Storage Technology\ Create RAID Volume Create RAID Volume Name: Volume1 RAID Level: [RAID0(Stripe)] Select Disks: PCIe, XXXXX XXXXXXXX-XXXX, XXXGB PCIe, XXXXX XXXXXXXX-XXXX, XXXGB Strip Size: [XXKB] Capacity (MB): XXXXXX Create Volume 13.
  • Page 123 Removing a M.2 PCIe SSD RAID Volume with M.2/Optane Genie 1. Access the BIOS setup. 2. Disable M.2/Optane Genie by clicking M.2/Optane Genie item. 3. Click Ok in the dialog. 4. Press F10 to save configuration and exit. Removing a M.2 PCIe SSD RAID Volume with UEFI BIOS 1.

  • Page 124: Intel ® Optane™ Memory Configuration

    Optane™ memory can accelerate the Windows 10 64bit operating system. This ® section describes how to install and remove the Intel Optane™ memory. ® System Requirements y Intel Optane™ memory ready MSI motherboards ® ® y Supported 7th Gen, or later, Intel Core™ - i Processor ®...
  • Page 125 5. Enable Intel Optane™ Memory. ® ˜ Enable Intel Optane™ Memory via the Intel Optane™ memory application ® ® (auto-launches upon reboot). ˜ Click Yes in the dialog. ˜ Reboot System. WARNING Once you enable Intel Optane™ memory, in order to prevent seriously damage your ®...

  • Page 126: Removing The Intel ® Optane™ Memory

    Removing the Intel Optane™ memory ® If you no longer want to use Intel Optane™ memory, you have to disable the Intel ® ® Optane™ memory before removing the Intel Optane™ memory module to avoid ® operating system damage. Please follow the steps below to remove the Intel Optane™...

  • Page 127: Troubleshooting

    ® Optane Memory and switch BIOS setting from RAID/ Optane mode back to AHCI mode, that may cause operating system damage. MSI has developed a software assistance for this problem. You can disable Intel Optane™ Memory and switch back to AHCI ®...

  • Page 128: Troubleshooting

    Troubleshooting Lost BIOS password Before sending the motherboard for RMA repair, try to go over troubleshooting y Clear the CMOS, but that will cause guide first to see if your got similar you to lose all customized settings in the symptoms as mentioned below.
  • Page 129 The point of contact for regulatory matters is MSI, recycling and disposing of their end-of-life products. MSI-NL Eindhoven 5706 5692 ER Son. y Visit the MSI website and locate a nearby distributor B급 기기 (가정용 방송통신기자재) for further recycling information.
  • Page 130 MSI will comply with the product take entregar a una empresa autorizada para la recogida de back requirements at the end of life of MSI-branded estos residuos.
  • Page 131 及醫療用電波輻射性電機設備之干擾 。 saranno obbligati a ritirare ogni prodotto alla fine del suo ciclo di vita. MSI si adeguerà a tale Direttiva Products with radio functionality (EMF) ritirando tutti i prodotti marchiati MSI che sono stati This product incorporates a radio transmitting venduti all’interno dell’Unione Europea alla fine del...
  • Page 132 Alternatively, please try the following help resources for further guidance. y Visit the MSI website for technical guide, BIOS updates, driver updates, and other information: http://www.msi.com y Register your product at: http://register.msi.com...
