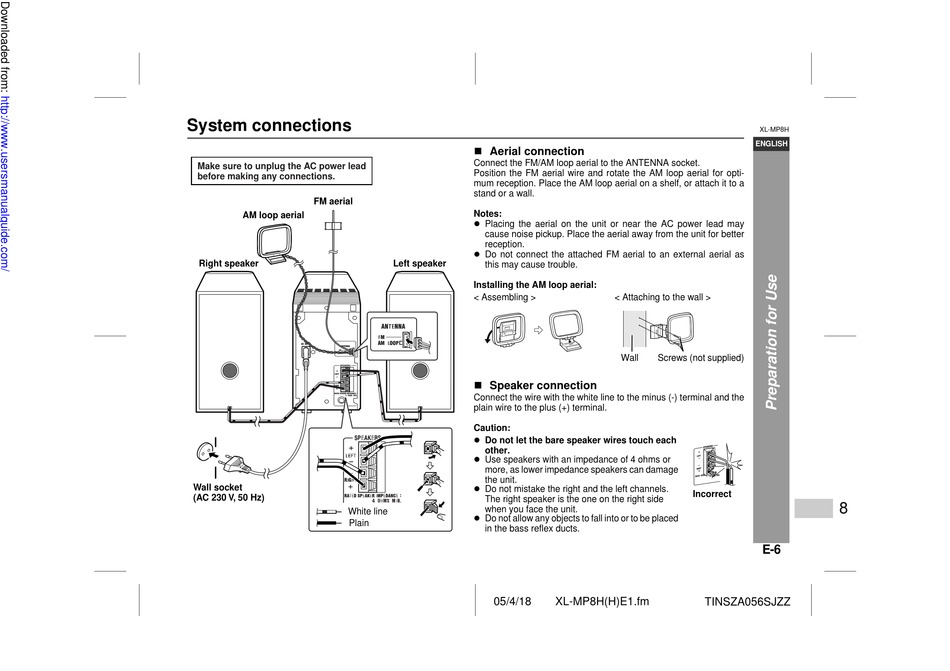

System connections

Make sure to unplug the AC power lead
before making any connections.
FM aerial
AM loop aerial
Right speaker
Wall socket
(AC 230 V, 50 Hz)
White line
Plain
! Aerial connection
Connect the FM/AM loop aerial to the ANTENNA socket.
Position the FM aerial wire and rotate the AM loop aerial for opti-
mum reception. Place the AM loop aerial on a shelf, or attach it to a
stand or a wall.
Notes:
" Placing the aerial on the unit or near the AC power lead may
cause noise pickup. Place the aerial away from the unit for better
reception.
" Do not connect the attached FM aerial to an external aerial as
Left speaker
this may cause trouble.
Installing the AM loop aerial:
< Assembling >
! Speaker connection
Connect the wire with the white line to the minus (-) terminal and the
plain wire to the plus (+) terminal.
Caution:
" Do not let the bare speaker wires touch each
other.
" Use speakers with an impedance of 4 ohms or
more, as lower impedance speakers can damage
the unit.
" Do not mistake the right and the left channels.
The right speaker is the one on the right side
when you face the unit.
" Do not allow any objects to fall into or to be placed
in the bass reflex ducts.
