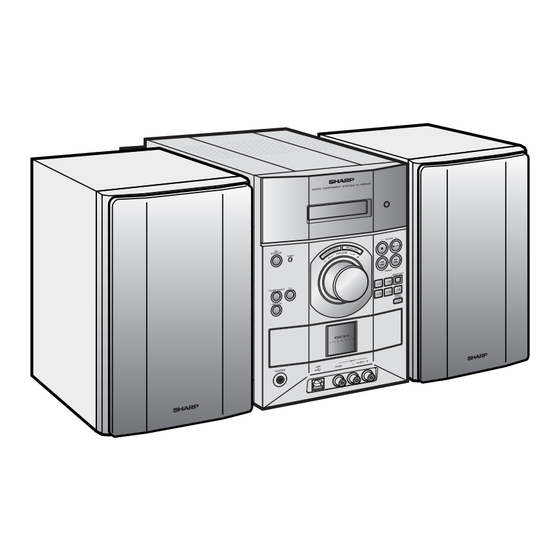

Sharp XL-MP333H Operation Manual

Micro component system
Hide thumbs Also See for XL-MP333H:
Table of Contents

Advertisement

MIKRO KOMPONENTEN SYSTEM
MICRO-CHAÎNE
SISTEMA MICRO
MIKRO KOMPONENT SYSTEM
MICRO SISTEMI
MICRO SYSTEEM
SISTEMA DE MICRO COMPONENTE
MICRO COMPONENT SYSTEM
MODELL
MODELLO
MODÈLE
MODEL
MODELO
MODELO
MODELL
MODEL
XL-MP333H
XL-MP444H
BEDIENUNGSANLEITUNG
MANUALE DI ISTRUZIONI
MODE D'EMPLOI
GEBRUIKSAANWIJZING
MANUAL DE MANEJO
MANUAL DE OPERAÇÃO
BRUKSANVISNING
OPERATION MANUAL
XL-MP333H
XL-MP444H
! Die Abbildungen in dieser Bedienungsanleitung sind für das
Modell XL-MP444H.
! Les illustrations utilisées dans ce mode d'emploi sont pour le
modèle XL-MP444H.
! Las ilustraciones impresas en este manual de manejo son del
modelo XL-MP444H.
! Bilderna i denna bruksanvisning gäller för modelltypen XL-
MP444H.
! Le illustrazioni stampate in questo manuale di istruzioni sono per
il modello XL-MP444H.
! De afbeeldingen in deze gebruiksaanwijzing zijn gebaseerd op
het XL-MP444H model.
! As ilustrações impressas neste manual de operações são para o
modelo XL-MP444H.
! The illustrations printed in this operation manual are for the model
XL-MP444H.
04/5/31
XL-MP333H_MP444H_FRONT.fm
DEUTSCH
Siehe Seiten i
bis vi und D-1
bis D-40.
FRANÇAIS
Se reporter aux
pages i à vi et
F-1 à F-40.
ESPAÑOL
Consulte las
páginas i a vi y
S-1 a S-40.
SVENSKA
Hänvisa till
sidorna i till vi
och V-1 till V-40.
ITALIANO
Leggere le
pagine i a vi e
I-1 a I-40.
NEDERLANDS
Raadpleeg de
bladzijden i t/m
vi en N-1 t/m N-40.
PORTUGUÊS
Favor consultar
as páginas i a
vi e P-1 a P-40.
ENGLISH
Please refer to
pages i to vi
and E-1 to E-40.
TINSZA022SJZZ

Advertisement

Table of Contents
loading

Summary of Contents for Sharp XL-MP333H

  • Page 1 XL-MP333H DEUTSCH Siehe Seiten i bis vi und D-1 bis D-40. MIKRO KOMPONENTEN SYSTEM MICRO-CHAÎNE FRANÇAIS Se reporter aux SISTEMA MICRO pages i à vi et MIKRO KOMPONENT SYSTEM F-1 à F-40. MICRO SISTEMI ESPAÑOL MICRO SYSTEEM Consulte las SISTEMA DE MICRO COMPONENTE XL-MP444H páginas i a vi y...
  • Page 2 Spannungen vorhanden. Vor Ausführung von irgendwelchen Kundendienstarbeiten oder bei längerer Nichtverwendung des Dichiarazione di conformità Gerätes stets den Netzstecker aus der Netzsteckdose ziehen. La società SHARP ELECTRONICS EUROPE GmbH dichiara che il prodotto SHARP MINI SISTEMI CD-XP300H MICRO SISTEMI XL-MP333H/XL-MP444H è...
  • Page 3 XL-MP333H Cuando el botón ON/STAND-BY está puesto en la posición XL-MP444H Wanneer de ON/STAND-BY toets in de STAND-BY stand STAND-BY, todavía hay tensión dentro del aparato. staat, loopt er nog steeds stroom (netspanning) in het toestel. Cuando el botón ON/STAND-BY está puesto en la posición...
  • Page 4 XL-MP333H XL-MP444H Vorsicht: Når ON/STAND-BY-knappen er sat i STAND-BY positionen, Das Gerät weder Tropf- noch Spritzwasser aussetzen. er der stadig netspaending til stede i apparatet. Ansonsten besteht die Gefahr eines Brandes oder Når ON/STAND-BY-knappen er sat i STAND-BY position, elektrischen Schlages. Es dürfen keine mit Flüssigkeiten kan apparatet startes v.hj.a.
  • Page 5 XL-MP333H Dieses Produkt ist ein Laserprodukt der Klasse 1. Advarsel: Advarsel: XL-MP444H Til at forbygge ild og stød risiko, lad vaere med at undsaette Til at forbygge ild og stød risiko, lad vaere med at undsaette Ce produit est classifié comme étant un LASER DE CLASSE 1.
  • Page 6 XL-MP333H VORSICHT LET OP XL-MP444H Verwendung von Regelungen oder Einstellungen bzw. Gebruik van regelaars, het maken van instellingen, gebruik Durchführung von anderen Verfahren als die hierin of handelingen anders dan in deze gebruiksaanwijzing angegebenen kann zum Aussetzen gefährlicher Strahlung vermeld, kan gevaarlijke straling blootleggen.
  • Page 7 XL-MP333H Eigenschaften der Laserdiode XL-MP444H Material: GaAIAs Wellenlänge: 780 nm Emissionsdauer: kontinuierlich Laser-Ausgang: max. 0,6 mW Caractéristiques de la diode laser Matière: GaAIAs Longueur d’onde: 780 nm Durée d’émission: ininterrompue Puissance de sortie laser maximale: 0,6 mW Características del diodo láser...
  • Page 8: Table Of Contents

    XL-MP333H XL-MP444H Introduction Contents ENGLISH Thank you for purchasing this SHARP product. To obtain the Page " General Information best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product. Precautions ......... . 2 ! XL-MP333H Micro Component System consisting of XL-MP333H Controls and indicators .
  • Page 9: Precautions

    (home computers, facsimiles, etc.) dent causing damage. SHARP will not be held responsible for any which generate electrical noise. damage resulting from use of this unit with a voltage other than that which is specified.
  • Page 10: Controls And Indicators

    Controls and indicators XL-MP333H XL-MP444H ENGLISH " Front panel Reference page 1. Equaliser Mode Select Button ..... . . 12 2.
  • Page 11: Reference Page

    XL-MP333H XL-MP444H ENGLISH (XL-MP333H) ! Rear panel Reference page 1. AC Power Input Socket ......10 2.
  • Page 12 XL-MP333H Controls and indicators (continued) XL-MP444H ENGLISH (XL-MP444H) ! Rear panel Reference page 1. AC Power Input Socket ......10 2.
  • Page 13 XL-MP333H XL-MP444H ENGLISH " Remote control Reference page 1. Remote Control Transmitter ......11 2. On/Stand-by Button ....... 11 3.
  • Page 14: System Connections

    System connections XL-MP333H XL-MP444H ENGLISH Make sure to unplug the AC power lead before making any connections. (XL-MP333H) Aerial connection (see page 9) FM aerial AM loop aerial Right speaker Left speaker Wall socket (AC 230 V, 50 Hz) Speaker connection (see page 9)
  • Page 15 XL-MP333H XL-MP444H ENGLISH Make sure to unplug the AC power lead before making any connections. (XL-MP444H) Aerial connection (see page 9) FM aerial AM loop aerial Subwoofer Front speaker (right) Front speaker (left) Wall socket (AC 230 V, 50 Hz)
  • Page 16: Aerial Connection

    XL-MP333H System connections (continued) XL-MP444H ENGLISH " Aerial connection " Speaker connection Connect the black wire to the minus (-) terminal, and the red wire to Supplied FM aerial: the plus (+) terminal. Connect the FM aerial wire to the FM 75 OHMS...
  • Page 17: Extra Bass/Demo Mode Button

    XL-MP333H XL-MP444H ENGLISH " Connecting the AC power lead Caution: ! Use speakers with an impedance of 6 ohms or more, as lower im- After checking all the connections have been made correctly, con- pedance speakers can damage the unit.
  • Page 18: Remote Control

    Remote control XL-MP333H XL-MP444H ENGLISH " Battery installation Notes concerning use: ! Replace the batteries if the operating distance is reduced or if the Remove the battery cover. operation becomes erratic. Purchase 2 "AA" size batteries (UM/ Insert the supplied batteries according to the direction indi- SUM-3, R6, HP-7 or similar).
  • Page 19: General Control

    General control XL-MP333H XL-MP444H ENGLISH " Subwoofer volume control (XL-MP444H only) 1. Press the SUBWOOFER LEVEL button on the remote control. 2. Within 5 seconds, adjust the 0 ..subwoofer volume with the VOL- 30 ( MAXIMUM ) UME control (main unit) or the VOLUME (+ or -) button (remote control).
  • Page 20: Setting The Clock

    Setting the clock XL-MP333H XL-MP444H ENGLISH Within 30 seconds, press the PRESET ( ) button to adjust the hour and then press the MEMORY/SET button. Press the PRESET ( ) button once to advance the time by 1 hour. Hold it down to advance continuously.
  • Page 21: Listening To A Cd Or Mp3 Disc

    Listening to a CD or MP3 disc XL-MP333H XL-MP444H ENGLISH This system can also play audio CD-R and CD-RW discs, but can- Press the ON/STAND-BY button to turn the power on. not record. Some audio CD-R and CD-RW discs may not be playable due to the Press the CD button.
  • Page 22: Play Indicator

    XL-MP333H Listening to a CD or MP3 disc (continued) XL-MP444H ENGLISH To exchange other discs whilst playing a disc: Press the OPEN/CLOSE button to close the disc compart- Press the OPEN/CLOSE button. When trays open, exchange discs. ment. The tray in use does not open.
  • Page 23: 12. Stop Or Tuning Down Button

    XL-MP333H XL-MP444H ENGLISH ! Various disc functions Notes: " Track up/track down and fast forward/fast reverse are possible Function Main unit Remote Operation only within one disc. control " When the end of the last track is reached during fast forward, "...
  • Page 24: Advanced Cd Or Mp3 Disc Playback

    Advanced CD or MP3 disc playback XL-MP333H XL-MP444H ENGLISH ! To change the display (MP3 discs only) ! To select the desired folder or track by name (MP3 discs only) Whilst in the stop mode or playback mode, press the MP3 DISPLAY button.
  • Page 25: 18. Disc Number Select Buttons

    XL-MP333H XL-MP444H ENGLISH " To play from a specified disc " Direct track search You can start playback from the desired disc by selecting the num- By using the direct search buttons, the desired tracks on the current ber. disc can be played.
  • Page 26: Play Or Repeat, Tuning Up Button

    XL-MP333H Advanced CD or MP3 disc playback (continued) XL-MP444H ENGLISH " Repeat play " Random play You can play up to 5 discs, or programmed tracks continuously. The tracks on the disc(s) can be played in random order automati- cally.
  • Page 27: Memory Indicator

    XL-MP333H XL-MP444H ENGLISH " Programmed play To clear the programmed selections: Press the CLEAR button whilst the "MEMO- You can choose up to 32 selections for playback in the order you RY" indicator is lit. like. Each time the button is pressed, one track will...
  • Page 28: Listening To The Radio

    Listening to the radio XL-MP333H XL-MP444H ENGLISH " Tuning Press the ON/STAND-BY button to turn the power on. Press the TUNER (BAND) button repeatedly to select the desired frequency band (FM or AM). Press the TUNING ( ) button to tune in to the desired station.
  • Page 29: Memorising A Station

    XL-MP333H XL-MP444H ENGLISH " Memorising a station " To recall a memorised station You can store 40 AM and FM stations in memory and recall them at Press the PRESET ( ) button for less than 0.5 seconds to se- the push of a button.
  • Page 30: Using The Radio Data System (Rds)

    Using the Radio Data System (RDS) XL-MP333H XL-MP444H ENGLISH " Information provided by RDS RDS is a broadcasting service which a growing number of FM stations provide. These FM stations send additional signals Each time the DISPLAY button is pressed, the display will along with their regular programme signals.
  • Page 31: 10. Rds Indicator

    XL-MP333H XL-MP444H ENGLISH " Using the Auto Station Programme Memory (ASPM) Whilst in the ASPM operation mode, the tuner will automatically search for new RDS stations. Up to 40 stations can be stored. If you have already stored some stations in memory, the number of new stations you can store will be less.
  • Page 32 XL-MP333H Using the Radio Data System (RDS) (continued) XL-MP444H ENGLISH To stop the ASPM operation before it is complete: Notes: ! The same station name can be stored in different channels. Press the ASPM button whilst it is scanning for stations.
  • Page 33 XL-MP333H XL-MP444H ENGLISH ! To recall stations in memory To specify programmed types and select stations (PTY search): You can search a station by specifying the programme type (news, sports, traffic programme, etc..see pages 27 - 28) from the sta- tions in memory.
  • Page 34 XL-MP333H Using the Radio Data System (RDS) (continued) XL-MP444H ENGLISH Notes: Descriptions of the PTY (Programme Type) codes, TP (Traffic ! If the display has stopped flashing, start again from step 2. If the Programme) and TA (Traffic Announcement). You can search for and receive the following PTY, TP and TA sig- unit finds a desired programme type, the corresponding channel nals.
  • Page 35 XL-MP333H XL-MP444H ENGLISH LIGHT M Classical music for general, rather than specialist COUNTRY Songs which originate from, or continue the musical appreciation. Examples of music in this category tradition of the American Southern States. Charac- are instrumental music, and vocal or choral works.
  • Page 36: Listening To Sound From A Usb-Connected Pc

    CPU MMX Pentium processor (266 MHz or higher) or equivalent Notes: ! Sharp does not guarantee proper operation on all computers. ! You cannot operate the unit on a PC, and vice versa. ! IBM and PC/AT are registered trademarks of International Busi- ness Machines Corporation in the United States.
  • Page 37 ! For a Macintosh computer with a USB port, a driver is already installed (you do not need to install it). ! Sharp does not guarantee proper operation when you connect a PC using a USB hub or USB extension cable.
  • Page 38 XL-MP333H Listening to sound from a USB-connected PC (continued) XL-MP444H ENGLISH " Checking a driver After installation, make sure the driver is recognised. Windows 98 Second Edition or Windows Millennium Edition: Windows 2000 Professional or Windows XP Edition: Select "Setting" "Control Panel" from the "Start" menu Select "Setting"...
  • Page 39: Usb/Auxiliary Button

    XL-MP333H XL-MP444H ENGLISH " Listening to audio data playing on a PC Connect the unit to the PC with a USB cable (see page 29). Turn on a PC to boot the OS. Wait until the OS boots. Press the ON/STAND-BY button on the main unit to turn the power on.
  • Page 40: Listening To Sound From Other Equipment

    Listening to sound from other equipment XL-MP333H XL-MP444H ENGLISH " Listening to the playback sounds from VCR, The connection lead is not included. Purchase a commercially avail- able lead as shown below. DVD, etc. Connect a VCR, DVD, etc. to the front INPUT (VIDEO, AU- VCR, DVD, etc.
  • Page 41: Timer And Sleep Operation

    Timer and sleep operation XL-MP333H XL-MP444H ENGLISH " Timer playback Timer playback: The unit turns on and plays the desired source (CD, tuner) at the Before setting timer: preset time. 1 Press the CLOCK button to check that the clock is set to the cor- rect time.
  • Page 42: 11 3. Timer Indicator

    XL-MP333H Timer and sleep operation (continued) XL-MP444H ENGLISH To reset or change the timer setting: Within 30 seconds, press the PRESET ( ) button to Perform "Timer playback" from the beginning. specify the minute to start, then press the MEMORY/SET button.
  • Page 43: Sleep Indicator

    XL-MP333H XL-MP444H ENGLISH " Sleep operation " To use timer and sleep operation together Example: To fall asleep and wake up to the same radio station Play back the desired sound source. You can play back the same source only (the function cannot be switched).
  • Page 44: Troubleshooting Chart

    Possible cause If something is wrong with this product, check the following before " The radio makes unusual " Is the unit placed near the TV or calling your authorised SHARP dealer or service centre. noises continuously. computer? ! General "...
  • Page 45: Maintenance

    Maintenance XL-MP333H XL-MP444H ENGLISH " Cleaning the cabinet " If trouble occurs Periodically wipe the cabinet with a soft cloth and a diluted soap When this product is subjected to strong external interference solution, then with a dry cloth. (mechanical shock, excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may...
  • Page 46: Specifications

    XL-MP333H XL-MP444H ENGLISH " Amplifier As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product Output power improvement without prior notice. The performance specification fig- ures indicated are nominal values of production units. There may be XL-MP333H PMPO: 120 W some deviations from these values in individual units.
  • Page 47: Speaker Section

    XL-MP333H XL-MP444H ENGLISH " CD player (XL-MP444H) ! Front speaker Type 5-disc multi-play compact disc player Type 2-way type speaker system Signal readout Non-contact, 3-beam semiconductor laser (magnetic shield) pickup 4 cm (1.5") tweeter D/A converter 1-bit D/A converter 10 cm (4") woofer...
  • Page 48 SHARP CORPORATION 0401_A5 TINSZA022SJZZ 04F N HK 1 04/5/31 XL-MP333H_MP444H_BACK.fm TINSZA022SJZZ...
