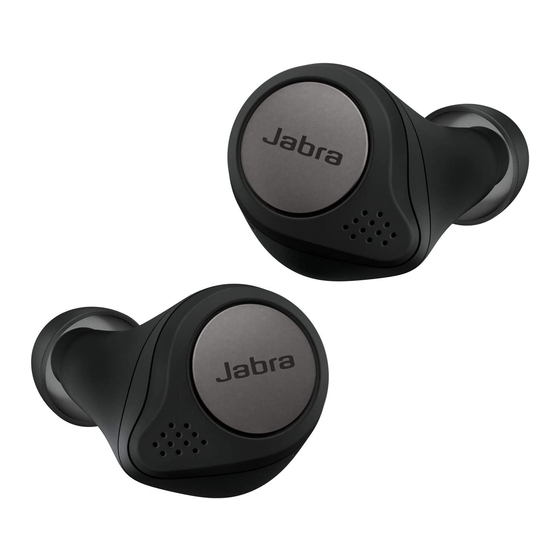

Jabra Elite Active 75t User Manual

Hide thumbs Also See for Elite Active 75t:
Table of Contents

Advertisement

Quick Links

Download this manual
Jabra
Elite Active 75t
User manual

Advertisement

Table of Contents
loading

Related Manuals for Jabra Elite Active 75t

Summary of Contents for Jabra Elite Active 75t

  • Page 1 Jabra Elite Active 75t User manual...
  • Page 2 ® © 2020 GN Audio A /S. All rights reserved. Jabra is a ® trademark of GN Audio A/S. The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by GN Audio A/S is under license.
  • Page 3 1. Welcome .........5 2. Jabra Elite Active 75t overview .6 2.1 Included accessories 3. How to wear ........8 3.1 Changing EarGels 4. How to charge ......10 4.1 Charging the earbuds 4.2 Fast charge the earbuds 4.3 Charging the charging case using USB 4.4 Charging the charging case using a wireless...
  • Page 4 7.13 Multi-connect 7.14 Voice guidance and languages 7.15 Voice assistant 7.16 Update firmware 7.17 Reset the earbuds 8. Jabra Sound+ app ...... 31 9. Support ........32 9.1 FAQ 9.2 How to care for your earbuds 9.3 Replacement accessories 9.4 Using the replacement earbuds...
  • Page 5 Jabra Sound+ app registration. • Easy access to your voice assistant. One-touch access to Siri , and Google Assistant™ ® *Download the Jabra Sound+ app to enable ANC. ANC applies to music and media playback (not for calls).
  • Page 6 2. Jabra Elite Active 75t overview Jabra Elite Active 75t earbuds LEFT EARBUD RIGHT EARBUD Left Right button button Microphones Microphones On-the-go charging case Charging port Wireless charging enabled* *Wireless charging variant only...

  • Page 7: Included Accessories

    2.1 Included accessories EarGels pre-mounted on the earbuds USB-A to USB-C charging cable...

  • Page 8: How To Wear

    3. How to wear Insert the earbud into your ear and rotate to fit comfortably. Ensure the microphones are pointed towards your mouth. Microphones Microphones...
  • Page 9 3.1 Changing EarGels For the optimal audio and ANC experience, it is recommended to try each of the different EarGel sizes. The fit should feel tight and secure in your ear. The medium EarGel is pre- mounted on the earbuds. Ensure the EarGel is firmly attached.

  • Page 10: How To Charge

    4. How to charge Get up to 5.5 hours on a single charge with ANC on, with a total charge of up to 24 hours with the charging case. If you use the earbuds without ANC and HearThrough, you’ll get even more battery, with up to 7.5 hours in the earbuds and a total of 28 hours with the charging case.
  • Page 11 60 minutes of battery. Fast charging the earbuds requires that the charging case is fully charged. You can see the current battery status of the earbuds and charging case using the Jabra Sound+ app.
  • Page 12 4.3 Charging the charging case using Plug the supplied USB-A to USB-C charging cable into the charging case and a USB-A power supply or certified wall charger. It takes approx. 2 hours and 20 minutes to fully charge the earbuds and the charging case. The charging case uses the standard USB voltage of 5v +- 0.25v.
  • Page 13 4.4 Charging the charging case using a wireless charging pad If you own the wireless charging variant of the Jabra Elite Active 75t, a wireless charging pad* can be used to charge the charging case. Place the charging case on a wireless charging pad.

  • Page 14: What The Leds Mean

    5. What the LEDs mean EARBUD STATUS High battery/Power on Power off Pairing Medium battery Resetting Low battery BATTERY STATUS WHEN OPENING CHARGING CASE High battery Low battery Medium battery...
  • Page 15 CHARGING STATUS WITH USB CABLE Firmware updating High battery Medium battery Firmware update error (see Section 7.16) Low battery Fully charged CHARGING STATUS WITH WIRELESS CHARGING PAD* Firmware updating High battery Medium battery Firmware update error (see Section 7.16) Low battery *Wireless charging variant only...

  • Page 16: How To Pair

    6. How to pair 6.1 Pairing with a mobile device 3 Sec 1. Remove the earbuds from the charging case to power them on. Alternatively, press and hold the Left and Right buttons (1 sec) simultaneously to power them on. 2.

  • Page 17: How To Use

    7. How to use Left button Right button 7.1 Power the earbuds off/on Place the earbuds in the charging case to power them off, or remove them from the charging case to power them on. Alternatively, the earbuds can be manually powered off by pressing the Left and Right buttons on the earbuds simultaneously.

  • Page 18: Music Controls

    Left button when Next track listening to music Triple-press the Left button when Restart track listening to music or previous track Repeat to skip to the previous track All button functions can be reassigned using MyControls in the Jabra Sound+ app.

  • Page 19: Call Controls

    Double-press the Sidetone on/ Left button when on a call Press and hold Volume up the Right button Press and hold the Volume down Left button All button functions can be reassigned using MyControls in the Jabra Sound+ app.
  • Page 20 HearThrough, on a call ANC*, Off Activate Voice Double-press assistant the Right button (Siri, Google when not on Assistant) a call All button functions can be reassigned using MyControls in the Jabra Sound+ app. *Requires latest firmware version...
  • Page 21 7.5 Active Noise Cancellation (ANC) Advanced Active Noise Cancellation (ANC) counters noise by detecting and analyzing the pattern of incoming sound, and then generating an anti-noise signal to cancel noise out. As a result, you experience a reduced level of surrounding noise** during music and media playback.
  • Page 22 The microphones pick up surrounding sounds and transmit them to the speakers. Left button HearThrough Cycle between Press the Left HearThrough, button when not on ANC, off a call HearThrough levels can be adjusted using the Jabra Sound+ app.
  • Page 23 Left button Sidetone Turn Double-press the Left Sidetone button when on a call on/off Sidetone is on by default during calls and can be turned on/off using the Jabra Sound+ app.
  • Page 24 7.8 Mono earbud use The right earbud can be used individually for mono music playback or for calls. When used as a mono earbud, the right earbud retains its current button functionality. To use the right earbud as a mono earbud, place it in your ear and place the left earbud in the charging case.
  • Page 25 To unpause the music, return the earbud to your ear within 60 seconds. After 60 seconds, the music can be unpaused by pressing the Right button. Auto-pause music settings can be disabled or configured using the Jabra Sound+ app.

  • Page 26: Sleep Mode

    30 minutes. To power the earbuds on, press and hold (1 sec) the Left and Right buttons simultaneously. Alternatively, place them in the charging case and then take them back out. Sleep mode can be configured in the Jabra Sound+ app.

  • Page 27: Multiple Call Handling

    7.11 MyControls MyControls is a feature in the Jabra Sound+ app that enables you to reassign any function to each of the earbud buttons, offering you the flexibility to configure the earbuds precisely to your personal preference. 7.12 Multiple call handling The earbuds can accept and handle multiple calls at the same time.
  • Page 28 (refer to section 5). After pairing to both mobile devices, you will need to select the Jabra Elite Active 75t again on the first mobile device in the Bluetooth settings to complete the pairing to both mobile devices.

  • Page 29: Voice Assistant

    Voice assistant settings can be configured using the Jabra Sound+ app. 7.16 Update firmware The Jabra Elite Active 75t can be updated to the latest firmware version using the latest version of the Jabra Sound+ app. If notifications are enabled in the Jabra Sound+ app, you will receive an automatic notification when a firmware update is available.
  • Page 30 7.17 Reset the earbuds Resetting the earbuds clears the list of paired devices and resets all settings, except for ANC personalization settings. 1. Place both earbuds in the charging case. 2. Press and hold (10 sec) the Left and Right buttons on the earbuds simultaneously until the LEDs on the earbuds flash purple.

  • Page 31: Jabra Sound+ App

    8. Jabra Sound+ app Jabra Sound+ app* Personalize your music with MySound Customize ANC, HearThrough and MyControls Register your 2-year warranty *The Jabra Sound+ app and any screenshots in this user manual are subject to change...
  • Page 32 9. Support 9.1 FAQ View the FAQs on Jabra.com/help/eliteactive75t 9.2 How to care for your earbuds • Always store the earbuds in the charging case and safely protected. • To prevent the depletion of the battery lifetime or capacity, avoid storing the earbuds in hot or cold environments, such as a closed car in summer, or in winter conditions.

  • Page 33: Replacement Accessories

    9.3 Replacement accessories Replacement or additional accessories can be purchased online at jabra.com/accessories. Left and right earbud set Charging case EarGels...
  • Page 34 2. Open the charging case lid and remove the earbuds. 3. Wear the earbuds and follow the voice instructions to pair to your mobile device. 4. Update the earbud firmware using the Jabra Sound+ app.
  • Page 35 9.5 Using a replacement charging case Before using a replacement charging case for the first time, it will need to be synced with your current earbuds and charged for 1 hour. To begin syncing, place your current earbuds inside the replacement charging case, and close the lid.
