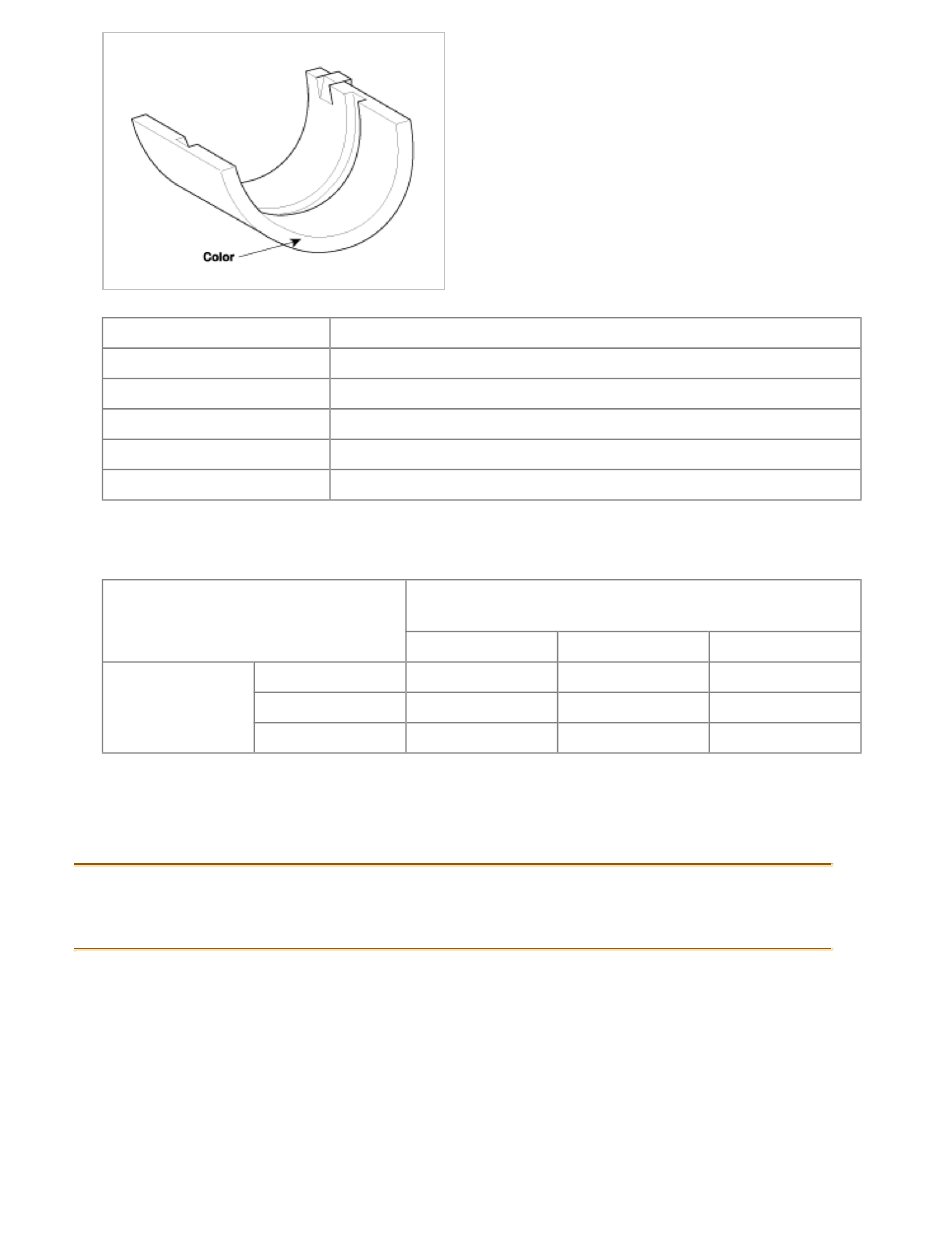

Crankshaft main bearing mark location
Discrimination of crankshaft main bearing
Color
Blue
Black
None
Green
Yellow
(8) Select the bearing by using selection table.
Crankshaft main bearing selection table
Crankshaft main bearing
Crank shaft main
journal mark
2. Check the crankshaft end play.
Using a dial indicator, measure the thrust clearance while prying the crankshaft back and forth with a
screwdriver.
End play
Standard : 0.08 ~ 0.28mm (0.0031 ~ 0.110in)
Limit : 0.30mm (0.0118in)
Crankshaft main bearing thickness
1.990 ~ 1.993mm (0.0783 ~ 0.0785in)
1.993 ~ 1.996mm (0.0785 ~ 0.0786in)
1.996 ~ 1.999mm (0.0786 ~ 0.0787in)
1.999 ~ 2.002mm (0.0787 ~ 0.0788in)
2.002 ~ 2.005mm (0.0788 ~ 0.0789in)
A
A Blue
B Black
C None
Cylinder block crankshaft
journal bore mark
B
Black
None
Green
C
None
Green
Yelllow
