Model No. NTEL99421-INT.2
Serial No.
Write the serial number in the space
above for reference.
Serial
Number
Decal
MEMBER CARE
UNITED KINGDOM
Website: iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iconfitness.com
Write:
iFIT Inc.
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
USER'S MANUAL
iconeurope.com
Advertisement
Table of Contents
Related Manuals for NordicTrack NTEL99421-INT.2
Summary of Contents for NordicTrack NTEL99421-INT.2
- Page 1 Model No. NTEL99421-INT.2 Serial No. USER’S MANUAL Write the serial number in the space above for reference. Serial Number Decal MEMBER CARE UNITED KINGDOM Website: iconsupport.eu E-mail: csuk@iconeurope.com Write: ICON Health & Fitness, Ltd. Unit 4, Westgate Court Silkwood Park...
-
Page 2: Table Of Contents
Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size. NORDICTRACK and IFIT are registered trademarks of iFIT Inc. Google Maps is a trademark of Google LLC. The Bluetooth ® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your elliptical before using your elliptical. iFIT assumes no responsibility for personal injury or property damage sustained by or through the use of this product. -
Page 4: Before You Begin

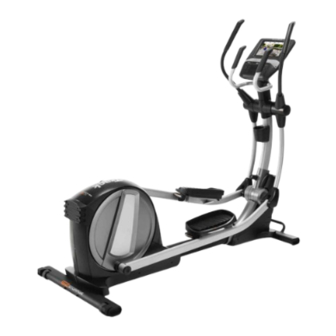

BEFORE YOU BEGIN Thank you for selecting the revolutionary reading this manual, please see the front cover of this NORDICTRACK ® SPACESAVER SE 7I elliptical. The manual. To help us assist you, note the product model SPACESAVER SE 7I elliptical provides an impressive number and serial number before contacting us. -
Page 5: Assembly
ASSEMBLY • Assembly requires two persons. • In addition to the included tool(s), assembly requires the following tool(s): • Place all parts in a cleared area and remove the one Phillips screwdriver packing materials. Do not dispose of the packing materials until you fi... - Page 6 3. With the help of another person, place some packing inserts from the packing material under the front of the Frame (1) so that the Frame is lifted off the floor. Have another person hold the elliptical to prevent it from moving until this step is completed.
- Page 7 5. While a second person holds the Console (4) near the Upright (2), connect the Main Wire (28) Avoid pinching to the wire on the Console. Tip: The wire con- the wires nectors should slide together easily and snap into place with an audible click. If they do not, turn one connector and try again.
- Page 8 7. Plug the Power Adapter (42) into the receptacle on the front of the elliptical. Note: To plug the Power Adapter (42) into an outlet, see HOW TO PLUG IN THE POWER ADAPTER on page 9. 8. Make sure that all parts of the elliptical are properly tightened. Extra parts may be included. Place a mat beneath the elliptical to protect the floor.
-
Page 9: How To Use The Elliptical
HOW TO USE THE ELLIPTICAL HOW TO PLUG IN THE POWER ADAPTER Next, push the upright (C) in the IMPORTANT: If the elliptical has been exposed to opposite direction cold temperatures, allow it to warm to room tem- slightly, lift the latch perature before you plug in the power adapter (A). - Page 10 HOW TO LEVEL THE ELLIPTICAL HOW TO EXERCISE ON THE ELLIPTICAL If the elliptical To mount the elliptical, hold the handlebars (J) or the rocks slightly on upper body arms (K) and step onto the pedal (L) that is your floor dur- in the lower position.
- Page 11 HOW TO STORE THE ELLIPTICAL Due to the size and weight of the elliptical, storing it requires two persons. CAUTION: You must be able to safely lift 85 lbs. (38.5 kg) to lift, store, and lower the elliptical. See HOW TO MOVE THE ELLIPTICAL on page 9 and lower the upright to the folded position.
-
Page 12: How To Use The Console
HOW TO USE THE CONSOLE CONSOLE DIAGRAM FEATURES OF THE CONSOLE resistance of the pedals as it guides you through an effective exercise session. The advanced console offers an array of features designed to make your workouts more effective and When you use the manual mode of the console, you enjoyable. - Page 13 HOW TO TURN ON THE CONSOLE HOW TO SET UP THE CONSOLE The included power adapter must be used to operate Before you use the elliptical for the first time, set up the the elliptical. See HOW TO PLUG IN THE POWER console.
- Page 14 HOW TO USE THE MANUAL MODE Touch the various workout information displays to view more options. Touch the more button 1. Touch the screen or press any button on the (+ symbol) to view statistics or charts. Touch the console to turn on the console. screen in any open space to view even more dis- play mode options.
- Page 15 6. Turn on the fan if desired. 2. Enable the Bluetooth setting on your device. The fan has several speed 3. Pair your device to the console. settings, including an auto mode. While the auto mode Press and hold the Bluetooth Audio button on the is selected, the speed console for 3 seconds.
- Page 16 HOW TO USE A FEATURED WORKOUT When you select a workout, the screen will show an overview of the workout that includes details To use a featured workout, the console must be con- such as the duration and distance of the workout nected to a wireless network (see HOW TO CONNECT and the approximate number of calories you will TO A WIRELESS NETWORK on page 22).
- Page 17 IMPORTANT: The calorie goal shown in the 5. Wear headphones if desired. workout description is an estimate of the number of calories that you will burn during To connect your headphones to the console, first the workout. The actual number of calories that turn on your headphones, place them in pairing you burn will depend on various factors, such mode, and place them near the console.
- Page 18 HOW TO CREATE A DRAW-YOUR-OWN-MAP If you make a mistake, touch Undo in the map WORKOUT options. 1. Touch the screen or press any button on the The screen will display the elevation and distance console to turn on the console. statistics for your workout.
- Page 19 HOW TO USE AN IFIT WORKOUT 4. Select an iFIT workout from the home screen or the workout library. To use an iFIT workout, you must be logged into your iFIT account (see step 3 below) and the console Touch the buttons at the bottom of the screen to must be connected to a wireless network (see HOW select either the home screen (Home button) or the TO CONNECT TO A WIRELESS NETWORK on...
- Page 20 6. Create a list of favorite iFIT workouts if desired. When your headphones and the console pair successfully, the audio from the console will play To mark an iFIT workout as a favorite, simply view through your headphones. the overview or workout summary of the desired iFIT workout and touch the favorites button (heart 9.
- Page 21 HOW TO CHANGE CONSOLE SETTINGS Equipment • Equipment Info IMPORTANT: Firmware updates are always • Equipment Settings designed to improve your exercise experience. As a • Maintenance result, new settings and features may not be described • Wi-Fi in this manual. Take time to explore the console to learn how new settings and features work.
- Page 22 The screen will show the progress of the update. 3. Enable Wi-Fi. When the update is complete, the console will turn off and then turn back on. If it does not, unplug the Make sure that Wi-Fi ® is enabled. If it is not power adapter, wait for several seconds, and then enabled, touch the Wi-Fi toggle to enable it.
-
Page 23: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING MAINTENANCE firmware updates (see HOW TO CHANGE CONSOLE SETTINGS on page 21). Note: It may take a few Regular maintenance is important for optimal minutes for the console to be ready for use. performance and to reduce wear. Inspect and properly tighten all parts each time the elliptical is HOW TO ADJUST THE REED SWITCH used. - Page 24 Next, slightly loosen the two indicated M4 x 16mm HOW TO ADJUST THE DRIVE BELT Screws (61). Slide the Reed Switch (58) slightly toward or away from the Magnet (41). Then, retighten If the pedals slip while you are pedaling, even while the the Screws.
- Page 25 Next, remove the Next, loosen the Idler Screw (97). Tighten the Idler four M4 x 16mm Adjustment Screw (72) until the Drive Belt (46) is tight. Screws (not Then, retighten the Idler Screw. shown) from the Large Storage Foot (27), and remove the Large Storage Foot.
-
Page 26: Exercise Guidelines
EXERCISE GUIDELINES Aerobic Exercise—If your goal is to strengthen your WARNING: cardiovascular system, you must perform aerobic Before beginning this exercise, which is activity that requires large amounts or any exercise program, consult your physi- of oxygen for prolonged periods of time. For aerobic cian. -
Page 27: Part List
PART LIST Model No. NTEL99421-INT.2 R1221A Key No. Qty. Description Key No. Qty. Description Frame Small Storage Foot Upright Idler Rear Upright Cover Small Spacer Console Resistance Motor Accessory Tray Axle Cover Right Upper Body Leg M4 x 12mm Washer Head Screw... - Page 28 Key No. Qty. Description Key No. Qty. Description Left Upper Body Leg Right Pedal Handle Upright Axle Pedal Pad M8 x 20mm Hex Bolt M10 x 140mm Bolt M6 Acorn Nut M10 Locknut Spring Mount/Screw Left Pedal Plate – User’s Manual Right Pedal Plate –...
-
Page 29: Exploded Drawing
EXPLODED DRAWING A Model No. NTEL99421-INT.2 R1221A... - Page 30 EXPLODED DRAWING B Model No. Model No. NTEL99421-INT.2 R1221A...
- Page 31 EXPLODED DRAWING C Model No. NTEL99421-INT.2 R1221A...
-
Page 32: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
