LCD Characteristics :
Model NO.
RMD-24W-D2
Screen Size
Dual 23.8"
Backlight Type
LED
Native Resolution
1920 x 1080
Contrast Ratio
1000:1
Brightness ( cd/m2 )
250
View Angles ( H/V )
178/178
Pixel Size ( HxV ) mm
0.2745x0.2745
Max. Color
16.7M
MTBF ( Hrs. )
50,000
Input Signals:
DVI-D
Dual DVI-D 24Pin Connector (Female)
VGA
Dual D-SUB 15Pin Connector (Female)
Audio
1x 3.5" Jack
Power Input
Standard IEC Inlet
Touch-USB ( option )
Dual USB A Type connector
Touch-RS232 ( option )
Dual D-SUB 9P connector ( Female )
Power Specifications :
Standard IEC Type Power Cord with Internal Power
AC Power Input
adapter, 100-240V AC Input
Wide Range DC Power
Screw Type Terminal Block with internal
Input ( option )
wide Range DC 9-36V power module
Rear of RMD-24W-D2/RMD-24WU-D2

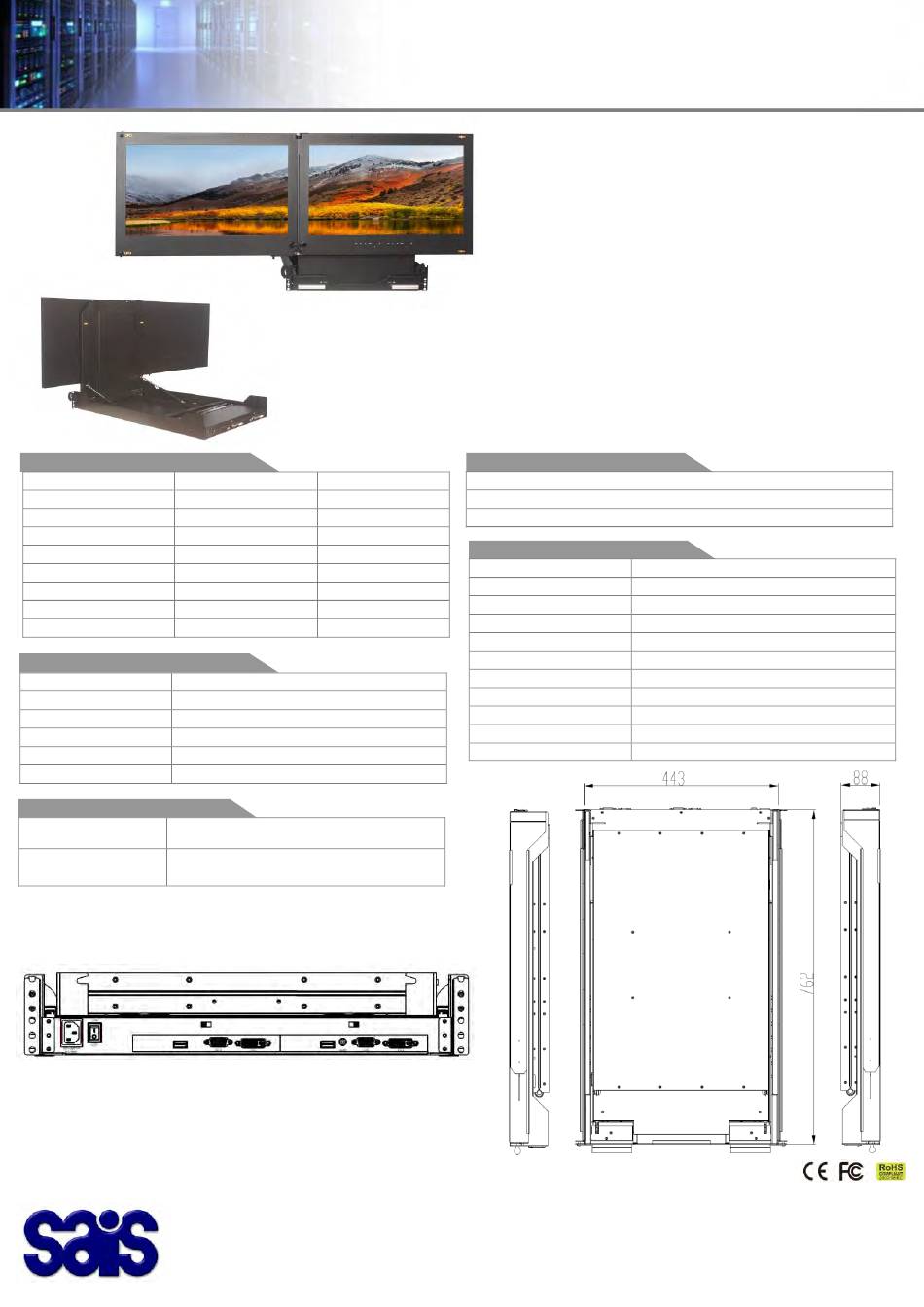

Rack Mount Dual LCD Drawer (screen pivot)
Model # RMD-24W-D2 / RMD-24WU-D2
RMD-24WU-D2
Dual 24.1"
LED
1920 x 1200
1000:1
300
178/178
0.27x0.27
16.7M
30,000
BAT A6 Domaine de St Paul - 102 route de Limours - 78470 ST REMY LES CHEVREUSE
Tel : 09 54 16 23 53 - Fax : 09 59 16 23 53 - contact@sacasa.info - www.sacasa.info
Features
• 2U foldable dual 23.8" or 24.1" widescreen LCD display Drawer
• Dual DVI & VGA Port
• native 1920 x 1080 FHD resolution (for 23.8")
• native 1920 x 1200 WUXGA Ultra high resolution (for 24.1")
• Build in 2x 2 watts speakers
• Independent front osd control buttons to optimized display
Option
•
Composite video input
•
HDMI or Display port input
•
3G / HD / SD-SDI broadcast grade input
•
DC 9~36 V power input
•
AR Hardness glass
•
Touch screen
User Controls Interface:
Power ON / OFF via Front Button
Power Mode Status LED indicator
OSD ( On Screen Display ) Buttons
Mechanical and Environment:
Height
2U Foldable
Rack Depth
24" to 40"
Construction
Metal Housing
Operating Temperature
0 - 50 deg. C
Operating Humidity
10% - 90% ( non -condensing )
Anti-Vibration
5 - 500 Hz / 1 Grms PTP
Anti-Shock
15G / Peak ( 11 ms )
Physical Dimension (WxHxD)
443 x 88 x 762 (mm)
Packing Dimension (WxHxD)
570 x 230 x 900 (mm)
Net Weight / Gross Weight
28 / 35 (KGs)
Certification and Approvals
CE / FCC / RoHs
( cabinet front rail to rear rail )
Advertisement
Table of Contents
Related Manuals for sais RMD-24W-D2
Summary of Contents for sais RMD-24W-D2
- Page 1 Rack Mount Dual LCD Drawer (screen pivot) Model # RMD-24W-D2 / RMD-24WU-D2 Features • 2U foldable dual 23.8” or 24.1” widescreen LCD display Drawer • Dual DVI & VGA Port • native 1920 x 1080 FHD resolution (for 23.8”) • native 1920 x 1200 WUXGA Ultra high resolution (for 24.1”) •...
- Page 4 100~240V 50~60Hz Audio Unlock Unlock Unlock Unlock 歿轝曁...
- Page 5 Rack Mount Dual LCD Display Drawer RMD-24W-D2/RMD-24WU-D2 - 1 -...
- Page 6 This manual, covering various aspects of the equipment such as installation and setup, which will help you make full use of this LCD Drawer. Please read this manual carefully, install and operate the equipment according to the manual to avoid damage. Product package includes following items: 1 * Dual screen LCD drawer;...
-
Page 7: Table Of Contents
Table of Contents Introduction …………………………………………………………………………-4- 1.1Overview…………………………………………………………………...…. -4- 1.2 Functions & Features…………………………………… ……………...…..-4- 1.3 Hardware Requirement……………………………………………..….……-4- 1.3.1 Host Requirement………………………………………………..… -4- 1.3.2 Cables…………………………………………………………...….… -4- 1.4 Product Specifications………………………………………………..….…..-5- 1.5 LCD Specifications………………………………………………….…..……-5- 1.6 Front View………………………………………………………….…..……. -6- 1.7 Rear View……………………………………………………………..….…...-7- Installation……………………………………………………………………...……-8- 2.1 Rack Installation……………………………………………………………… -8- 2.2 Operation…....…………….………………………………….……... -
Page 8: Introduction
1 Introduction 1.1 Overview RMD-24W(U)-D2 integrates with 2 x LCD display and in a drawer type worktable and provides a convenient space-saving display mode. With a graphic card, screen can be cloned or extended to each screen; or can display independently. -
Page 9: Product Specifications
1.4 Product Specifications Model RMD-24W-D2 RMD-24WU-D2 300cd/m2 Brightness 250cd/m2 Contrast 1000:1 1000:1 Angle of visibility 178°(H),178°(V) 178°(H),178°(V) Color display 16.7M 16.7M 1920 x 1080 (native) 1920 x 1200 (native) Video resolution support up to 1920 x 1200 24 pin DVI-D female connector... -
Page 10: Front View
Front View Part Function Description display Mounting bracket Install into rack cabinet LCD button to control Screen Display position and LCD OSD button image setting. - 6 -... -
Page 11: Rear View
Rear View Component Component Function Description Function Description AC Power port Standard IEC Type AC Inlet Power Switch Rock switch, turn on/off equipment main power. Audio port For audio function Connect to server or KVM. VGA port DVI port Connect to server or KVM. USB 2.0 for Touch (option). -
Page 12: Installation
2 Installation 2.1 Rack Installation Rear mounting bracket (L&R) Front mounting bracket (L&R) Step Front View Back View Step ■ ■ Insert the left and right front mounting brackets into Rear mounting bracket, screw M6 *4pcs rear mounting bracket, screw M6 * 4pcs Front View Step Front View... -
Page 13: Operation
2.2 Operation Step Step ■ ■ Unlock locker C Lift up LCD panels ■ ■ Unlock and hold handle D to slide out LCD panels Slide in LCD panels to the suitable position Step Step Step ■ ■ Open LCD panels to 135~180° Use locker C to stablize the rails ■... -
Page 14: Standard Installation
2.2 Standard Installation Please follow the installation drawing and instructions below for standard installation: * Please Shutdown the Power of Equipment Needs to be Connected * Please Pay Attention to Earthing of Equipment The standard installation is completed, and LCD drawer can be powered on. Then power on connected hosts. -
Page 15: Lcd Osd Menu Setup
2.3 LCD OSD Menu Setup OSD Control buttons LCD OSD can establish and setup LCD display. Setup instructions of four buttons are as follows: Button Functions POWER Turn on or off the LCD Display Activate OSD menu, select a menu and press MENU key to confirm the MENU selection and enter the submenu. -
Page 16: Certificates
- 12 - SAIS BAT A6 Domaine de Saint Paul - 102 route de Limours - 78470 ST REMY LES CHEVREUSE tel : 09 54 16 23 53 - Fax : 09 59 16 23 53 - contact@sacasa.info - www.sacasa.info...
