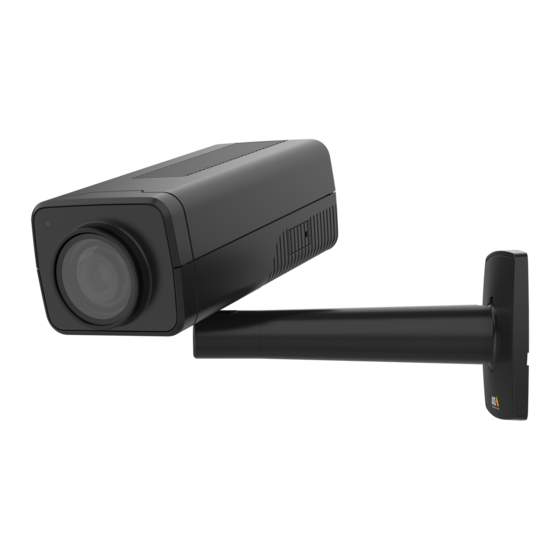

AXIS Q1715 Block Camera
User manual

Advertisement

Table of Contents
loading

Related Manuals for Axis Q1715

Summary of Contents for Axis Q1715

  • Page 1 AXIS Q1715 Block Camera User manual...

  • Page 2: Table Of Contents

    AXIS Q1715 Block Camera Table of Contents Installation ..........

  • Page 3: Installation

    AXIS Q1715 Block Camera Installation Installation To watch this video, go to the web version of this document. help.axis.com/?&piaId=63041&section=install Installation video for the product. Preview mode Preview mode is ideal for installers when fine tuning the camera view during the installation. No login is required to access the camera view in preview mode.

  • Page 4: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 5: Verify That No One Has Tampered With The Firmware

    Verify that no one has tampered with the firmware To make sure that the device has its original Axis firmware, or to take full control of the device after a security attack: 1. Reset to factory default settings. See Reset to factory default settings on page 63.

  • Page 6: Configure Your Device

    AXIS Q1715 Block Camera Configure your device Configure your device Basic settings Set the capture mode 1. Go to Video > Installation > Capture mode. 2. Click Change. 3. Select a capture mode and click Save and restart. See also Capture modes on page 58.
  • Page 7 AXIS Q1715 Block Camera Configure your device 2. Click and use the slider to set the focus. Select scene profile A scene profile is a set of predefined image appearance settings including color level, brightness, sharpness, contrast and local contrast. Scene profiles are preconfigured in the product for quick setup to a specific scenario, for example Forensic which is optimized for surveillance conditions.
  • Page 8 4. Use the Tone mapping slider to adjust the amount of WDR. 5. If you still have problems, go to Exposure and adjust the Exposure zone to cover the area of interest. Find out more about WDR and how to use it at axis.com/web-articles/wdr.
  • Page 9 Use corridor format to better utilize the full field of view in a long and narrow area, for example a staircase, hallway, road, or tunnel. 1. Depending on your device, turn the camera or the 3-axis lens in the camera 90° or 270°.
  • Page 10 AXIS Q1715 Block Camera Configure your device 1. Go to Video > Image and click 2. Click for Pixel counter. 3. In the camera’s live view, adjust the size and position of the rectangle around the area of interest, for example where you expect faces to appear.

  • Page 11: Adjust The Camera View (Ptz)

    AXIS Q1715 Block Camera Configure your device 7. Select the image and a position. You can also drag the overlay image in the live view to change the position. Adjust the camera view (PTZ) To learn more about different pan, tilt, and zoom settings, see Pan, tilt, and zoom (PTZ) on page 58.
  • Page 12 AXIS Q1715 Block Camera Configure your device 1. Go to Video > Stream. 2. Click in the live view. 3. Select Video format H.264. 4. Go to Video > Stream > General and increase Compression. 5. Go to Video > Stream > Zipstream and do one or more of the following: Note The Zipstream settings are used for both H.264 and H.265.

  • Page 13: Set Up Rules For Events

    AXIS Q1715 Block Camera Configure your device Watch video 1. Go to Recordings. 2. Click for your recording in the list. Set up rules for events You can create rules to make your device perform an action when certain events occur. A rule consists of conditions and actions.
  • Page 14 AXIS Q1715 Block Camera Configure your device 4. Choose text size and appearance. 5. To position the text overlay, click and select an option. Create a rule: 1. Go to System > Events and add a rule. 2. Type a name for the rule.
  • Page 15 AXIS Q1715 Block Camera Configure your device Create the preset positions: 1. Go to PTZ > Preset positions. 2. Create the home position that includes the entrance of the gate. 3. Create the zoomed-in preset position so that it covers the area in the image where you assume that the license plate will appear.
  • Page 16 AXIS Q1715 Block Camera Configure your device Set up the intrusion alarm Before you start • Connect the intrusion alarm switch to pin 1 (ground) and pin 3 (digital I/O) of the camera’s I/O connector. Configure the input port 1. Go to System > Accessories > I/O ports.
  • Page 17 AXIS Q1715 Block Camera Configure your device 2. Type a name for the recipient. 3. Select Email. 4. Type an email address to send the email to. 5. The camera doesn’t have it’s own email server, so it has to log into another email server to send mails. Fill in the rest of the information according to your email provider.

  • Page 18: Audio

    Connect to a network speaker Network speaker pairing allows you to use a compatible Axis network speaker as if it is connected directly to the camera. Once paired, the speaker acts as an audio out device where you can play audio clips and transmit sound through the camera.

  • Page 19: The Web Interface

    AXIS Q1715 Block Camera The web interface The web interface To reach the device’s web interface, type the device’s IP address in a web browser. Note Support for the features and settings described in this section varies between devices. This icon indicates that the feature or setting is only available in some devices.

  • Page 20: Video

    Shows what kind of access to the device that is active, and what encryption protocols are in use. Recommendations to the settings are based on the AXIS OS Hardening Guide. Hardening guide: Link to AXIS OS Hardening guide where you can learn more about cybersecurity on Axis devices and best practices.
  • Page 21 AXIS Q1715 Block Camera The web interface Click to play the live video stream. Click to freeze the live video stream. Click to take a snapshot of the live video stream. The file is saved in the ‘Downloads’ folder on your computer. The image file name is [snapshot_YYYY_MM_DD_HH_MM_SS.jpg].
  • Page 22 AXIS Q1715 Block Camera The web interface • Video format: Select the encoding format to use in the live view. • Client stream information: Turn on to show dynamic information about the video stream used by the browser that shows the live video stream. The bitrate information differs from the information shown in a text overlay, because of different information sources.
  • Page 23 AXIS Q1715 Block Camera The web interface Important We recommend you not to use multiple image correction features at the same time, since it can lead to performance issues. Barrel distortion correction (BDC) : Turn on to get a straighter image if it suffers from barrel distortion. Barrel distortion is a lens effect that makes the image appear curved and bent outwards.
  • Page 24 AXIS Q1715 Block Camera The web interface Image Appearance Scene profile : Select a scene profile that suits your surveillance scenario. A scene profile optimizes image settings, including color level, brightness, sharpness, contrast, and local contrast, for a specific environment or purpose.
  • Page 25 AXIS Q1715 Block Camera The web interface : Turn on to make both bright and dark areas of the image visible. Local contrast : Use the slider to adjust the contrast of the image. A higher value makes the contrast higher between dark and light areas.
  • Page 26 • Move the slider towards Dark to increase the threshold for the IR-cut filter. The camera changes to night mode later. IR light If your device doesn’t have built-in illumination, these controls are only available when you connect a supporting Axis accessory. Allow illumination: Turn on to let the camera use the built-in light in night mode.
  • Page 27 AXIS Q1715 Block Camera The web interface • Flicker-free 60 Hz : The camera adjusts the aperture and gain automatically, and uses the shutter speed 1/60 s. • Flicker-reduced : This is the same as flicker-free, but the camera might use shutter speeds faster than 1/100 s (50 Hz) and 1/120 s (60 Hz) for brighter scenes.
  • Page 28 Zipstream is a bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example, in scenes with moving objects.
  • Page 29 AXIS Q1715 Block Camera The web interface Optimize for storage: Turn on to minimize the bitrate while maintaining quality. The optimization does not apply to the stream shown in the web client. This can only be used if your VMS supports B-frames. Turning on Optimize for storage also turns on Dynamic GOP.

  • Page 30: Ptz

    AXIS Q1715 Block Camera The web interface Overlays : Click to add an overlay. Select the type of overlay from the dropdown list: • Text: Select to show a text that is integrated in the live view image and visible in all views, recordings and snapshots.
  • Page 31 AXIS Q1715 Block Camera The web interface Create preset position: Create a new preset position based on the current position of your camera. • Thumbnail: Turn on to add a thumbnail image for the preset position. • Name: Enter a name for the preset position.
  • Page 32 AXIS Q1715 Block Camera The web interface Recorded A recorded tour replays a sequence of recorded pan/tilt/zoom movements, including their variable speeds and lengths. General settings • Name: Enter a name for the guard tour. • Pause between runs: Enter your desired time interval between guard tours. You can enter any interval from 0 minutes to 2 hours and 45 minutes.
  • Page 33 • PTZ control queue: Turn on to place PTZ control requests in a queue. This displays the users status and position in the queue. To use the PTZ controls in AXIS Camera Station, turn off this setting. Enter queue: Click to add your request for PTZ control to the queue.

  • Page 34: Audio

    AXIS Q1715 Block Camera The web interface Audio Device settings Input: Turn on or off audio input. Shows the type of input. Allow stream extraction : Turn on to allow stream extraction. Input type: Select the type of input, for instance, if it’s a microphone or line.

  • Page 35: Apps

    Apps Add app: Install a new app. Find more apps: Find more apps to install. You will be taken to an overview page of Axis apps. Allow unsigned apps: Turn on to allow installation of unsigned apps. Allow root-privileged apps: Turn on to allow apps with root privileges full access to the device.

  • Page 36: System

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/products/analytics. You need a license code and the Axis product serial number to generate a license key.
  • Page 37 AXIS Q1715 Block Camera The web interface Configuration check Interactive device image: Click the buttons in the image to simulate real key presses. This allows you to try out configurations or troubleshoot the hardware without having physical access to the device.
  • Page 38 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: This is the default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 39 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 40 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 41 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 42 AXIS Q1715 Block Camera The web interface Add SSH account: Click to add a new SSH account. • Restrict root access: Turn on to restrict functionality that requires root access. • Enable SSH: Turn on to use SSH service. Account: Enter a unique account name.
  • Page 43 The SFTP client supports SFTP servers using SSH-2 with RSA, DSA, ECDSA, and ED25519 host key types. RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both...
  • Page 44 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 45 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management software (VMS).
  • Page 46 AXIS Q1715 Block Camera The web interface Reconnect automatically: Specifies whether the client should reconnect automatically after a disconnect. Connect message Specifies if a message should be sent out when a connection is established. Send message: Turn on to send messages.
  • Page 47 AXIS Q1715 Block Camera The web interface Add subscription: Click to add a new MQTT subscription. Subscription filter: Enter the MQTT topic that you want to subscribe to. Use device topic prefix: Add the subscription filter as prefix to the MQTT topic.
  • Page 48 AXIS Q1715 Block Camera The web interface Use NAT (Network Address Translation) traversal when the device is located on an private network (LAN) and you want to make it available from outside of that network. Note For NAT traversal to work, the router must support it. The router must also support UPnP®.
  • Page 49 AXIS Q1715 Block Camera The web interface • Answer automatically: Select to automatically answer an incoming call. • Prioritize IPv6 over IPv4 : Select to prioritize IPv6 addresses over IPv4 addresses. This is useful when you connect to peer-to-peer accounts or domain names that resolve in both IPv4 and IPv6 addresses. You can only prioritize IPv6 for domain names that are mapped to IPv6 addresses.
  • Page 50 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share since each device gets its own folder.
  • Page 51 AXIS Q1715 Block Camera The web interface Onboard storage Important Risk of data loss and corrupted recordings. Do not remove the SD card while the device is running. Unmount the SD card before you remove it. Unmount: Click to safely remove the SD card.
  • Page 52 When you create an ONVIF user, you automatically enable ONVIF communication. Use the username and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. Add user: Click to add a new ONVIF user.
  • Page 53 AXIS Q1715 Block Camera The web interface The context menu contains: Update user: Edit the user’s properties. Delete user: Delete the user. You can’t delete the root user. ONVIF media profiles An ONVIF media profile consists of a set of configurations that you can use to change media stream settings.
  • Page 54 Pairing Pairing allows you to use a compatible Axis network speaker or microphone as if it’s part of the camera. Once paired, the network speaker acts as an audio out device where you can play audio clips and transmit sound through the camera. The network microphone...
  • Page 55 AXIS Q1715 Block Camera The web interface Important For this feature to work with a video management software (VMS), you must first pair the camera with the speaker or microphone, then add the camera to your VMS. Address: Enter host name or IP address to the network speaker.

  • Page 56: Maintenance

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device.
  • Page 57 AXIS Q1715 Block Camera The web interface • Factory default: Upgrade and return all settings to the factory default values. When you choose this option, you can’t revert to the previous firmware version after the upgrade. • Autorollback: Upgrade and confirm the upgrade within the set time. If you don’t confirm, the device reverts to the previous firmware version.

  • Page 58: Learn More

    Capture modes What capture mode to choose depends on the requirements for the frame rate and resolution of the specific surveillance setup. For specifications about available capture modes, see the product’s datasheet at axis.com. Privacy masks A privacy mask is a user-defined area that covers a part of the monitored area. In the video stream, privacy masks appear either as blocks of solid color or with a mosaic pattern.

  • Page 59: Streaming And Storage

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to older MPEG formats.
  • Page 60 AXIS Q1715 Block Camera Learn more Variable bitrate (VBR) Variable bitrate allows the bandwidth consumption to vary depending on the level of activity in the scene. The more activity, the more bandwidth you need. With variable bitrate you are guaranteed constant image quality, but you need to make sure you have storage margins.

  • Page 61: Applications

    AXIS Object Analytics AXIS Object Analytics is an analytic application that comes preinstalled on the camera. It detects objects that move in the scene and classifies them as, for example, humans or vehicles. You can set up the application to send alarms for different types of objects. To find out more about how the application works, see AXIS Object Analytics user manual.

  • Page 62: Cleaning Recommendations

    AXIS Q1715 Block Camera Cleaning recommendations Cleaning recommendations NOTICE TICE TICE Never use harsh detergent, for example gasoline, benzene, or acetone. 1. Use a can of compressed air to remove any dust or loose dirt from the device. 2. If necessary, clean the lens with a soft cloth dampened with lukewarm water.

  • Page 63: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 64: Technical Issues, Clues, And Solutions

    3. Go to Maintenance > Firmware upgrade and click Upgrade. When the upgrade has finished, the product restarts automatically. You can use AXIS Device Manager to upgrade multiple devices at the same time. Find out more at axis.com/products/axis-device-manager. Technical issues, clues, and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support.

  • Page 65: Performance Considerations

    IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).

  • Page 66: Contact Support

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Contact support Contact support at axis.com/support.

  • Page 67: Specifications

    AXIS Q1715 Block Camera Specifications Specifications Product overview Security lock slot microSD card slot HDMI connector Control button SDI connector RS-485/422 connector PoE class switch Audio in (analogue/digital) Network connector (PoE) 10 Power connector (DC) 11 I/O connector 12 I2C connector (camera housing communication connector)

  • Page 68: Sd Card Slot

    Don’t remove the SD card while the product is running. This device supports microSD/microSDHC/microSDXC cards. For SD card recommendations, see axis.com. microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.
  • Page 69 AXIS Q1715 Block Camera Specifications Audio input 1 Tip 2 Ring 3 Sleeve I/O connector Use the I/O connector with external devices in combination with, for example, motion detection, event triggering, and alarm notifications. In addition to the 0 V DC reference point and power (12 V DC output), the I/O connector provides the interface to: Digital input - For connecting devices that can toggle between an open and closed circuit, for example PIR sensors, door/window contacts, and glass break detectors.
  • Page 70 AXIS Q1715 Block Camera Specifications Configurable I/O Configurable I/O Power connector 2-pin terminal block for DC power input. Use a Safety Extra Low Voltage (SELV) compliant limited power source (LPS) with either a rated output power limited to ≤100 W or a rated output current limited to ≤5 A.

  • Page 71: Aptp

    PTZ drivers PTZ drivers APTP This is a list of models supported by this driver. The physical installation depends on your Axis product and the PTZ unit. Important Check what serial communication your Axis product and the PTZ unit will support.
  • Page 72 Pelco Spectra Mini • Videotec DTRX3/PTH310P • Videotec ULISSE • PTK AMB • YP3040 Other models may be supported but this has not been verified by Axis. Technical information DEFAULT capabilities for PTZ driver: Driver Pelco 4.17 Version DEFAULT serial configuration: PortMode...

  • Page 73: Visca

    To change serial port settings, go to System > Plain config > Serial in the device’s web interface. Visca This is a list of models supported by this driver. The physical installation depends on your Axis product and the PTZ unit. Important Check what serial communication your Axis product and the PTZ unit will support.
  • Page 74 AXIS Q1715 Block Camera PTZ drivers Note Different PTZ units may have other capabilities (both less and more). Movement Absolute Relative Continuous Tilt Zoom Focus Iris AutoIris AutoFocus IrCutFilter BackLight OSDMenu Connection For the RS485/RS422 pin assignment on your device, see RS485/RS422 connector on page 70.
  • Page 75 User manual Ver. M8.2 AXIS Q1715 Block Camera Date: September 2023 © Axis Communications AB, 2021 - 2023 Part no. T10168073...
