Summary of Contents for True XFW6400

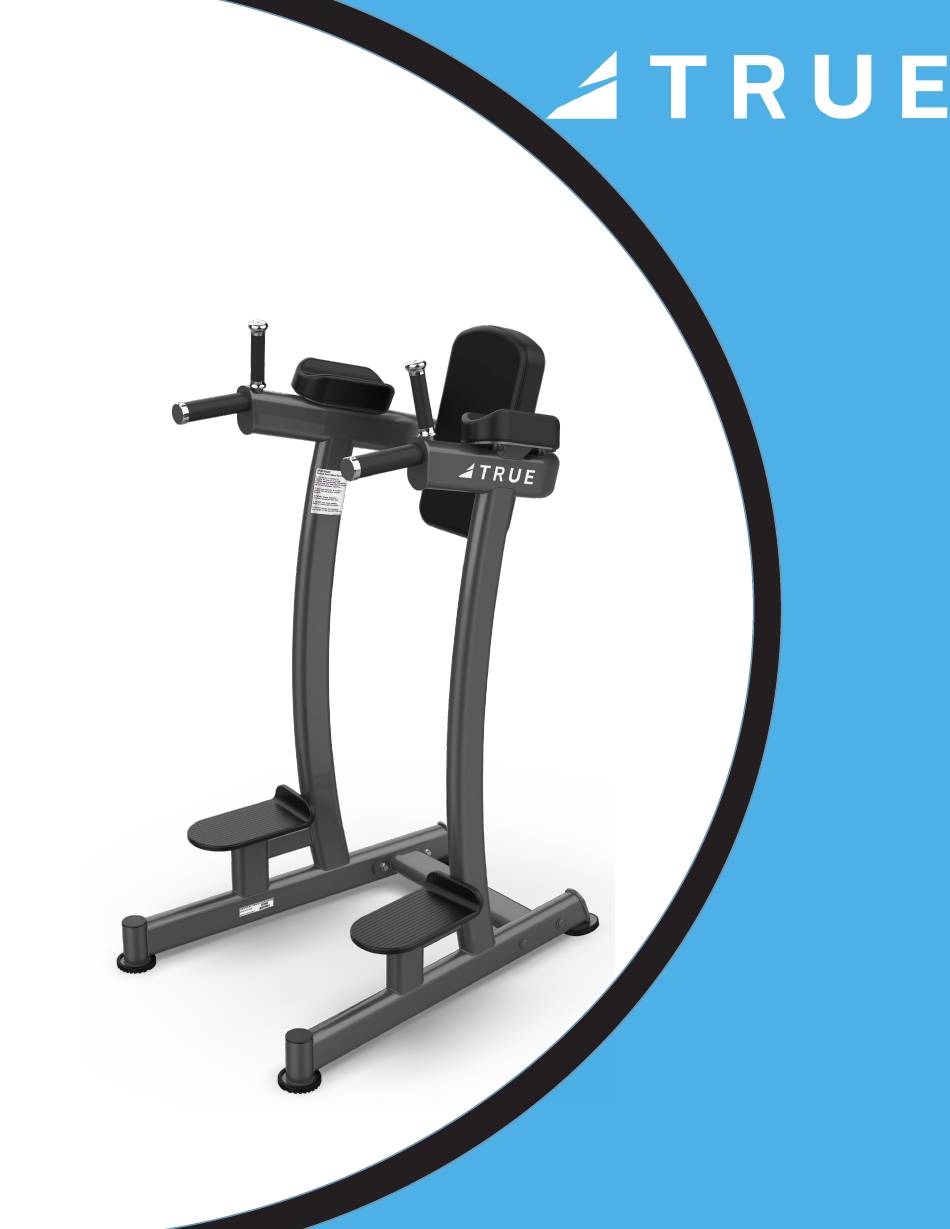

- Page 1 XFW6400 Vertical Knee Raise/ Dip Bench OWNER’S MANUAL Model # XFW6400 Revision 091418...
- Page 2 For your convenience, product questions can be answered by an Authorized Paramount Dealer or by contacting a TRUE Fitness Customer Service Representative at: 1-800-883-8783 or 1-800-721-2121 Office hours are Monday-Friday, 8:00 am - 5:00 pm CST Or email us at service@truefitness.com or paramountservice@truefitness.com...
-
Page 3: Table Of Contents
ABLE ONTENTS ......................AFETY ..............ENERAL ARE AND AINTENANCE & W ............... ACHINE IMENSIONS EIGHTS ......................SSEMBLY ....................ARTS IAGRAM & W ..............NTENDED ARNING ABELS ......................ARRANTY... -
Page 4: Safety
AFETY ACILITY AND AFETY RECAUTIONS 1. Review and understand all of the warning labels affixed to this machine and on the facility safety sign. 2. Be certain that the machine operation is understood before it is used. Refer to the instructional Procedure Label affixed to the machine. - Page 5 AFETY 12d. This equipment is designed for standard olympic size weight plates with a 50mm bore (1.9”). 12e. Do not exceed the maximum weight capacity of the machine. Maximum plate size is 45 lbs. (25 kg.). 13. On Selectorized and Cable equipped machines: 13a.
- Page 6 AFETY AINTENANCE AFETY RECAUTIONS 1. Refer to Maintenance Schedule label on the machine as well as this manual for when to perform maintenance. 2. Check the function of your machine DAILY by verifying the following: • Inspect cables and end fittings for any signs of wear. Replace if worn, frayed or damaged with original Paramount replacement components.
-
Page 7: General Care And Maintenance
13. Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your Paramount dealer or TRUE Fitness at (800) 883-8783 or (800)721-2121 or service@truefitness.com or... -
Page 8: Machine Dimensions & Weights
IMENSIONS AND EIGHTS Carton Size: 51” X 45” X 11.5” 130 cm x 114 cm x 29.5 cm Carton Weight (as shipped) = 144 lbs (65 kg.) Assembled Weight (as shown) = 128 lbs (58 kg) Maximum User Weight = 300 lbs. (136 kg.) -
Page 9: Assembly
SSEMBLY BLACK Tools Required: 14mm (9/16”) socket wrench Ratchet handle 5/16” Hex bit (Allen bit) 4” Long socket extension 5mm” hex wrench (Allen) -
Page 10: Parts Diagram
ARTS IAGRAM 10BK TRUE... -
Page 11: Ntended Se Arning Abels
& W NTENDED ARNING ABELS INTENDED USE 1. This bench is intended to support the user in an upright position while performing abdominal knee or leg raise exercises or triceps dip or arm extension exercises. 2. Use foot platforms to assist in getting into the proper exercise position. 3. -
Page 12: Warranty
Hours of operation 8:30am - 5:00 pm CST workmanship for a 10 years. The frame is warranted for labor and freight (for parts shipped from TRUE) for one year from date of purchase. * This limited warranty on structural frame does not include paint or coatings. - Page 13 DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. TRUE within 30 days of purchaser’s receipt of this Product. The serial number must be intact on the Product for this Limited Warranty to be valid.
- Page 14 If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
