Behringer 911 ENVELOPE GENERATOR Quick Start Manual

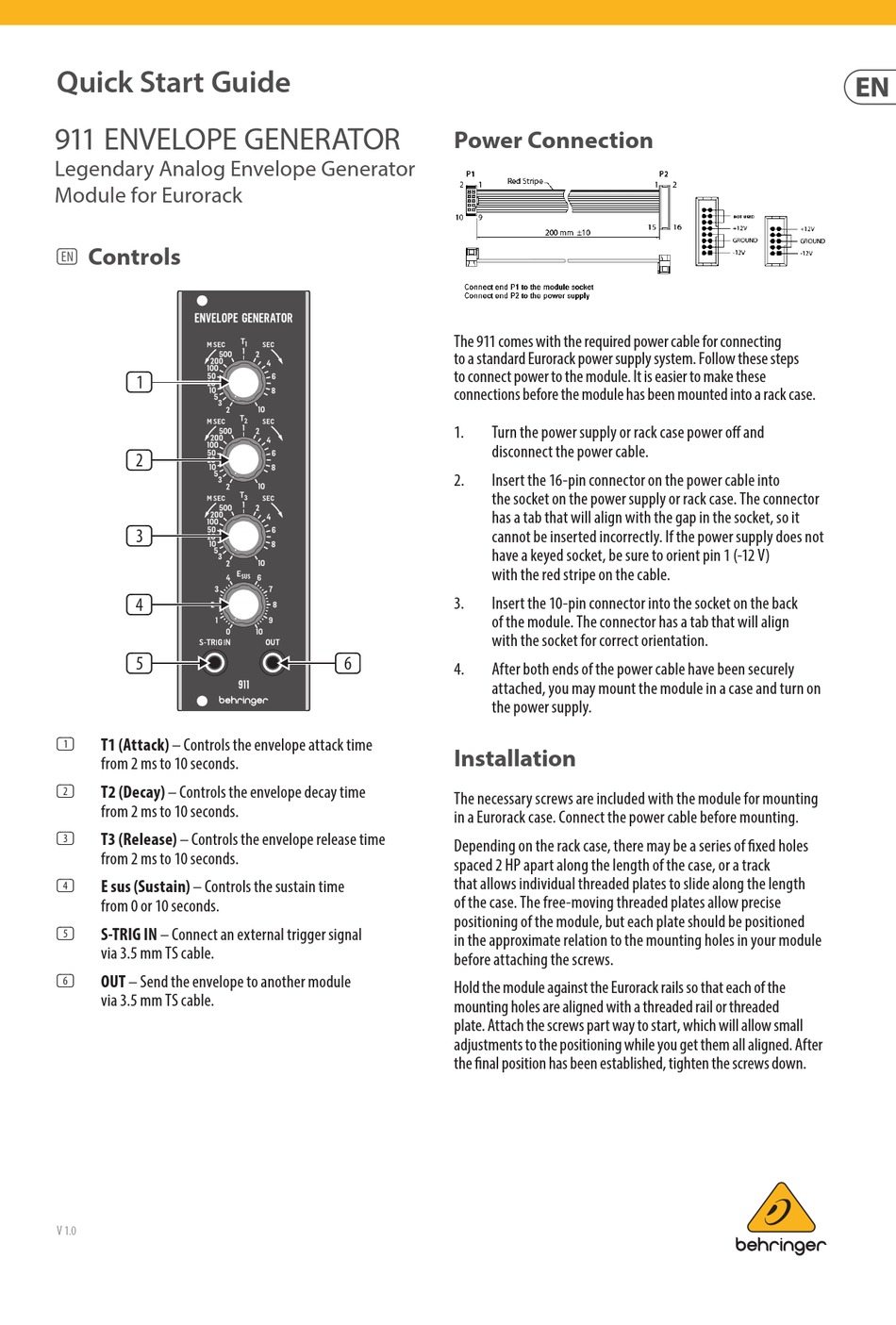

Quick Start Guide
911 ENVELOPE GENERATOR
Legendary Analog Envelope Generator
Module for Eurorack
Controls
(EN)
(1)
(2)
(3)
(4)
(5)
T1 (Attack) – Controls the envelope attack time
(1)
from 2 ms to 10 seconds.
T2 (Decay) – Controls the envelope decay time
(2)
from 2 ms to 10 seconds.
T3 (Release) – Controls the envelope release time
(3)
from 2 ms to 10 seconds.
E sus (Sustain) – Controls the sustain time
(4)
from 0 or 10 seconds.
S-TRIG IN – Connect an external trigger signal
(5)
via 3.5 mm TS cable.
OUT – Send the envelope to another module
(6)
via 3.5 mm TS cable.
V 1.0
Power Connection
The 911 comes with the required power cable for connecting
to a standard Eurorack power supply system. Follow these steps
to connect power to the module. It is easier to make these
connections before the module has been mounted into a rack case.
1. Turn the power supply or rack case power off and
disconnect the power cable.
2. Insert the 16-pin connector on the power cable into
the socket on the power supply or rack case. The connector
has a tab that will align with the gap in the socket, so it
cannot be inserted incorrectly. If the power supply does not
have a keyed socket, be sure to orient pin 1 (-12 V)
with the red stripe on the cable.
3. Insert the 10-pin connector into the socket on the back
of the module. The connector has a tab that will align
with the socket for correct orientation.
(6)
4. After both ends of the power cable have been securely
attached, you may mount the module in a case and turn on
the power supply.
Installation
The necessary screws are included with the module for mounting
in a Eurorack case. Connect the power cable before mounting.
Depending on the rack case, there may be a series of fixed holes
spaced 2 HP apart along the length of the case, or a track
that allows individual threaded plates to slide along the length
of the case. The free-moving threaded plates allow precise
positioning of the module, but each plate should be positioned
in the approximate relation to the mounting holes in your module
before attaching the screws.
Hold the module against the Eurorack rails so that each of the
mounting holes are aligned with a threaded rail or threaded
plate. Attach the screws part way to start, which will allow small
adjustments to the positioning while you get them all aligned. After
the final position has been established, tighten the screws down.
