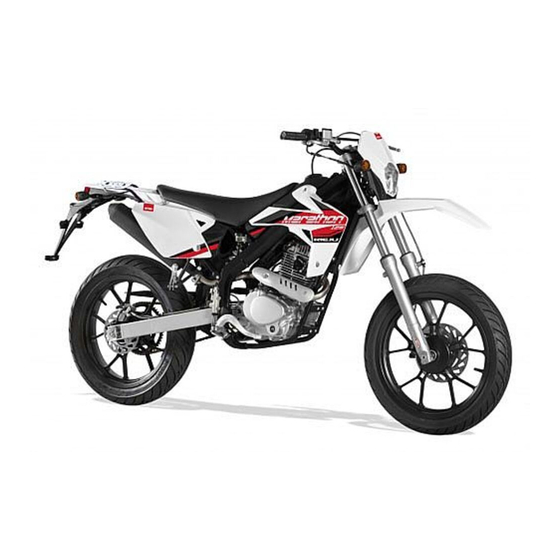

- Page 1 MRT 125 AC EURO 4 MANUEL DE PROPRIEÉTAIRE OWNER’S MANUAL MANUAL DEL PROPIETARIO...
- Page 3 This manual has to be considered as an integrate component of the mortorbike and must remain part of the basic equipment, and handed over in the event of a change of vehicle ownership. In the event of any problems, please consult the RIEJU dealer who will assist you or check our web www.riejumoto.com.
-
Page 4: Table Of Contents
…for everyday adventure CONTENTS MOTORBIKE DESCRIPTION ROUTINE TESTING DELIVERY OF THE MOTORCYCLE Front brake IDENTIFICATION OF THE MOTORBIKE Rear brake ENGINE IDENTIFICATION NUMBER Brake fluid level and brake pad wear MAIN ELEMENTS OF THE MOTORBIKE Throttle twist grip KEYS Lights, indicators and warning lamps HANDLE BAR SWITCHES Start switch Indicator Switch... - Page 5 …for everyday adventure SELECTION MILES GEAR BOX PEDAL USE OF TRIP CARBURETTOR TOTAL HOUR BATTERY (CHECKING THE BATTERY) HOUR METER FRONT SUSPENSION SELECT BUTTON FUNCTION INSTRUCTION REAR SUSPENSION 12 / 24 HOURS MODE COOLING SYSTEM STOPWATCH SPARK PLUG CHECK SPEED RECORD CHECKING &...
-
Page 6: Motorbike Description
…for everyday adventure MOTORBIKE DESCRIPTION This motorbike has a 125c.c. single cylinder; liquid cooled four stroke motor. With a piston diameter of 52,4 mm and it has a 57,8 mm bore. The motor has an electronic Ignition system, CDI and a high-tension coil. The Generator provides 140 Watts and 12 volts via a regulator to supply power for the bike electrics. -
Page 7: Delivery Of The Motorcycle
WARRANTY REGISTRATION – complete the necessary information, pass a copy to the owner, and return a copy immediately to your RIEJU distributor. OPERATION - Explain the functions & correct handling of the motorcycle. WARNINGS - Explain the importance of warning labels to ensure a long life of the motorcycle. - Page 8 GEAR LEVER ADJUSTMENT- Adjust to the correct height for the user. WARNING: Changes on the bike don’t authorized by RIEJU, or use of parts that don’t are ORIGINAL SPARE PARTS from RIEJU on the warranty period. Release RIEJU from any responsibility on the damages produce on the bike and cancel the warranty.
-
Page 9: Identification Of The Motorbike
VIN number should be quoted when requesting warranty assistance genuine Rieju spare parts. ENGINE IDENTIFICATION NUMBER The engine serial number is located on the top, left side bottom of the left crankcase. - Page 10 Periodically check the level of the brake fluid in the reservoir located on the top of the master cylinder of the rear brake and under the rear right panel, to recharge. ATTENTION: If the tank is empty, contact your official RIEJU dealer Brake fluid level and wear of brake pads Check that the brake fluid level is correct, otherwise check the brake pads for wear.
-
Page 11: Main Elements Of The Motorbike
…for everyday adventure MAIN ELEMENTS OF THE MOTORBIKE KEYS With this model, you will be given a set of keys, which are used for the Ignition switch/Steering lock. HANDLE BAR SWITCHES 1.-INDICATOR SWITCH This has 3 positions: in the centre position it is deactivated, to indicate right it must be moved to the right and to indicate left it must be moved to the left. -
Page 12: Main And Dip Beam Light Switch
…for everyday adventure 3.- Main and dip beam light switch This switch has two positions: when it’s down the dip beam is on and in the upper position the main beam is illuminated. This model incorporates a bulb of 12V 35/35W H4 for light of main and dip beam and of 12V 5W for position light. -
Page 13: Clutch Lever
…for everyday adventure CLUTCH LEVER The clutch lever is situated on the left-hand side of the handlebar. To activate it, pull the lever towards the grip or handlebar. FRONT BRAKE LEVER The front brake lever is situated on the right-hand side of the handlebar. -
Page 14: Gear Box Pedal
…for everyday adventure GEAR BOX PEDAL This is situated underneath the left part of the motor, it is activated with the foot taking it all the way and then letting it go back to its’ original position before changing gear again. To put the motorbike into first gear, the pedal has to be pressed downwards. -
Page 15: Petrol Tap
…for everyday adventure PETROL TAP The petrol tap is situated on the left-hand side of the vehicle, under the fuel tank. It has three positions : OFF: With the lever in this position, the fuel will not go through. Put the lever in this position when the motor is not running when parked and garaged. -
Page 16: Routine Testing
…for everyday adventure Throttle twist grip (1) Ensure it works correctly, by turning the grip and verifying if the free play is correct. The grip should return to closed position when released. Lights, indicators and warning lamps Check operation of all lights, and direction indicators plus the oil warning lamp and petrol reserve panel lights. -
Page 17: Tyres
…for everyday adventure Tyres The tyre pressure directly effect the road holding ride comfort PRESSURES and braking distance, the, therefore check the tyre pressures TYRE FRONT REAR regularly for your own safety. Off-road 1,7 Kg/Cm 1,8 Kg/Cm Super 2,2 Kg/Cm 2,4 Kg/Cm Motard ADVICE: Make sure that the rim is central and not... -
Page 18: Instrument And Indicators
ATTENTION: Do not use the bike with this warning light on, as this may cause serious damage to the engine, consult your RIEJU dealer as soon as possible. Marathon 125 AC... -
Page 19: Headlight Main Beam Warning Light
This indicator comes on when on fail is detected on the engine. ATTENTION: Do not use the bike with this warning light on, as this may cause serious damage to the engine, consult your RIEJU dealer as soon as possible. Marathon 125 AC... -
Page 20: Instrument Description
…for everyday adventure o Clock: 12/24 MODE INSTRUMENT DESCRIPTION o Stopwatch: According to setup Speedometer distance to record the testing time. ■ Display unit: Km/h or MPH. o Speed Log: Average speed and Indicator lights max speed record oHigh beam light ( oDirection light ( o Engine alarm ( oNeutral light (... -
Page 21: Selection Miles
…for everyday adventure ADJUST BUTTON FUNCTION INSTRUCTION SELECTION MILES: In main screen (function “ODO” selected), you could hold pressing the Adjust button for 3 seconds to change the speed unit Km to miles. USE OF TRIP: In main screen, press the Adjust button once to switch the function from odometer to trip. -
Page 22: Total Hour
…for everyday adventure TOTAL HOUR: Press the Adjust button to switch from trip B to total hour meter. HOUR METER: Press the Adjust button to switch from total hour meter to hour meter A. Press and hold the Adjust button for 3 seconds to reset the hour meter A. -
Page 23: Select Button Function Instruction
…for everyday adventure SELECT BUTTON FUNCTION INSTRUCTION 12 / 24 HOURS MODE: : In main screen (function “ODO” selected), press and hold the Select button for 3 seconds to change between 12/24 hour mode. If 24 hour mode is chosen then the AM/PM symbol will not be displayed STOPWATCH: Press the Select button during main screen to switch from Clock to Stopwatch. -
Page 24: Speed Record
…for everyday adventure SPEED RECORD: Press the Select button to switch from Stopwatch to Speed Record. Press and hold the Select button for 3 seconds to reset the Speed Record. Average speed and the Max speed display in the 3 seconds rotation. -
Page 25: To Enter The Setting Mode
…for everyday adventure TO ENTER THE SETTING MODE In main screen, press down the Adjust and Select button for 3 seconds ton enter the tire circumference and sensing point setting (for changing diferent size tire.) CIRCUMFERENCE AND SENSOR POINT SETTING : Press the Adjust Button to enter the circumference setting. -
Page 26: Wheel Diameter And Pulses
The wheel diameter and the number of pulses will the following: TYRE DIAMETER PULSES Off-road 2100 Super 2030 Motard ATTENTION: Putdifferent values as indicates will produce that the speed show by the dashboard it will incorrect, any consequence produce by this issue iwill not a RIEJU responsability. Marathon 125 AC... -
Page 27: Clock Settings
…for everyday adventure CLOCK SETTINGS: To enter the clock (Hour) Setting press the Adjust button on the circumferences value & sensing point setting screen. Press the Select button to enter the clock (Hour) setting. Press the Select button to choose the hour/minute you want to set. -
Page 28: Motorbike Operation
…for everyday adventure MOTORBIKE OPERATION It is very important to know how to operate your vehicle correctly. ATTENTION: Remember that you must not leave the motor running in an enclosed area, as the toxic gas from the exhaust could cause serious health problems. STARTING AND RIDING Open the petrol tap. -
Page 29: Running In
ATTENTION: As indicate on the Service Manual you must done the firts Service at 500 Km in your Official rieju Workshop. Is essential done the services indicates on the Service Manual and equire the signature and stamp of the Workshop at time to pick up the bike. Don’t make the service as the Km indicates is reason for loss the vehicle warranty. -
Page 30: To Brake (Slowing Down)
…for everyday adventure TO BRAKE (SLOWING DOWN) C lose the throttle; activate the front and rear brakes simultaneously, increasing the pressure progressively. WARNING: Sudden braking can cause skidding. STOPPING Close the throttle and activate both brakes simultaneously and when the vehicle has reduced speed, Pull in the clutch lever all the way. -
Page 31: Carburettor
CARBURETTOR The carburettor provides the correct petrol air mixture to the engine. It the settings are tampered with poor performance and/or overheating may occur. If you have any problems please refer to your RIEJU dealer. BATTERY (CHECKING THE BATTERY) If you see rust on the terminals and the ends of the terminals, they should be cleaned with a wire brush. -
Page 32: Front Suspension
…for everyday adventure FRONT SUSPENSION The front suspension consists of a hydraulic fork which has been crafted to the highest standards of technology and design. Upside down fork of Ø37 mm. Oil capacity : 310 c.c. per leg. Type oil recommended : LIQUI MOLY OIL FORK SAE 15W. REAR SUSPENSION The rear suspension consists of a gas-assisted hydraulic monoshock absorber with separate gas reservoir and spring... -
Page 33: Spark Plug Check
…for everyday adventure SPARK PLUG CHECK The spark plug is an important part of the motor and it is easy to check. Take the spark plug out and check it periodically, the high combustion temperatures and carbon deposits may effect the efficiency of the engine. -
Page 34: Cooling System
(a). Oil below advised level, fill to the correct level. ADVICE: See technical specifications to check the recommend by RIEJU. WARNING: Drive with the bike at minimum level (a) can damage the engine. The damages produce by this cause it will not admit as warranty. -
Page 35: Chain Adjustment And Tension
…for everyday adventure CHAIN ADJUSTMENT AND TENSION The motorcycle must be positioned vertically with its wheels on the firmly on the ground. The chain must be adjusted to have a tolerance of 30 to 40 mm. At the midpoint between the output gear and the rear sprocket (see picture). -
Page 36: Air Filter
…for everyday adventure AIR FILTER To ensure that the engine runs correctly, the air filter must be kept clean and oiled. In order to access the air filter, disassemble the mortorbike seat, allowing free access to the filter box. Remove the cover, which is attached to the box by a screw (A), and remove the filter housing. - Page 37 After removal, check to see if the foam filter is blocked, in which case wash with specific product to clean foam filter, apply some air filter foam oil, Rieju suggest use LIQUI MOLY FOAM FILTER OIL, then squeeze the filter material between your hands to remove surplus oil.
-
Page 38: Cleaning And Storage
4- Remove the degreasing agent along with the dirt using a low pressure water source such as a hosepipe. ATTENTION: Rieju accepts no responsibility for the use of degreasing agents which stain and/or cause deterioration to the motorbikes components. Rieju accepts no responsibility for any possible damage resulting from the use of pressurized water to clean the motorbike. -
Page 39: Long-Time Storage
…for everyday adventure 5- After all dirt has been washed off; the surfaces should be washed with warm water and mild detergent soap. 6-Remove any soap and with cold water and dry all surfaces. Clean the seat with vinyl upholstery cleaner. -
Page 40: Checks Before Using Motorcycle
…for everyday adventure CHECKS BEFORE USING MOTORCYCLE Check the following points before using your motorcycle ITEMS TO BE CHECKED CHECK-UP IF NECESSARY… Accelerator grip Movement Adjustment Tyres Pressure and wear Pump up or replace Battery Charge level Charge Steering The softness of the steering, the flexibility of the movement, that does not present slacks Lights and indicators Work correctly... -
Page 41: Technical Specifications & Characteristics
…for everyday adventure TECHNICAL SPECIFICATIONS AND CHARACTERISTICS COMPONENT SPECIFICATIONS ENGINE Type 4 stroke water cooled Engine capacity 125 cm Model cylinders 1 inclined forwards Piston size 52,4 x 57,8 mm Compression ratio 9,0:1 Starting system Electrical PETROL Type Unleaded petrol E5 OIL FILTER Type Floam... - Page 42 …for everyday adventure COMPONENT SPECIFICATIONS ENGINE OIL Lubrication system Autolube Oil type LIQUI MOLY MOTORCYCLE 4T SAE 10W30 / 20W50 Cantidad Aceite de Motor 1,20 I (1,27 US qt) (1,06 Imp. qt) Sin sustitución del conjunto filtro aceite 1,00 I (1,06 US qt) (0,88 Imp. qt) Con sustitución del filtro de aceite 1,20 I(1,27 US qt) (1,06 Imp.
-
Page 43: Maintenance
…for everyday adventure MAINTENANCE MAINTENANCE OPERATIONS 500 Km 3500 km 6500 Km 9500 Km 12500 Km Brake system checks Transmission oil level checks Oil filter it will changed too Chain tension and wear checks C & L C & L C &... - Page 44 …for everyday adventure MAINTENANCE OPERATIONS 500 Km 3500 km 6500 Km 9500 Km 12500 Km Check the electrical System Valves adjustment Inspect radiator liquid levels Inspect exhaust system Check terminals and battery condition Check oil pump operation Tyre C:CONTROL; R: REPLACEMENT; L:LUBRICATION; L=CLEANING CAUTION: Maintenance schedule can change on function of the bike use, conduction, environmental conditions, etc…...
