Canon ZDJ-S01 Operation Manual

Lens Accessory
Zoom Demand
ZDJ-S01
OPERATION MANUAL
Before using the product, make sure to read the "GENERAL SAFETY INFORMATION"
and be sure to use the product correctly.

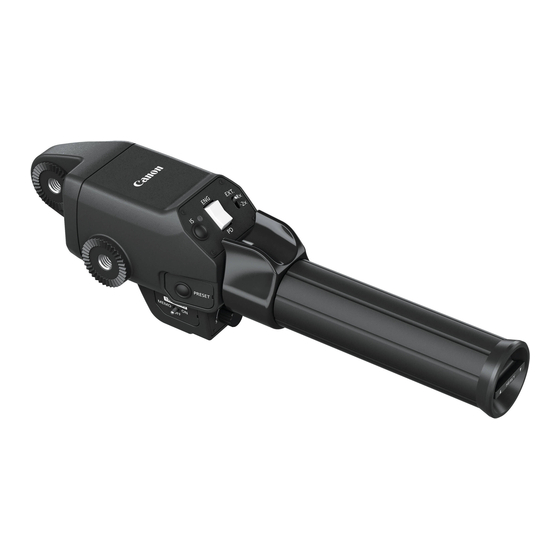

Thank you for purchasing a zoom demand ZDJ-S01. This zoom demand ZDJ-S01 is an
accessory used to perform zoom servo operations of a box type lens. The zoom can be
operated remotely by using this demand.
This product comes with the following documents:
• Operation Manual "Before Using The Product" （Included with the product）
• Operation Manual "Regulations" （Included with the product）
• Operation Manual （Web）
1 PRODUCT LIST
Make sure all of the following items are included in the packing box. If you find any item
missing, please contact your dealer.
・Zoom Demand
・Clamper（cylinder type）
・Demand Cable
・Operation Manual "Before Using The Product"
・Operation Manual "Regulations"
2 MOUNTING AND CONNECTING
2-1. Mounting the Zoom Demand
Mount the zoom demand onto the pan handle of the tripod by one of the two procedures below.
A. For a demand that is put onto the pan handle
Put the sleeve onto the pan handle of the
tripod until it stops, then turn the lock lever to
secure the sleeve.
The applicable pan handle is φ 28.25-28.45
mm in diameter.
B. For a clamper(CR-30)-mounted demand
1. Loosen the large and small fastening
knobs of the clamper, then mount the clamper to the pan
handle of the tripod.
2. After mounting the clamper to the pan handle of the
tripod, tighten the large and small fastening knobs of the
clamper to secure the clamper.
3. Mate the rose joint of the zoom demand with the rose
joint of the clamper.
4. Tighten the mounting knob of the clamper firmly to fix the
clamper to the zoom demand.
NOTE
1. The mounting angle of the zoom demand can be
adjusted according to how the rose joints are mated.
2. This zoom demand has three rose joints. Mount the
zoom demand using the rose joint at the desirable
position for easy operation.
2-2. Connecting the Demand Cable
Follow the procedures below to connect the demand cable to the lens.
1. Plug the male connector of the demand cable into the receptacle labeled "TO SERVO
CONTROL" at the rear bottom of the lens, then turn the fixing ring of the connector
clockwise to tighten the demand cable securely.
2. Plug the other end of the cable into the connector on the zoom demand.
Lens
BT1-D018-A-ENG
φ28.25-28.45
Lock Lever
Pan Handle
Sleeve
Clamper(CR-30)
Pan Handle
Fastening Knob
Rose Joint
Mounting
Knob
Clamper(CR-30)
Zoom Demand
Fixing Ring
Demand Cable
[External view]
3 OPERATION AND FUNCTION
3-1. Zoom Operation
The lens is zoomed toward the telephoto end by turning the thumb
ring of the zoom demand clockwise, as viewed from the grip of the
demand.
The lens is zoomed toward the wide-angle end by turning the
thumb ring counterclockwise.
The zoom speed varies according to the rotation angle of the
Clamper(cylinder type)
thumb ring.
During zooming, the approximate focal length can be checked
with the indicator on the left side of the lens, as viewed from the
camera.
3-2. Maximum Zoom Speed Adjustment
The maximum zoom speed obtained by completely turning the thumb ring of the zoom demand can
be changed with the maximum zoom speed adjusting knob.
Turn it clockwise to increase the zoom speed. And, turn it counterclockwise to decrease the speed.
3-3. Torque Adjustment
Turning the torque adjusting knob on the zoom demand clockwise to increase the torque for the
thumb ring rotation.
Lock
To decrease the torque, turn the knob counterclockwise.
3-4. Selecting the Zoom Output Curve
Lock
Zoom speed characteristic curve (zoom output curve) with respect
to the rotation angle of thumb ring is selectable among three kinds.
Use the zoom output curve selector switch "Curve" for selecting a
Zoom Demand
zoom output curve.
3-5. Talk Back (Microphone) Operation
When the camera has a talk back function, the talk back switch on
the top of the zoom demand can be used.
When it is pushed to "ENG" side, it is locked and a cameraman
can talk with an engineering staff. So long as it is pushed to "PD"
side, a cameraman can talk with a producer.
3-6. Return Operation
There are two RET switches (RET1, RET2) on the grip of the zoom demand.
While the RET switch is held down, on air picture/being recorded picture can be seen in the
viewfinder through camera control system when multi cameras are connected to its system.
3-7. Extender Selector Switch
Operate the extender by switching the extender selector switch on the zoom demand.
"ON" side : Extender function is enabled
"OFF" side : Extender function is cancelled(1x)
TO SERVO CONTROL .
Lock
© 2022.10 CANON INC.
Thumb Ring
Output Curve
A
S
B
0
← Rotation angle of thumb ring →
1/2
