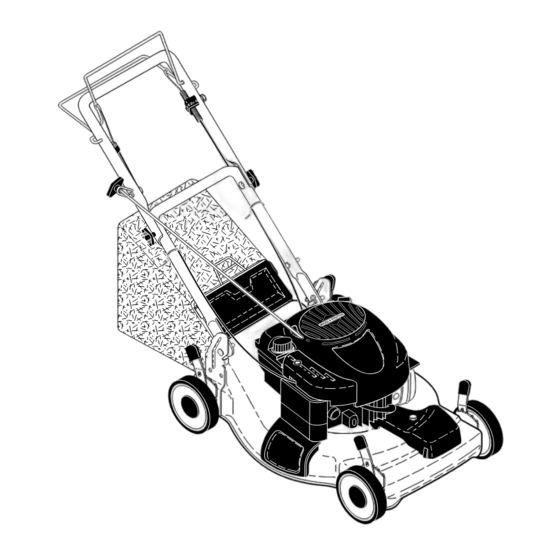

6.75 Horsepower Power-Propelled 22" Multi-Cut Model No. 917.376152 • Español, p. 19 CAUTION: Read and follow all Safety Rules and In struc tions before operating this equipment Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. Visit our Craftsman website: www.sears.com/craftsman...
If this Craftsman Lawn Mower fails due to manufacturer defects in material or workmanship within two years from the date of purchase, return it to any Sears store, Parts & Repair Center or other Craftsman outlet for free repair (or replacement if repair proves impossible).
Page 3
I. GENERAL OPERATION • Always wear safety goggles or safe ty glasses with side shields when op er at ing • Read, understand, and follow all mower. in struc tions on the machine and in the manual(s) before starting. Be thor ough ly II.
In the state of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest Sears Parts & Repair Center (See the REPAIR PARTS section of this manual).
Page 5
These accessories were available when this lawn mower was produced. They are not shipped with your mower. They are also available at most Sears retail outlets and service centers. Some of these accessories may not apply to your lawn mower.
ASSEMBLY / PRE-OPERATION Read these instructions and this manual in its entirety before you attempt to assemble or operate your new lawn mower. IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine. Your new lawn mower has been as sem bled at the factory with the exception of those parts left unassembled for shipping pur pos es.
IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine. MEETS CPSC SAFETY REQUIREMENTS Sears rotary walk-behind power lawn mowers conform to the safety standards of the American National Standards Institute and the U.S. Consumer Product Safety Com- mis sion.
Page 8
Operator presence control bar The operation of any lawn mower can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always DRIVE Drive CONTROL wear safety glasses or eye shields while control bar ENGAGED operating your lawn mower or performing any ad just ments or repairs.
Page 9
TO CONVERT MOWER Discharge deflector Your lawn mower was shipped ready to be used as a mulcher. To convert to bagging or discharging: REAR BAGGING • Open rear door and remove mulcher plug. Store mulcher plug in a safe place. •...
Page 10
TO EMPTY GRASS CATCHER Engine 1. Lift up on grass catcher using the oil cap frame han dle. 2. Remove grass catcher with clippings from under lawn mower han dle. 3. Empty clippings from bag. NOTE: Do not drag the bag when empty- ing;...
Page 11
TO STOP ENGINE MULCHING MOWING TIPS • To stop engine, release operator pres- IMPORTANT: For best performance, ence con trol bar. keep mower housing free of built-up grass and trash. See “CLEANING” in the TO START ENGINE Maintenance section of this manual. NOTE: Due to protective coatings on the •...
MAINTENANCE BEFORE AFTER EVERY EVERY EVERY BEFORE EACH EACH 25 HOURS STORAGE HOURS OR SEASON HOURS Check for Loose Fasteners Clean / Inspect Grass Catcher * Check Tires Check Drive Wheels *** Clean Lawn Mower **** Clean under Drive Cover *** Check Drive Belt / Pulleys *** Check / Sharpen / Replace Blade Lubrication...
Page 13
- but if you do, be sure the blade NOTE: If after cleaning, the drive wheels is balanced. Care should be taken to keep do not turn freely, contact a Sears or other the blade balanced. An un bal anced blade will qualified service center.
Page 14
ENGINE engine will smoke heavily from the muffler on startup. LUBRICATION 8. Always be sure to retighten oil dipstick Use only high quality detergent oil rated with before starting engine. API service classification SG–SL. Select the 9. Re con nect spark plug wire to spark plug. oil's SAE viscosity grade according to your AIR FILTER expected operating temperature.
• We do not recommend using a garden CAUTION: Disconnect spark plug wire hose to clean lawn mower unless the from spark plug and place wire where it elec tri cal system, muffler, air filter and cannot come in contact with plug. carburetor are covered to keep water •...
If you believe that engine is running too fast or too slow, take your mower to a Sears or other qualified service cen ter for repair and ad just ment. CARBURETOR Your carburetor is not adjustable. If your...
Allow the engine to cool before storing in any enclosure. TROUBLESHOOTING - See appropriate section in manual unless directed to a Sears Parts & Repair Center. PROBLEM CAUSE CORRECTION Does not start 1.
Page 18
TROUBLESHOOTING - See appropriate section in manual unless directed to a Sears Parts & Repair Center. PROBLEM CAUSE CORRECTION Loss of power 1. Rear of mower housing or 1. Raise cutting height. blade dragging in grass. 2. Cutting too much grass.
Sears, al Centro de Repuestos y Reparación, o a otro comercio donde se vendan los equipos Craftsman, a efectos de que se la reparen sin costo (o bien se la reemplacen, en caso que no sea posible repararla).
Page 20
I. OPERACION • Siempre use gafas de seguridad o anteojos con protección lateral cuando opere la sega- • Antes de empezar, debe familiarizarse dora. completamente con los controles y el uso correcto de la maquina. Para esto, debe leer y comprender todas las instrucciones que II.
• Nunca repostar la máquina al interior de un • Mantenga las tuercas y los pernos, espe- local. cialmente los pernos del accesorio de la • Nunca guardar la máquina o el contenedor cuchilla, apretados y mantenga el equipo en de gasolina donde hay una llama abierta, buenas condiciones.
Page 22
Estos accesorios estaban disponibles cuando se produjo la segadora. No son facilitados junto al cortacesped. También están disponibles en la mayoría de las tiendas de Sears y en los centros de servicio. Algunos de estos accesorios tal vez no se apliquen a su segadora.
MONTAJE / PRE-OPERACIÓN Lea estas instrucciones y este manual completamente antes de tratar de montar u operar su sega- dora nueva. IMPORTANTE: Este cortacésped viene SIN ACEITE O GASOLINA en el motor. Su segadora nueva ha sido montada en la fábrica con la excepción de aquellas partes que se deja- ron sin montar por razones de envío.
CUMPLE CON LOS REQUISITOS DE SEGURIDAD DE LA CPSC Las segadoras a motor, que se conducen desde la parte de atrás, rotatorias, Sears, cumplen con los estándares de seguridad del American National Standards Institute y de la U.S. Con sum er Product Safety Commission.
Page 25
Barra de control que exige la presencia del operador La operación de cualquier segadora puede hacer que salten objetos extraños dentro de sus ojos, lo que puede producir daños graves en éstos. Siempre Barra de use anteojos de seguridad o protección para PARA accionamiento los ojos mientras opere su segadora o cuando...
Page 26
PARA CONVERTIR LA SEGADORA Desviador de la descarga Su segadora fue enviada lista para usarse como acolchadora de capa vegetal. Para convertirla a una operación de ensacado o de descarga: SEGADORAS CON DESCARGA TRASERA • Abra la puerta trasera y remueva la tapón acolchadora.
Page 27
Mango del Tapa del bastidor del deposito de recogedor aceite de césped Tapa del rellenador gasolina Cebador ANTES DE HACER ARRANCAR EL AGREGUE GASOLINA MOTOR • Llene el estanque de combustible hasta la parte inferior del cuello de relleno del AGREGUE ACEITE estanque de gasolina.
Page 28
PARA PARAR EL MOTOR CONSEJOS PARA SEGAR Y ACOL- • Para parar el motor, suelte la barra de con- CHAR troles que exigen la presencia del operador. IMPORTANTE: Para obtener el mejor PARA HACER ARRANCAR EL MOTOR rendimiento mantenga la caja de la segadora AVISO: Debido a las capas protectoras del mo- sin acumulacion de cesped y basura.
MANTENIMENTO ANTES DESPUES CADA CADA CADA ANTES DEL DE CADA DE CADA 25 HORAS O ALMACE- HORAS TEMPORADA HORAS NAMIENTO Revisar si hay Sujetadores Sueltos Limpiar/Inspeccionar el Recogedor de Césped * Controlar los Neumáticos Controlar las Ruedas Motrices *** Limpiar la Segadora **** Limpiar debajo la Cubierta de la Transmisión *** Revisar las Correas y las Poleas Impulsadas *** Revisar / Afilar / Cambiar la Cuchilla...
Page 30
4. Ponga las ruedas de vuelta en su lugar. AVISO: Si después de limpiar las ruedas de impulsión no giran libremente, póngase en Arandela Perno contacto con su centro de servicio Sears o con endurecida de la un otro centro de servicio cualificado. Borde de salida cuchilla Ciguénal...
Page 31
solamente por uno que sea aprobado por el 6. Parar de añadir aceite cuando se alcanza la fabricante. Dé el número del modelo de la señal de lleno (FULL) en la varilla. Esperar un segadora cuando lo ordene. minuto para dejar que el aceite se arregle. 7.
LIMPIEZA • Mantenga las superficies pulidas y las rue- das sin gasolina, aceite, etc. IMPORTANTE: Para obtener el mejor rendimineto, • No recomendamos el uso de una manguera mantenga la caja de la segadora sin acumulacion de jardín para limpiar la segadora a menos de cesped y basura.
SOLUCIÓN DE PROBLEMAS - Vea la sección apropiada en el manual amenos que esté dirigido a un centro de servico Sears. PROBLEMA CAUSA CORRECCIÓN No arranca 1.
Page 35
SOLUCIÓN DE PROBLEMAS - Vea la sección apropiada en el manual amenos que esté dirigido a un centro de servico Sears. PROBLEMA CAUSA CORRECCIÓN Falta de 1. Cuchilla desgastada, doblada 1. Eleve la altura de corte. fuerza o suelta. 2. Altura de las ruedas dispareja.
Page 44
Sears Parts and Repair Center. 1-800-488-1222 Anytime, day or night (U.S.A. only) www.sears.com To purchase a protection agreement (U.S.A.) or maintenance agreement (Canada) on a product serviced by Sears: 1-800-827-6655 1-800-361-6665 (U.S.A.) (Canada) Para pedir servicio de reparación Au Canada pour service en français:...
