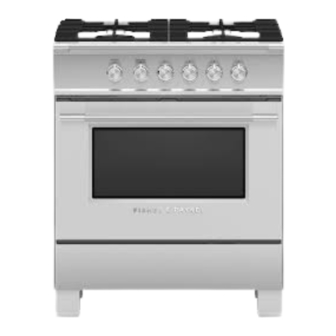

- Page 1 FREESTANDING RANGE OR30S Gas & OR30S Dual Fuel models INSTALLATION GUIDE US CA 591506E 10.23...
-
Page 2: What To Do If You Smell Gas
WARNING! If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. -
Page 3: Safety And Warnings
SAFETY AND WARNINGS The product data plate is attached below the bottom drawer. WARNING! To check the label, it is necessary to remove the drawer (see ‘Setting the pressure regulator’ for instructions on drawer removal). Electrical shock hazard Before carrying out any work on the electrical section of the appliance, it must be disconnected from the mains electricity supply. -
Page 4: Important Safety Instructions
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS! GENERAL INSTALLATION INFORMATION Installation in manufactured (mobile) home Save these instructions for the local inspectors use. ● To avoid hazard, follow these instructions carefully before installing or using this appliance. Installation must conform with the Manufactured Home Construction and Safety ●... -
Page 5: Parts Supplied For Installation
PARTS SUPPLIED FOR INSTALLATION Anti-tip bracket (1) Small screws and Bolt (1) Threaded nuts (2) Wood screws (8) Screws and plastic Pressure regulator (1) 1/2” (12.7mm) NPT Ground lead* Cupped washer* washers (2) sleeve anchors (8) connector and (3 wire permanent (4 wire permanent gasket (1) connection) -
Page 6: Model Identification
MODEL IDENTIFICATION NOTE: Model features may vary 30” GAS GAS MODELS 30” DUAL FUEL MODELS OR30SCG4 OR30SCG6 OR30SDG4 OR30SDG6 PRIOR TO INSTALLATION Unpacking and handling Inspect the range to verify that there is no shipping damage. If any damage is detected, call the shipper and initiate a damage claim. Fisher & Paykel is not responsible for shipping damage. ●... -
Page 7: Product Dimensions
PRODUCT DIMENSIONS NOTE: Model features may vary Optional kickstrip is available (purchased separately) FRONT SIDE OR30S GAS GAS OR30S DUAL FUEL PRODUCT DIMENSIONS inches (mm) inches (mm) Overall height of range min. 35 3/4” (908) min. 35 3/4” (908) max. 37 5/8” (956) max. -
Page 8: Clearance Dimensions
(see diagrams following) copper. Front Note This range may be installed directly ● adjacent to existing 36” (914mm) high OR30S GAS GAS OR30S DUAL FUEL base cabinets. CLEARANCE DIMENSIONS If the range is to be placed adjacent ● inches (mm) - Page 9 place. • The island trim is already fitted to the appliance FITTING THE OPTIONAL BACKGUARD while the backguard can be purchased as a Fig. 1.3a separate kit. Fig. 1.2 • If replacing the island trim with the backguard, assemble it by using the same screws/spacers used for fixing the island trim (figures 1.3a, Island trim and backguard 12 x...
-
Page 10: Ventilation Requirements
VENTILATION REQUIREMENTS A suitable ventilation hood may be installed above the range. Fisher & Paykel has a choice of ventilation hoods designed to match the rest of our kitchen appliance family. See fisherpaykel.com or your local dealer for more details. Hood (inc. -
Page 11: Fitting The Adjustable Feet
FITTING THE ADJUSTABLE FEET Fitting the adjustable feet Fitting the adjustable feet covers (optional) The adjustable feet must be fitted to the base of the range before use. If using the adjustable feet covers fit these while the range is tipped over. Rest the rear of the range on a piece of the polystyrene packaging exposing the base for the fitting of the feet. -
Page 12: Moving The Range
MOVING THE RANGE IMPORTANT! When raising the range to upright position always ensure two ● people carry out this manoeuvre to prevent damage to the adjustable feet. Be careful: do not lift the range by the oven door handle, the ●... -
Page 13: Installing The Anti-Tip Bracket
INSTALLING THE ANTI-TIP BRACKET The anti-tip bracket has two components: the adjustable bracket ● the stability bracket ● IMPORTANT! You must install both parts of the anti-tip bracket and ensure they are properly fitted together to prevent the range from tipping. To fit the anti-tip bracket 1 Thread the bolt through the adjustable bracket and fix in place using the two supplied nuts. - Page 14 INSTALLING THE ANTI-TIP BRACKET 3 Fix the stability bracket in place. It can be fixed as follows: To the floor OR on the rear wall by 4 screws (supplied). ● To the floor AND on the rear wall by 8 screws (supplied). ●...
-
Page 15: Electrical Connection
ELECTRICAL CONNECTION OR30 Dual Fuel models ONLY OR30 Gas Gas models ONLY WARNING! If codes permit and a separate ground wire is used, it is If codes permit and a separate ground wire is used, it is recommended that a qualified electrician installer determine that recommended that a qualified electrician determine that the the ground path and wire gauge are in accordance with local codes. - Page 16 ELECTRICAL CONNECTION 3-Wire Connection (using supplied Ground lead) PERMANENT CONNECTION (HARD WIRING) 4-Wire Connection 1 Loosen the L1 (black), L2 (red) and neutral (white) screws. 1 Loosen the L1 (black), L2 (red) and neutral (white) 2 Mount the conduit fitting to the 1 1/8” (29mm) hole in the screws.
-
Page 17: Gas Connection
GAS CONNECTION Gas requirements Manual shut-off valve All gas connections must be made according to national and local codes. A manual shut-off valve must be installed Shut-off valve ● ‘open’ position The gas supply (service) line must be the same size or greater than the inlet in an accessible location in the gas line line of the appliance. - Page 18 GAS CONNECTION Gas connection specification To range Range manifold 1/2” G cylindrical Male pipe fitting (ISO 228-1) male Gasket 1/2” G cylindrical (ISO 228-1) female To mains connection Connector 1/2” NPT (conical) male 1/2” NPT female Arrow Pressure regulator IMPORTANT! 1/2”...
- Page 19 GAS CONNECTION Pressure regulator installation All heavy duty, commercial type cooking equipment must have a pressure regulator on the incoming service line for safe and efficient operation, since service pressure may fluctuate with local demand. The regulator supplied with this range must be installed before ●...
-
Page 20: Pressure Testing
PRESSURE TESTING Manifold pressure should be checked with a manometer using the following instructions: Remove the injector from the rear left (or rear right) burner and mount the test point TEST POINT ADAPTER ● The Test Point adapter is available adapter (available from the After-Sales service). -
Page 21: Gas Conversion
GAS CONVERSION Conversion to LP/Propane Gas This range can be used with NATURAL or LP/PROPANE gas. It is shipped from the factory ● Pressure regulator adjusted for use with NATURAL gas. Any conversion required must be performed by your dealer, a qualified licensed technician ●... - Page 22 GAS CONVERSION Injectors table LP/PROPANE NATURAL GAS NOMINAL REDUCED 11” (279.4mm) 4” (101.6mm) POWER POWER W.C.P. W.C.P. BURNERS Ø INJECTOR Ø INJECTOR BTU/HR BTU/HR [1/100 MM] [1/100 MM] 7600 1800 – (LP/Propane Gas) Semirapid (SR) 8000 1800 – (Natural Gas) Inner crown 2800 ...
- Page 23 ND SCALE WHEN LINE LENTH IS CORRECT GAS CONVERSION Adjusting the cooktop burner minimums 200mm When switching from one type of gas to another, the minimum flow rate must also be correct: RRECT IN SIZE AND SCALE WHEN LINE LENTH IS CORRECT The flame should not go out even when passing suddenly from maximum to minimum flame.
- Page 24 GAS CONVERSION (GAS GAS MODELS ONLY) Replacing the lower oven burner injector Ignition electrode Anchorage clip Anchorage clip Safety valve probe Lift and remove the lower panel inside the oven. Gently unlock, the safety valve probe (V) and the ignition electrode (E) Injector from the burner.
- Page 25 GAS CONVERSION (GAS GAS MODELS ONLY) Replacing the oven broil burner injector Anchorage clip Safety valve probe Ignition electrode Anchorage clip Injector Gently unlock, the safety valve probe (V) and the ignition electrode (E) from the burner. Take care not to damage the probe and the ignition electrode. Unscrew and remove the burner securing screw (A).
- Page 26 GAS CONVERSION (GAS GAS MODELS ONLY) Adjusting the lower oven burner minimum Turn on the burner by setting the oven dial the highest temperature setting. Remove the dial and unscrew the by-pass screw (A) about three times by passing a small flat screwdriver (Ø1/8”...
-
Page 27: Final Checklist
FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER GENERAL OPERATION Placement of unit. All internal packing materials removed. Check below the cooktop grates and inside the oven. Specified clearance maintained to cabinet surfaces. If used on LP gas, verify that the pressure regulator, cooktop burner injectors and Unit Level –...
