Star Micronics SP500 Install Manual

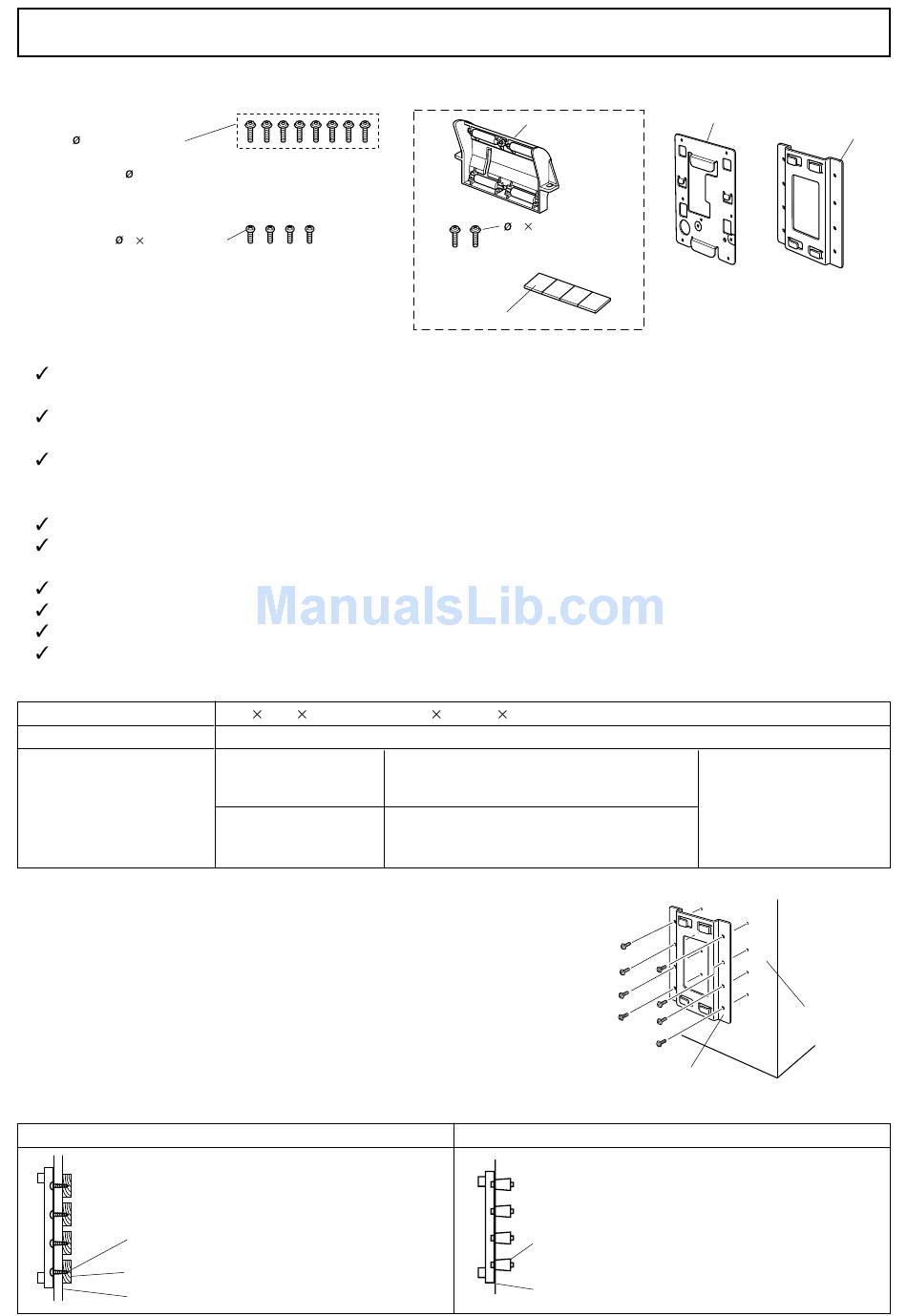

Attaching the Wall Mounting Bracket of SP500
1. Unpacking :
Confirm that all accessories are included.
4mm screws (8)
Not Supplied Users must
prepare 4mm screws for
bracket.
3 6 screws (4)
(for attaching the
holder plate)
2. Attaching procedure :
Precautions when mounting
Ensure that power that is supplied to the printer and that all devices connected to the printer have been switched OFF
and that the power cord has been unplugged before starting the modification.
Select a location where the unit will not be exposed to moisture or physical shocks. Make sure that the wall is wide
enough to mount the brackets.
Carefully select screws for mounting the bracket to the wall. These screws must be strong enough to hold the printer
and must be long enough to completely enter the wall to provide a secure mounting. Remember that Star accepts no
responsibility for damage resulting from the printer falling due to improper mounting.
The weight of the printer, including a roll of paper with the largest diameter, is approximately 2.5 kg.
The screws for mounting the bracket must have both a shear and tensile strength capable of withstanding a load of 12
kgf (118 N) or more. It is recommended that anchor nuts be used.
A screw diameter of 4 mm is recommended.
Always use all eight (8) screw holes in the mounting bracket when securing the mounting bracket to the wall.
Mount the bracket to the wall so that its mounting accuracy is within a range of ±2° to the vertical direction.
The wall used for mounting should be 90°±2° in reference to the horizontal direction.
2-1. Specifications of the wall mounting bracket
Main unit outer dimensions
Main unit weight
Screws for wall mounting
bracket
2-2. Mounting the bracket for the wall mount model
1 Make sure there is enough room for the printer, particularly in the
front of the printer when its cover is opened.
2 As shown in the illustration to the right, place the mounting bracket
against the wall where the printer is to be mounted and mark the
positions of the screw holes.
3 Drill holes at the locations marked.
4 Secure the bracket in place using screws with a diameter of 4 mm.
Note : Screws are not included in the package. Prepare the screws
that can be used on the type of wall for mounting.
Wood structure wall
• Locate the beams in the wall and
• Do not tighten the screws or anchors
Screw
Beam
Wall
121 168 14.5 mm (Width
Approx. 0.27 kg.
Wood structure wall
Concrete wall
mount using them.
to locations with one wall sheet.
Always make sure that the screws
penetrate the beams. (This is so the
weight of the printer can be supported.)
< Vertical stand kit >
Paper holder
3 12 screws (2)
(for attaching the
paper holder)
Rubber foots (not used)
Height Depth)
The eight (8) screws used must have both a
shear and tensile strength capable of withstand-
ing a load of 12 kgf (118 N) or more
The anchor nuts used must have both a shear
and tensile strength capable of withstanding a
load of 12 kgf (118 N) or more
Anchor nuts
Concrete wall
Holder plate
Use commercially avail-
able screws that have suf-
ficient strength to with-
stand the weight of the
main unit.
Bracket
fig.1 Attaching the bracket
Concrete structure wall
• Drive the anchor nuts into the wall and
tighten the screws.
Bracket
Wall material
