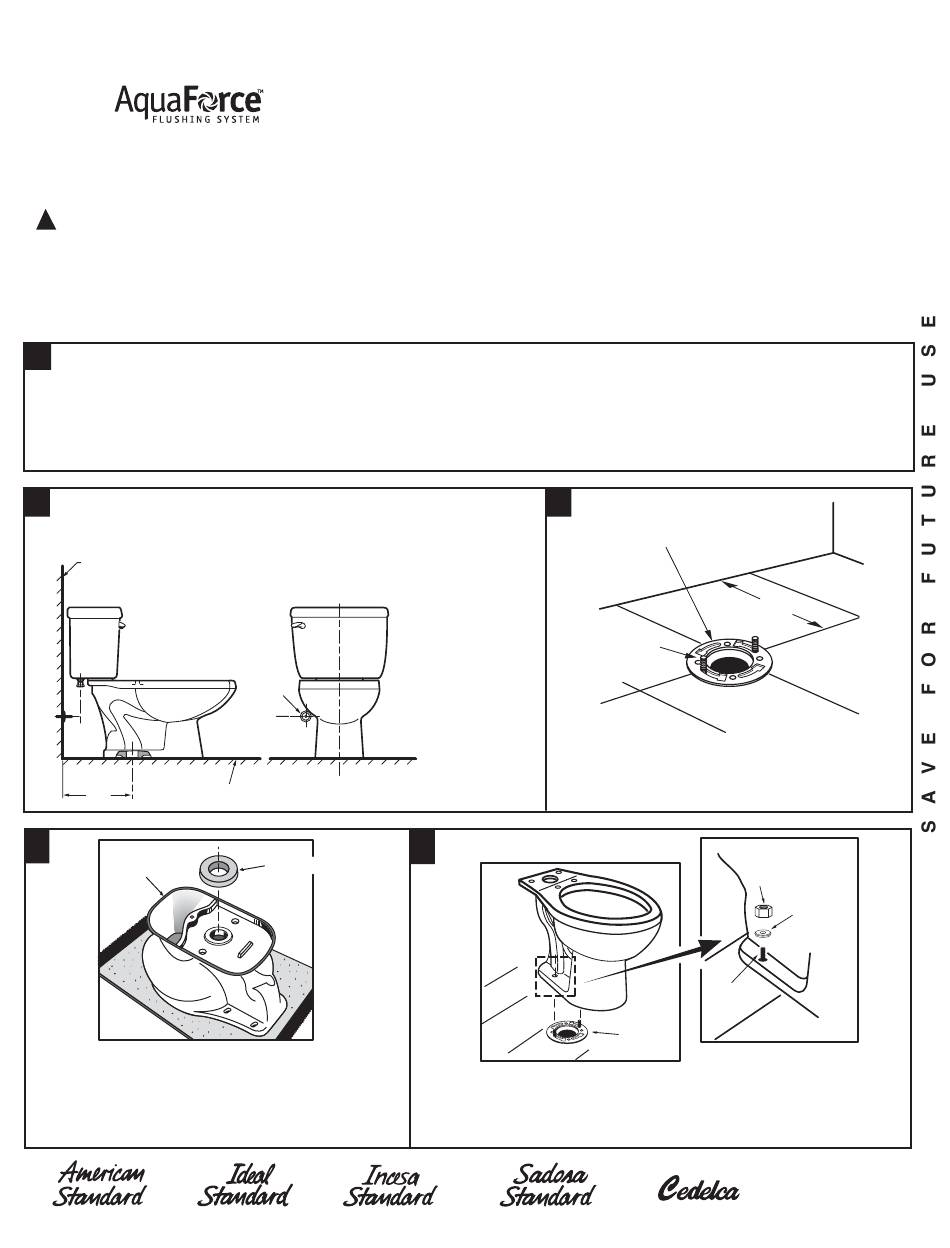

American Standard AquaForce Ravenna 2642 Installation Instructions

INSTALLATION
INSTRUCTIONS
Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product
is installed properly, please read these instructions carefully before you begin. (Certain installations may require
professional help.) Also be sure your installation conforms to local codes.
!
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
NOTE: Pictures may not exactly define contour of china and components.
RECOMMENDED TOOLS AND MATERIALS
Putty Knife Regular Screwdriver
Hacksaw Wax Ring/Gasket
1 REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
2
ROUGHING-IN DIMENSIONS:
NOTE: Distance from wall to closet flange centerline must
be as listed below:
FINISHED WALL
A
4
SEALANT
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent damage), and
install wax ring evenly around waste flange (horn), with
tapered end of ring facing toilet. Apply a thin bead of
sealant around toilet base.
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A m e r i c a n S t a n d a r d I n c .
© A m e r i c a n S t a n d a r d I n c . 2 0 0 5
For These Two-Piece Toilets:
Ravenna 2642/2648/2646
Cadet 2798/2898/2998
Reminiscence 2311/2011
For 4110 Tanks: A = 10" (254mm)
For 4114 Tanks: A = 14" (356mm)
For all other Tanks: A = 12" (305mm)
SUPPLY
AS
REQ'D.
FINISHED
FLOOR
WAX RING
Adjustable Wrench Sealant
Flexible Supply Tube Closet Bolts
3
5
POSITION TOILET ON FLANGE
a. Unplug floor waste opening and install toilet on closet flange so bolts project
through mounting holes.
b. Loosely install retainer washers and nuts. Side of washers marked "THIS
SIDE UP" must face up!
Tape Measure
Carpenters Level
CLOSET FLANGE
CLOSET BOLTS
INSTALL CLOSET BOLTS
Install closet bolts in flange channel, turn 90°, and slide
into place 6" (152 mm) apart and parallel to wall.
CLOSET
BOLT
FLANGE
A
NUT
TAPERED
WASHER
Saniwares
730504 -1 0 0 REV. E
