OPERATION MANUAL

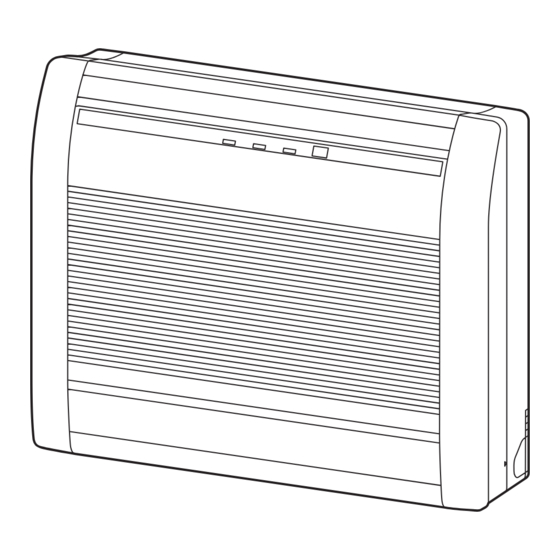

AIR CONDITIONER
Floor type
□ AGTG09KVCA
□ AGTG12KVCA
□ AGTG14KVCA
MODEL:
* Please check the model name.
(Refer to the rating label.)
R32
REFRIGERANT
This Air Conditioner contains and
operates with refrigerant R32.
THIS PRODUCT MUST ONLY BE INSTALLED OR SERVICED
BY QUALIFIED PERSONNEL.
Refer to Commonwealth, State, Territory and local legislation,
regulations, codes, installation & operation manuals, before
the installation, maintenance or service of this product.
PART No. 9378532113
Before using this product, read these instructions
thoroughly. Also, keep this manual for future
reference, together with the installation manuals for
the indoor and outdoor units.
Advertisement
Table of Contents
Related Manuals for Fujitsu AGTG09KVCA
Summary of Contents for Fujitsu AGTG09KVCA
- Page 1 OPERATION MANUAL AIR CONDITIONER Floor type □ AGTG09KVCA □ AGTG12KVCA □ AGTG14KVCA MODEL: * Please check the model name. (Refer to the rating label.) REFRIGERANT Before using this product, read these instructions This Air Conditioner contains and operates with refrigerant R32.
-
Page 2: Table Of Contents
[Original Instructions] Contents CAUTION This symbol shows that the operation manual should 1. SAFETY PRECAUTIONS .......... 1 be read carefully. CAUTION 2. PREPARATION ............2 This symbol shows that a service personnel should 3. NAME OF PARTS ............. 3 be handling this equipment with reference to the 3.1. -
Page 3: Preparation
WARNING CAUTION • Do not turn off the breaker unless the product is under • Do not install the unit in area filled with mineral oil repair, inspection, or cleaning. Otherwise, the sensor such as a factory or area containing a large amount of is unable to detect refrigerant leak. -
Page 4: Name Of Parts
3. NAME OF PARTS WARNING • Keep out of reach of children. Swallowing the batteries can lead to chemical burns, perforation of soft tissue, CAUTION and death. Severe burns can occur within 2 h of ingestion. Seek medical attention immediately. For appropriate signal transmission between the remote controller and the indoor unit, keep the signal receiver away from the following items:... - Page 5 Remote controller display In this section, all the possible indicators are displayed for description. Signal transmitter In actual operation, the display is linked with the button operation, and Aim at the signal receiver of the indoor unit properly. only shows the necessary indicators for each setting. •...
-
Page 6: Battery Loading
3.3. Battery loading 4. BASIC OPERATIONS Battery type: R03/LR03/AAA x 2 „ 3 steps to start operation 1. Press to start or stop the operation. 2. Press to select the operation mode. The operation mode changes as follows. AUTO COOL HEAT 3. -
Page 7: Airflow Direction Setting
• How to set to blow out air from the upper and lower air outlets. 5.2. Airflow direction setting Air Outlet Selection switch For details of the airflow ranges, refer to “Airflow direction Upper airflow Upper and lower airflow range”. „... -
Page 8: Weekly Timer
„ Examples of Weekly timer 6.1. Weekly timer Example 1 „ Setting details 7:00 9:00 11:00 17:00 23:00 1. Select Weekly timer in step 2 of “Timer setting procedure”. Monday Program 1 Program 2 Program 3 Program 4 2. Press to select the program number and the Friday day of the week. -
Page 9: Energy Saving Operation
NOTES: 7. ENERGY SAVING OPERATION • The airflow direction and the fan speed are controlled automatically. • The Powerful operation cannot be performed simultaneously with Economy operation. 7.1. Economy operation • The Powerful operation overrides the following operations. If the following operations are set, they will start after the Powerful It saves more electricity than other operation modes by changing the set operation finishes. -
Page 10: Settings On Installation
The frequency of the cleaning is as shown in the following table. 9. SETTINGS ON INSTALLATION What to do Frequency Cleaning indoor unit body When you notice 9.1. Remote controller custom code setting Cleaning air filter Every 2 weeks Cleaning Ion deodorization filter Every 3 months By setting custom code of indoor unit and remote controller, you can specify the air conditioner which the remote controller controls. - Page 11 4. Reinstall the air filter. 8. Set the new or washed air cleaning filters into the indoor unit. Align the sides of the air filter with the panel, and push in fully, making sure the 2 upper tabs are returned properly to their holes in Catch it on 5 places of picks.
-
Page 12: General Information
11. GENERAL INFORMATION 12. OPTIONAL PARTS „ Heating performance 12.1. Wired remote controller This air conditioner operates on the heat pump principle, absorbing heat from air outdoors and transferring that heat to the indoor unit. As a The optional wired remote controller can be used. result, the operating performance is reduced as outdoor air temperature drops. - Page 13 □ <In the Cooling mode> Are there other heating apparatus or com- The unit operates differently from the remote controller setting. puters operating, or too many people in the room? ⇒ Turn the heating apparatus or computers off, or set the tem- □...
- Page 14 „ Manual Auto operation and Filter indicator - You can operate the air conditioner with on the indoor unit. Status Time to keep pressing Mode or operation In operation More than 3 seconds Stop Stopping 2 seconds or less Filter indicator reset More than 3 seconds and Auto * less than 10 seconds...
