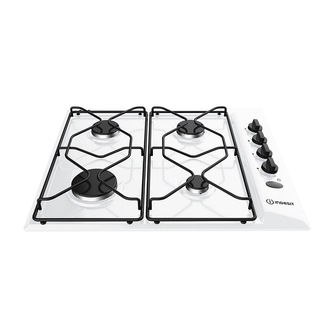

Indesit PAA642IWH Manual

Advertisement

Quick Links

SAFETY INSTRUCTIONS
Download the complete instruction manual http://
docs.indesit.eu or call the phone number shown on
the warranty booklet.
These instructions are valid if the country symbol
appears on the appliance. If the symbol doesn't appear
on the appliance, it is necessary to refer to the technical
instructions which will provide the necessary instructions
concerning modi cation of the appliance to the
conditions of use of the country.
CAUTION: The use of the gas cooking appliance
results in the production of heat, moisture and products
of combustion in the room in which it is installed. Ensure
that the kitchen is well ventilated especially when the
appliance is in use: keep natural ventilation holes open or
install a mechanical ventilation device (mechanical
extractor hood). Prolonged intensive use of the appliance
may call for additional ventilation, such as opening a
window, or more e ective ventilation, for example
increasing the level of mechanical ventilation (if possible).
Failure to follow the information in this manual exactly
may cause a re or explosion, resulting in property
damage or personal injury.
Before using the appliance, read these safety
instructions. Keep them nearby for future reference.
These instructions and the appliance itself provide
important safety warnings, to be observed at all times.
The manufacturer declines any liability for failure to
observe these safety instructions, for inappropriate
use of the appliance or incorrect setting of controls.
WARNING: If the hob surface is cracked, don't use
the appliance – risk of electrical shock.
WARNING: Danger of re: Do not store items on the
cooking surfaces.
CAUTION: The cooking process has to be supervised. A
short cooking process has to be supervised continuously.
WARNING: Unattended cooking on a hob with fat or
oil can be dangerous – risk of re. NEVER try to
extinguish a re with water, but switch o the appliance
and then cover ame e.g. with a lid or a re blanket.
Do not use the hob as a work surface or support.
Keep clothes or other ammable materials away from
the appliance, until all the components have cooled
down completely – risk of re.
Very young children (0-3 years) should be kept away
from the appliance. Young children (3-8 years) should
be kept away from the appliance unless continuously
supervised. Children from 8 years old and above and
persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge can
use this appliance only if they are supervised or have
been given instructions on safe use and understand
the hazards involved. Children must not play with the
appliance. Cleaning and user maintenance must not be
carried out by children without supervision.
IMPORTANT TO BE READ AND OBSERVED
CAUTION: In case of hotplate glass breakage: shut
immediately o all burners and any electrical heating
element and isolate the appliance from the power
supply; do not touch the appliance surface; do not use
the appliance.
The glass lid can break in if it is heated up. Turn o all
the burners and the electric plates before closing the
lid. Do not shout down lid when burner alight.
WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements. Children less than 8 years of
age must be kept away unless continuously supervised.
PERMITTED USE
CAUTION: the appliance is not intended to be
operated by means of an external switching device,
such as a timer, or separate remote controlled system.
This appliance is intended to be used in household
and similar applications such as: sta kitchen areas in
shops, o ces and other working environments; farm
houses; by clients in hotels, motels, bed & breakfast and
other residential environments.
No other use is permitted (e.g. heating rooms).
This appliance is not for professional use. Do not use
the appliance outdoors.
Use pots and pans with bottoms the same width as
that of the burners or slightly larger (see speci c table).
Make sure pots on the grates do not protrude beyond
the edge of the hob.
Improper use of the grids can result in damage to
the hob: do not position the grids upside down or slide
them across the hob.
Do not let the burner ame extend beyond the edge of the pan.
If the hob surface is in glass material, do not use the cast iron griddles, ollar
stones, terracotta pots and pans.
Do not use: heat di users such as metal mesh, or any other types; two burners
simultaneously for one receptacle (e.g. Fish kettle).
Should particular local conditions of the delivered gas make the ignition of
burner di cult, it is advisable to repeat the operation with the knob turned to
small ame setting.
In case of installation of a hood above the cooktop, please refer to the hood
instructions for the correct distance.
The protective rubber feet on the grids represent a choking hazard for young
children. After removing the grids, please ensure that all the feet are correctly
tted.
INSTALLATION
The appliance must be handled and installed by two
or more persons - risk of injury. Use protective gloves to
unpack and install - risk of cuts.
The electrical and gas connections must comply
with local regulation.
Installation, including water supply (if any) and
electrical connections, and repairs must be carried out
by a quali ed technician. Do not repair or replace any
part of the appliance unless speci cally stated in the
user manual. Keep children away from the installation
site. After unpacking the appliance, make sure that it
has not been damaged during transport. In the event
of problems, contact the dealer or your nearest After-
sales Service. Once installed, packaging waste (plastic,
EN

Advertisement

Table of Contents
loading

Summary of Contents for Indesit PAA642IWH

  • Page 1 IMPORTANT TO BE READ AND OBSERVED Download the complete instruction manual http:// CAUTION: In case of hotplate glass breakage: shut docs.indesit.eu or call the phone number shown on immediately o all burners and any electrical heating the warranty booklet. element and isolate the appliance from the power supply;...
  • Page 2 styrofoam parts etc.) must be stored out of reach of WARNING: The con guration conditions for this children - risk of su ocation. The appliance must be appliance are stated on the label (or data plate). disconnected from the power supply before any WARNING: This appliance is not connected to a installation operation - risk of electrical shock.
  • Page 3 ELECTRICAL WARNINGS IMPORTANT: Information about current and voltage consumption is provided on the rating plate. It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards.
  • Page 4 GB IE CATEGORY II2H3+ BURNER AND NOZZLE SPECIFICATIONS Type of gas used Type of burner Injector Rated thermal Rated Reduced heat Gas pressure marking ow rate consumption capacity mbar min. rat. max. Rapid (R) 115 Y 3,00 286 l/h 0,75 NATURAL GAS Semi-rapid (SR) 95 Z...
  • Page 5 INSTALLATION CLASS 3 TECHNICAL INFORMATION FOR THE INSTALLER • Use protective gloves for handling, preparing and installing the product. • This product can be embedded in a worktop 20 ÷ 60 mm thick. • If there is no oven beneath the hob, insert a separator panel that has a surface at least equal to the opening in the work surface. This panel must be positioned at a maximum distance of 150 mm below the upper surface of the work surface but, in no case less than 20 mm from the bottom of the hob.
  • Page 6: Product Description

    PRODUCT DESCRIPTION Symbols 1. Removable panstand grids 2. Semi-rapid burner Shaded circle Tap closed 3. Semi-rapid burner Maximum opening/ Large ame delivery and electric ignition 4. Rapid burner Minimum opening Small ame 5. Auxiliary burner or reduced delivery 6. Semi-rapid burner control knob 7.
  • Page 7: Maintenance And Cleaning

    ADJUSTING MINIMUM GAS SETTING OF TAPS This operation must be performed by a quali ed technician. The adjustment must be performed with the tap in a minimum gas setting position (small ame). The primary air of the burners does not need to be adjusted. To ensure that the minimum setting is correctly adjusted, remove the knob (F) and proceed as follows: •...
  • Page 8: After Sales Service

    To receive assistance, call the number shown on the warranty booklet or • your telephone number. follow the website’s instructions on www.indesit.com. If any repairs are required, please contact an authorized after-sales service When contacting our Client After sales service, always specify: (to guarantee that original spare parts will be used and repairs carried out •...
