Service guide | Disassembling and Assembling, APP 21 - 46 and APP W HC 15 -30
4. Disassembling and
assembling of the
swash plate
10 | 180R9406 | AX274339308034en-000302
WARNING:
Make sure that the surface on the swash
plate does not get any marks.

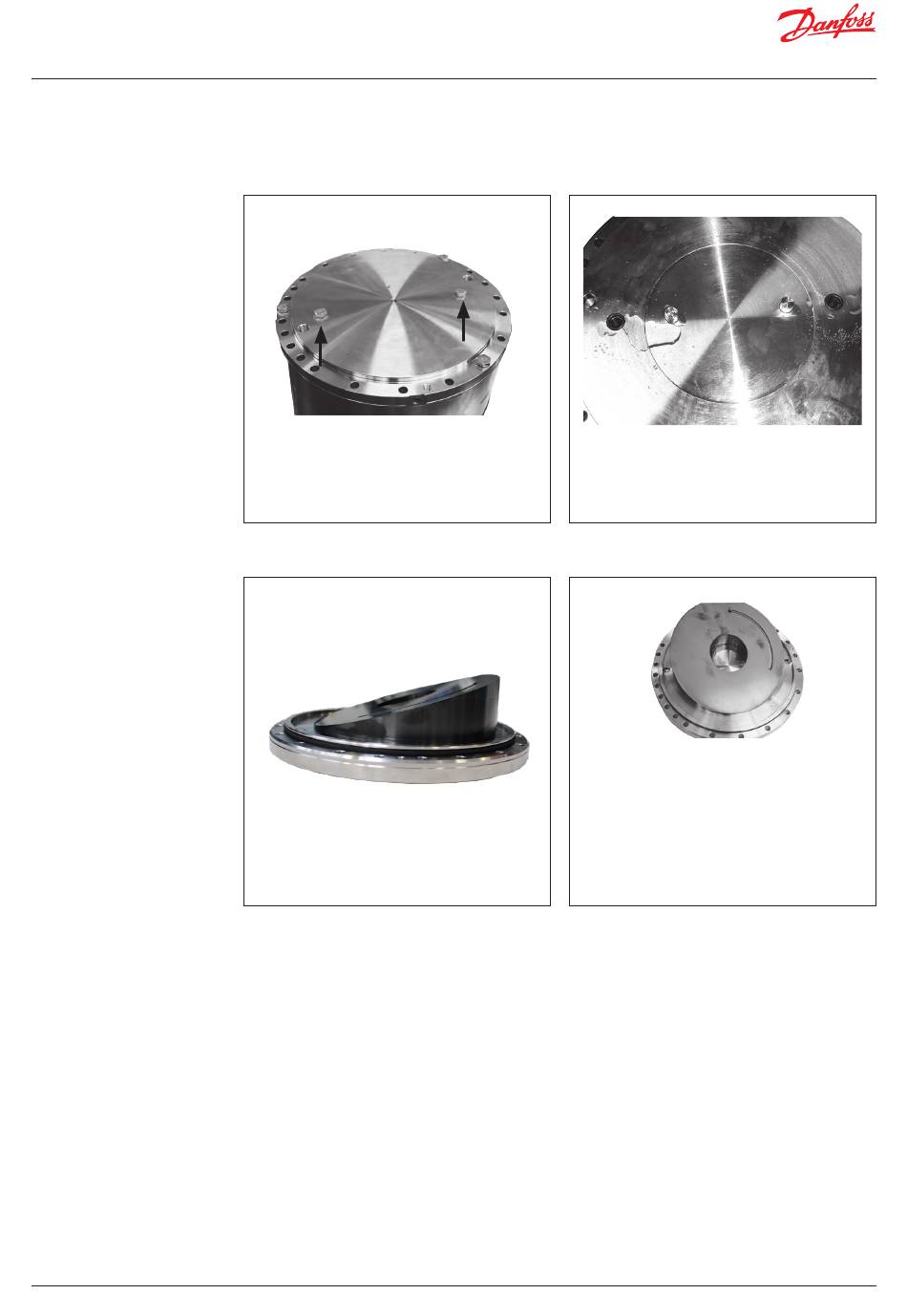

1. Place the swash plate upside down.
Remove the 2 bolts holding the swash
plate. Remove the mounting flange from
the swash plate.
3. Change the O-ring on the mounting
flange.
2. Check that the O-ring and pin are in good
condition (provided with seal set).
4. Mount the swash plate on the 2 pins.
Carefully by hand tilt the unit to
horizontal position and mount the 2 bolts
which hold the swash plate. Tighten the
bolts with a torqueaccording to exploded
view. Finally check the surface on the
swash plate for any marks or foreign
particles.
5. Mount the assembled part on the pump.
