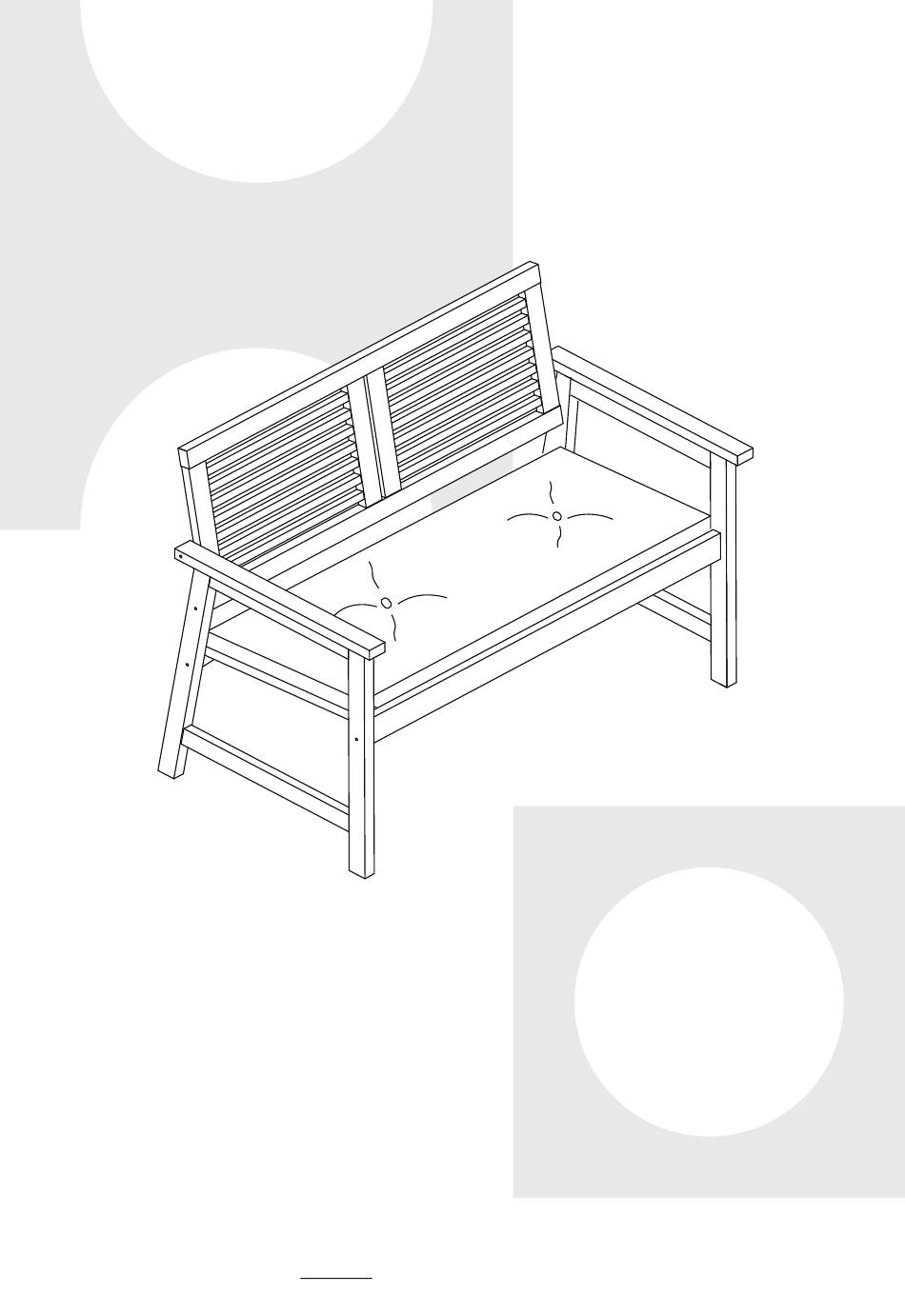

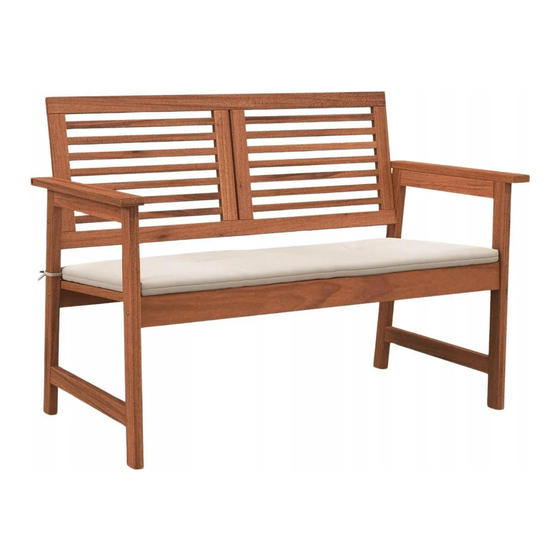

- Page 1 Outdoor Bench with Cushion Banc Extérieur avec Coussin JV11109 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Before You Start
Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled. -
Page 3: Parts List / Liste Des Pièces
PARTS LIST / LISTE DES PIÈCES L & R SEAT FRAME BACK FRAME SIDE FRAME /CADRE DU SIÈGE /CADRE ARRIÈRE /CADRE LATÉRAL A x1 B x1 C x2 CUSHION /COUSSIN D x1 HARDWARE LIST / LISTE DES ACCESSOIRES M6 x 60mm M6 x 40mm BARREL NUT /ÉCROU DE BARIL... - Page 4 EN: DO NOT TIGHTEN ANY BOLT UNTIL ALL BOLTS HAVE BEEN IN PLACE. FR: NE SERRER AUCUN BOULON AVANT QUE TOUS LES BOULONS N'AIENT ÉTÉ MIS EN PLACE.
- Page 5 FINISHED /TERMINÉ...
- Page 6 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
- Page 8 USA office: Fontana AUS office: Truganina GBR office: Ipswich FRA office: Saint Vigor d'Ymonville USA:cs.us@costway.com If you're having difficulty, our friendly AUS:cs.au@costway.com customer team is always here to help. GBR:cs.uk@costway.com FRA:cs.f r @costway.com...
