Cradlepoint 5G Internet Kit Quick Start Manual

Contents
Carrying Case CradlePoint Router
Instructions
Step 1

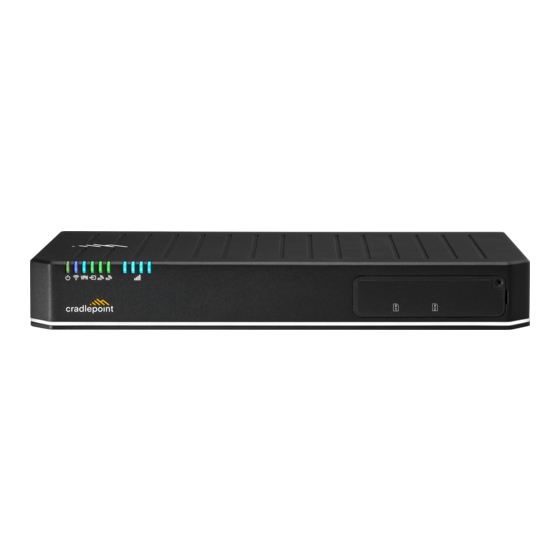

Remove the CradlePoint router from the case. Position the antennas so that they are pointing up.
Step 2
Plug in the power adapter to a standard wall outlet or power strip (120V/2A/240W). Make sure the on/off power switch
is in the on position (solid line).
Step 3
Wait 2 minutes as the router automatically selects the best 5G signal (choosing from Verizon, AT&T, and T-Mobile). Once
connected to the Internet, the large horizontal LED light strip across the front of the router will display a solid white
light.
Step 4
For Wireless (WiFi) Connections:
- If your smart phone or tablet supports QR codes, open the built-in camera app. Point the camera at the QR code
printed on the CradlePoint router label. Tap the notification banner to join the network.
- Or, launch your device's WiFi utility. Select the network name listed on the label atop the router that ends with "-5G".
Type in the password.
- If you are unable to see the router's wireless (WiFi) network name ending with " -5G", select the similar WiFi
network name that ends with "-2.4G". Type in the password.
- If you are asked to enter a PIN, click the link to use a security key instead. You should now be able to surf the web.
For Hard-Wired Connections:
- Using cat5 or cat6 ethernet cables, you can connect up to 4 devices to the black LAN ports on the back of the
router.
(Note: Do not use the blue WAN port/SFP/SFP+/expansion ports unless instructed by TSI.)
5G Internet Kit - Quick Start Guide
Power Adapter Network Cable
