- Page 1 FULL MANUAL HW-C47M Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...
- Page 2 PERSONNEL. Refer to the table below for an explanation of CAUTION symbols which may be on your Samsung product. • Do not expose this apparatus to dripping or splashing. Do not put objects filled with CAUTION liquids, such as vases, on the apparatus.
- Page 3 This equipment generates, uses and approved recycler. To find the nearest recycling can radiate radio frequency energy and, if not location, go to our website:www.samsung.com/ installed and used in accordance with the recycling Or call, 1‐800‐SAMSUNG instructions, may cause harmful interference to WARNING: Cancer and Reproductive Harm radio communications.
- Page 4 PRECAUTIONS 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce 1. Ensure that the AC power supply in your heat. house complies with the power 9. Do not alter in any way the safety purpose of requirements listed on the identification the polarized or grounding-type plug.
-
Page 5: Table Of Contents
CONTENTS Checking the Components Product Overview Front Panel / Top Panel of the Soundbar ------------------------- Bottom Panel of the Soundbar ------------------------- Using the Remote Control Inserting Batteries before using the Remote Control (AAA batteries X 2) ------------------------- How to Use the Remote Control ------------------------- Using the Hidden Buttons (Buttons with more than one function) -------------------------... - Page 6 Connecting an External Device Connecting using an Optical Cable ------------------------- Connecting a USB Storage Device Connecting a Mobile Device Connecting via Bluetooth ------------------------- Installing the Wall Mount Installation Precautions ------------------------- Wallmount Components ------------------------- Placing the Soundbar on a TV stand Software Update Update Procedure -------------------------...
-
Page 7: Checking The Components
• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit) • To purchase additional components or optional cables, contact a Samsung Service Center or Samsung Customer Care. -
Page 8: Product Overview
02 PRODUCT OVERVIEW Front Panel / Top Panel of the Soundbar Top Panel Display Displays the product’s status and current mode. (Power) Button Turns the power on and off. • Auto Power Down Function The unit turns off automatically in the following situations: –... -
Page 9: Bottom Panel Of The Soundbar
• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound. • If you want to enjoy sound only from the Soundbar, you must turn off the TV’s speakers in the Audio Setup menu of your TV. -
Page 10: Using The Remote Control
03 USING THE REMOTE CONTROL Inserting Batteries before using the Remote Control (AAA batteries X 2) Slide the back cover in the direction of the arrow until it is completely removed. Insert 2 AAA batteries (1.5V) so that their orientation is correct. Slide the back cover back into position. - Page 11 WOOFER By pressing the button, you can adjust the volume of each speaker. TONE CH LEVEL • Press the button to select VIRTUAL CENTER LEVEL and then adjust the volume CONTROL between -6~+6 by using the Up/Down buttons. CH LEVEL •...
- Page 12 Press the PAIR button. “BT PAIRING” appears in the Soundbar’s display. You can connect the Soundbar to a new Bluetooth device in this mode by selecting the Soundbar from the Bluetooth device's search list. Bluetooth PAIR Press the p button to pause a music file temporarily. When you press the button again, the music file will resume playing.
- Page 13 SOUND MODE WOOFER SOUND WOOFER MODE TONE CH LEVEL CONTROL (BASS) LEVEL Push the button up or down to adjust the level of the woofer (bass) to -12 or between -6 to +6. To set the woofer (bass) volume level to 0 (Default), press the button. WOOFER By pressing the button, you can adjust the volume of the treble or bass sound.
-
Page 14: Using The Hidden Buttons (Buttons With More Than One Function)
Using the Hidden Buttons (Buttons with more than one function) Hidden Button Reference page Remote Control Button Function WOOFER (Up) TV remote control On/Off (Standby) page 15 Left TV Connect On/Off (BT Ready) page 25 ID SET page 11 7 Band EQ (Press and hold 5 seconds) page 11 (Sound Control) Reset (Press and hold 10 seconds) -
Page 15: Adjusting The Soundbar Volume With A Tv Remote Control
• Set the TV speaker to External Speaker to use this function. • Manufacturers supporting this function: Samsung, VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, Hisense, RCA 1. Turn Off the Soundbar. 2. Push up and hold the WOOFER button for 5 seconds. -
Page 16: Connecting The Soundbar
04 CONNECTING THE SOUNDBAR Connecting Electrical Power Use the power components to connect the Subwoofer and Soundbar to an electrical outlet in the following order: 1. Connect the power cord to the Subwoofer. 2. Connect the power cord to the Soundbar. See the illustrations below. -
Page 17: Connecting The Soundbar To The Subwoofer
Soundbar unit is turned off) connected properly. Connect again. See the Connection failed instructions for manual connection on page 18. Red and blue See the contact information for Blinking Malfunction the Samsung Service Center in this manual. ENG - 17... - Page 18 • The ID SET message appears on the display of the Soundbar for a moment, and then it disappears. • The Soundbar will automatically power on when ID SET is complete. SAMSUNG logo is on the top 5 Sec ID SET 3.
- Page 19 NOTES • Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete. • Before moving or installing this product, be sure to turn off the power and disconnect the power cord. •...
-
Page 20: Connecting An Swa-9100 To Your Soundbar
Connecting an SWA-9100 to your Soundbar Expand to true wireless surround sound by connecting the Samsung Wireless Surround Speaker SET (SWA-9100) to your Soundbar. 1. Connect the Wireless Receiver Module to 2 Surround Speakers Use the speaker cables to connect the two surround sound speakers to the Wireless Receiver Module. - Page 21 • The ID SET message appears on the display of the Soundbar for a moment, and then it disappears. • The Soundbar will automatically power on when ID SET is complete. SAMSUNG logo is on the top 5 Sec ID SET CAUTION •...
- Page 22 Connection failure SURROUND SPEAKERS OUT (Red) SPEAKER IMPEDANCE : 3 5 Sec SURROUND SPEAKERS OUT ID SET SPEAKER IMPEDANCE : 3 ID SET 2. Repeat steps 3 through 4. POWER Others Errors Contact a Samsung Service Center. POWER ENG - 22...
-
Page 23: Using A Wired Connection To The Tv
05 USING A WIRED CONNECTION TO THE TV Hear TV sound from your Soundbar through wired or wireless connections. • When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using the TV’s remote control. – This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when you connect the Soundbar to the TV using an optical cable. -
Page 24: Using A Wireless Connection To The Tv
Soundbar for more than 5 seconds to display “BT PAIRING”. 2. Select Bluetooth mode on the TV. (For more information, see the TV’s manual.) 3. Select “[AV] Samsung Soundbar C4-Series” or “[AV] Soundbar C4-Series” from the list on TV’s screen. - Page 25 If the device fails to connect • If a previously connected Soundbar listing (e.g. “[AV] Samsung Soundbar C4-Series” or “[AV] Soundbar C4-Series”) appears in the list, delete it. • Then repeat steps 1 through 3. NOTE • After you have connected the Soundbar to your TV the first time, use the “BT READY” mode to reconnect.
-
Page 26: Connecting An External Device
07 CONNECTING AN EXTERNAL DEVICE Connect to an external device via a wired connection or Bluetooth connection to play the external device’s sound through the Soundbar. Connecting using an Optical Cable Bottom of the Soundbar Optical Cable DIGITAL AUDIO IN (OPTICAL) OPTICAL OUT BD / DVD player /... -
Page 27: Connecting A Usb Storage Device
08 CONNECTING A USB STORAGE DEVICE You can play music files located on USB storage devices through the Soundbar. USB port DIGITAL AUDIO IN (OPTICAL) DIGITAL AUDIO IN (OPTICAL) POWER USB (5V 0.5A) USB (5V 0.5A) 1. Connect the USB device to the USB port on the bottom of the product. 2. - Page 28 File Format Type Compatibility list Extension Codec Sampling Rate Bitrate *.mp3 MPEG 1 Layer2 32kHz ~ 48kHz 32kbps~320kbps MPEG 1 Layer3 32kHz ~ 48kHz 32kbps~320kbps MPEG 2 Layer3 16kHz ~ 24kHz 8kbps~160kbps MPEG 2.5 Layer3 8kHz ~ 12kHz 8kbps~160kbps *.wma WMA7/8/9 32kHz ~ 48kHz 32kbps~320kbps...
-
Page 29: Connecting A Mobile Device
(Source) button on the top panel of the Soundbar for more than 5 seconds to display “BT PAIRING”. 2. On your device, select “[AV] Samsung Soundbar C4-Series” or “[AV] Soundbar C4-Series” from the list that appears. • When the Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] → “BT”... - Page 30 • You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function. • Once you have paired the Soundbar to a Bluetooth device, selecting “[AV] Samsung Soundbar C4-Series” or “[AV] Soundbar C4-Series” from the device’s scanned devices list will automatically change the Soundbar to “BT”...
- Page 31 Disconnecting the Bluetooth device from a Soundbar You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device’s user manual. • The Soundbar will be disconnected. • When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display “BT DISCONNECTED”...
-
Page 32: Installing The Wall Mount

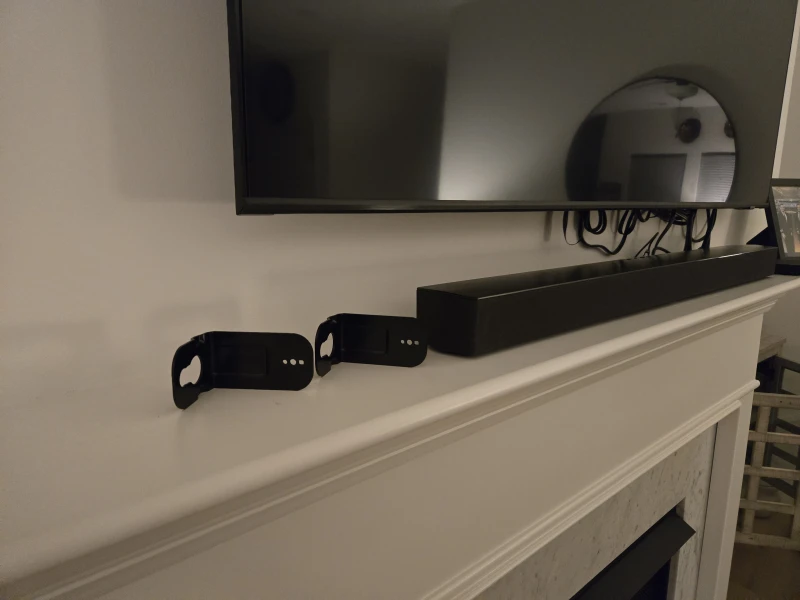

10 INSTALLING THE Wallmount Components WALL MOUNT Wall Mount Guide (AH81-11685A) Installation Precautions • Install on a vertical wall only. (M4 x L10) • Do not install in a place with high Holder-Screw Screw temperature or humidity. (AH81-11684A) (AH81-11683A) • Verify whether the wall is strong enough to support the product’s weight. - Page 33 2. Align the Wall Mount Guide’s Center Line 5. Push a screw (not supplied) through each with the center of your TV (if you are Holder-Screw, and then screw each screw mounting the Soundbar below your TV), and firmly into a support screw hole. then fix the Wall Mount Guide to the wall using tape.
-
Page 34: Placing The Soundbar On Atv Stand
11 PLACING THE 7. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the SOUNDBAR ON A Bracket-Wall Mounts on the Holder-Screws on the wall. TV STAND Place the Soundbar on a TV stand. 8. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws. -
Page 35: Software Update
3. Save the downloaded software to a USB your Soundbar. For more information about how stick and select “Extract Here” to unzip the to download update files, go to the Samsung folder. Electronics website at 4. Turn off the Soundbar and connect the USB https://www.samsung.com/us/support/... -
Page 36: If Update Is Not Displayed
If UPDATE is not displayed 1. Turn off the Soundbar, disconnect and then reconnect the USB storage device that contains the update files to the Soundbar’s USB port. 2. Disconnect the Soundbar’s power cord, reconnect it, and then turn on the Soundbar. NOTES •... -
Page 37: Troubleshooting
Refer to the table below if this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord, and contact Samsung Electronics at 1-800-SAMSUNG (1-800-726-7864). Soundbar does not turn on. -
Page 38: License
Bluetooth transceiver or the product is registered trademarks owned by Bluetooth SIG, installed on metal furniture, sound may Inc. and any use of such marks by Samsung drop out. Check the installation Electronics Co., Ltd. is under license. Other environment and conditions for use. -
Page 39: Open Source License Notice
ENERGY STAR qualified model only (The other repair. models) – As an ENERGY STAR Partner, Samsung has determined that this product or product models meets the ENERGY STAR guideline for energy efficiency. ENG - 39... -
Page 40: Specifications And Guide
+41°F to +95°F (+5°C to +35°C) Operating Humidity Range 10 % ~ 75 % Frequency range 20Hz~20kHz NOTES • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. • Weight and dimensions are approximate. ENG - 40... - Page 41 LIMITED WARRANTY TO ORIGINAL PURCHASER This SAMSUNG brand product, as supplied and distributed by SAMSUNG and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited...
- Page 42 QUESTIONS OR COMMENTS? Country Samsung Service Center Web Site Address Samsung Electronics America, Inc. IN THE US 1-800-SAMSUNG (726-7864) www.samsung.com/us/support 85 Challenger Road Ridgefi eld Park, NJ 07660 © 2023 Samsung Electronics Co., Ltd. All rights reserved.
