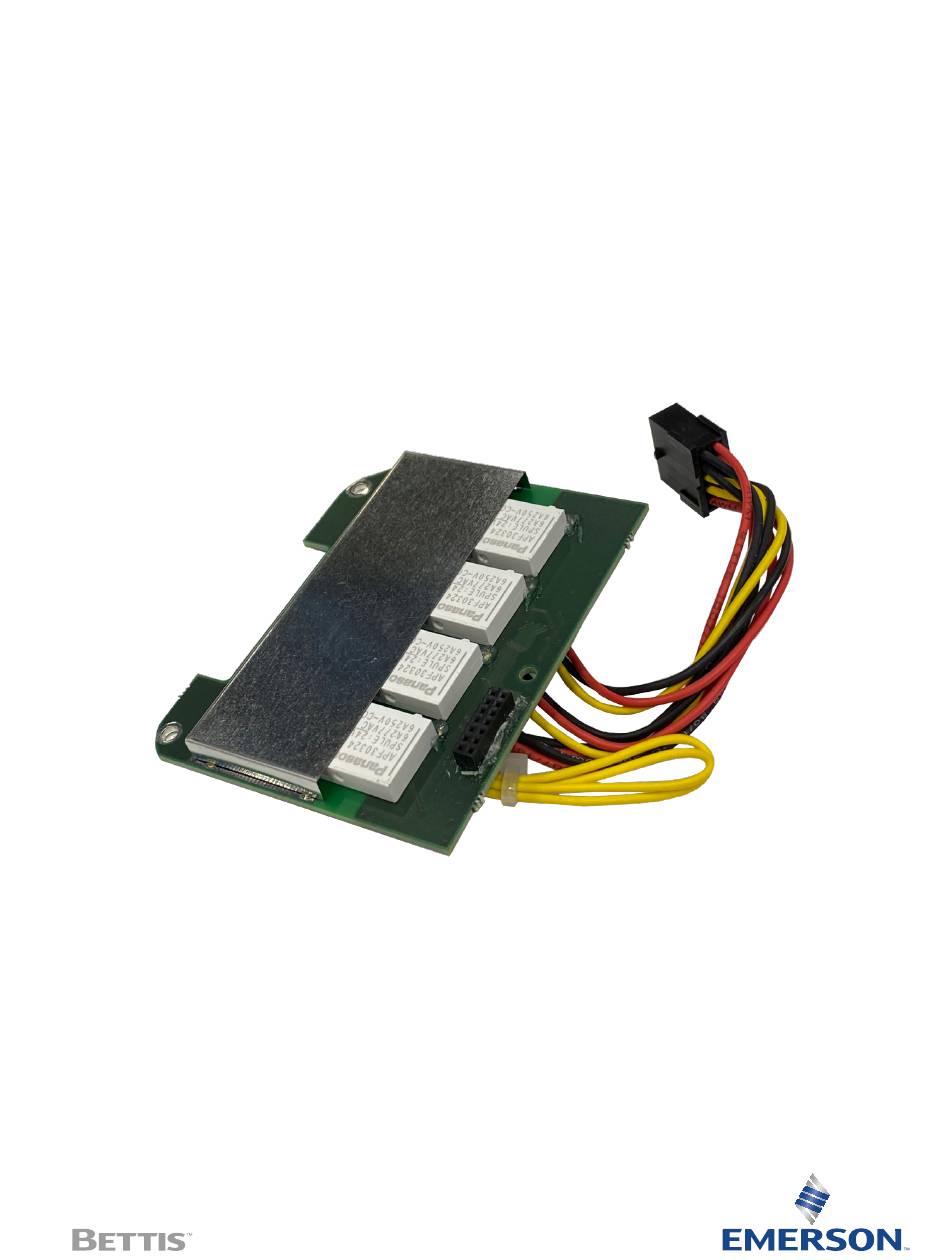

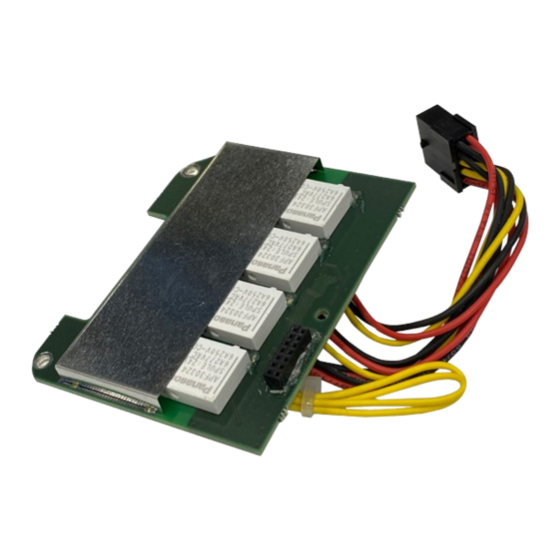

- Page 1 Installation, Operation and Maintenance Manual VCIOM-15749-EN Rev. 1 August 2023 Bettis RTS Relay Board (RP4AF) Electric Actuator...
- Page 2 Installation, Operation and Maintenance Manual Notes August 2023 VCIOM-15749-EN Rev. 1 This page intentionally left blank.
-
Page 3: Table Of Contents
Installation, Operation and Maintenance Manual Table of Contents VCIOM-15749-EN Rev. 1 August 2023 Table of Contents Section 1: Tools Tools............................1 Section 2: Material Material..........................2 Section 3: Installation Installation..........................3 Section 4: Programming Programming........................7 Table of Contents... - Page 4 Installation, Operation and Maintenance Manual Notes August 2023 VCIOM-15749-EN Rev. 1 This page intentionally left blank.
-
Page 5: Section 1: Tools
Installation, Operation and Maintenance Manual Section 1: Tools August 2023 VCIOM-15749-EN Rev. 1 Section 1: Tools WARNING Remove all power supplies before doing the exchange. Act always with caution during the exchange! • Needle nose pliers • Screw driver phillips •... -
Page 6: Section 2: Material
Section 2: Material Installation, Operation and Maintenance Manual August 2023 VCIOM-15749-EN Rev. 1 Section 2: Material • 1x relay board RP4AF (ID:15772) • 2x steel screw M3x16 (ID:952) • 3x plastic distance 8 mm (ID:9896) • 1x plastic screw M3x15 (ID:9895) •... -
Page 7: Section 3: Installation
Installation, Operation and Maintenance Manual Section 3: Installation August 2023 VCIOM-15749-EN Rev. 1 Section 3: Installation Unscrew the 4 hexagon socket screws from the cover and remove it carefully. Mind the connection cable between display and logic board. Figure 4. Unscrew the 4 cross recessed screws from the existing logic board and afterwards tilt it carefully to you. - Page 8 Section 3: Installation Installation, Operation and Maintenance Manual August 2023 VCIOM-15749-EN Rev. 1 Remove the cable with the 10-pole connector and connect it with the relay board. Figure 6. Insert plastic screw M3x15 in provided hole and add plastic distance on it, after connect the relay board with the logic board on suitable connector.
- Page 9 Installation, Operation and Maintenance Manual Section 3: Installation August 2023 VCIOM-15749-EN Rev. 1 Put two plastic distances 8 mm between logic and relay board, insert the M3x16 steel screws through the estimated holes in logic board, plastic distances and relay board and secure the screws with the red lock plates. Figure 8.
- Page 10 Section 3: Installation Installation, Operation and Maintenance Manual August 2023 VCIOM-15749-EN Rev. 1 Connect cable between display cover and logic board. Perform a Firmware update now, before installing display cover on the unit. This update is important for the following programming steps (use FW version display 1507, logic 219 or higher).
-
Page 11: Section 4: Programming
Installation, Operation and Maintenance Manual Section 4: Programming VCIOM-15749-EN Rev. 1 August 2023 Section 4: Programming For programming, request download of SMARTTOOL2 software through your Sales Representative. After the successful installation and registration, connect with the actuator. Use the Wizard and choose function "Uninstall Extension Kit" and press "Apply"... - Page 12 Section 4: Programming Installation, Operation and Maintenance Manual August 2023 VCIOM-15749-EN Rev. 1 After the successful uninstallation of the extension kit, use the Wizard and choose function "Install Extension Kit" and press "Apply". Figure 13. At the line "RP4AF: 4x Relay Outputs" press "Apply" and confirm the installation by pressing "Yes".
- Page 13 Installation, Operation and Maintenance Manual Section 4: Programming VCIOM-15749-EN Rev. 1 August 2023 After installation press the "Refresh Button". In parameter group "10. Relay" you can define the functionality of the different relays from P10.17 to P10.24. Figure 15. Programming...
