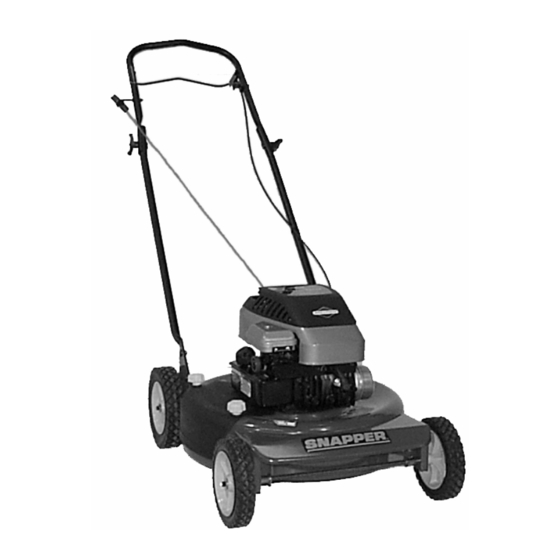

Snapper 15 Series Operator's Manual

19” steel deck walk mowers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL DESIGNATION
CUTTING WIDTH
R – Recycling Model
19 – 19" Cutting Width
Thank you for buying a SNAPPER Product! Before operating your Walk Behind, read this manual carefully and pay
particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 & 3. Remember that all power
equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in accordance
with the operating instructions and common sense.
COPYRIGHT © 1999
SNAPPER INC.
ALL RIGHTS RESERVED
Safety Instructions & Operator's Manual for
MODEL NUMBER EXPLANATION
R
19" STEEL DECK
WALK MOWERS
19
40
15 - Series Designation
45 – 4.5 HP (Engine Horse Power)
SERIES 15
MODELS
R194515B
15
SERIES DESIGNATION
ENGINE HORSE POWER
MANUAL No. 7-3134 (I.R. 8/20/99)

Advertisement

Table of Contents
loading

Related Manuals for Snapper 15 Series

Summary of Contents for Snapper 15 Series

  • Page 1 45 – 4.5 HP (Engine Horse Power) Thank you for buying a SNAPPER Product! Before operating your Walk Behind, read this manual carefully and pay particular attention to the “IMPORTANT SAFETY INSTRUCTIONS” on Pages 2 & 3. Remember that all power equipment can be dangerous if used improperly.

  • Page 2: Important Safety Instructions

    If you have any questions pertaining to your machine which your dealer cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough, Georgia 30253. Phone: (1-800-935-2967).
  • Page 3 DO NOT point 11. Have machine serviced by an authorized discharge at people, passing cars, windows or SNAPPER dealer at least once a year and have doors. the dealer install any new safety devices. 13. Slow down before turning.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS..........2-3 TABLE OF CONTENTS ................4 SECTION 1 - FAMILIARIZATION.............. 5 SECTION 2 - OPERATING INSTRUCTIONS......... 6-8 Pre-start Checklist...................... 6 Starting & Stopping Engine & Blades ..............6-7 Handle Height Adjustment..................7 Cutting Height Adjustment ..................8 Recycling Operation....................

  • Page 5: Section 1 - Familiarization

    This manual has been prepared for the operators of The nomenclature information above, Figure 1.1, the SNAPPER WALK BEHIND MOWERS. Its shows the essential parts of the SNAPPER WALK purpose, aside from recommending operating and BEHIND MOWERS. It is recommended that all...

  • Page 6: Section 2 - Operating Instructions

    Section 2 - OPERATING INSTRUCTIONS 2.1 PRE-START CHECK LIST 2.1.5. Add fuel to tank after pushing the mower Make the following checks and perform the service outside where fumes can safely dissipate. Make sure required before each start-up. cap is tightened after refueling. Refer to Engine Owners Manual for specifications.

  • Page 7: Handle Height Adjustment

    Section 2 - OPERATING INSTRUCTIONS 2.3 STOPPING LOOSEN NUTS TO Stop engine and blade by releasing the blade ADJUST HANDLE control. See Figure 2.6. HEIGHT RELEASE BLADE CONTROL TO STOP ENGINE & BLADE BLADE CONTROL FIGURE 2.6 WARNING FIGURE 2.7 DO NOT attempt any maintenance, adjustments or service with engine and blade running.

  • Page 8: Cutting Height Adjustment

    Section 2 - OPERATING INSTRUCTIONS 1. Set all wheels in the highest cutting position (Notch WARNING DO NOT attempt any maintenance, adjustments or 2. Proceed mowing slowly. If grass is very dense, lower service with engine and blade running. STOP engine each rear wheel latch one notch lower than the front and blade.

  • Page 9: Section 3 - Maintenance Instructions

    4. Loosen with ratchet and short extension, but do To retain the quality of the mower, use genuine not remove oil drain plug. Loosen plug until you can SNAPPER replacement parts only. Contact a local turn it with your fingers. SNAPPER dealer for parts and service assistance.

  • Page 10: Service - Annually

    Section 3 - MAINTENANCE 3.3 SERVICE - ANNUALLY Perform all maintenance as described in the “Service Schedule” section of this manual. 3.3.1. Engine Service engine according to engine owner’s manual. 3.3.2. Air Filter Refer to engine owner’s manual for service instructions. 3.3.3.

  • Page 11: Section 4 - Adjustments And Repair

    Section 4 - ADJUSTMENTS & REPAIR WARNING BLADE DO NOT attempt any maintenance, adjustments or service with engine and blade running. STOP engine and blade. Disconnect spark plug wire and secure away from spark plug. Engine and components are HOT. Avoid serious burns, allow sufficient time for all components to cool.

  • Page 12: Troubleshooting

    Cutting height too low or high. Adjust cutting height. Improperly Engine speed too slow. Contact authorized SNAPPER Dealer. Forward ground speed too fast. Walk at slower pace. Terraced cut, side to side. Adjust height of cut with height adjust bushings.

  • Page 13: Service Schedule

    SERVICE SCHEDULE ITEM SERVICE PERFORMED REF. EACH EACH SEASON Engine Oil Check Oil Level Page 6 Initial Oil Change Page 9 Periodic Oil Change Page 10 Clean Sponge Element Engine Manual Air Pre-Cleaner & Page 10. Clean or Replace Engine Manual. Air Cleaner Replace Engine Manual.

  • Page 14: Warranty

    For three (3) years from purchase date for the original purchaser's residential, non-commercial use, SNAPPER, through any authorized SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts found upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.

  • Page 15: Primary Mantenance

    PRIMARY MAINTENANCE...
  • Page 16 PRIMARY MAINTENANCE...
  • Page 17 PRIMARY MAINTENANCE...
  • Page 18 PRIMARY MAINTENANCE...
  • Page 19 SERVICE NOTES ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
  • Page 20 SERIES 15 IMPORTANT Snapper products are built using engines that meet or exceed all applicable emissions requirements on the date manufactured. The labels on those engines contain very important emissions information and critical safety warnings. Read, Understand, and Follow all warnings and instructions in this manual, the engine manual, and on the machine, engine and attachments.
