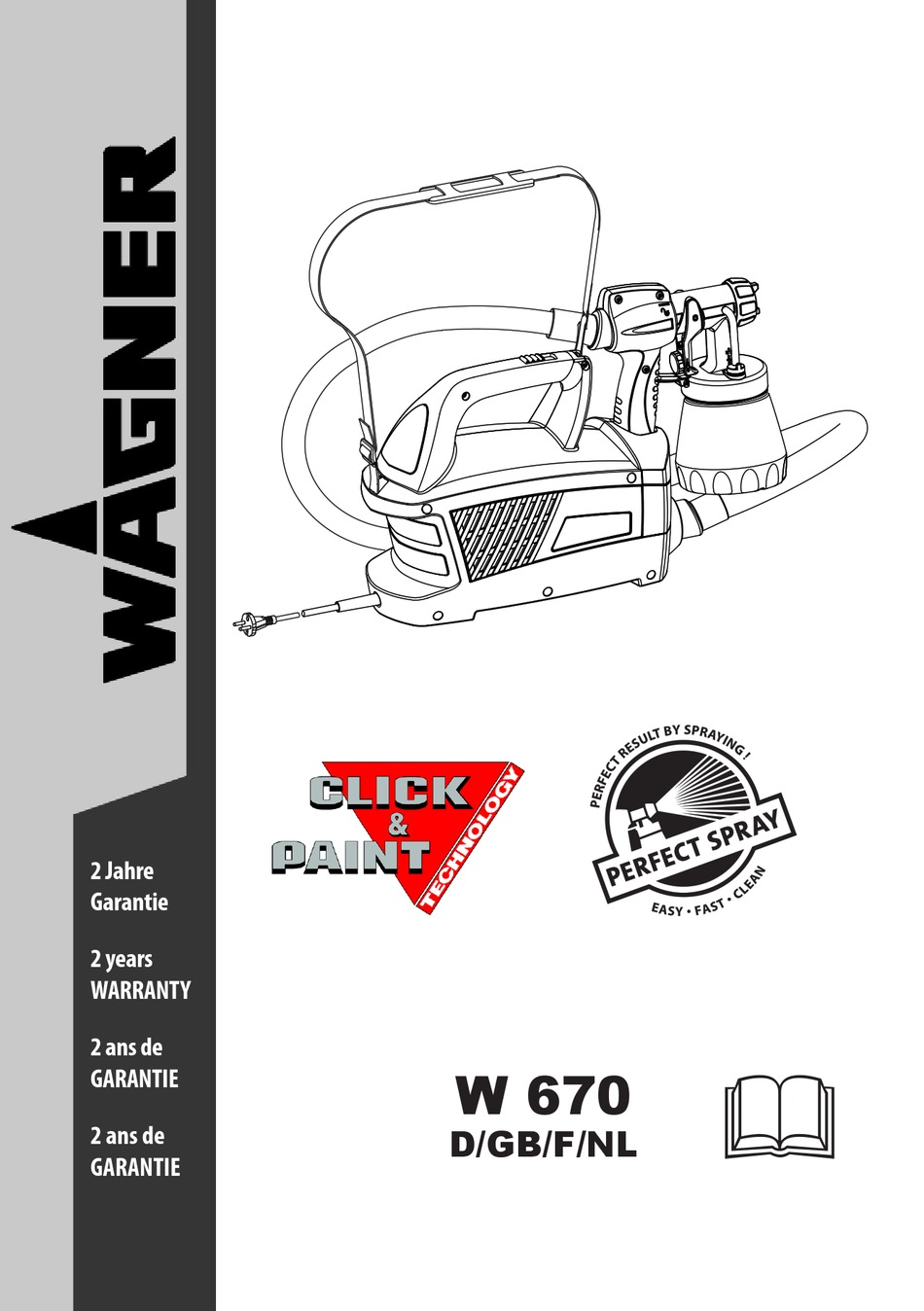

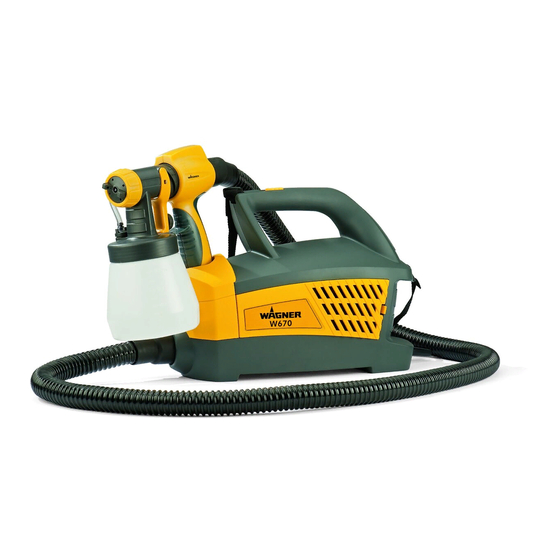

- Page 1 2 Jahre Garantie 2 years WARRANTY 2 ans de W 670 GARANTIE 2 ans de D/GB/F/NL GARANTIE...
- Page 2 W 670 11/12...
- Page 3 W 670...
- Page 4 W 670...
- Page 5 W 670 12 B 12 A 12 A 12 B...
- Page 6 W 670 Luftdüse / Airnozzle / Buse d’air / Luchtblaashulpstuk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 11 .
-
Page 7: General Safety Instructions
W 670 Congratulations on purchasing your WAGNER spray guns. You have purchased a proprietary device that requires careful cleaning and care to ensure trouble-free functioning. Read the operating instructions carefully before using the tool and observe the safety instructions. Keep the operating instructions in a safe place. - Page 8 W 670 tool can lead to serious injuries. Wear personal safety equipment and always wear safety goggles. Wearing personal protective equipment, such as dust mask, non-slip safety shoes, safety helm or ear protection, depending on the type of power tools, reduces the risk of injury.
- Page 9 W 670 working conditions and the activity to be carried out into consideration. The use of power tools for purposes other than the intended ones can lead to dangerous situations. 5. Service Have your tool repaired only by qualified specialist personnel and only with original spare parts.
-
Page 10: Technical Data
W 670 slots for air intake covered. With original WAGNER accessories and spare parts, you have the guarantee that all safety regulations are fulfilled. Technical Data Max. viscosity: 130 DIN-s Power source: 230 V ~ Power consumption: 350 W Atomizing output:... - Page 11 W 670 Thinning recommendation Sprayed material Glazes undiluted Wood preservatives, mordants, oils, disinfection agents, plant protective agents undiluted Paints containing solvents and water-soluble paints, primers, vehicle coating paints, thick-film glazes dilute by 5 - 10 % If the convey capacity is too low, add 5 - 10 % dilution step-by-step until the convey capacity fulfils your requirements.
-
Page 12: Selecting The Spray Setting
W 670 Three different spray jet settings can be chosen on the spray gun, depending on the application and target object. Selecting the Spray Setting Fig. 6 A = horizontal flat jet for horizontal surfaces Fig. 6 B = vertical flat jet ... -
Page 13: Maintenance
W 670 Taking Out of Operation and Cleaning Proper cleaning is the prerequisite for problemfree operation of the paint application device. No warranty claims are accepted in case of improper or no cleaning. Turn the machine off. Vent the container in case of longer breaks and after the work has been terminated. - Page 14 W 670 and interfere with the function of the machine. In order to mount the gun more easily apply lubricating grease (enclosed) liberally to the Oring at the gun front part (Fig. 12, 19). Spare Parts List (Fig. 12) Pos.
-
Page 15: Air Nozzle
2301 734 We recommend against using the WallPerfect spray attachment with the W550/W560/W610. Further information about the WAGNER range of products for renovating is available under www.wagnergroup.com Air nozzle The air nozzle can be used to remove dirt and to rapidly inflate leisure articles such as airbeds, etc. -
Page 16: Correction Of Malfunctions
W 670 Correction of Malfunctions Problem Cause Remedy • No coating material Nozzle clogged Clean ➞ • emerges from the Material volume setting Turn to the right (+) ➞ nozzle turned too far to the left (-) • No pressure build-up in Tighten container ➞... - Page 17 Wearing parts are also excluded from the guarantee. The guarantee excludes commercial use. We expressly reserve the right to fulfil the guarantee. The guarantee expires if the tool is opened up by persons other than WAGNER service personnel. Transport damage, maintenance work and loss and damage due to faulty maintenance work are not covered by the guarantee.
-
