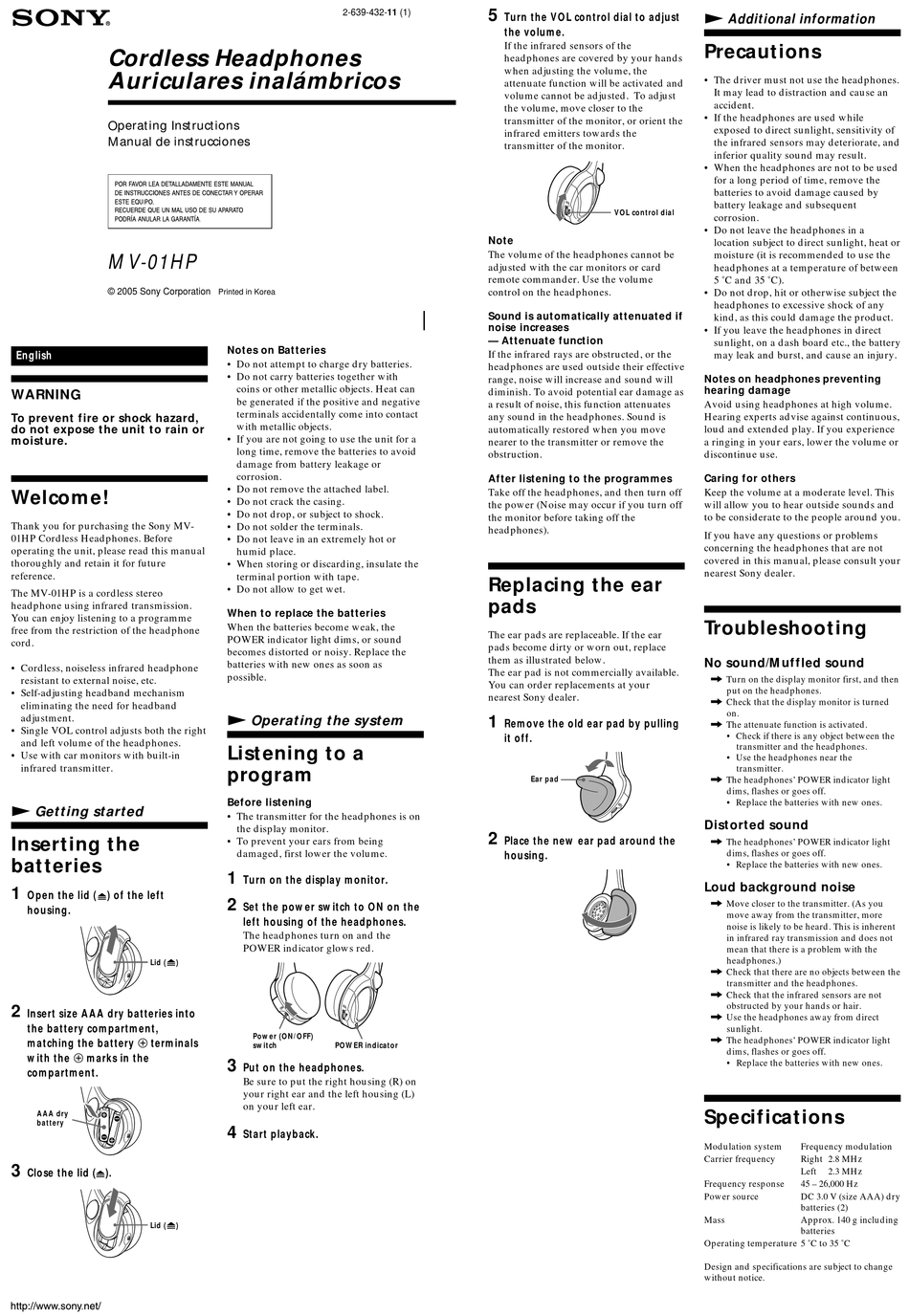

Sony MV-01HP Operating Instructions

Cordless Headphones
Auriculares inalámbricos
Operating Instructions
Manual de instrucciones
MV-01HP
© 2005 Sony Corporation
English
WARNING
To prevent fire or shock hazard,
do not expose the unit to rain or
moisture.
Welcome!
Thank you for purchasing the Sony MV-
01HP Cordless Headphones. Before
operating the unit, please read this manual
thoroughly and retain it for future
reference.
The MV-01HP is a cordless stereo
headphone using infrared transmission.
You can enjoy listening to a programme
free from the restriction of the headphone
cord.
• Cordless, noiseless infrared headphone
resistant to external noise, etc.
• Self-adjusting headband mechanism
eliminating the need for headband
adjustment.
• Single VOL control adjusts both the right
and left volume of the headphones.
• Use with car monitors with built-in
infrared transmitter.
N Getting started
Inserting the
batteries
1
Open the lid ( ) of the left
housing.
Lid ( )
2
Insert size AAA dry batteries into
the battery compartment,
matching the battery 3 terminals
with the 3 marks in the
compartment.
AAA dry
battery
3
Close the lid ( ).
Lid ( )
2-639-432-11 (1)
Printed in Korea
Notes on Batteries
• Do not attempt to charge dry batteries.
• Do not carry batteries together with
coins or other metallic objects. Heat can
be generated if the positive and negative
terminals accidentally come into contact
with metallic objects.
• If you are not going to use the unit for a
long time, remove the batteries to avoid
damage from battery leakage or
corrosion.
• Do not remove the attached label.
• Do not crack the casing.
• Do not drop, or subject to shock.
• Do not solder the terminals.
• Do not leave in an extremely hot or
humid place.
• When storing or discarding, insulate the
terminal portion with tape.
• Do not allow to get wet.
When to replace the batteries
When the batteries become weak, the
POWER indicator light dims, or sound
becomes distorted or noisy. Replace the
batteries with new ones as soon as
possible.
N Operating the system
Listening to a
program
Before listening
• The transmitter for the headphones is on
the display monitor.
• To prevent your ears from being
damaged, first lower the volume.
1
Turn on the display monitor.
2
Set the power switch to ON on the
left housing of the headphones.
The headphones turn on and the
POWER indicator glows red.
Power (ON/OFF)
switch POWER indicator
3
Put on the headphones.
Be sure to put the right housing (R) on
your right ear and the left housing (L)
on your left ear.
4
Start playback.
5
Turn the VOL control dial to adjust
the volume.
If the infrared sensors of the
headphones are covered by your hands
when adjusting the volume, the
attenuate function will be activated and
volume cannot be adjusted. To adjust
the volume, move closer to the
transmitter of the monitor, or orient the
infrared emitters towards the
transmitter of the monitor.
VOL control dial
Note
The volume of the headphones cannot be
adjusted with the car monitors or card
remote commander. Use the volume
control on the headphones.
Sound is automatically attenuated if
noise increases
— Attenuate function
If the infrared rays are obstructed, or the
headphones are used outside their effective
range, noise will increase and sound will
diminish. To avoid potential ear damage as
a result of noise, this function attenuates
any sound in the headphones. Sound is
automatically restored when you move
nearer to the transmitter or remove the
obstruction.
After listening to the programmes
Take off the headphones, and then turn off
the power (Noise may occur if you turn off
the monitor before taking off the
headphones).
Replacing the ear
pads
The ear pads are replaceable. If the ear
pads become dirty or worn out, replace
them as illustrated below.
The ear pad is not commercially available.
You can order replacements at your
nearest Sony dealer.
1
Remove the old ear pad by pulling
it off.
Ear pad
2
Place the new ear pad around the
housing.
N Additional information
Precautions
• The driver must not use the headphones.
It may lead to distraction and cause an
accident.
• If the headphones are used while
exposed to direct sunlight, sensitivity of
the infrared sensors may deteriorate, and
inferior quality sound may result.
• When the headphones are not to be used
for a long period of time, remove the
batteries to avoid damage caused by
battery leakage and subsequent
corrosion.
• Do not leave the headphones in a
location subject to direct sunlight, heat or
moisture (it is recommended to use the
headphones at a temperature of between
5 ˚C and 35 ˚C).
• Do not drop, hit or otherwise subject the
headphones to excessive shock of any
kind, as this could damage the product.
• If you leave the headphones in direct
sunlight, on a dash board etc., the battery
may leak and burst, and cause an injury.
Notes on headphones preventing
hearing damage
Avoid using headphones at high volume.
Hearing experts advise against continuous,
loud and extended play. If you experience
a ringing in your ears, lower the volume or
discontinue use.
Caring for others
Keep the volume at a moderate level. This
will allow you to hear outside sounds and
to be considerate to the people around you.
If you have any questions or problems
concerning the headphones that are not
covered in this manual, please consult your
nearest Sony dealer.
Troubleshooting
No sound/Muffled sound
, Turn on the display monitor first, and then
put on the headphones.
, Check that the display monitor is turned
on.
, The attenuate function is activated.
• Check if there is any object between the
transmitter and the headphones.
• Use the headphones near the
transmitter.
, The headphones' POWER indicator light
dims, flashes or goes off.
• Replace the batteries with new ones.
Distorted sound
, The headphones' POWER indicator light
dims, flashes or goes off.
• Replace the batteries with new ones.
Loud background noise
, Move closer to the transmitter. (As you
move away from the transmitter, more
noise is likely to be heard. This is inherent
in infrared ray transmission and does not
mean that there is a problem with the
headphones.)
, Check that there are no objects between the
transmitter and the headphones.
, Check that the infrared sensors are not
obstructed by your hands or hair.
, Use the headphones away from direct
sunlight.
, The headphones' POWER indicator light
dims, flashes or goes off.
• Replace the batteries with new ones.

Specifications

Modulation system Frequency modulation
Carrier frequency Right 2.8 MHz
Left 2.3 MHz
Frequency response 45 – 26,000 Hz
Power source DC 3.0 V (size AAA) dry
batteries (2)
Mass Approx. 140 g including
batteries
Operating temperature 5 ˚C to 35 ˚C
Design and specifications are subject to change
without notice.
