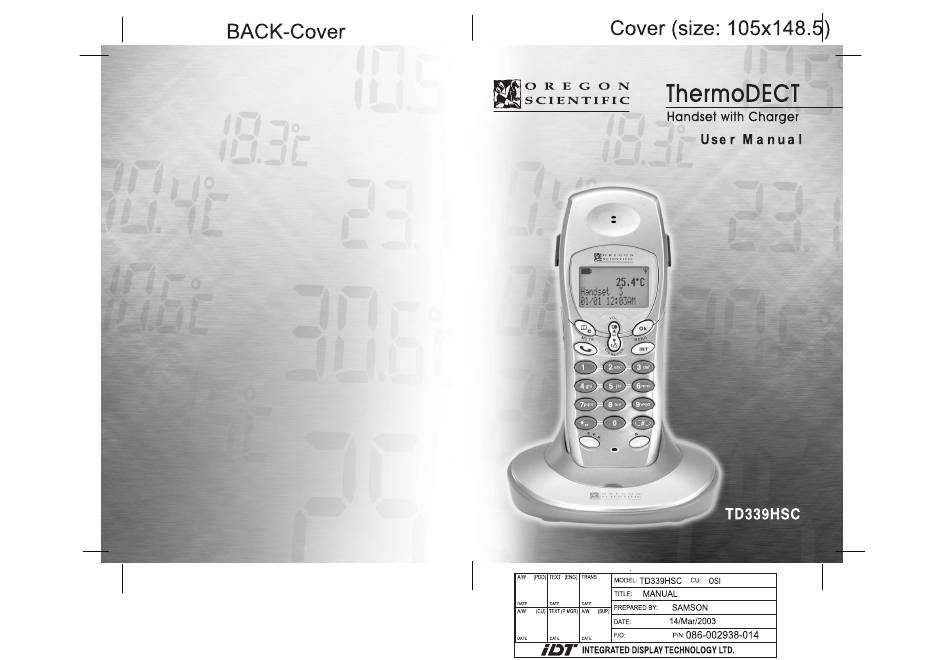

Summary of Contents for Oregon Scientific ThermoDECT TD339HSC
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ..................Key features ..................4 Safety and care instructions ............5 Caring for your telephone ................5 Safety precautions ..................5 Getting started ................5 Unpacking the handset ................5 Choosing a location for the charger ............6 Connecting the charger ................ - Page 3 Changing the handset setting ............ 15 Setting the dial mode (pulse or tone dial) ........... 15 Changing the handset ring tone ..............15 Changing the handset ring volume level ............. 16 Changing the earpiece volume level ............16 Turning the low battery warning signal off or on ......... 16 Turning the out of range warning signal off or on ........
-
Page 4: Introduction
INTRODUCTION Thank you for selecting the Oregon Scientific ThermoDECT cordless handset as your personal communications device of choice. Your new handset is designed to give you many years of reliable service, and includes the following conveniences: • Cool blue LCD backlight for caller ID, temperature display, and in use/battery charging indicators. -
Page 5: Safety And Care Instructions
7 Keypad Keypad 0-9, * and # buttons. Press to dial the number for the call or to enter text for phonebook entries. 8 Intercom button Press to make and terminate an intercom(handset to handset) call. 9 OK button Press to select or confirm a menu option. 10 Up / redial button - Press to scroll through the Caller ID menu or recall the last number dialled. -
Page 6: Choosing A Location For The Charger
• The ThermoDECT cordless handset • Two rechargeable batteries for the handset • A 220-volt AC power cord • The stand alone charger • An attachable Belt Clip Choosing a location for the charger When selecting a location for the charger, observe the following guidelines: •... -
Page 7: Registering The Handset
Registering the handset To register a new handset: 1. On the base unit, press and hold the PAGE button until the blue In Use light flashes. 2. Press the button on the handset. 3. Press to select Registration from the options. 4. -
Page 8: Setting A Default Base Unit (Multiple Base Units Only)
4. Press to select Remove HS from the options. 5. Press 6. Enter the security PIN for the handset. The default PIN code is “0000”. For more information about security PIN codes, refer to page 19. 7. Press 8. Press until the number for the handset you wish to remove is highlighted. -
Page 9: Clearing All Registrations
Clearing all registrations If you have registered numerous handsets and base units in your ThermoDECT telephone system, you may experience problems registering new handsets as your system becomes more complex. A single base unit can carry a maximun of 5 handsets. -
Page 10: Charging The Handset Batteries
Note: The handset number will display after the assigned name. For example, if you named handset 2 “Sally”, it will appear as “Sally 2”. The number cannot be changed. Tip: To return to standby mode, press and hold the button. Charging the handset batteries The batteries may take up to 15 hours to fully charge the first time you use them. -
Page 11: Making A Telephone Call
Making a telephone call To make a telephone call using the Phone button: 1. Press to get the dial tone, then dial the number, OR 2. Dial the number then press To make a call using the speakerphone: 1. Press the button to get the dial tone, then dial the number, OR 2. -
Page 12: Returning Missed Calls
Returning missed calls If you subscribe for caller ID sevice through your telephone carrier your ThermoDect telephone can keep track of missed calls information for you. When you miss a call, the handset will display “New Calls” and the number of calls you missed. -
Page 13: Deleting Call Id Information
To display caller ID information: 1. With the handset in standby mode, press the button to view the list of caller IDs. A No Entry Stored message displays if there are no entries stored in the caller ID bank. 2. Press to select the name you want to check. -
Page 14: Recalling An Entry From The Telephone Book
Tip: Press the button to go back to the previous character. To scroll to the next character, press the button repeatedly. Example: To enter the name “Anna”, you would press 2, 6(x2), 6(x2), and 2. 5. Press to display the Number prompt. 6. -
Page 15: Changing The Handset Setting
5. Press to select the entry you wish to edit. 6. Press to display the entry. 7. Modify the name using the chart on page 13 as a guide. 8. Press when you are finished to display the entry exactly as it will appear in your phone book. -
Page 16: Changing The Handset Ring Volume Level
Changing the handset ring volume level To change the volume level while the handset is ringing, press the arrows. To change the volume level while the handset is in standby mode: 1. Press the button. 2. Press to select Handset Menu from the options. 3. -
Page 17: Turning The Out Of Range Warning Signal Off Or On
6. Press to select Low Battery from the options. 7. Press 8. Press to select off or on. You will still hear a warning tone if the batteries become low while you are talking on the telephone. 9. Press to confirm your selection. Tip: To return to standby mode, press and hold the button. -
Page 18: Turning The Auto-Answer Feature Off Or On
Turning the auto-answer feature off or on The auto-answer feature allows you to answer a telephone call as soon as you remove the handset from the cradle. The default for this setting is on. If you would prefer to answer your calls by pressing the button, you can change this setting. -
Page 19: Changing The Security Pin
4. Press to select PABX setup from the options. 5. Press 6. Press again to select Code 1 from the options. 7. Enter the security PIN for the base, followed by the prefix. For more information about the security PIN, refer to the next section. Example: The security PIN for John’s ThermoDECT telephone is “0000”. -
Page 20: Resetting Your Telephone System
Resetting your telephone system Resetting the system clears all information that you have stored on the handset – such as telephone book entries, caller ID history, and the baby call (emergency call) number – and returns your ThermoDECT telephone to its default settings (shown on page 32). -
Page 21: Making An Intercom Call
7. Press 8. (Optional, if you selected Def Priority in Step 6) Press to select the handset for which you wish to set ring priority. 9. Press 10.Press to select the number of rings you want this handset to ring ahead of the other handsets. -
Page 22: Using The Call Waiting Feature
TEMPERATURE The ThermoDECT base unit displays either the indoor temperature (Oregon Scien- tific Model TD338) or the indoor or outdoor temperature (Oregon Scientific Model TD339) Temperature on the handset The handset can display the temperature information for both the built-in and external sensors. -
Page 23: Setting And Using The Handset Clock
Note: The temperature reading is the current temperature at the base unit (for Indoor) or the current temperature at the remote sensor (for outdoor). It is not the temperature reading at the current location of the handset. SETTING AND USING THE HANDSET CLOCK You can change the following time and date settings for the clock display on your handset: •... -
Page 24: Changing The Date And Time
Changing the date and time To change the date and time on the system clock (e.g. all handsets): 1. Press the button. 2. Press to select Setup from the options. 3. Press 4. Press again to select Clock Setting from the options. 5. -
Page 25: Deactivating The Alarm
Deactivating the alarm When one of the alarms activates, the handsets rings with the page tone. To stop the alarm, press any key on the handset or the PAGE key on the base unit. USING THE CHILD-FRIENDLY FEATURES The handset telephone includes the following child-friendly features: •... -
Page 26: Playing The Snake Game
4. Press to select Number from the options. 5. Use the keypad digits (0 – 9) to enter the number (including any applicable prefixes or STD codes). 6. Press to confirm when you are finished. Tip: To reset the baby call number, repeat Steps 1 – 5. To activate the baby call feature: 1. -
Page 27: Playing The Car Game
Snake game description When the game starts, the snake is moving in the direction of the arrow. When the snake reaches the same row as the egg, press 4 to turn toward the egg. The snake turns left and is now moving toward the egg. As the snake passes over the egg, the egg will move to a different location. -
Page 28: Troubleshooting Guide
Press the keys as shown below to move the car in the desired direction: Direction Tip: You only need to use the ( ) and ( ) Up ( ) 2 or keys to navigate the car between the Break ( barriers. -
Page 29: Problems Making And Answering Telephone Calls
If the problem persists, please contact our help line following the instructions on our website (www. oregonscientific.com). Never attempt to repair or adjust the tele- phone yourself. This can cause damage to the unit, electrical shock, and may invalidate your warranty. Problems making and answering calls “I cannot make or answer calls.”... - Page 30 “I just recharged the batteries, but I still get a warning that they are not charged” The batteries may need to be replaced. Rechargeable batteries gradually lose their ability to be recharged as they get older. Replace the batteries with two recharge- able Ni-MH batteries (AAA size).
-
Page 31: Problems With Multi-Handset Use
9, then re-register the handsets. ADDITIONAL RESOURCES Visit our website to learn more about your ThermoDECT telephone and other Oregon Scientific products such as additional handsets and base units. Contact information for our team of customer service representatives is on the website. Website: www.oregonscientific.com... -
Page 32: Specifications
SPECIFICATIONS Weight Dimension Charger: TBA (without battery) Charger: TBA (HxWxD) Handset : 102g (without battery) Handset: 138 x 52 x 27mm (HxWxD) Technical details Standard Digital Enhanced Cordless Telecommunications (DECT) Frequency range 1880 to 1990 MHz (band width = 20 MHz) Channel band width 1.728 MHz Modulation... -
Page 33: Warnings
• The product, specifications and contents of this user manual are subject to change without further notice. • Figures and display examples in this user manual are for reference only, and may differ slightly from the actual product. © 2003 Oregon Scientific. All rights reserved. - Page 34 NOTES...
