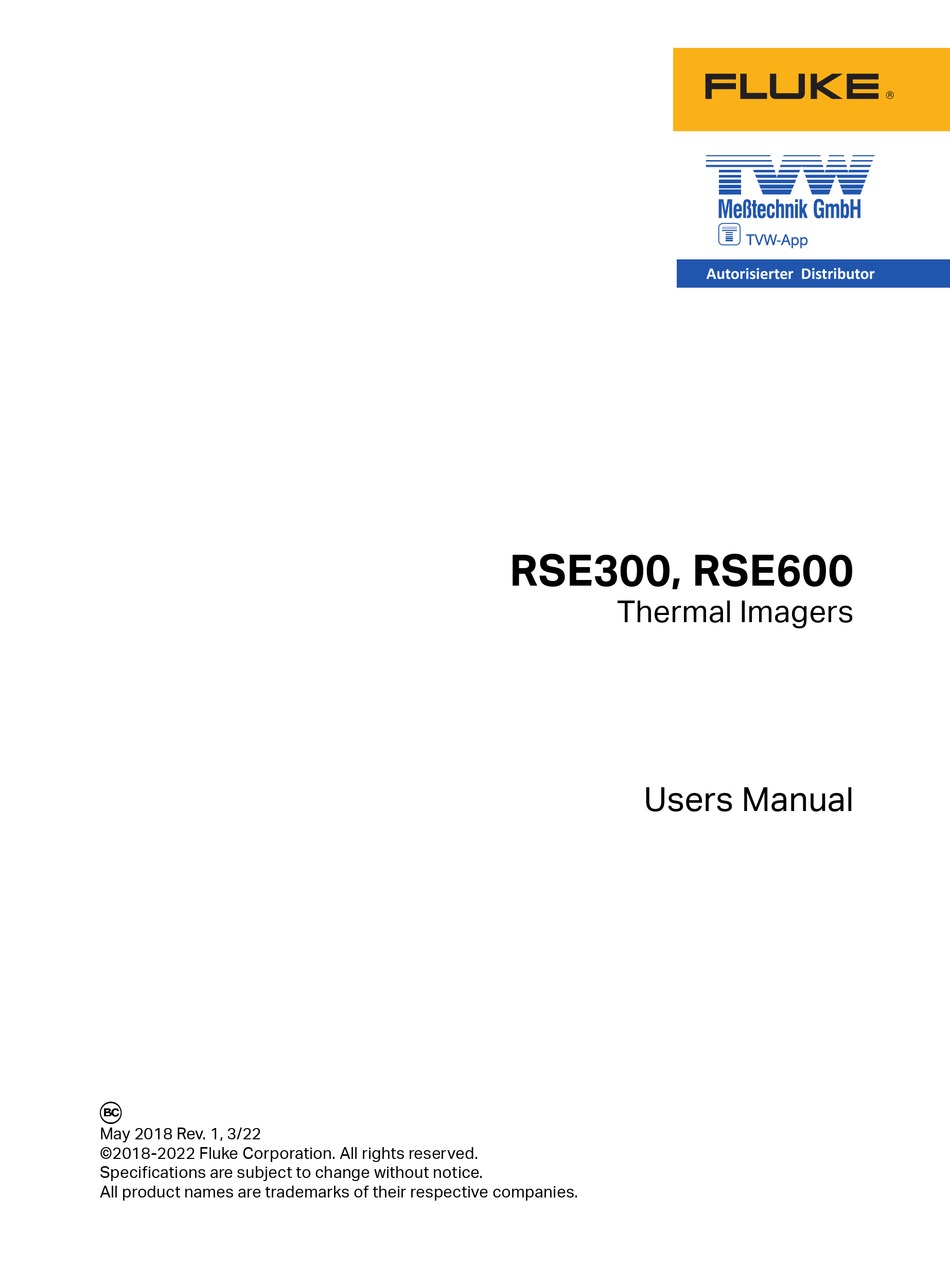

- Page 1 Autorisierter Distributor RSE300, RSE600 Thermal Imagers Users Manual É May 2018 Rev. 1, 3/22 (English) ©2018-2022 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
- Page 2 Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price.
-
Page 3: Table Of Contents
Table of Contents Introduction........................... Contact Fluke ..........................Safety Information........................Specifications ..........................Product Familiarization ......................Features..........................LED Indicator ........................Operation ............................SmartView R&D Software ......................Accessories ..........................Optional Lenses........................... Maintenance ..........................Clean the Case ........................Lens Care .......................... - Page 4 RSE300, RSE600 Users Manual...
-
Page 5: Introduction
Introduction The RSE300 and RSE600 Thermal Imagers (the Product or Imager) are stationary, infrared imaging cameras for use in many applications. These applications include equipment troubleshooting, preventive and predictive maintenance, building diagnostics, and research and development. The Imager can stream live infrared and IR-Fusion technology video to a PC that has SmartView R&D software installed. -
Page 6: Product Familiarization
RSE300, RSE600 Users Manual Product Familiarization Features Table 1 lists the features of the Product. Table 1. Features Item Description Item Description LED indicator (See Lens cover Indicator) Visual light lens M16 DC power jack M12 ethernet and power over Infrared lens ... -
Page 7: Led Indicator
Ethernet cable to the Ethernet switch and the engine. the M12 connector end to the Product. If the problem persists, see Contact Fluke. Solid red Over ambient temperature. Move the Product to a cool location. Flash memory update is in Blinking green progress. -
Page 8: Operation
Note All thermal imagers need sufficient warm-up time for accurate temperature measurements and best image quality. Fluke recommends a warm-up period of 60 minutes for optimal performance. To set up the Product: 1. Attach the antenna. - Page 9 Thermal Imagers Operation 4. Connect the RJ45 connector end of the ethernet cable to the ethernet jack on the PC. See Figure 5. Connect the AC plug of the M16 DC power cable (15 V dc) to a power outlet and the M16 connector to the Product.
-
Page 10: Smartview R&D Software
RSE300, RSE600 Users Manual SmartView R&D Software SmartView R&D desktop software provides the ability to stream, analyze, and export radiometric video as well as create professional reports. SmartView R&D desktop software features: Radiometric video streaming Radiometric video or image creation ... -
Page 11: Optional Lenses
Optional Lenses Use optional lenses for more applications of infrared inspection work. Figure 3 shows how to install a lens. Figure 3. Optional Lens Installation For more information about optional lenses, go to www.fluke.com and search with the description in Table... -
Page 12: Maintenance
RSE300, RSE600 Users Manual Maintenance Cleaning and lens care are the only maintenance required to the Product. Clean the Case Clean the case with a damp cloth and a weak soap solution. Do not use abrasives, isopropyl alcohol, or solvents to clean the case.
