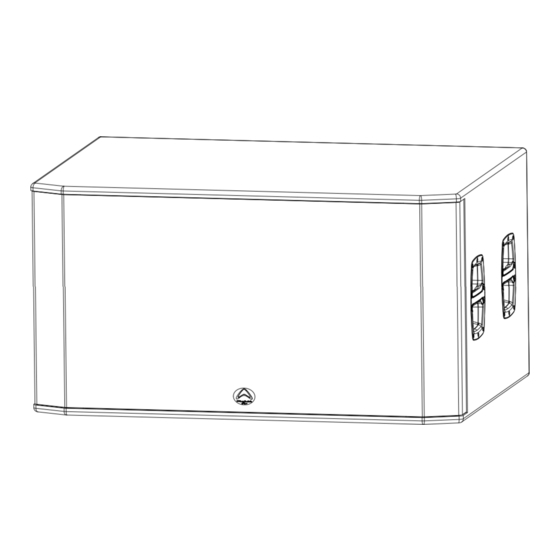

- Page 1 Reason SERIES Passive Loudspeakers Reason-X18B Reason-X218 Reason-X12 Reason-X15 www.wharfedalepro.com...
- Page 2 TABLE OF CONTENTS Important warnings & safety instructions ………………………………….1 Product features .………………………….……………………………………….2 - 3 Dimensional drawings ...…………………………………..………………………4 - 5 Specifications ...…………………………………………………………..…………6 - 7...
-
Page 3: Important Warnings & Safety Instructions
Warranty nullification could result if this is attempted. 9. UNPACKING - All Wharfedale Pro products are fully checked before leaving our factory. After unpacking please inspect the cabinets for any physical damage Please retain the shipping carton if possible and internal packing material incase the unit ever needs to be returned. -
Page 4: Product Features
Reason-X is a versatile loudspeaker for live performance or permanently installed audio reproduction and is built around the vast experience of the Wharfedale Pro design team. The high frequency compression driver is unique. Delivering a spacial feel to the high frequencies due it its efficient neodymium magnet. - Page 5 Reason-X is a versatile loudspeaker for live performance or permanently installed audio reproduction and is built around the vast experience of the Wharfedale Pro design team. The high frequency compression driver is unique. Delivering a spacial feel to the high frequencies due it its efficient neodymium magnet.
-
Page 6: Dimensional Drawings
DIMENSIONAL DRAWINGS Reason-X18B 560.0 Reason-X218B 1065.0... - Page 7 DIMENSIONAL DRAWINGS Reason-X12 46.0 258.0 350.0 46.0 258.0 Reason-X15 46.0 338.0 430.0 46.0 338.0...
-
Page 8: Specifications
SPECIFICATIONS Model Name Reason-X18B Reason-X218B System Type Passive Passive Configuration Single Subwoofer Dual Subwoofer Frequency Response (+/-3dB) 35Hz - 1kHz 30Hz - 1kHz Frequency Range (-10dB) 30Hz - 800Hz 25Hz - 800Hz Sensitivity (2.83v/1m) 103dB 109dB Calculated Maximum SPL @1m... - Page 9 SPECIFICATIONS Model Name Reason-X12 Reason-X15 System Type Passive Passive Configuration Three-way Three-way Frequency Response (+/-3dB) 55Hz - 20kHz 45Hz - 20kHz Frequency Range (-10dB) 50Hz - 20kHz 40Hz - 20kHz Sensitivity (2.83v/1m) 98dB 99dB Calculated Maximum SPL @1m 131dB 133dB System Rated Impedance 8Ω...
- Page 10 IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK www.wharfedalepro.com Wharfedale Professional reserves the right to alter or improve specifications without notice. All rights reserved © 2023 Wharfedale Pro. Wharfedale Pro is a member of the IAG Group. April 2023...
