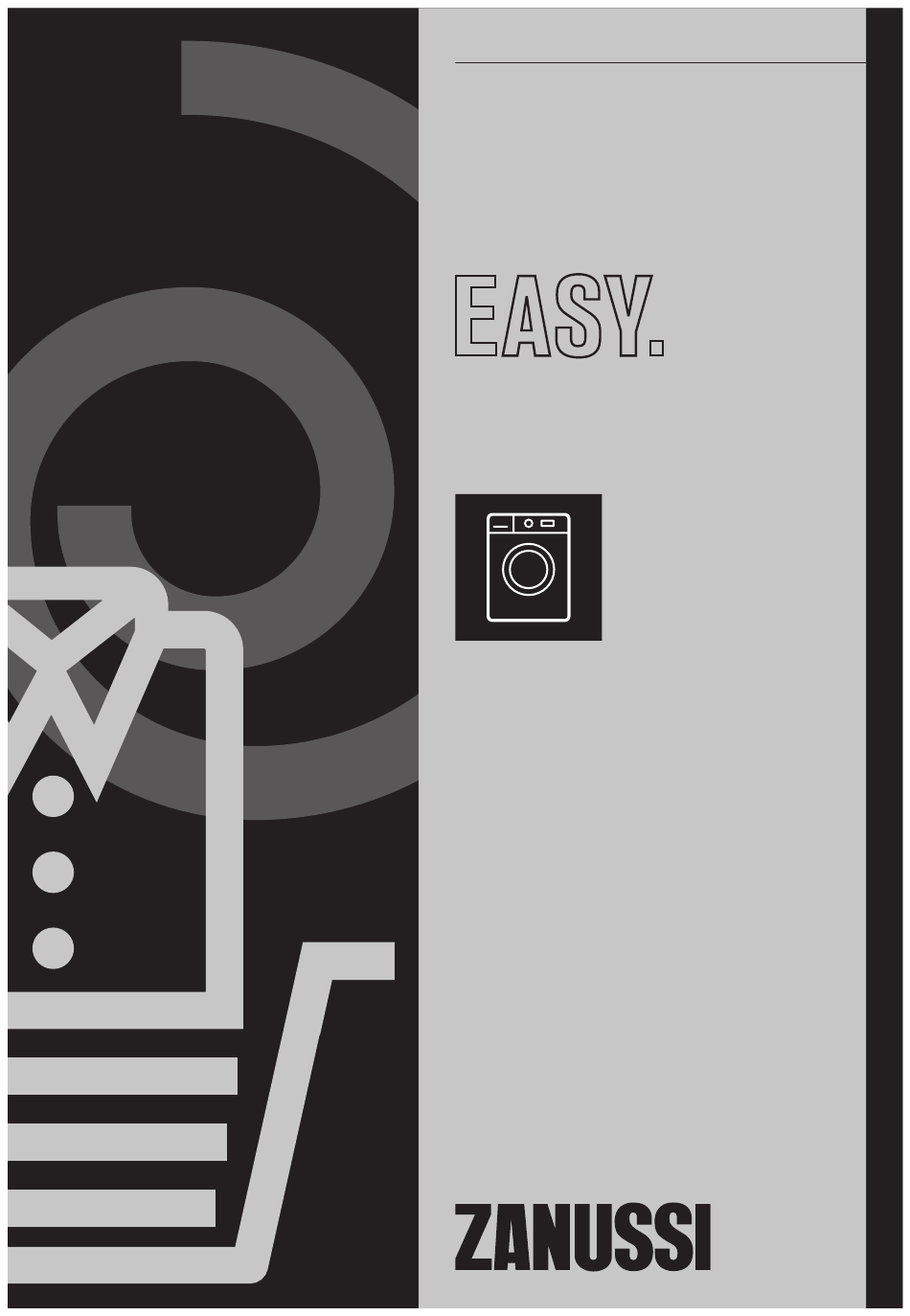

- Page 1 User Manual GETTING STARTED? EASY. ZWF842C3PW EN User Manual Washing Machine...
-
Page 2: Safety Information
VISIT OUR WEBSITE TO: Get usage advice, brochures, trouble shooter, service and repair information: www.zanussi.com/support SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. -
Page 3: Safety Instructions
This appliance is designed for single household domestic use • in an indoor environment. This appliance may be used in, offices, hotel guest rooms, bed • & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels. -
Page 4: Electrical Connection
• Do not install or use the appliance where the • Before connection to new pipes, pipes not used temperature can be less than 0°C or where it is for a long time, where repair work has been exposed to the weather. carried out or new devices fitted (water meters, •... -
Page 5: Product Description
motor and motor brushes, transmission between to signal information about the operational motor and drum, pumps, shock absorbers and status of the appliance. They are not intended to springs, washing drum, drum spider and related be used in other applications and are not ball bearings, heaters and heating elements, suitable for household room illumination. -
Page 6: Technical Data
The rating plate reports the model name (A) , product number (B), electrical ratings (C) and serial number (D). Mod. xxxxxxxxx Prod.No. 910000000 00 000V ~ 00Hz 0000 W 00000000 TECHNICAL DATA Dimension Width/ Height/ Total depth 59,6 cm /84,7 cm /57,6 cm Electrical connection Voltage 230-240 V... -
Page 7: Information For Installation
INFORMATION FOR INSTALLATION CAUTION! Do not lay washing machine on its front. Positioning and levelling Adjust the appliance correctly to prevent vibration, 3. Put the appliance back into an upright position. noise and movement of the appliance when it Remove the power supply cable and the drain operates. - Page 8 The drain hose should stay at a height of no less 4. To a stand pipe with vent hole - Insert the drain than 60 cm and not more than 100 cm. hose directly into a drain pipe. Refer to the illustration.
-
Page 9: Installation On Suspended Flooring
FIXING PLATE KIT If you install the appliance on a plinth that is not an accessory supplied by ZANUSSI, secure the appliance in the fixing plates. Read carefully the instructions supplied with the accessory. -
Page 10: Special Features
CONTROL PANEL SPECIAL FEATURES • This appliance is designed with a self cleaning draining system, allowing light fluff fibers that Your new washing machine meets all modern fall off the clothes to be drained out with the requirements for an effective treatment of laundry water, in such a way that there is no need by the with low water, energy and detergent consumption customer to access this area for regular... -
Page 11: Dial And Buttons
DISPLAY Door locked indicator. Delay start indicator. The digital indicator can show: • Programme duration (e. g. • Delay time (e. g. • Cycle end ( • Warning code (e.g. FlexiTime bars level indicator. Drum clean indicator. Child safety lock indicator. Add garments indicator. -
Page 12: Permanent Extra Rinse
• Use this option to add a pre-wash phase at TEMP. 30 °C before the washing phase. When you select a washing programme, the This option is recommended for heavily soiled appliance automatically proposes a default laundry, especially if containing sand, dust, mud temperature. -
Page 13: Programme Chart
suitable for a full load of normally soiled garments. a quick cycle for a smaller lightly soiled garments (max. half load recommended). the shortest cycle to freshen up a small amount of laundry. The FlexiTime is available only with the programmes in the table. - Page 14 Reference spin Programme speed Programme description Default temperature Maximum load Spin speed (Type of load and level of soiling) Temperature range range Denim 800 rpm 3 kg Special programme for Denim clothing 30 °C (1200 - 800 with delicate washing phase to mini- 40 °C - Cold rpm) mize colour fading and marks.
- Page 15 Reference spin Programme speed Programme description Default temperature Maximum load Spin speed (Type of load and level of soiling) Temperature range range 60min EasyWash 1400 rpm 5 kg Cotton and fast-coloured synthetic items. 30°C (1400- 800 Complete washing program that, in only 60 60°C - 30°C rpm) minutes, washes the daily soiled laundry in-...
-
Page 16: Acoustic Signals
Programme ■ ■ ■ 14min Refresh ■ ■ ■ 30min Rapid ■ ■ ■ ■ ■ 60min EasyWash Suitable detergents for washing programmes Liquid for col- Delicates Programme Liquid Universal Special Universal powder oureds woollens ▲ ▲ ▲ Eco 40-60 ▲... -
Page 17: Before First Use
To activate/deactivate this option, hold down the If you deactivate the acoustic signals, Easy Iron button until comes on/goes off on they continue to operate when the the display. appliance has a malfunction. The appliance will default to this option after you switch it off. -
Page 18: Setting A Programme
Compartment for prewash phase, soak programme or stain remover. Compartment for washing phase. Compartment for liquid additives (fabric conditioner, starch). Maximum level for quantity of liquid additives. Flap for powder or liquid detergent. 3. To use liquid detergent, adjust the flap in right Always follow the instructions that you position, turn the flap down. - Page 19 The indicator of the Start/Pause button flashes. 3. Touch the Delay Start button repeatedly The display shows an indicative programme until the display shows and the indicator duration. goes off. 2. To change the temperature and/or the spin 4. Touch the Start/Pause button again to start speed, touch the related buttons.
- Page 20 1. Press button ON/OFF to deactivate the If the AutoAdjust System has appliance. completed and the water filling has After five minutes from the end of the programme, already started, the new programme the energy saving function automatically starts without repeating the deactivates the appliance.
-
Page 21: Hints And Tips
The display shows the end of the last If you set a programme or an option programme. that ends with water in the drum, the Turn the programme dial to set a new cycle. Stand-by function doesn't If the dial is rotated to the "Reset" position , the deactivate the appliance to remind appliance automatically turns off in 30 seconds. -
Page 22: Ecological Hints
• The choice and quantity of detergent will • Normally soiled laundry may be washed depend on: type of fabric (delicates, woollens, without prewash in order to save detergent, cottons, etc), the colour of clothes, size of the water and time (the environment is protected load, degree of soiling, wash temperature and too!). - Page 23 • Make sure that the water tap is open. • Make sure that the pressure of the water supply is not too low. For this The appliance does not information, contact your local water authority. fill with water properly. • Make sure that the water tap is not clogged.
- Page 24 Problem Possible solution • Set the spin programme. The spin phase does • This problem may be caused by the clogged drain circuit. Please con- not operate or the tact the Authorised Service Centre. washing cycle lasts lon- • Adjust manually the items in the tub and start the spin phase again. ger than usual.
-
Page 25: Care And Cleaning
CARE AND CLEANING WARNING! Refer to Safety chapters. CAUTION! Do not clean the metal surfaces with chlorine-based detergent. PERIODIC CLEANING SCHEDULE DESCALING Periodic cleaning helps to extend the life of your appliance. If the water hardness in your area is After each cycle, keep the door and the detergent high or moderate, we recommend that dispenser slightly ajar to get air circulation and dry... - Page 26 3. Add a small quantity of powder detergent into the empty drum, in order to rinse out any left residues. Door seal with double lip trap This appliance is designed with a self cleaning draining system, allowing light fluff fibers that fall off the clothes to be drained out with the water.
-
Page 27: Troubleshooting
45° 20° EMERGENCY DRAIN 3. Put the two ends of the inlet hose in a container and let the water flow out of the If the appliance cannot drain the water, carry out hose. the same procedure, described in 'Cleaning the 4. - Page 28 LEGEND Laundry load. hh:m Programme duration. Energy consumption. °C Temperature in the laundry. Litres Water consumption. Spin speed. Remaining moisture at the end of spinning phase. The higher is the spin speed, the higher is the noise and the lower is the remaining moisture. Values and programme duration may differ depending on different conditions (e.g.
-
Page 29: Environmental Concerns
Programme Litres hh:mm °C Cottons 1.650 85.0 2:55 52.00 55.0 1400 60°C Cottons 0.400 85.0 2:55 52.00 20.0 1400 20°C Synthetics 0.650 55.0 2:00 35.00 40.0 1200 40°C Delicates 0.300 45.0 1:20 35.00 30.0 1200 30°C Wool 0.300 65.0 1:05 30.00 30.0 1200... - Page 32 WWW.ZANUSSI.COM/SHOP...
