Summary of Contents for DigiTech DTK5
- Page 1 Manual BC281 Model(DTK5) Version: V1.0...
-
Page 2: Table Of Contents
Shenzhen Digitech Co., Ltd. BC281 Manual Contents ◼ Product Description and Specifications ............... 3 ⚫ Parts Description ..................3 ◼ Function introduction ..................4 ⚫ Features ....................4 ⚫ Buttons Functions ..................4 ◼ Operation ....................5 ⚫ Power on/off .................... 5 ⚫... -
Page 3: Product Description And Specifications

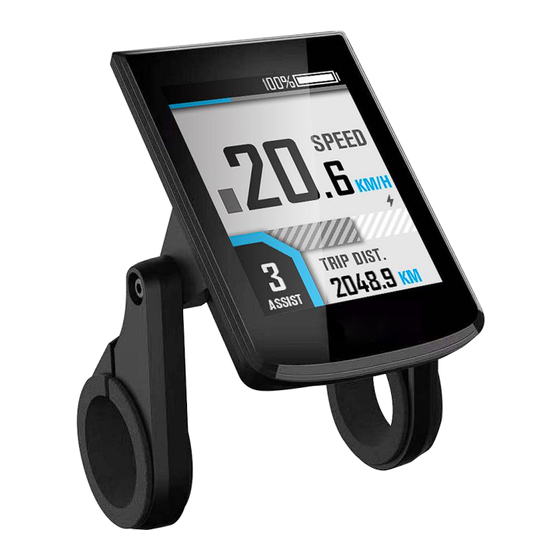

Shenzhen Digitech Co., Ltd. BC281 Manual ◼ Product Description and Specifications DTK5 Remote BC281 Display ⚫ Parts Description Display Dimensions Shenzhen Digitech Co., Ltd. www.riding-evolved.com... -
Page 4: Function Introduction
Shenzhen Digitech Co., Ltd. BC281 Manual DTK5 Remote Dimensions ◼ Function introduction ⚫ Features BC281 supports the common riding parameters and statistical results, as well as some useful functions: ◆ Real-time speed, Max speed, Average speed ◆ Real-time motor power ◆... -
Page 5: Operation
Shenzhen Digitech Co., Ltd. BC281 Manual 1、Parameter adjustment 2、Push mode on/off 3、Menu operation ◼ Operation ⚫ Power on/off Long press the [ ] button to power on, the boot interface will be shown for about 1.5s, followed by the riding interface:... - Page 6 Shenzhen Digitech Co., Ltd. BC281 Manual BC281 provides various styles of riding interface, which can be switched by clicking the [ ] button: 1. Simple mode Battery indicator Light indicator Real-time speed Speed unit Real-time motor power Assist level Trip distance 2.
-
Page 7: Assist Level Switch
Shenzhen Digitech Co., Ltd. BC281 Manual ⚫ Assist level switch Click [ ] or [ ] to switch assist levels; Press and hold the [ ] button to enter the push mode, and release to exit. ⚫ Error Code Common error codes are as follows(Only for reference, depending on other electrical parts of the... -
Page 8: User Menu
Shenzhen Digitech Co., Ltd. BC281 Manual ⚫ User Menu To enter the user menu, please long press the [ ] button for 2s on the riding interface when static. To ensure the user’s safety, it can only be accessed when static (when the speed is 0). In this interface, you can switch the submenu by clicking the [ ] or [ ] button, and enter the submenu by clicking the [ ] button 1、... - Page 9 Shenzhen Digitech Co., Ltd. BC281 Manual [Note] The trip time, max speed, average speed, and calories burnt will be also cleared by this operation. （2）Factory Reset Select "Factory Reset" and click the [ ] button to enter it, you can reset the parameters: 2、...
- Page 10 Shenzhen Digitech Co., Ltd. BC281 Manual （1） Auto Headlight Select Auto Headlight and click the [ ] button to enter the submenu, you can enable or disable the automatic headlight function: （2） Set Unit Select Set Unit and click the [ ] button to enter the submenu, you can select the unit: （3）...
- Page 11 Shenzhen Digitech Co., Ltd. BC281 Manual （4） Set Auto Power-Off Select Auto Power-Off and click the [ ] button to enter the submenu. You can use the [ ] or [ ] button to adjust the automatically power off time in the range of 0-99, where 0 means not to automatically power off: 3、...
-
Page 12: Connect To App (Only For Bluetooth Version)
Shenzhen Digitech Co., Ltd. BC281 Manual ⚫ Connect to APP (only for Bluetooth version) 1、 Scan the following QR code to download the APP: 2、 Select Connect to APP in the user menu to get the Bluetooth connection QR code, and scan it with the APP to connect: Shenzhen Digitech Co., Ltd. -
Page 13: Attentions
Shenzhen Digitech Co., Ltd. BC281 Manual ◼ Attentions 1. Be sure to power of first before connecting and disconnecting the cable, or the display will be totally damaged; screwdriver 2. When fix the display to the ebike, please ensure that the torque of the is about 0.2Nm...
