- Page 1 NSS evo3S Quick Guide...
-
Page 2: Front Panel

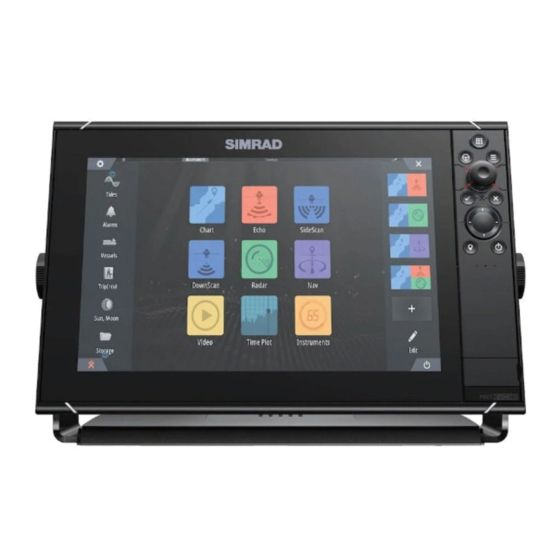

NSS evo3S Quick Guide Front panel Touch Screen Pages/Home key • Press to open the Home page for page selection and setup options. Wheel key user configurable key. Refer to the Operator manual. Default without an autopilot connected to the system: •... - Page 3 MOB keys • Press simultaneously the Enter and Exit keys to create a MOB (Man Over Board) at the vessel’s position. Arrow keys • Press to activate cursor or to move cursor. • Press to navigate through menu items and to adjust a value. Mark key •...
-
Page 4: System Controls Dialog
System Controls dialog Used for quick access to system settings. Activate the dialog by: • Pressing the System Controls button. • Swiping from the top of the screen. • Pressing the Power key. ¼ Note: The content of the System Controls dialog depends on connected equipment and active panel. - Page 5 • Move the view in any direction by panning the chart. • Display information about a chart item by tapping the item. Waypoints To create a waypoint: • Press the Mark key to instantly add a waypoint. • Select the new waypoint option in the menu. ¼...
