LG KP100 User Manual

KP100_TCI_0616 2010.6.16 4:4 PM Page 1
KP100 USER GUIDE
This manual may differ from the phone depending
on the phone software version and service provider used.
P/N: MMBB0156626(1.0)
Turning Your Phone On and Off
1. Hold down the [END] key until the phone switches on.
2. To switch the phone off, hold down the [END] key until the power-off image displays.
Making a Call
1. Enter a phone number including the area code.
2. Press the [SEND] key to call the number.
3. When finished, press the [END] key.
Answering a Call
1. When the phone rings and the phone icon flashes on the screen, press the
or the left soft key to answer.
2. End the call by pressing the [END] key.
Note
›
After the call ends, the phone will go back to standby mode.
Making an international call
1. Press and hold the key for the international prefix. The '+' character automatically
selects the international access code.
2. Enter the country code, area code, and the phone number.
3. Press [send] key to call the number.
How to set the tone
Ringtone
1. Press the left soft key [Menu] and select [Settings - Profiles] press [OK]. Using the
up/down navigation keys select any of the profiles then press[ OK].
2. Select [Personalise] and choose Ringtones menu.
3. Press the left soft key [OK] and then you can set the desired ringtone.
Tip
›
If you want to change your ringer to vibrate, select Vibrate mode or press and hold the
key in the idle screen.
Ringtone/Keypad/Message/Call alert tones and volumes
You can select Ringtone/Keypad/Message/Call alert tones and volumes.
You can change the sound that will occur when a key is pressed, or volume level.
[Menu - Settings - Profiles - Personalise]
Installing the SIM Card and Charging the Battery
Installing the SIM Card Illustrations
When you subscribe to a cellular network, 1 Open battery cover
you are provided with a plug-in SIM card Remove the battery
2
loaded with your subscription details, such as
3 Insert your SIM
your PIN, any optional services available and
4 Insert your battery
many others.
5 Close your battery cover
Important!
6 Charge your battery
›
The plug-in SIM card and its contacts can be
easily damaged by scratches or bending, so be
careful when handling, inserting or removing
the card. Keep all SIM cards out of the reach
of small children.
›
USIM is not supported in a phone.
1 2
4 5
Fully charge the
battery before using it for the first time.
Menu and Options
Your phone offers a set of functions that allow you to customize it. These functions are
arranged in menus and sub-menus, accessed via the left and right soft keys.
The label on the bottom of the display screen immediately above the soft keys indicates their
current function.
Menu Favourites
Menu Favourites
[SEND] key
Press the right soft key to
Press the left soft key to
access the available
access the available Menu.
Favourites.
Menu tree
1. Contacts 3. Call history
1.1 Search
3.1 All calls
1.2 New contact
3.2 Missed calls
1.3 Speed dials
3.3 Dialled calls
1.4 Copy all
3.4 Received calls
1.5 Delete all
3.5 Call duration
1.6 Memory status
4. Tools
1.7 Information
4.1 Alarm
2. Messaging
4.2 Games
2.1 New message
4.3 Calendar
2.2 Inbox
4.4 Memo
2.3 Drafts
4.5 Calculator
2.4 Outbox
4.6 Stopwatch
2.5 Sent
4.7 Unit Converter
2.6 Listen voice mail
4.8 World clock
2.7 Info messages
2.8 Templates
2.9 Settings

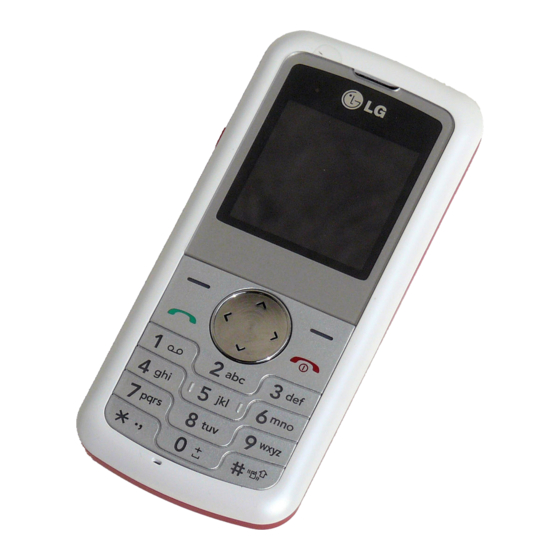

Phone Components
Earpiece
Display screen
: Send key
3
You can dial a phone number
and answer incoming calls.
Alphanumeric keys
These keys are used to dial a
number in standby mode and
to enter numbers or characters
in edit mode.
Entering Text
You can enter alphanumeric characters by using the phone's keypad. To change modes, press
the key.
T9 Mode
This mode allows you to enter words with only one keystroke per letter. Each key on the
keypad has more than one letter. The T9 mode automatically compares your keystrokes with
an internal linguistic dictionary to determine the correct word, thus requiring far fewer
keystrokes than the traditional ABC mode.
ABC Mode
This mode allows you to enter letters by pressing the key labeled with the required letter once,
twice, three or four times until the letter is displayed.
123 Mode (Numbers Mode)
Type numbers using one keystroke per number.
Symbol Mode
This mode allows you to enter special characters by pressing
Quick feature reference
This section provides brief explanations of features on your phone.
5. Settings
Contacts
Menu 1
5.1 Profiles
5.2 Date & Time
Search You can Search for contacts in Phonebook.
5.3 Language
Note: Instant searching is available by inputting the initial letter of the name
5.4 Display
you want to search.
5.5 Call
New contact You can add phonebook entries by using this menu.
5.6 Auto keylock
5.7 Security
Speed dials Assign contacts to any of keys from
5.8 Power save
Copy all You can copy all entries from SIM card memory to Phone memory and
5.9 Network selection
also from Phone memory to SIM card memory.
5.0 Reset settings
Delete all You can delete all entries from SIM card memory or Phone memory.
5.* Memory status
Memory status You can check free space and memory usage.
›
Information Service dial numbers: Access the list of service numbers assigned by
service provider safely.
›
Own number: You can save and check your own numbers in SIM card.
›
Business card: This option allows you to create your own business
card featuring your name, mobile phone number and so on.
Display Information
Icon area
Text and graphic area
Menu Menu Favorites Favorites
Soft key indications
Soft keys
Each of these keys performs
On-Screen Icons
the functions indicated by the
text on the display The table below describes various display indicators or icons that appear on the phone's
immediately above them.
display screen.
Tells you the strength of the network signal.
Call is connected.
Shows that you are using a roaming service.
The alarm has been set and is on.
: End /Power key
Allows you to power the
Tells you the status of the battery.
phone on or off, end calls, or
You have received a text message.
return to Standby Mode.
You have received a voice message.
: Navigation key
Vibrate only menu in profile.
Use for quick access to phone
General menu in profile.
functions.
Outdoor menu in profile.
Silent menu in profile.
Headset menu in profile.
You can view your schedule.
Lost Mobile Track (LMT)
1. The LMT feature of this phone provides you with the ability to have a tracking system in
place for your mobile in case you loose or misplace it.
2. The moment an un-authorized user uses your phone, a SMS is triggered from your phone
and the message is send to your pre-defined number.
3. Setting the LMT ON [Menu 7.5.x]
›
A List of tools are displayed.
›
Select Lost Mobile track
›
Enter Default LMT code.
›
Select Set LMT
›
Select ON, press OK
Note
›
In case you want to use your phone with some other SIM card, make sure to set the
LMT feature OFF.
›
It is recommended to enter the pre-defined number with the country code ( e.g. for
INDIA +91 followed by mobile number)
›
Default LMT code is "0000".
key.
Messaging
Menu 2
This menu includes functions related to SMS (Short Message Services).
New message This menu includes functions related to SMS (Short Message Services).
You will be alerted when you have received a message.
Inbox
Drafts This menu shows the preset message list.
Outbox This menu allows to view the message which is about to be sent or has
failed to be sent.
Sent This menu allows you to view the messages which have already been
to .
sent, including time and content.
Listen voice mail This menu provides you with a quick way of accessing your voice
mailbox (if provided by your network).
Info messages Info service messages are text messages delivered by the network to
your handset.
Templates There are pre-defined messages in the list. You can view and edit the
template messages or create new messages.
Settings This menu allows you to set features of your network service provider.
