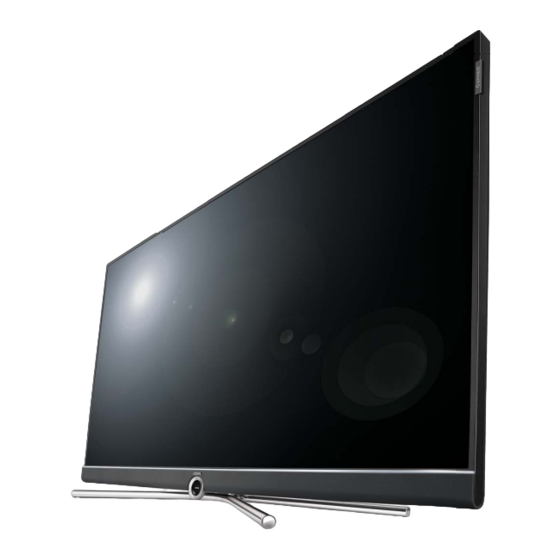

- Page 1 Connect Connect 55 Connect 48 Connect 40 Connect 32 User guide...
-
Page 2: Table Of Contents
Connect 32-55 User guide Table of contents Welcome! ..................3 Video ................... 29 Scope of delivery ..................3 Video playback ....................30 Imprint ......................3 Additional functions for DR+ archive playback ........31 About this user guide ................... 3 Audio/Radio ................32 For your safety ................4 Audio playback ...................33 Technical information .................. -
Page 3: Welcome
This user guide gives you a short overview of all functions and The necessary control elements are shown in the descriptions to the features of your new Loewe TV set. A detailed user manual file can left of the text containing the instructions for action. -
Page 4: For Your Safety
Always wear rubber gloves to carry the TV set if the LCD screen is Please use the Loewe 3D TV sets only with the Loewe 3D glasses which damaged and liquid crystal might be leaking out. In the case of skin can be purchased as an accessory from your Loewe dealer. -
Page 5: Technical Information
Hard disks. over long periods and when using headphones. Loewe are not liable for the loss of data on the integrated hard disk of your TV set. To avoid data loss, we recommend copying important Thunder storms recordings to an external storage medium. -
Page 6: Remote Control Button Mapping
Connect 32-55 User guide Remote control Remote control button mapping Depending on the selected operating mode (TV/Video/Audio/Photo/Web) and function (e.g. DR+, EPG, PIP, Teletext, HbbTV, etc.), the key assignment may differ from the assignment described here (see the corresponding chapter in this user manual). Sound mute/on. -
Page 7: Operating Controls On The Tv Set
(EPG data updating, software update or DR+ streaming server function). Infrared transmitter: When showing 3D content , the 3D glasses Loewe Active Glasses 3D are controlled via the infrared sensor. Automatic dimming depending on the room brightness (OPC) must be activated (System settings Picture more ... -
Page 8: Connections Rear Side Of The Device
Connect 32-55 User guide Connections rear side of the device Position and function of the connections 5444xx50 54443x51 Slot for Kensington lock HEADPHONE - Headphone connection Jack 3,5 mm – Headphones 32–200 Ohm AC IN - Mains connection Mains socket – 220-240 V ~ 50 / 60 Hz HDMI 3 - HDMI input 3 HDMI type A 1.4b–... -
Page 9: Preparing The Tv Set
Connect the TV set to a 220-240V mains socket: Your Loewe dealer can assist you in finding other mounting options First plug the smaller plug (small connector) of the power cord into that suit your needs. -
Page 10: Switching The Tv Set On/Off
WLAN antenna. The indicator in the control panel on the front side lights up white. The In order to play back data from your home network your Loewe TV set is now in standby mode. supports the UPnP AV standard. -
Page 11: General Information On The Operation
Connect 32-55 User guide General information on the operation General information on the operation Structure of the Menu screen Basically, the structure of the different menu screens is similar, The most important keys for navigation will be explained in general. regardless of whether it is e.g. - Page 12 3D settings menu. You may display the 3D image in 2D or vice versa. Brightness Enter/change internet address Back Colour in- tensity http://www.loewe.tv Image+ Active Picture for- more ... www. .com .net...
-
Page 13: On-Screen Displays
Connect 32-55 User guide On-screen displays Operation without remote control Explanation of keys Operation without remote control An explanation of the main operating keys that can be used at the Changing Volume moment, can be displayed. The availability of the key explanation is dependent on the currently + / –... -
Page 14: Initial Installation
Connect 32-55 User guide Initial installation Initial installation wizard Energy Home mode: efficiency The emphasis for home use is on low energy (continued) Initial installation after switching on for the first time consumption. The automatic dimmer is activated. The Initial installation wizard starts automatically with an initial instal- Premium mode: lation. -
Page 15: Home View
ProSieben kabel eins arte HD Photo THE LIBERATION OF ART P+/P– Scrolling through the individual pages. Loewe channel LUMAS YouTube System settings Editing favourites Select menu item / Favourite / Source, You can edit the existing favourites in Home view. Change the OK call. -
Page 16: Setting The Volume
Connect 32-55 User guide Volume / Station Selecting a station out of the station list In normal TV mode, without other displays: In TV mode that can be selected via the Home overview, you can use the basic TV functions of your TV set. In TV mode you will have numer- OK Call station list. - Page 17 Connect 32-55 User guide Stations Selecting stations by means of the expanded station list Selecting stations by personal lists You can save your preferred stations in up to six personal lists (e.g., In normal TV mode, without other displays: for several users). Each personal list can contain up to 99 stations. OK Call station list, call function list.
-
Page 18: Status Display
Virtual speaker (VS mode) developed by Dolby is activated for the HDTV programme. virtual sound reproduction in sound mode (4) and (5). In sound mode (3), proprietory settings of Loewe are used for the virtual HbbTV mode available from this station. reproduction. -
Page 19: Function List (Tv Mode)
Connect 32-55 User guide Function list / AV list Function list (TV mode) Explanations of the symbols in the function list (continued): Call Edit station list. The function list contains settings and additional options. Die individual Delete stations, shift stations, restore deleted stations. List items will be briefly explained as follows: Menu item is displayed only when the function list for the The function list can be opened for the current station or the selected... -
Page 20: Electronic Programme Guide - Epg
Connect 32-55 User guide Electronic Programme Guide Electronic Programme Guide – EPG Adapting the EPG Overview The options to be selected are in the header, EPG stands for Electronic Programme Guide and provides you with if not, press MENU key. on-screen programme details. -
Page 21: Picture In Picture (Pip)
Connect 32-55 User guide Electronic Programme Guide / PIP Meaning of the colours in the EPG Picture in Picture (PIP) The coloured labels indicate the genre of the respective programme. The concurrent display of two different images is referred to as Picture When filtering with genre selection in the header, the programmes of in Picture. -
Page 22: Teletext
Connect 32-55 User guide Teletext Teletext Additional page selection possibilities First possibility: Your TV set supports the two operating systems TOP text and FLOF. Up to 2000 pages are stored in order to get quick access. INFO: Call overview page 100. Second possibility: Starting and ending Teletext Directly enter the page number. -
Page 23: Hbbtv / Mediatext
Under certain circumstances, the recording and bookmarking functions of the applications may not be supported. Loewe do not guarantee the accessibility, functionality or content of HbbTV applications. Hide / Close HbbTV application BACK: Hide / Close HbbTV application. -
Page 24: Digital Recorder
TV Programmes that you wish to watch at a later date can be recorded in set with the digital recorder of your Loewe TV set. the Digital Recorder Archive (DR+ archive) The TV broadcast that you watch is automatically recorded in the A recording can be made manually (instant recording / direct background. -
Page 25: Multi Recording
Connect 32-55 User guide Digital Recorder Time shift viewing during archive recording Multi recording PAUSE key: Switch to freeze picture. The Multi Recording function makes it possible to record two programmes at the same time and still watch a third one as well. The recording is continued in the background. -
Page 26: Dr+ Archive
Export Copy/move archive entries to an externally con- Open the DR+ archive nected USB storage device or to the hard disk of compatible Loewe TV sets in the home network. Open the DR+ archive. If no target medium is available, the menu item is Select the desired DR+ archive if several available, shown in dark grey. -
Page 27: Dr + Streaming
The TV sets also need to be connected via a network (wireless To use DR + streaming, at least two Loewe TV sets are required, of connection via WLAN or cable connection via Ethernet, PowerLine). -
Page 28: Mobile Recording
In the last step it is checked whether the email account is accessible If a record command is sent by the Loewe Assist Smart App, this with the set data. command reaches a connecting server. -
Page 29: Video
Connect 32-55 User guide Video Video Video function list The video function list contains the individual functions for your videos. The item Video gives you access to videos from local (USB, home network) and online sources. A video source has been selected. The menu items available in the function list depend High definition movie material (HD movies) from format 720p on the currently marked object (data source,... -
Page 30: Video Playback
Connect 32-55 User guide Video Video playback Symbol Remote Description (icon) control key The description of the following functions applies to the playback of videos from the DR+ archive as well as for videos from USB storage – Start DR+ Follow-Me recording. media or from media servers in the home network. -
Page 31: Additional Functions For Dr+ Archive Playback
Connect 32-55 User guide Video Pause playback (freeze picture) Additional functions for DR+ archive playback PAUSE key: Switch to freeze picture. There are additional editing and playback functions for playback of recorded programmes from the DR+ archive. PLAY key: Continue playback. Setting bookmarks Jump To retrieve interesting scenes in a movie later, you can manually set the... -
Page 32: Audio/Radio
Connect 32-55 User guide Audio/Radio Audio/Radio Audio/Radio function list The audio/radio function list contains the individual functions for your With item Audio/Radio you find music files from your USB storage music titles. media and media servers in the home network and you access DVB An audio source has been selected. -
Page 33: Audio Playback
Connect 32-55 User guide Audio/Radio Audio playback Pause playback PAUSE key: Halt current playback. Description of the symbols in the status display for audio playback PLAY key: Continue playback. Snow Patrol / Eyes Open Back Winding You can fast forward music titles at four different speeds. Sound is not audible during winding. -
Page 34: Radio Mode (Dvb Radio)
Connect 32-55 User guide Audio/Radio Radio mode (DVB radio) Explanation of keys INFO (press longer): show Explanation of keys. The TV set can receive digital radio stations via DVB. The AUDIO key has been preset to radio mode in the factory. INFO or BACK: hide Explanation of keys. -
Page 35: Radio Mode (Internet Radio)
Connect 32-55 User guide Audio/Radio Radio mode (Internet radio) Artist Search (Search for artists) By means of the search for artists, you can quickly and easily see all The TV set can receive digital radio stations via the Internet. radio stations that just play music by this artist. The result list is sorted for now and most played. -
Page 36: Photo
Connect 32-55 User guide Photo Photo Photo function list The photo function list contains the individual functions for your Via menu item Photo you can view photos from your local media and photos. from online sources on your TV screen. A photo source has been selected. -
Page 37: Photo Display
Connect 32-55 User guide Photo Photo display Full-screen mode A photo is highlighted in the selection (list view). Description of the symbols in the status display for photos OK View photo in full-screen mode. USB1 -> CRW_7266b Back USB1 -> CRW_7266b Back Show previous / next photo. -
Page 38: Web
The lower portion of the MediaNet home screen All applications are optimised for use on the TV. contains Recommendations given by Loewe. Browser Call Web browser of the TV set. The given content may change from time to time For further information see chapter Web, section without prior notice. -
Page 39: Browser
Internet site, interface (e.g., router, home control, home network server). OK Open address entry box. Calling the Web browser Enter/change internet address Back HOME: Calling the Home view. http://www.loewe.tv Select Web, Select Browser, OK call. www. .com .net Start page will be opened. -
Page 40: System Settings
Detailed information on the individual setting options you will find in Menu items Stations: the user manual, which can be downloaded from the Loewe Internet site (see chapter Miscellaneous, section Documentation). Automatic scan TV+Radio, Manuell scan (incl. -
Page 41: Functions
Connect 32-55 User guide Functions Timer Delete / change programmed timer instruction Use this function in the timer list if you want to delete recordings In the timer menu you will find the Timer List and the Timer Services. already programmed, end a running timer recording or change a All programmed recordings, earmarked programmes and copy jobs timer instruction. -
Page 42: Software Update
Software update Software update via USB storage device It is possible to update the software on your Loewe TV set. To do this, plug the USB stick with the downloaded software into a In the software update (package update) all the software releases in free USB port of the TV set. -
Page 43: Miscellaneous
Select System settings, equipment supplied with the TV set. They are usually available from OK call System settings. your dealer. Loewe does not provide any guarantee for the functioning of the CA module. Select Stations, The TV set must first recognise and set up the CA module during initial go to next column. -
Page 44: Integrated Features
On the rear wall of the TV set, there are four points of screw connections to receive the VESA adapter bolts. Select Extras, Mounting a Loewe flat screen TV set to a holder according to the VESA go to next column. standard necessarily requires the use of Loewe VESA adaptor bolts. -
Page 45: Technical Data
Part number: 54443xxx 54444xxx 54445xxx 54446xxx EU energy efficiency class: see enclosed energy label or under www.loewe.tv/int/supportportal Screen diagonal: 140 cm / 55 inch 122 cm / 48 inch 102 cm / 40 inch 81 cm / 32 inch Power consumption On-Mode (max.) -
Page 46: Environment
Public License or optionally every later version which is published by the Free Software Foundation. The publication of this programme by Loewe is carried out WITHOUT ANY GUARANTEE OR SUPPORT, particularly without an implicit guarantee concerning MARKET MATURITY or the USABILITY FOR A SPECIFIC PURPOSE. -
Page 47: Index
Connect 32-55 User guide Index Antenna DVB ..........40 Hard disks ............. 40 Safety ............4, 5 Archive recording ..........24 HbbTV ............. 23, 40 Scope of delivery ..........3 Artist Search ..........35 HbbTV text ............23 Scrambled stations ........43 Audio playback ..........33 Headphone volume ........ -
Page 48: Service
E-mail: v63@mweb.co.za Tel +972 - 3 - 6091100 EET Europarts E-mail: geral.loewe@mayro.pt Fax +972 - 3 - 6092200 Loewe Denmark E-mail: info@loewe.co.il Bregnerødvej 133 D 3460 Birkerød, Denmark Tel +45 - 82 19 19 E-mail: info@eeteuroparts.dk © by Loewe Technologies 01.09.15... - Page 49 Connect 32-55...
- Page 50 Connect 32-55...
