Page 1
Quick Start Guide About this Quick Start Guide This document provides step-by-step instructions for installation and playback. Refer to the User Guide on the Yamaha website for more information. Visit the following website to see the latest User Guide. Sound Bar...

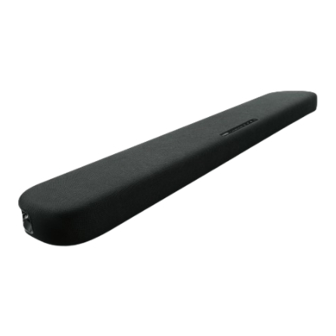

Supplied accessories Make sure you have received all of the following accessories: Use when mounting the sound bar on a wall. Sound bar (SR-B20A) Spacers (×2, on 1 sheet) Mounting template Remote control Power cord NOTE • Quick Start Guide (this booklet) An HDMI cable is not included with this sound bar.
Preparing the remote control Installing the sound bar Remove the battery insulating strip before attempting to use the Installed on a TV stand remote control. Controls Battery insulating strip Wall-mounted NOTE A Lithium battery (CR2025) has already been inserted into the remote control.
Page 4
Connecting a TV Depending on the type of TV, connect the TV to the sound bar as follows: Is your TV equipped with an HDMI jack labeled as “ARC?” Connect the TV using an ARC-compatible HDMI cable (sold Connect the TV using an HDMI cable (sold separately) and digital separately).
Page 5
Connecting the TV using only the digital NOTE • When the sound bar is connected to a TV via HDMI cable, confirm optical audio cable (supplied) that the TV’s settings are properly configured as follows: – The TV's HDMI Control function is enabled. –...
Connecting to power Playing TV sound through the sound bar After all connections are complete, connect the sound bar to power as follows: Power cord (supplied) To an AC wall outlet VOLUME (+/−) Sound bar (rear) Turn on the TV. When the TV is connected to the sound bar using an HDMI cable and the HDMI Control function of the TV is enabled, the sound bar will also turn on.
Page 7
Adjusting the sound to your preference d Enjoying enhanced bass sound STEREO 2-channel stereo playback. (Bass Extension) b Playing audio in surround sound Bass sound is enhanced and becomes more powerful when the bass extension with varying heights (3D feature is enabled. surround) Press BASS EXT to enable or disable When the 3D surround feature is enabled,...
Select your product displayed within the list. NOTE “Yamaha SR-B20A” or “YamahaAV” is displayed within the list. • To control the sound bar using the app, configure the settings on your mobile device as follows: Play audio content on the Bluetooth device.
