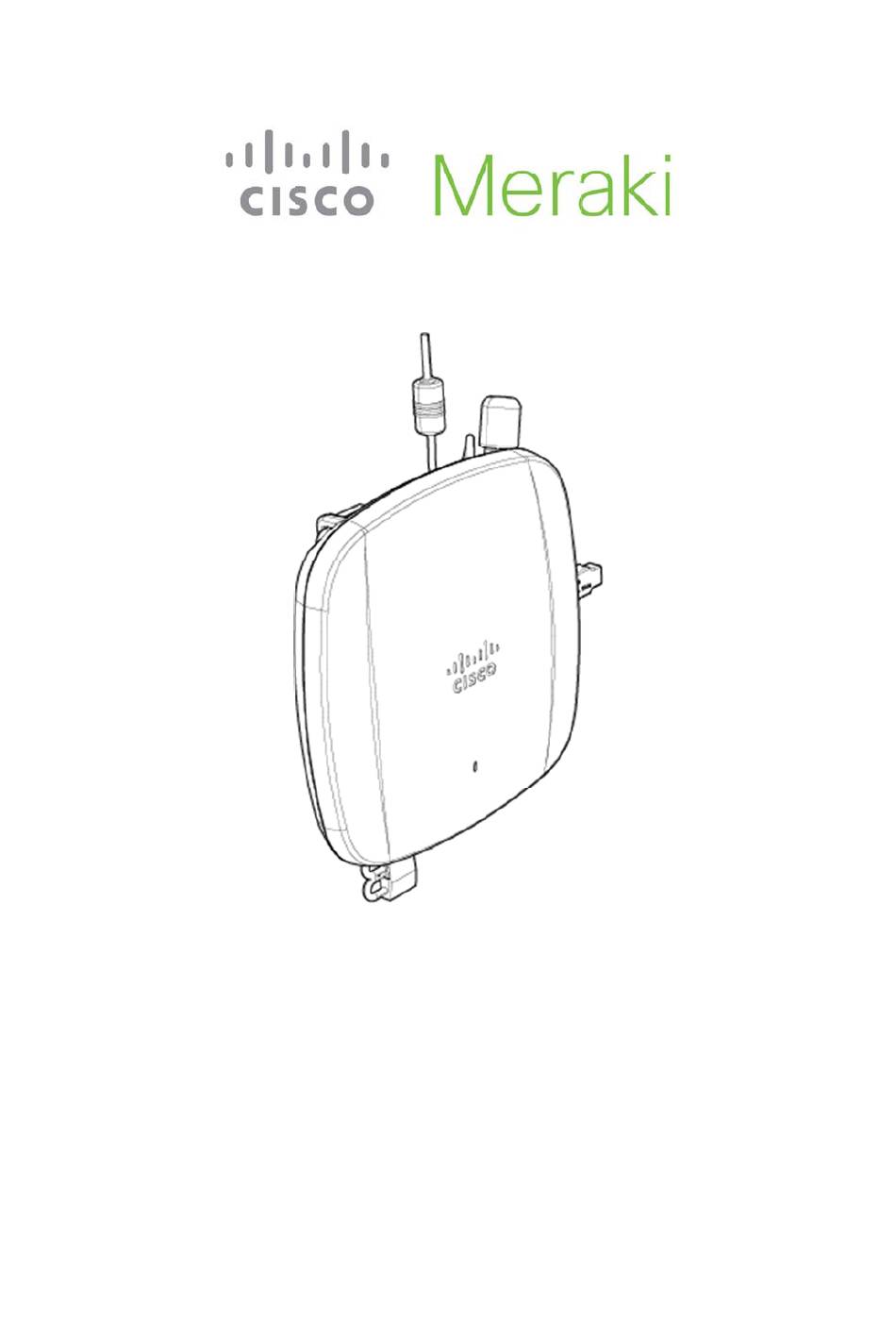

- Page 1 eraki 162I Hard ware Inst allation G Guide...
- Page 2 In the interest of improving internal design, operational function, and/or reliability, Cisco Systems reserves the right to make changes to the products described in this document without notice. Cisco Systems does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
-
Page 3: Table Of Contents
Table of Contents Scope of Document and Related Publications CW9162I-MR Overview 2.1 Package Contents 2.2 Understanding the CW9162I-MR 2.3 Security Features 2.4 Ethernet Ports 2.5 Power Source Options 2.6 Factory Reset Button 2.7 LED Indicators and Run Dark Mode Pre-Install Preparation 3.1 Configure Your Network in Dashboard 3.2 Check and Upgrade Firmware 3.3 Check and Configure Firewall Settings... -
Page 4: Scope Of Document And Related Publications
Scope of Document and Related Publications The CW9162I-MR Hardware Installation Guide describes the installation procedure for the CW9162I- MR indoor access point. Additional reference documents are available online at www.meraki.com/library/product. ... -
Page 5: Cw9162I-Mr Overview
CW9162I-MR Overview The Meraki CW9162I-MR is an enterprise-class, dual-concurrent 4x4 MIMO 802.11ax indoor access point designed for high-density deployments in offices, schools, hospitals and hotels. When connected to the Meraki Cloud Controller, the CW9162I-MR enables the creation of ultra-high speed, reliable indoor wireless networks quickly, easily and cost- effectively. -
Page 6: Security Features
2.3 Security Features The CW9162I-MR features multiple options for physically securing the access point after installation: 1. Security screw – The accessory kit includes screws that can be used to secure the access point to the mount plate. Engaging the security screw prevents accidental dislodging and theft. -
Page 7: Pre-Install Preparation
Pre-Install Preparation You should complete the following steps before going on-site to perform an installation. 3.1 Configure Your Network in Dashboard The following is a brief overview only of the steps required to add an CW9162I-MR to your network. For detailed instructions about creating, configuring and managing Meraki wireless networks, refer to the Meraki Cloud Controller Manual (meraki.com/library/product). -
Page 8: Assigning Ip Addresses To Cw9162I-Mr
3.4 Assigning IP Addresses to CW9162I-MR All gateway CW9162I-MR (CW9162I-MR with Ethernet connections to the LAN) must be assigned routable IP addresses. These IP addresses can be dynamically assigned via DHCP or statically assigned. 3.4.1 Dynamic Assignment When using DHCP, the DHCP server should be configured to assign a static IP address for each MAC address belonging to a Meraki AP. -
Page 9: Collect Tools
Collect Tools You will ne ed the follow wing tools to perform an i installation: Phillips Hamme Drill with 1/4 4” scre ewdrive (6.3mm) bits Collect Addition nal Hardw ware for Installat 802.3at Po oE power so ource (either AC Adapte PoE switch h or Meraki 8 802.3at PoE... - Page 10 Installa ation Inst tructions Choose e Your M Mounting Location A good mo ounting locat tion is impor rtant to gettin ng the best p performance e out of your r CW9162I- MR access s point. Kee ep the followin ng in mind: 1.
-
Page 11: Wall Or Solid Ceiling Mount Using Mount Plate
4.2.1.1 Wall or Solid Ceiling Mount Using Mount Plate Using included screws, attach the mount plate to your mounting wall or ceiling. It is recommended that the CW9162I-MR be mounted to a wall or solid ceiling using the mount plate for physical security reasons. If mounting your CW9162I-MR to a wall, skip to “Power the CW9162I-MR“... -
Page 12: Electrical Junction Box Mount Using Mount Plate
4.2.1.2 Electrical Junction Box Mount Using Mount Plate The CW9162I-MR can be mounted to a 4” square cable junction box, a 3.5 or 4” round cable junction box, or various U.S. and European outlet boxes (mounting screws are not included). Using appropriate mounting hardware for your specific type of junction box, attach the mount 4.2.2 Power the CW9162I-MR If mounting to an electrical junction box, feed the Ethernet cable through the cable access hole in the... -
Page 13: Powering The Cw9162I-Mr With Meraki Ac Adapter
4.2.2.1 Powering the CW9162I-MR with the Meraki AC Adapter (sold separately) 1. Plug the power cord into the CW9162I-MR and the other end into a wall outlet. 2. Plug an Ethernet cable that is connected to an active Ethernet connection into the Eth0 port on the CW9162I-MR. - Page 14 .2.2.3 Power ring the CW W9162I-MR with an 802 2.3at Power over Ethern net Switch Route Ethern net cable fro m a port on an active 80 02.3at PoE s switch to the e Eth0 port in n the bay of the CW9162I-MR The CW W9162I-MR...
- Page 15 4.2.3.2 Ass semble CW 9162I-MR to the Moun nt Plate (This secti on applies to o wall and/or r solid ceiling g, drop ceilin ng or electric cal junction b mount whe ere you have e already ins stalled the m mount plate.) Insert the top latch on...
- Page 16 4.2.3.3 Desk or Shelf Mount The CW9162I-MR can be placed on a desk or shelf resting on the non-scratch rubber feet. The mount plate is not necessary for a desk or shelf mounting. ...
- Page 17 4.3 Secure the CW W9162I-M Depending on your mo ounting enviro onment, you u may want t to secure the e CW9162I-M MR to its mo ount location Your CW91 162I-MR can n be secured d in several w ways. If the CW9162I-M MR has been n installed us...
-
Page 18: Verify Device Functionality And Test Network Coverage
4.4 Verify Device Functionality and Test Network Coverage 1. Check LEDs The LED should be solid white. If it is flashing orange, the firmware is automatically upgrading and the LED should turn green when the upgrade is completed (normally in under thirty minutes). - Page 19 IEEE 802.11b or 802.11g operation of this product in the USA is firmware-limited to channels 1 through 11. FCC regulations restrict the operation of this device to indoor use only. The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet.
- Page 20 If the device is going to be operated in the 5.15 - 5.25 G H z frequency range, then it is restricted to indoor environment only. This device meets all other requirements specified in Part 15E, Section 15.407 of the FCC Rules.
- Page 21 Utilisation li mitée à l’inté érieur seulem ment. Operation o on oil platform ms, cars, tra ains, boats a and aircraft s shall be proh hibited excep pt for on larg aircraft flyin ng above 10, ,000 ft. Utilisation in nterdite à...
- Page 22 5150 to 5350 MHz, 5925 to 642 25MHz freq quency rang UK Hereb by, Cisco S ystems Inc c. declares t that the rad dio equipme ent type CW W9162I ser ries is in comp...
- Page 23 Ensure that the AP is powered using a UL-compliant PoE power source. You must connect the unit only to PoE network without routing to the outside plant. opyright © 2020 Cisco Systems, Inc. All rights reserved. Trademarks www.ciscosystems.com Cisco Systems, Inc.
