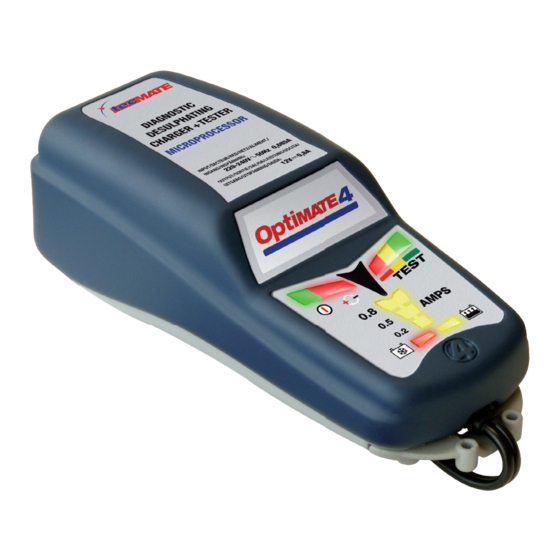

IMPORTANT SAFETY program quad INSTRUCTIONS - SECTION A. SAVE THESE INSTRUCTIONS. IT IS OF THE UTMOST IMPORTANCE THAT EACH TIME, BEFORE USING THE BATTERY CHARGER, YOU COMPLETELY FAMILIARIZE YOURSELF WITH THESE SAFETY INSTRUCTIONS. AUTOMATIC BATTERY CHARGER FOR 12V LEAD-ACID & 12.8V LiFePO BATTERIES.
Page 6
5. CHARGER LOCATION: a) Do not operate charger in a closed-in area or restrict ventilation in any way. b) Locate charger as far away from battery as DC cables permit. c) Never place charger directly above battery being charged; gases from battery can corrode and damage the charger. d) Never allow battery acid to drip on charger when reading gravity or filling battery.
The auxiliary DIN socket on BMW motorcycles (Models: from 2004) can receive charge and maintenance even with ignition turned off, when using a CAN-bus charge mode on OptiMate4 Quad program. ii) Other vehicles fitted with a DIN socket: if the 12V DIN socket remains continuously powered up after the ignition has been turned off, charge &...
Page 8
IMPORTANT: FLAT BATTERY (< 5V) - if the vehicle's lead-acid battery is deep discharged the vehicle's CAN-bus system will not be able to activate the 12V socket. Remove the battery, inspect it for physical damage or leakage, if deemed acceptable, to recharge select Program 1 and connect the OptiMate4 directly to the battery.
Page 9
When handling batteries or in their vicinity, always take care to observe the SAFETY WARNINGS above. Program selection Changing selection: Disconnect OptiMate4 from the battery or vehicle. Push and release the pushbutton switch. The mode selection changes when the button is released. Continue to press and release until the desired program has been selected.
Page 10
STEP 4 & 5 Charge time : Program 1 & 2: 15min to 2hrs. Program 3 & 4: up to 6 hours. SAVE - LED #3 IMPORTANT: Read section VERY FLAT NEGLECTED BATTERIES prior. A battery diagnosed as deep discharged undergoes a multi-step reconditioning process appropriate for the selected battery chemistry and connection method (direct / CAN-bus), is tested to confirm it's state of health before proceeding to STEP 6.
Page 11
STEP 9 MAINTENANCE CHARGE: LED #6 / 7 / 8 steady on according to state of charge measured during STEP 8. OptiMATE Float voltage setting: 13.6V. The general maintenance program consists of 30 '365' MAINTAIN minute float charge periods, followed by and alternating with 30 minute ‘rest’ LED #6 / 7 / 8 periods, during which there is no charge delivered.
0.024kWh or less per day. LIMITED WARRANTY TecMate (International) SA, B-3300 Tienen, Belgium, offers this limited warranty to the original purchaser at retail of this product. This limited warranty is not transferable. TecMate (International) warrants this battery charger for three years from date of purchase at retail against defective material or workmanship.
Page 28
중요 안전 지침 program quad - 섹션 A. 이지침을 보관하십시오. 매번 배터리 충전기를 사용하기 전에 이 안전 지침을 완전히 숙지하 는 것이 가장 중요합니다. 자동 밧데리 충전기 ( 12V LEAD-ACID & 12.8V LIFEPO4 BATTERIES). NICD, NIMH 또는 다른 유형의 LI-ION 또는 비충전식 바데리에 사용하지 마십시오.
Page 29
때는 눈을 만지지 마십시오. d) 배터리 산이 눈에 닿거나 눈에 들어간 경우 10분 이상 차가운 흐르는 물에 눈을 적시고즉시 의사의 진 료를 받으십시오. 배터리 산이 피부나 의복에 닿으면 즉시 비누와 물로 씻으십시오. e) 배터리 또는 엔진 근처에서 담배를 피우거나 불꽃이나 불을 일으키지 마십시오. f) 금속공구를 배터리 에...
Page 30
위험을 줄이기 위해서는 a) 차량 자체 또는 움직이는 엔진 부품에 의한 손상 위험을 줄이도록 AC 및 DC 코드를 배치합니다. b) 사람을 다치게 하거나 충전기 및 코드/케이블을 손상시킬 수 있는 팬 블레이드, 벨트,체인, 스프로킷, 풀리 및 기타 차량 부품에서 멀리 떨어져 있어야 합니다. c) 배터리...
Page 31
퓨즈를 먼저 끊은 원인을 파악하여 해결하십시오. 퓨즈는 15A 정격 ATO퓨즈로만 교체하십시오. 2) DIN/ISO 4165 12V 전원 소켓을 통해 충전하는 SAE-DIN 플러그 어댑터(O-19): i) OptiMate4 Quad 프로그램에서 CAN 버스 충전 모드를 사용할 경우, BMW 모터사이클의 보조DIN 소켓(2004년 모델)은 점화 스위치가 꺼진 상태에서도 충전 및 유지보수를 받을 수 있습니다.
Page 32
중요: 플랫 배터리(9V 미만) - 차량의 LFP/리튬 배터리가 방전되었거나 배터리의 BMS 시스템이 내부에서 전원을 끈 경우 차량의 CAN 버스 시스템이 12V 소켓을 활성화할 수 없습니다. 배터리를 분리하고 물리적 손상 또는 누출이 있는지 검사하여 프로그램 3을 재충전하고 OptiMate4를 배터리에 직접 연결합니다.
Page 33
스위치를 눌렀다 놓으십시오. 버튼을 놓으면 모드 선택이 변경됩니다. 원하는 프로그램이 선택될 때까지 계속 눌렀다 놓으십시오. 3초 이상 더 이상 선택하지 않으면 SAVE(#3), CHARGE(#4), OPTIMIT(#5) 및 TEST(#6,7,8) LED가 두 번 깜박여 선택 항목이 메모리에 있는지 확인합니다. OptiMate4를 배터리 또는 PR 1 차량에 연결합니다.
Page 34
단계 4 & 5 충전시간 : 프로그램 1 & 2: 15분에서 2시간. 프로그램 3 & 4: 최대 SAVE - LED #3 6시간. 중요: 그 전에 배터리 방전 단원을 읽으시오. 완전방전으로 진단된 배터리는 선택된 배터리 화학 및 연결 방법에 적합한 다단계 컨디셔닝 과정을 거칩니다. 충전상태...
Page 35
단계 8 배터리로의 전류 전달이 30분 동안 중단됩니다**. 이를 통해 프로 충전 후의 테ㅡ 트 그램에서 배터리의 충전 유지 능력을 확인할 수 있습니다. - LED #6 * SAVE 모드(LED #3)에서 충전을 시작하면 전압 유지 테스트가 12시간으로 연장되어 배터리 상태를 확인합니다. 90% 이상의...
Page 36
OPTIMATE 4 1) 차량 내 배터리, CAN 버스 프로그램 2또는 4 4) 차량 내 배터리, 프로그램 1 또는 3 충전안됨 선택됨 > 배터리 전압이 차량의CAN 버스 선택됨 - 배터리 전압이0.5V 미만임 시스템에 전원을 공급하기에 너무 낮을 수 a) 프로그램 1 또는 3: 차량에서 배터리를 있습니다.
Page 37
소비량은 하루에 0.024kWh 이하로 추정됩니다. 제한 보증 TecMate(International) SA, B-3300 Tienen, B-3300 Tienen은 이 제품의 소매점에서 원래 구매자에게 이 제한 보증을 제공합니다. 이 제한 보증은 양도할 수 없습니다. TecMate(International)는 이 배터리 충전기를 소매점에서 구입한 날로부터 3년 동안 결함 있는 재료 또는 제조 기술에 대해 보증합니다. 이러한 상황이 발생할 경우 제조자의 선택에 따라...
